Passing a fuel line through a boat's hull is a complex task that requires careful consideration to ensure safety and functionality. The process involves routing the fuel line from the fuel tank to the outboard motor, taking into account factors such as ventilation, hose type, and fittings. The fuel line can be passed through a small ventilator cowl, an inspection hatch, or a bulkhead fitting, each with its own advantages and potential challenges. The choice of hose material and thickness is critical, as it needs to be flexible enough to fit through narrow paths while also meeting safety standards for heat and fire resistance. Proper clamping and ventilation are essential to prevent fuel leaks and to mitigate the risk of gasoline fumes, which can be hazardous.
Characteristics and Values table for feeding a fuel line through the hull:
| Characteristics | Values |
|---|---|
| Fuel line type | Low permeation marine fuel hose |
| Hose material | Rubber-like, flexible, and thin-walled |
| Hose size | 1/4", 5/16", 8mm |
| Fittings | Bulkhead fuel fitting, gland type fitting, or a hole with a grommet |
| Ventilation | Safe venting is important to prevent gasoline fumes and petrol incidents; use a small ventilator cowl or an inspection hatch with a notch for the fuel pipe |
| Clamps | Tight clamps are necessary to avoid abrasion and fuel line droop |
| Heat | Keep the fuel line away from heat sources to prevent vapor lock or fire; use heat shields or sleeves if necessary |
| Water intrusion | Avoid potential spots for water intrusion by using a longer fuel line and routing it through the designated path |
| Fuel tank | Consider a fixed fuel tank with a deck filler and overboard vent for easier refuelling and safe venting |
| Fuel caps | New fuel caps restrict venting fumes while allowing air into the tank |
Explore related products
What You'll Learn
Using a bulkhead fitting

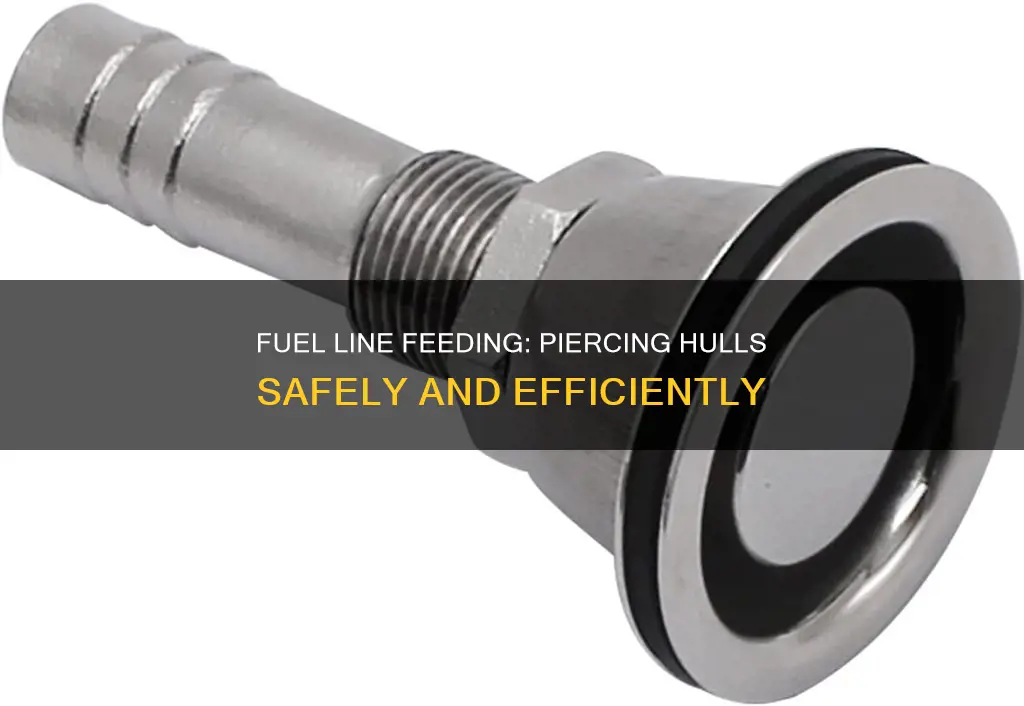

When feeding a fuel line through a boat's hull, one method is to use a bulkhead fitting. These fittings are designed to allow the passage of hoses, wires, or cables through the boat's bulkheads (walls or partitions) in a secure and sealed manner. They are commonly used in high-performance and racing powerboats to ensure the proper connection and isolation of various systems, improving safety and performance.
The process of installing a bulkhead fitting typically involves the following steps:
- Measure the diameter of the fuel line or hose that will be connected to the bulkhead fitting.
- Choose a bulkhead fitting with matching threads and the same inner diameter as the fuel line to ensure a snug fit.
- Check the compatibility of the bulkhead fitting with the thickness of the fuel cell or tank wall. Some fittings are designed for specific wall thicknesses, so refer to the product specifications.
- Install the outer threaded sleeve of the bulkhead fitting through a hole in the fuel cell or tank wall, creating a sealed passage.
- Connect the inner fitting to the outer sleeve on both sides of the wall, allowing for the secure attachment of the fuel line or hose.
- To enhance the security of the fitting, consider using a fuel hose clamp instead of an ordinary jubilee clip.
- For added assurance against leaks, consider applying epoxy around the fittings and securing the line soon after the fittings.
It is important to note that using a bulkhead fitting for a fuel line can make it difficult to remove the fuel tank for filling. Additionally, the cost of bulkhead fittings can vary depending on factors such as size, material, and brand. Basic bulkhead fittings typically start at around $10 to $20 each for smaller sizes, while specialized fittings for racing or performance applications can range from $30 to $100 or more per fitting.
STI Fuel Lines: E85 Compatible?
You may want to see also
Explore related products
Drilling a hole for the fuel line
Planning the Hole Location:
Before you start drilling, carefully plan the location of the hole. Consider the path of the fuel line and choose a spot that allows for smooth routing without any sharp bends or obstructions. Avoid drilling too close to the edge of the hull to prevent weakening the structure.
Selecting the Appropriate Drill Bit:
Choose a drill bit that corresponds to the size of the fuel line. The hole should be just large enough for the fuel line to pass through comfortably. A hole that is too large can create potential spots for water intrusion, while a hole that is too small will make it difficult to thread the fuel line.
Preparing the Drilling Surface:
Clean and prepare the drilling surface to ensure a smooth and accurate drilling process. Remove any debris, grease, or residue from the area to achieve a clean drilling surface.
Drilling the Hole:
Secure the hull firmly to prevent any unnecessary movement during the drilling process. Use a drill press if possible to ensure accuracy and stability. Start drilling slowly and with moderate pressure to create a pilot hole. Once the drill bit has established a path, you can increase the speed and apply more pressure to complete the hole.
Finishing Touches:
After drilling the hole, use a file or sandpaper to smooth any rough edges around the hole. This will help prevent the fuel line from being damaged by sharp edges. You may also want to consider installing a grommet or fitting to protect the fuel line and provide a secure passage through the hull.
It is important to note that drilling into the hull of a boat or any fuel-related component requires careful planning and execution. Always follow safety guidelines and seek advice from professionals or experienced individuals if you are unsure about any aspect of the process.
Nitrile Rubber and PVC: Safe Fuel Line Materials?
You may want to see also
Explore related products
Safe venting
Choose the Right Vent Type and Design:
Select a vent that is specifically designed for through-hull installation, like Perko's through-hull vent with an integral splash guard or Attwood's 90-degree P-trap fuel tank vent. Ensure that your chosen vent is Coast Guard approved.
Proper Vent Placement:
Mount the vent at a high point to prevent water ingress and facilitate the efficient release of vapours without obstructions. The vent should be installed on a vertical or slightly angled exterior hull surface to direct fumes outboard and not into the boat. Angle the vent opening aft and slightly downward to shield it from waves, rain, and spray.
Avoid Traps in the Vent Line:
When installing the vent hose, avoid sags or traps that can allow fuel to puddle and impair the vent's function. The vent line should run as straight as possible, allowing any fuel to drain back into the tank via gravity. Ensure the line is installed higher than the highest point on the tank, including the fuel filler neck, to prevent fuel or condensation from getting trapped.
Utilise a Fuel Surge Protector:
Install a no-spill valve or fuel surge protector, such as those offered by Attwood and Racor. These devices prevent fuel from spewing out of the vent during filling, reducing the risk of spills and stains on the hull.
Keep the Vent Screen Clean:
Fuel vents often have fine-wire screens to keep out debris, insects, and spiders. Clean these screens regularly to prevent corrosion, salt crystals, and grime from building up and impairing the vent's ability to breathe.
Safety Precautions:
Always work in a well-ventilated area when dealing with fuel vents, as fuel vapours are highly flammable and can be harmful if inhaled. Do not smoke or have any open flames nearby. Disconnect your vehicle's battery before beginning any work on the fuel vent.
Fuel Line Fix for Cadillac SRX: How Many Lines?
You may want to see also
Explore related products
$34.99
Running the fuel line through a ventilator cowl
Running a fuel line through a ventilator cowl is one of the ways to ensure safe venting. This can be done by rigging the fuel line so that the bulb stays inside. The fuel line can also be run through an inspection hatch, with a small notch cut in it for the fuel pipe. This can be opened to pass the end fitting and the bulb through when necessary to remove the tank.
One user on a boating forum has a 25-foot boat with a plastic 25-litre tank. They have opted to run the fuel line through a ventilator cowl. They have a plastic tank sat on a levelling base at the inboard forward corner of the cockpit locker.
Another user has a 1984 boat and has routed the fuel line out of the lid cutout. They mention that the hole should be large enough for the fitting unless you splice your line, which would introduce clamps and other issues.
A third user has a different approach. They have a hole in the hull of the stern to run the fuel line out to the outboard. They mention that the hole should be high up to avoid crimping the fuel line when sitting on the seat. They also recommend putting a grommet in the hole to avoid any potential water intrusion.
It is important to note that if you are running a vent line, it should be higher than the highest point on the tank, including the fuel filler neck. The vent line should not have any dips where fuel or condensation can get trapped.
Bleeding Kubota Fuel Injector Lines: Step-by-Step Guide
You may want to see also
Explore related products
Using a gland type fitting
Firstly, it is important to plan the plumbing of your fuel system. Drawing a simple diagram can help you visualise where everything will go and identify any potential issues. You will need to consider the type of fitting required and the length and diameter of the hose. The hose is the vital link that joins all the components together, so selecting the right type is crucial. For a fuel line through the hull, you may need to use a hose with a smaller diameter to fit through narrow routing paths.
When selecting a fuel hose type, consider whether it will be located above or below the deck. Above-deck fuel lines are typically used for outboard engines connected to an above-deck tank. Below-deck fuel lines are used in confined compartments and require a higher grade of hose to prevent fuel loss. For below-deck applications, you must use an A1 fuel hose on the high-pressure side (after the pump).
To seal the pipe threads on fuel system components, you will need to use a sealant. The type of sealant depends on the thread type of the component. The most common thread type in fuel line components is NPT or NPTF, which requires a sealant around the threads. When using NPT or NPTF threads, you must mate them with matching thread types. If you are using a male hose barb fitting, brass or stainless steel is recommended.
To ensure the safety of your fuel system, it is advisable to consult a professional or have your work inspected to identify any potential fuel leak hazards. You can also have the system pressure-tested by a professional to ensure its integrity.
Fuel Injector Cleaning: Unclogging Fuel Lines?
You may want to see also
Frequently asked questions
You can feed a fuel line through the hull of a boat by cutting a hole and installing a grommet to pass the hose through. The hole should be large enough to fit the grommet and hose, but not too large to avoid another potential spot for water intrusion.
It is important to keep the fuel line away from heat sources and moving parts such as driveshafts, CV axles, wheels and steering components. When passing the line through a panel, use bulkhead fittings or grommets to protect it. Additionally, ensure that the clamps on the fuel line are tight to avoid abrasion and fuel line droop.
It is important to choose a hose that meets the required standards for fuel lines, such as the USCG standards for heat and fire resistance. The hose should also be the appropriate size and material for your specific application, considering factors such as flexibility and wall thickness.
