If you're looking to delete your fuel filter head on an LB7 engine, you're likely aiming to resolve issues with fuel filter restrictions or leaks. This process involves bypassing the filter head using a bypass tube or adapter, which can improve fuel flow and prevent leaks caused by overheating. Before attempting this modification, it's important to understand the risks and ensure you have the necessary parts and expertise. Some people choose to retain their stock fuel filter as it provides an extra layer of protection against fuel contamination. However, others opt to delete it to make room for other components or to simplify the engine bay.

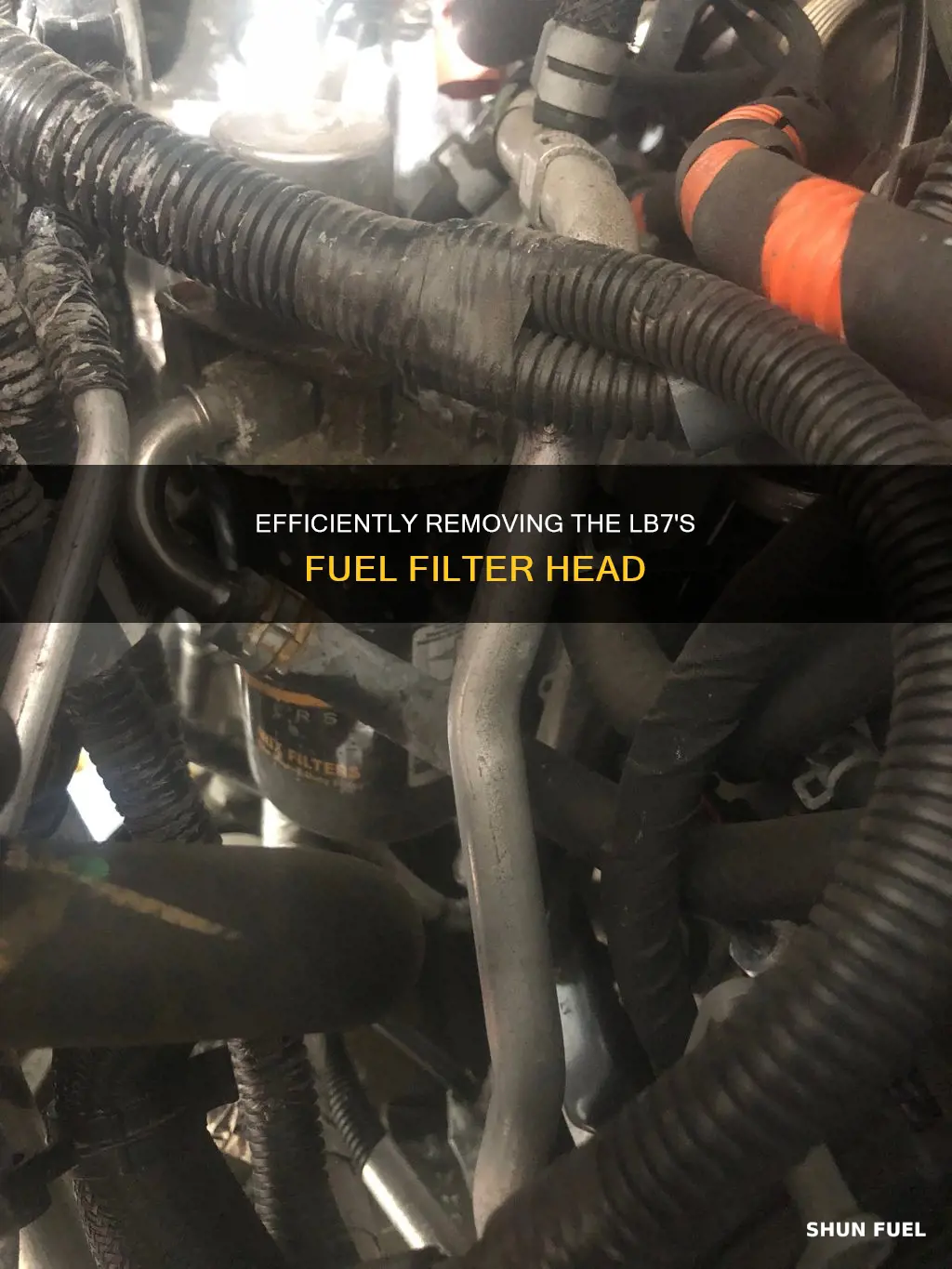

Deleting the fuel filter head on an LB7 engine
| Characteristics | Values |
|---|---|
| Step 1 | Cover the turbo horn so that nothing falls inside it |
| Step 2 | Disconnect the sensor on the bottom of the filter, being careful of spilling fuel |
| Step 3 | Remove the fuel filter |
| Step 4 | Disconnect wiring from the top of the fuel filter head and remove the bolts holding the housing on |
| Step 5 | Drain the excess fuel into a bucket or soak it up with a rag |
| Step 6 | Reinstall the mid-section of the air filter |
| Step 7 | Tuck the WIF sensor wires away and reinstall the wheel liner |
| Step 8 | Turn the key on and let the lift pump push fuel for a few seconds before trying to start the engine |
| Other considerations | Some people choose to keep the factory fuel filter to prevent leaks and issues with the engine |
Explore related products
What You'll Learn
Cover the turbo horn
Covering the turbo horn is an important step when deleting the fuel filter head on an LB7 engine. This process involves removing and reinstalling certain components, ensuring that nothing falls into the turbo horn during the procedure.
To cover the turbo horn, start by locating the turbo horn itself. The turbo horn is typically a large, black tube found on the right side of the engine. Once identified, follow these steps:
- Disconnect the sensor at the bottom of the fuel filter, being cautious as it will be filled with fuel.
- Remove the fuel filter carefully to avoid spills.
- Disconnect the wiring from the top of the fuel filter head and remove the bolts securing the housing. Allow excess fuel to drain into a bucket or contain it with a rag.
- With the fuel filter and housing removed, you can now access and cover the turbo horn. Ensure that it is securely covered to prevent any debris or contaminants from falling inside during the rest of the process.
- After completing the necessary tasks with the fuel filter head deleted, you can reinstall the turbo horn cover and proceed with the remaining steps of the fuel filter deletion process.
Remember to refer to appropriate service manuals and follow safety precautions when working on your vehicle.
Cleaning Your AEM Fuel Filter: A Step-by-Step Guide
You may want to see also
Explore related products
Disconnect the sensor on the bottom of the filter
To disconnect the sensor on the bottom of the fuel filter on an LB7 engine, you will need a few basic tools and about 30 minutes of your time. Start by parking your vehicle on a level surface and engaging the parking brake. Lift the hood and locate the fuel filter assembly on the driver's side of the engine compartment. It is a rectangular metal canister with a black plastic top and a sensor attached to the bottom.
Place a drain pan or rag beneath the fuel filter assembly to catch any spilled fuel. Using a fuel line disconnect tool or a small screwdriver, release the locking tab on the fuel line quick-connect fitting that is attached to the inlet port on the top of the fuel filter. Pull the fuel line off the inlet port.
Now, focus on the sensor at the bottom of the filter. This is the fuel heater and temperature sensor. It is held in place by a small bracket and a wiring harness connector. Unplug the wiring harness connector from the sensor. You may need to depress a locking tab or squeeze the sides of the connector to release it. Be gentle to avoid damaging the connector or the wires.
With the wiring harness disconnected, you can now remove the sensor. The sensor is held in place by a small bracket with a 10mm bolt. Remove this bolt and set it aside, making sure you don't drop it into the engine compartment. Now, gently pull the sensor downward to detach it from the fuel filter. It may take a bit of wiggling and twisting, but it should come free with a firm and steady motion.
At this point, the sensor is disconnected and removed from the fuel filter. You can now replace the sensor, clean it, or perform any other necessary maintenance on the fuel filter assembly. Reinstallation is the reverse of the removal process, ensuring that all connections are secure and tight to prevent fuel leaks.
Remember to handle fuel carefully and avoid open flames or hot engine components. Always refer to a service manual or seek guidance from a qualified technician if you're unsure about any steps or procedures.
Volvo S60 D5: Replacing the Fuel Filter
You may want to see also
Explore related products
Disconnect wiring from the top of the fuel filter head
Disconnecting the wiring from the top of the fuel filter head is a crucial step in deleting the OEM fuel filter on an LB7 engine. This process involves carefully removing the wiring connections that supply power and data to the fuel filter head, allowing it to function within the fuel system.
To begin, it is important to have the necessary tools on hand, such as needle-nose pliers, a flat-head screwdriver, and a ratcheting closed-end wrench. These tools will aid in the disconnection process and ensure a smooth procedure.
Once you are equipped with the required tools, follow these detailed steps:
- Cover the turbo horn: Before initiating any wiring disconnection, it is crucial to cover the turbo horn securely. This precaution ensures that no debris or foreign objects fall into the turbo horn during the process, preventing potential damage or complications.
- Disconnect the sensor: The next step is to disconnect the sensor located at the bottom of the fuel filter. If it hasn't been deleted already, carefully detach the sensor, being mindful of any fuel spillage as the filter will be full of fuel.
- Remove the fuel filter: After disconnecting the sensor, it's time to remove the fuel filter itself. Again, exercise caution to avoid fuel spillage. At this stage, you will notice the wiring that plugs into both the top and bottom of the filter housing.
- Disconnect wiring from the top of the fuel filter head: Now, focus on the wiring at the top of the fuel filter head. Using your tools, carefully disconnect the wiring harness or connector from the fuel filter head. Ensure that you are gentle yet firm in your approach to avoid any damage to the wiring or the connector.
- Absorb excess fuel: As you work, be mindful of any excess fuel that may drain or leak. Use a bucket or a rag to catch and absorb this fuel, ensuring a clean and safe work environment.
- Remove bolts: With the wiring disconnected, proceed to remove the bolts holding the fuel filter housing in place. Depending on your specific model, there may be two bolts that require removal.
By following these steps, you will successfully disconnect the wiring from the top of the fuel filter head on your LB7 engine. Remember to stay organized, work carefully, and refer to model-specific guides or manuals if needed.
Changing Your Mercruiser Fuel Filter: Step-by-Step Guide
You may want to see also
Explore related products
Tuck the WIF sensor wires away
To tuck the WIF sensor wires away, first, take off the turbo horn cover and reinstall the mid-section of the air filter. Then, tuck the WIF sensor wires away and reinstall your wheel liner. You can power wash the liner if you wish to clean it. Once everything is installed, double-check the connections and move on to the next step.
The WIF sensor wires are set into the sensor. There is a plug after about 4 inches of those wires that is held in place by a clip. That plug needs to be pulled.
Cleaning a Clogged CBR600 Fuel Filter: Step-by-Step Guide
You may want to see also
Explore related products
Check for leaks
After you've deleted the fuel filter head on your LB7, you'll want to check for leaks. This is a crucial step to ensure that your vehicle is safe to operate and that fuel is not being wasted.
First, you'll want to inspect the area where the fuel filter head was located for any signs of fuel leakage. Look for any wet spots, drips, or puddles of fuel. If you notice any fuel accumulation, it indicates a leak that needs to be addressed.
Next, pay close attention to the fuel lines, especially those on the passenger side, as they are more prone to leaking. Check for any cracks, damage, or signs of wetness on the lines themselves. If you have recently installed a lift pump, be aware that leaks can occur at the fuel heater or priming pump, or even from the metal lines where they press into the housing.
If you have difficulty identifying the source of the leak, there is a dye that you can add to the fuel, which will help trace it back to the source. This can be a useful tool to pinpoint the exact location of the leak.
Additionally, consider the age of your rubber fuel lines. Over time, these lines can degrade and become brittle, leading to leaks. If your vehicle has high mileage or the previous owner did not regularly maintain the fuel system, replacing these rubber lines may be a prudent decision.
Finally, once you've identified and addressed any leaks, it's important to double-check all connections and clamps. Ensure that everything is securely tightened and fastened. This includes the fuel lines, clamps, and any other components associated with the fuel system.
By following these steps and being vigilant about checking for leaks, you can help ensure the safe and efficient operation of your vehicle.
