Katerina Swanson

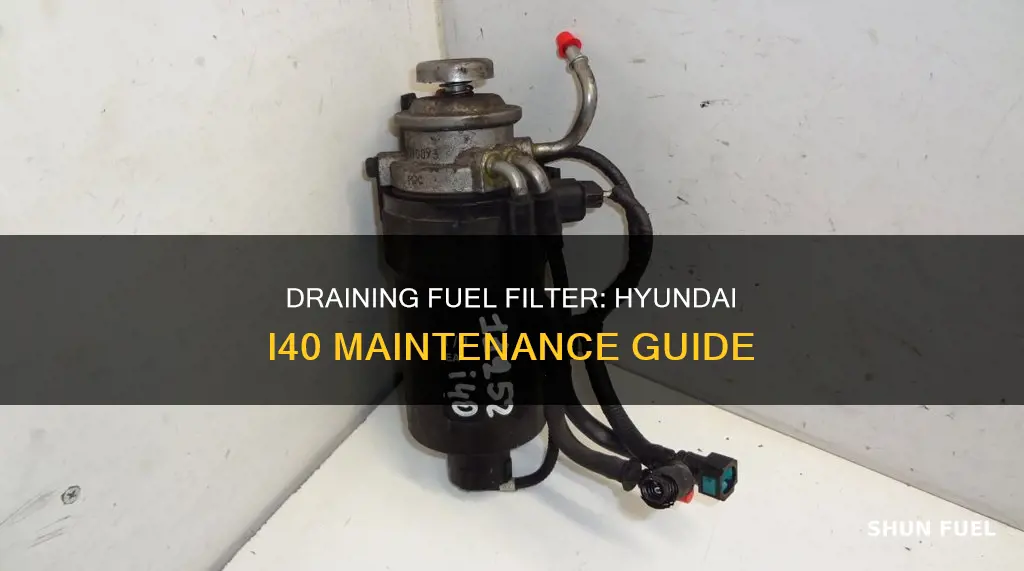

Draining and replacing the fuel filter in a Hyundai i40 is a relatively straightforward process. The first step is to locate the fuel filter on the left-hand side of the engine bay. Once located, the next step is to drain the filter by removing the water sensor from the bottom. After this, you can proceed to replace the fuel filter by unscrewing the old one and screwing in a new one. It is important to note that you should ensure adequate ventilation when performing this task, as fuel vapors are poisonous.
Explore related products
What You'll Learn
Removing the water sensor
To remove the water sensor from a Hyundai i40, follow these steps:
First, locate the fuel filter on the left-hand side of the engine bay. You should see several fuel lines attached to it. Reach underneath the housing and feel for a knob, which is the cap screw.
Before unscrewing the cap screw, disconnect the wiring for the water sensor. If you don't, you risk twisting and breaking it when you unscrew the sensor. Once the wiring is disconnected, unscrew the water sensor from the bottom of the filter housing.
After unscrewing the water sensor, water and diesel fuel will likely leak out. Once the leaking stops, put the cap screw back on and reattach the connector.
Finally, screw in the new water sensor and secure it with the fixing bolts.
Cleaning a Generator Fuel Filter: Step-by-Step Guide
You may want to see also
Explore related products
Disconnecting the wiring
To disconnect the wiring when draining the fuel filter of a Hyundai i40, follow these steps:
First, locate the fuel filter on the left-hand side of the engine bay. You should see several fuel lines attached to it. Feel underneath the housing to find the drain screw, which is usually a cap screw. Before unscrewing the drain screw, make sure to detach any sensor leads connected to the housing. This step is crucial to avoid twisting or breaking the wiring when removing the sensor.
Once you have detached the sensor leads, proceed to unscrew the drain screw. Place a container underneath to catch any fluid that may leak out, which could be a mixture of water and diesel. Allow the fluid to drain completely, then tighten the cap screw back in place. Reattach the sensor connector, ensuring it is secure.
It is important to note that simply draining the fuel filter may not be sufficient if the fuel in the tank is contaminated. In such cases, you may need to drain the entire tank, refill it with fresh fuel, and replace the fuel filter. Additionally, ensure you are using fuel from reliable sources to prevent future contamination.
Taking these steps to disconnect the wiring when draining the fuel filter of your Hyundai i40 will help ensure a smooth and safe process.
The Ultimate Guide: Changing In-Tank Fuel Filter
You may want to see also
Explore related products
Draining contaminated fuel
Locate the Fuel Filter:
Begin by locating the fuel filter on your Hyundai i40. It is typically found on the left-hand side of the engine bay and is connected to several fuel lines. The specific location may vary depending on the model and engine type of your vehicle.
Prepare the Necessary Tools:
Before proceeding, gather the required tools for the job. You will need items such as a combination spanner (#19), a ratchet wrench, a suitable socket (such as 76-14 F), and a container to catch any fluids. Ensure you have the correct tools to avoid complications during the process.
Disconnect the Water-in-Fuel Sensor:
To start the draining process, disconnect the water-in-fuel sensor by unscrewing it. Remember to disconnect the wiring beforehand to prevent any damage. Place a container underneath to catch any fuel or water that may leak out during this step.
Unscrew the Fuel Filter Bracket:
Using the appropriate tools, unscrew the fuel filter bracket fixing bolts. This will allow you to access and remove the fuel filter itself. Be cautious, as fuel may leak from the filter housing and hoses during this step.
Remove and Drain the Fuel Filter:
After unscrewing the bracket, carefully remove the fuel filter. Place it in a safe position to allow any remaining fuel to drain into your container. Ensure that you perform this task in a well-ventilated area, as fuel vapors can be hazardous.
Refill and Replace the Fuel Filter:
Once the fuel filter is drained and the contaminated fuel is disposed of properly, refill the tank with fresh, uncontaminated fuel. It is generally recommended to replace the fuel filter, especially if it was the cause of the contamination. A new fuel filter will help protect the downstream components of your vehicle.
Reassemble and Test the Vehicle:
After refilling the tank with fresh fuel, reinstall the new fuel filter and secure the bracket. Reconnect all necessary sensors and fuel lines, ensuring they are properly secured. Finally, start the engine and let it run for a few minutes to ensure the vehicle operates correctly.
Remember to consult a professional mechanic or a trusted Hyundai service center if you are unsure about any steps or if the process differs for your specific Hyundai i40 model.
Cleaning Stainless Fuel Filters: A Step-by-Step Guide
You may want to see also
Explore related products
Using the correct tools
To drain the fuel filter on a Hyundai i40, you will need a few tools. The first step is to open the bonnet and locate the fuel filter on the left-hand side of the engine bay. You will need to use a combination spanner #19 to unscrew the fuel filter bracket fixing bolts and remove the fuel filter together with its bracket. To do this, place a container underneath the fuel filter to catch any leaking fuel. Next, use a ratchet wrench with a 76-14 F socket to unscrew the fuel filter bracket.
Once the bracket is removed, you can take out the fuel filter. It is important to be careful during this process as fuel may leak from the filter housing and hoses. Ensure that you have adequate ventilation in your workspace as fuel vapours are poisonous. To avoid damaging the paintwork and plastic parts of the car, use a fender protection cover.
Before removing the fuel filter, you will need to detach the fuel pressure sensor connector using fuel line pliers and a flat screwdriver. Clean the fasteners of the fuel supply lines with an all-purpose cleaning spray. Squeeze the clips and detach the fuel supply lines from the fuel filter housing.
Finally, to drain the fuel filter, remove the water-in-fuel sensor by unscrewing it. Remember to disconnect the wiring for the sensor to avoid twisting and breaking it during the process.
Inspecting Your Fuel Pump Filter: DIY Guide
You may want to see also
Explore related products
Cleaning the fuel filter
To clean the fuel filter of a Hyundai i40, you will first need to locate the fuel filter. It should be on the left-hand side of the engine bay and will have several fuel lines attached. Once you have found it, you can follow these steps:
Step 1: Prepare a container for fluids
Place a container underneath the fuel filter to catch any fluids that may leak out during the cleaning process.
Step 2: Detach the water-in-fuel sensor
Before you can remove the fuel filter, you will need to detach the water-in-fuel sensor. First, disconnect the wiring for the sensor to prevent twisting and breaking it when you unscrew the sensor. Then, unscrew the sensor itself.
Step 3: Remove the fuel filter bracket
Use a ratchet wrench and a 76-14 F socket to unscrew the fuel filter bracket fixing bolts. Once the bolts are removed, you can take out the fuel filter bracket and set it aside.
Step 4: Clean the fuel filter housing
With the bracket removed, you can now access the fuel filter housing. Clean this area thoroughly with an all-purpose cleaning spray. Make sure to clean any fasteners or connectors that may be present as well.
Step 5: Reinstall the fuel filter and bracket
After cleaning, reinstall the fuel filter and bracket by following the previous steps in reverse. First, screw in the fuel filter bracket using the 76-14 F socket and ratchet wrench. Then, screw in the water-in-fuel sensor and reconnect the wiring. Finally, secure the bracket by tightening the fixing bolts with a combination spanner #19.
It is important to note that you should always exercise caution when working with fuel and ensure that the engine is switched off. Additionally, fuel may leak from the filter housing and hoses, so be prepared to catch any leaks with your container.
Cleaning Fuel Oil Wool Filters: Step-by-Step Guide
You may want to see also
Frequently asked questions
Draining the fuel filter on a Hyundai i40 involves removing the water sensor from the bottom of the filter housing. First, locate the fuel filter on the left-hand side of the engine bay. You will see a number of fuel lines attached to it. Place a container underneath to catch any fluids. Then, disconnect the wiring for the water-in-fuel sensor and unscrew it.
You will need a ratchet wrench, a 76-14 F socket, and a combination spanner #19.
If the fuel in the tank is contaminated, you will need to drain the tank completely and refill it with fresh fuel. You should also blow the contaminated fuel out of the fuel lines and replace the fuel filter.
A warning light on your dashboard will indicate that water has built up in the fuel filter and it needs to be drained.
