A clogged fuel filter can cause a range of issues with your Honda CBR600RR, from bogging down and sputtering to reduced gas mileage and low-flow problems. While some suggest that cleaning the filter is not possible and that the entire fuel pump assembly must be replaced, others have found success by disassembling the fuel pump and cleaning the filter with carb cleaner, vinegar, or ultrasonic cleaners. In this article, we will explore the steps to clean or replace a clogged fuel filter in your Honda CBR600RR, ensuring your bike runs smoothly and efficiently.
Explore related products
What You'll Learn
Remove the fuel tank
To remove the fuel tank from your CBR600, you will need to follow these steps:
Firstly, siphon as much fuel as possible from the tank. If you are replacing the tank, remember to remove the cap so that you can keep the same key. Next, remove the fairings to expose the tank and mounting points. You will need to undo the mounts for the tank and prop it up. Place rags over the bike and remove the wires and hoses, ensuring you remember where they came from. The rags will catch any fuel that leaks out.
Now, remove the bolts from the fuel tank. There are four bolts in total, two in the front and two in the back. You can either remove the front two bolts and loosen the back two, or remove all four bolts. If you remove all four, you will need to clamp the lines shut to prevent fuel from leaking out. If you only remove the front bolts and loosen the back ones, you can use bungee cords to hold the tank up and access the plugs and air filter.
Once the bolts are removed, carefully lift the tank and secure it with bungee cords. If you want to take the tank off completely, remember to clamp the lines shut to prevent fuel leakage. Place a thick towel underneath to prevent the tank from sliding.
Dodge Sprinter Fuel Filter: Step-by-Step Replacement Guide
You may want to see also
Explore related products
Drain the fuel
To drain the fuel from your Honda CBR600RR, you will need to remove the rear cowl, seat, and bolts at the front, rear, and sides of the fuel tank. You will need a 10mm socket for the rear cowl and seat, and 8mm, 6mm, and 5mm Allen keys for the bolts. Once these are removed, carefully lift the tank and secure it with bungee cords to prevent it from falling. Place a thick towel underneath to prevent the tank from sliding.
Now that the fuel tank is accessible, you can begin the process of draining the fuel. This is a crucial step when cleaning or replacing the fuel filter, as it ensures that no fuel spills occur during the subsequent steps. It is recommended to use a hand siphon tool to safely transfer the fuel from the tank into an appropriate gas container.
At this point, you will have successfully drained the fuel, and you can proceed with the next steps of cleaning or replacing the fuel filter. Remember to exercise caution when working with fuel, and ensure proper ventilation in your workspace.
It is important to note that some sources suggest that the fuel filter in the Honda CBR600RR is integrated into the fuel pump assembly. This means that simply draining the fuel and cleaning the filter may not be sufficient, and you might need to remove the entire fuel pump assembly for a thorough cleaning or replacement of the integrated fuel filter.
Lawn Mower Fuel Filter: A Step-by-Step Inspection Guide
You may want to see also
Explore related products
Clean the screen
To clean the screen of your CBR600, you will first need to remove the fuel tank. This involves removing the rear cowl and seat, then removing the bolts at the front, rear, and sides of the fuel tank. Once the tank is loose, lift it up and secure it with bungee cords, placing a thick towel underneath to prevent sliding.
Next, drain the fuel tank using a syphon tool and store the fuel in a safe container. You will then need to unplug the fuel pump sensor and release the fuel pressure by loosening the service check bolt. It is important to note that the fuel pump and fuel filter on the CBR600 are integrated, so you will need to carefully remove the entire assembly.

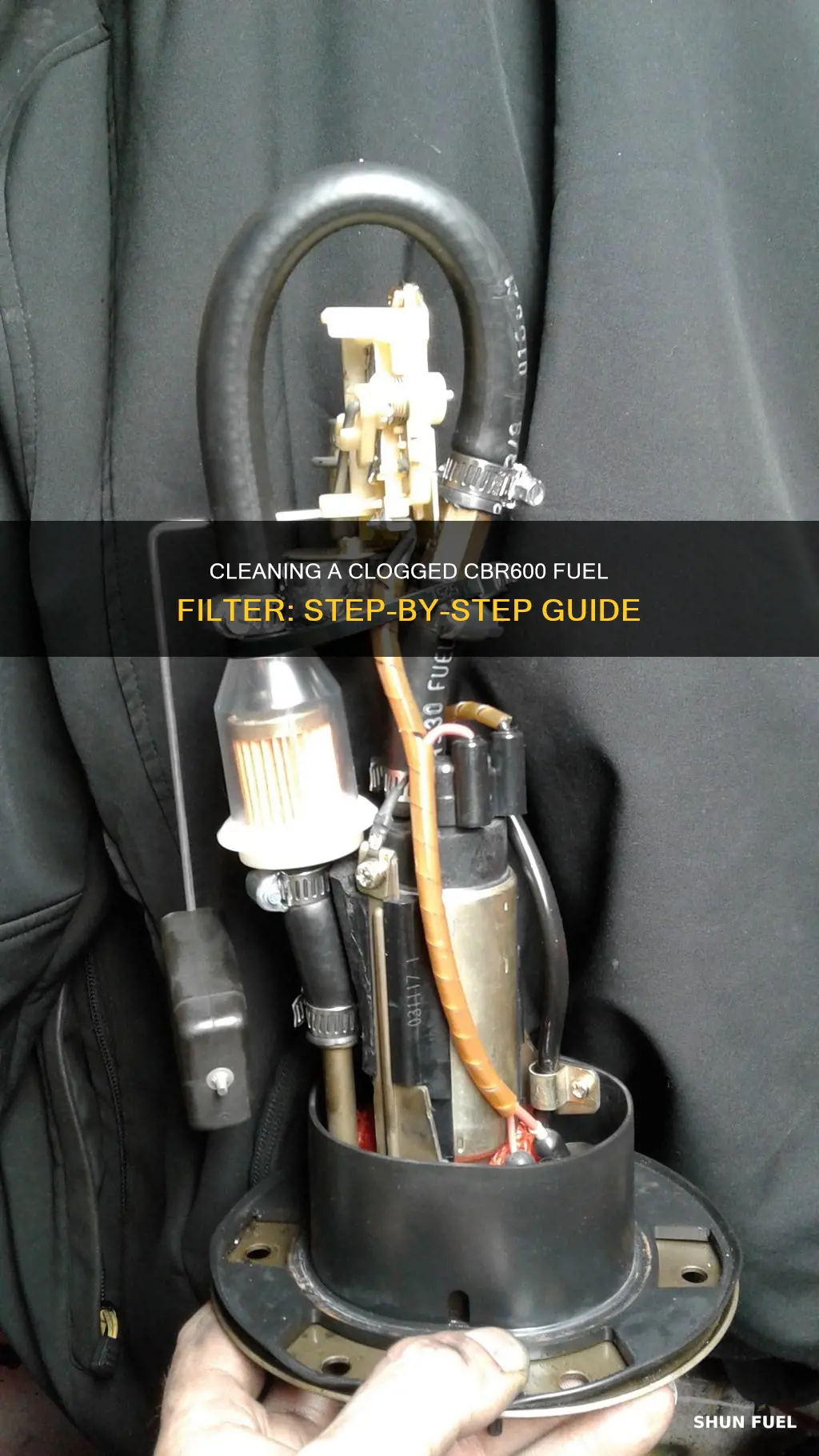

Now that the fuel tank and assembly have been removed, you can focus on cleaning the screen. The screen is located inside the fuel pump assembly, and you may need to crack open the top to access it. Use a suitable cleaning solution and carefully clean the screen, ensuring that you do not damage any internal components.
After cleaning, make sure to dry the screen thoroughly before reassembling the fuel pump assembly and fuel tank. Refer to the maintenance guidelines or seek advice from a mechanic if you are unsure about any steps in the process.
Locating the Fuel Filter in Your 2000 Subaru Forester
You may want to see also
Explore related products
Use a screwdriver to unscrew the fuel filter holder
To clean a clogged fuel filter on a CBR600, you'll first need to locate the fuel filter. This can be found inside the fuel pump assembly.
To begin the process of cleaning your CBR600's clogged fuel filter, you will need to gather the right tools. In this case, you will need a screwdriver. It is important to select the correct type of screwdriver for this task, as using the wrong type can lead to stripped screws and damage to your motorcycle. The owner's manual for your CBR600 should specify the type of screwdriver required. Once you have located the fuel filter holder, carefully insert the screwdriver into the screw head and apply gentle pressure to begin unscrewing. Turn the screwdriver counterclockwise to loosen the screw. Be careful not to apply too much force, as this can result in damage to the screw head or the surrounding components. If the screw is tight, you may need to use a screwdriver with a longer handle to increase leverage. Once the screw is loose, remove it by hand and set it aside in a safe place to avoid losing it. With the screw removed, you can now access the fuel filter for cleaning or replacement.
It is important to note that working on a motorcycle's fuel system can be complex and requires mechanical knowledge. If you are unsure about any aspect of the process, it is recommended to consult a professional mechanic or seek advice from experienced individuals in motorcycle repair forums.
Inspecting Your Fuel Pump Filter: DIY Guide
You may want to see also
Explore related products
Replace the fuel filter
To replace the fuel filter on a Honda CBR600RR, you will first need to remove the rear cowl and the seat, using a 10mm socket. Next, remove the two bolts at the front of the fuel tank with an 8mm socket, followed by the two bolts at the rear of the tank with a 6mm Allen key, and the two bolts at the side of the tank with a 5mm Allen key.
Now, lift the tank and secure it with two bungee cords, placing a thick towel underneath to prevent it from sliding. Drain the fuel tank using a hand syphon tool and store the fuel in a safe container.
Unplug the fuel pump sensor and release the fuel pressure by loosening the service check bolt with a 12mm socket. Disconnect the fuel return hose from the Fuel Pressure Regulator.
Remove the six bolts at the fuel pump mounting base with an 8mm socket. Carefully pull out the assembly, taking care not to damage any internal wiring.
At this point, you can access the fuel filter. Unscrew the fuel filter holder with a Phillips screwdriver, along with the hose clamps, and install a new filter. You may also want to clean the base with acetone and white vinegar, as per the steps outlined in the forum post.
Finally, reassemble the parts in the reverse order, ensuring all connections are secure.
Please note that this process may vary slightly depending on the specific model of your CBR600, and it is always recommended to refer to the official service manual or seek professional assistance if you are unsure.
Locating and Checking Fuel Filters on Poulan Chainsaws
You may want to see also
Frequently asked questions
Symptoms of a clogged fuel filter include: bogging down/sputtering/lagging at lower RPM, bad gas mileage, and slow RPM rises when the throttle is open.
To clean a clogged fuel filter on your CBR600, you will need to remove the rear cowl, seat, and bolts at the front, rear, and sides of the fuel tank. Lift the tank and secure it with bungee cords, then drain the fuel tank using a syphon tool. Next, unplug the fuel pump sensor and release the fuel pressure. Disconnect the fuel return hose from the Fuel Pressure Regulator and carefully pull out the assembly. You can then remove the fuel filter and clean it with a suitable cleaner.
It is recommended to clean your fuel filter every 3-4 months to prevent clogging and ensure optimal performance.
