Disconnecting the fuel line of a Harley-Davidson motorcycle can be a tricky task. The process involves several steps, including draining the tank, removing the fuel panel, and carefully disconnecting the hose from the pressure regulator to avoid cracking the plastic housing. It is also important to manage potential fuel leaks by using repair kits with O-rings made from Viton material, which is suitable for fuel and hot hydraulics.

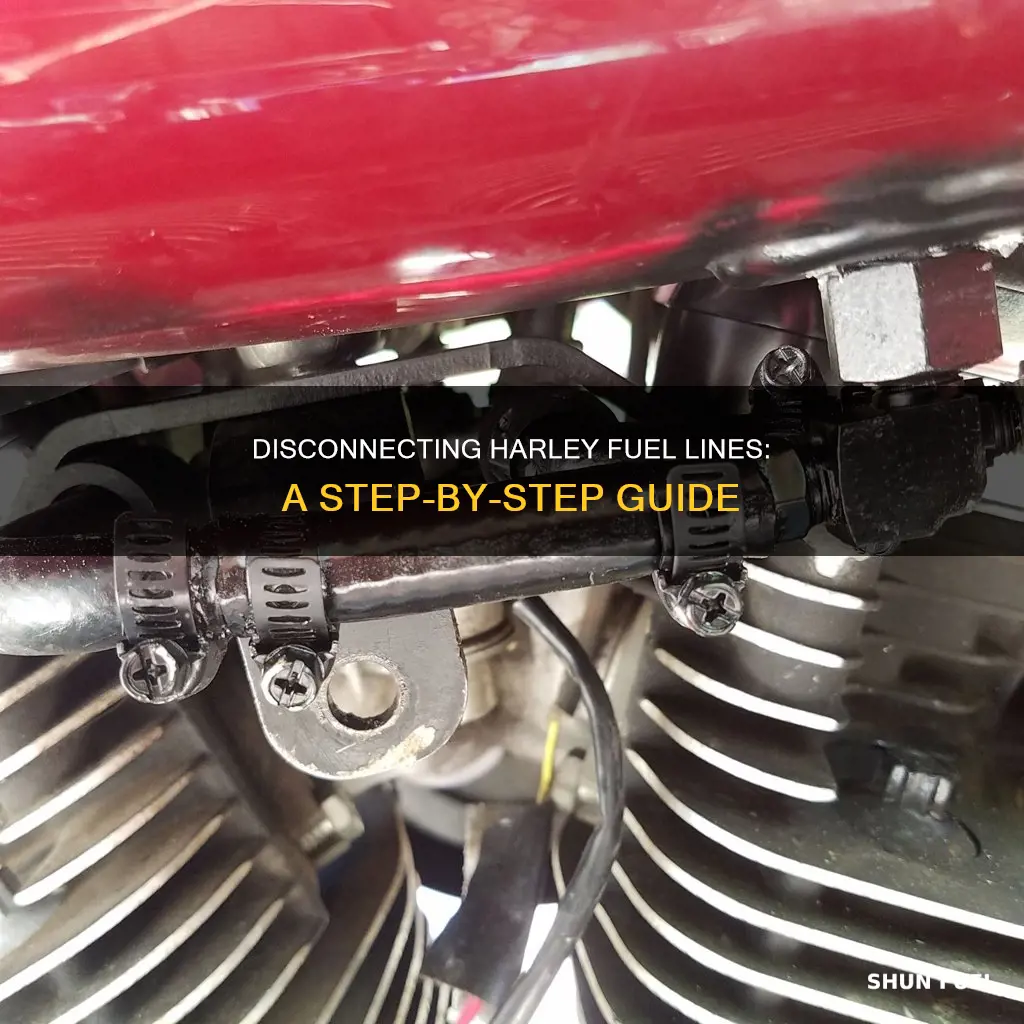

How to Disconnect a Harley Fuel Line
| Characteristics | Values |
|---|---|
| Required Tools | O-ring kit, dental pick, 9/32 deep well socket, ¼ drive |
| Steps | 1. Drain the tank. 2. Twist and push up on the chrome sleeve to remove the fuel line. 3. Unscrew the disconnect fitting from the tank. 4. Disconnect the hose from the pressure regulator, being careful not to crack the plastic housing. 5. Perform a quick release and remove the nut and hose from the bottom of the tank. |
| Tips | 1. Grease the O-ring and male connector. 2. Seat the O-ring using a 9/32 deep well socket and ¼ drive tool. 3. Ensure the tank is prepared for painting by removing all internal components, including the fuel pump and sender unit. |
Explore related products
$48.95
What You'll Learn
Removing the fuel tank
To remove the fuel tank from your Harley, you will first need to drain the tank. This can be done by siphoning the fuel into a gas can or by tipping the tank upright so that you don't have to empty it.
Once the tank is drained, you can start to remove the fuel lines. First, remove the seat and disconnect the negative battery cable. Then, remove the console and disconnect all wiring, including the overflow hose and the fuel gauge wiring connector. You will also need to disconnect the fuel pump connector and try starting the bike a couple of times to remove the pressure.
Next, you will need to remove the stock hose. Clamp the crossover hose on both sides of the center in front of the frame and place a catch pan underneath to catch any remaining fuel. Cut the hose and drain any remaining fuel into the pan. Then, break the stock hose clamp and remove the two halves of the hose.
Now you can start to remove the fuel tank itself. First, remove the front and rear mounting bolts. Then, carefully lift the tank off the frame, being mindful of any hoses or wires that may still be attached.
