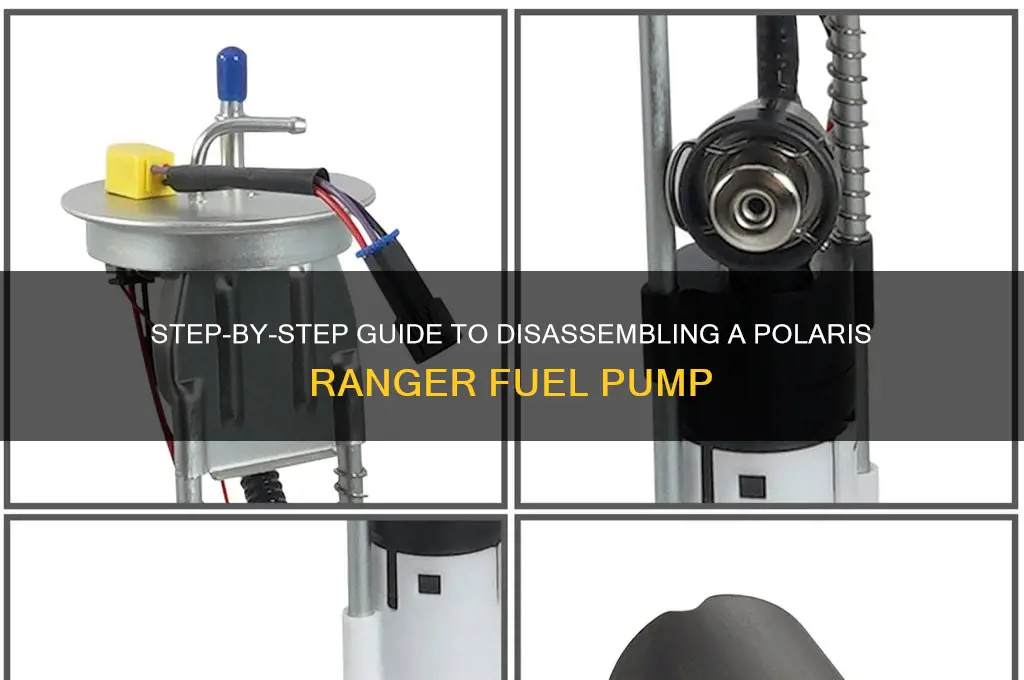

Disassembling a fuel pump on a Polaris Ranger requires careful attention to detail and the right tools to ensure the process is done safely and efficiently. Before beginning, it's essential to disconnect the battery and relieve fuel system pressure to prevent accidents. Start by locating the fuel pump, typically found within the fuel tank, which may require removing the tank itself. Once accessed, carefully disconnect the electrical connector and fuel lines, taking note of their positions for reassembly. Remove any retaining bolts or clips securing the pump to the tank, then gently extract the pump assembly, being mindful of any O-rings or seals that may need replacement. Throughout the process, refer to the Polaris Ranger service manual for specific instructions and torque specifications to avoid damage and ensure proper functionality upon reassembly.
| Characteristics | Values |
|---|---|
| Vehicle Model | Polaris Ranger |
| Tool Requirements | Socket set, wrenches, screwdrivers, pliers, fuel line disconnect tool |
| Safety Precautions | Relieve fuel pressure, disconnect battery, work in well-ventilated area |
| Location of Fuel Pump | Typically located inside the fuel tank or near the tank |
| Steps to Disassemble | 1. Relieve fuel pressure 2. Disconnect battery 3. Remove fuel tank 4. Disconnect fuel lines 5. Remove pump retaining hardware 6. Extract fuel pump assembly |
| Common Issues | Clogged filter, faulty electrical connections, worn impeller |
| Replacement Parts | Fuel pump assembly, fuel filter, O-rings, fuel lines |
| Reassembly Tips | Ensure proper sealing, reconnect fuel lines securely, test for leaks |
| Difficulty Level | Moderate to advanced (requires mechanical skill) |
| Estimated Time | 1-3 hours depending on experience and tools |
| Reference Sources | Polaris service manual, online repair forums, YouTube tutorials |
Explore related products
What You'll Learn
Gather Tools and Safety Gear
Before tackling the fuel pump on your Polaris Ranger, ensure you have the right tools and safety gear. This isn’t just about efficiency—it’s about preventing injury and avoiding damage to your vehicle. Start by gathering a socket set (metric and standard sizes), a flathead and Phillips screwdriver, pliers, a torque wrench, and a fuel line disconnect tool. These tools are essential for removing bolts, disconnecting lines, and accessing the fuel pump module securely.
Safety gear is equally critical. Fuel systems are inherently dangerous due to flammable vapors and pressurized components. Equip yourself with nitrile gloves to protect your skin from gasoline, safety goggles to shield your eyes from splashes, and a fire extinguisher rated for Class B fires (flammable liquids). Work in a well-ventilated area, away from open flames or sparks, and avoid smoking or using electronic devices that could ignite fumes.
Consider the environment as well. Place a drip pan under the fuel pump to catch any spills, and have absorbent rags or pads ready for cleanup. If you’re working indoors, ensure the space is free of debris and has proper airflow. For added caution, wear a respirator mask to avoid inhaling fuel vapors, especially in confined spaces.
Finally, prepare for the unexpected. Keep a first-aid kit nearby in case of minor injuries, and familiarize yourself with emergency procedures for fuel spills or fires. Double-check that all power to the vehicle is disconnected before starting—remove the battery or use a battery disconnect switch to eliminate the risk of accidental ignition. Proper preparation isn’t just a step—it’s the foundation of a safe and successful repair.
