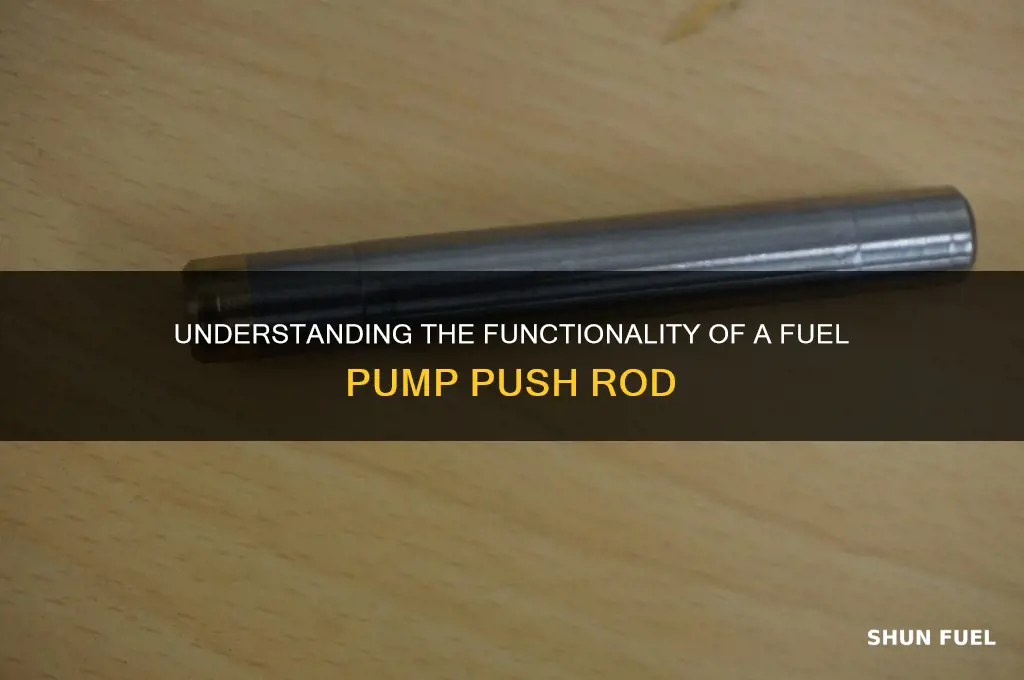

A fuel pump push rod is a critical component in mechanical fuel pump systems, typically found in older carbureted engines. It operates by transferring the rotational motion of the engine's camshaft into the reciprocating motion required to actuate the fuel pump diaphragm or plunger. As the camshaft lobe rotates, it presses against one end of the push rod, causing it to move linearly. This movement is then transferred to the fuel pump's internal mechanism, creating a pumping action that draws fuel from the tank and delivers it to the carburetor. The push rod's design ensures precise timing and force, maintaining consistent fuel pressure and flow essential for proper engine operation. Its simplicity and reliability make it a key element in the fuel delivery systems of classic vehicles.
| Characteristics | Values |
|---|---|
| Function | Transfers motion from the camshaft lobe to the fuel pump diaphragm |
| Location | Connects the camshaft lobe to the fuel pump lever arm |
| Movement | Reciprocating (back-and-forth) motion |
| Driven By | Camshaft lobe profile |
| Effect on Fuel Pump | Causes the diaphragm to flex, creating suction and pressure |
| Fuel Flow Direction | Draws fuel from the tank, pushes it towards the carburetor |
| Typical Material | Steel or hardened metal for durability |
| Adjustment | May require adjustment for proper pump operation |
| Failure Symptoms | Engine hesitation, hard starting, fuel delivery issues |
| Maintenance | Regular inspection for wear, bending, or damage |
Explore related products
What You'll Learn
- Pump Mechanism: Explains the internal workings of the fuel pump and its components
- Push Rod Function: Details how the push rod transfers motion to the pump diaphragm
- Camshaft Interaction: Describes the role of the camshaft in driving the push rod
- Fuel Delivery Process: Outlines how the pump pushes fuel through the system
- Maintenance and Wear: Covers common issues and upkeep for optimal performance
Pump Mechanism: Explains the internal workings of the fuel pump and its components
The fuel pump push rod is a critical component in mechanical fuel pump systems, particularly in older carbureted engines. Its primary function is to translate the rotational motion of the engine’s camshaft into the reciprocating motion required to operate the fuel pump diaphragm. This mechanism ensures a consistent supply of fuel from the tank to the carburetor, maintaining engine performance. Understanding its internal workings begins with recognizing its role as a bridge between the engine’s timing and the fuel delivery system.
At the heart of the pump mechanism lies the push rod itself, a slender, rigid metal rod that connects the camshaft lobe to the fuel pump’s rocker arm or plunger. As the camshaft rotates, its eccentric lobe periodically lifts the push rod, which in turn actuates the rocker arm. This arm pivots on a fulcrum, converting the vertical motion of the push rod into downward pressure on the fuel pump diaphragm. The diaphragm’s movement creates a vacuum that draws fuel from the tank, while a spring-loaded valve ensures one-way flow into the carburetor. Precision in this design is key; even minor misalignment or wear can disrupt fuel delivery, leading to engine stalling or poor performance.
A closer examination of the components reveals the importance of material selection and tolerances. The push rod, typically made of hardened steel, must withstand repeated stress without bending or deforming. The rocker arm and diaphragm assembly, often constructed from lightweight yet durable materials like aluminum or reinforced rubber, ensure efficient energy transfer while minimizing inertia. Regular maintenance, such as checking for wear or debris in the push rod’s contact points, is essential to prevent premature failure. Lubrication is also critical; a dry or gritty interface can accelerate wear and compromise the pump’s operation.
Comparing this mechanism to modern electric fuel pumps highlights its simplicity and reliability in low-pressure carbureted systems. While electric pumps offer higher pressure and better adaptability to fuel injection, the push rod-driven design remains advantageous for its mechanical directness and ease of troubleshooting. For enthusiasts restoring classic vehicles, understanding this system allows for accurate diagnosis of issues like fuel starvation or inconsistent pressure. Practical tips include verifying push rod length during installation—a rod too long or short can prevent proper diaphragm travel—and ensuring the camshaft lobe profile matches the pump’s requirements.
In conclusion, the fuel pump push rod’s mechanism is a testament to the elegance of mechanical engineering in automotive systems. By translating camshaft motion into diaphragm actuation, it ensures reliable fuel delivery in carbureted engines. Its components, though simple, demand precision and care to function optimally. For those working on older vehicles, mastering this mechanism not only preserves automotive history but also ensures the longevity and performance of these classic machines.
