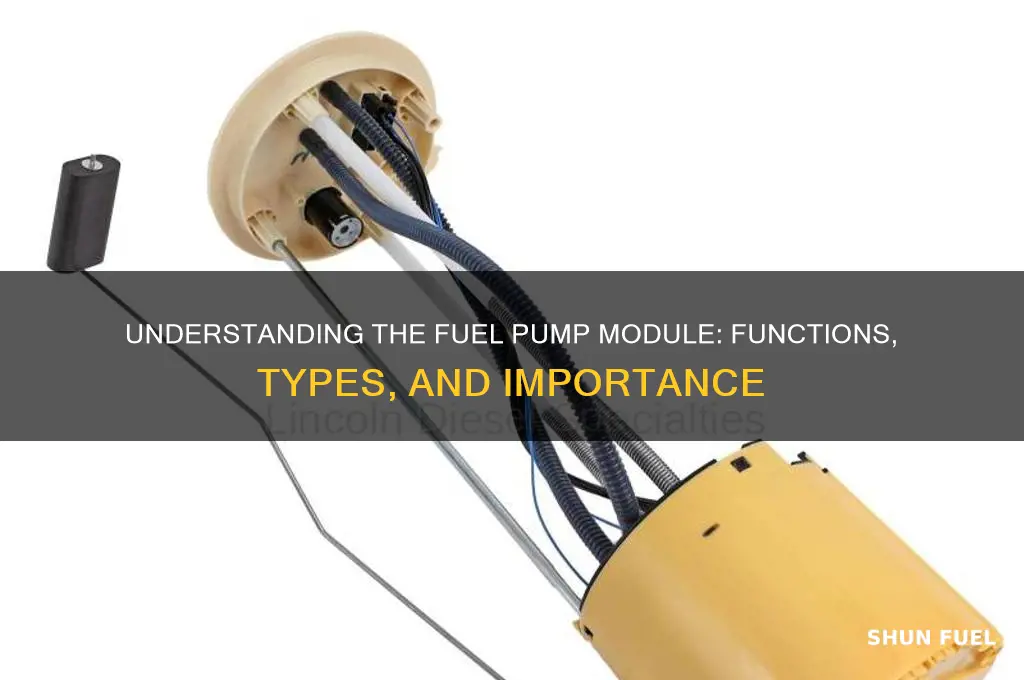

A fuel pump module is an essential component in modern vehicles, responsible for delivering fuel from the tank to the engine with precision and efficiency. Typically integrated into the fuel tank, it combines the fuel pump, sending unit, and often a fuel filter and pressure regulator into a single unit. This compact design ensures reliable fuel supply, maintains optimal pressure, and provides accurate fuel level readings to the vehicle’s dashboard. The module plays a critical role in engine performance, ensuring consistent fuel delivery under various driving conditions, and its failure can lead to issues like stalling, poor acceleration, or engine misfires. Regular maintenance and timely replacement are crucial to avoid disruptions in vehicle operation.
| Characteristics | Values |
|---|---|
| Definition | A fuel pump module is an integrated assembly that includes the fuel pump, sender unit, and other components necessary for delivering fuel from the tank to the engine. |
| Components | Fuel pump, fuel sender unit, fuel filter, pressure regulator, float, electrical connectors, and housing. |
| Function | Supplies fuel from the fuel tank to the engine at the required pressure and flow rate. |
| Location | Typically installed inside the fuel tank (in-tank module) or externally near the tank (external module). |
| Types | In-tank fuel pump module, external fuel pump module, mechanical fuel pump module, and electric fuel pump module. |
| Power Source | Electric (most modern vehicles) or mechanical (older carbureted engines). |
| Pressure Regulation | Maintains consistent fuel pressure to ensure optimal engine performance. |
| Fuel Level Monitoring | The sender unit measures and reports the fuel level to the vehicle's fuel gauge. |
| Material | Typically made of durable materials like plastic, metal, or a combination to resist fuel corrosion. |
| Compatibility | Designed for specific vehicle makes and models to ensure proper fit and function. |
| Maintenance | Generally maintenance-free but may require replacement if the pump or sender fails. |
| Lifespan | Varies by vehicle and usage, typically lasting 100,000 to 150,000 miles or more. |
| Failure Symptoms | Engine stalling, difficulty starting, reduced fuel efficiency, or inaccurate fuel gauge readings. |
| Cost | Replacement costs range from $200 to $800, depending on the vehicle and module type. |
| Environmental Impact | Must comply with emissions standards to minimize fuel vapor leakage and environmental harm. |
Explore related products
What You'll Learn
- Fuel Pump Module Components: Includes pump, sender, float, filter, and electrical connections in a single unit
- Function of Fuel Pump Module: Delivers fuel from tank to engine at required pressure and flow rate
- Types of Fuel Pump Modules: In-tank, external, mechanical, and electric modules for different vehicle systems
- Common Fuel Pump Module Issues: Failure symptoms include no start, sputtering, whining noises, or low fuel pressure
- Fuel Pump Module Replacement: Requires tank removal, module disconnection, and installation of a new unit
Fuel Pump Module Components: Includes pump, sender, float, filter, and electrical connections in a single unit
A fuel pump module is a critical component in modern vehicles, designed to efficiently deliver fuel from the tank to the engine. At its core, it integrates multiple essential parts into a single, compact unit: the pump, sender, float, filter, and electrical connections. This integration not only simplifies installation but also enhances reliability by reducing potential points of failure. Understanding these components and their functions is key to appreciating the module’s role in vehicle performance.
The pump is the heart of the module, responsible for drawing fuel from the tank and pressurizing it for delivery to the engine. It operates at precise pressures, typically between 40 to 60 PSI, depending on the vehicle’s fuel injection system. Modern pumps are often turbine or roller-vane types, engineered for quiet operation and durability. A failing pump can lead to symptoms like sputtering, stalling, or difficulty starting the engine, making it a critical component to monitor.
The sender and float work in tandem to measure the fuel level in the tank. The float, typically made of foam or plastic, rises and falls with the fuel level, while the sender translates this movement into an electrical signal. This signal is then displayed on the fuel gauge in the dashboard. Accuracy here is vital; an incorrect reading can lead to unexpected fuel depletion or false "empty" warnings. Regular calibration and inspection of these components are recommended, especially in older vehicles.
The filter is another integral part, designed to trap contaminants like dirt, rust, and debris before they reach the engine. Most fuel pump modules incorporate a sock-style filter, which surrounds the pump intake. Over time, this filter can become clogged, reducing fuel flow and engine efficiency. Manufacturers typically recommend replacing the filter every 30,000 to 50,000 miles, though this can vary based on driving conditions and fuel quality.
Finally, the electrical connections tie the entire module together, ensuring power delivery to the pump and communication with the vehicle’s ECU. These connections must be corrosion-free and securely sealed to prevent shorts or failures, especially in harsh environments. Using dielectric grease during installation can protect these connections from moisture and corrosion. Regular inspection of wiring and connectors is essential, particularly in vehicles exposed to extreme weather conditions.
In summary, the fuel pump module’s components work synergistically to ensure consistent fuel delivery, accurate monitoring, and engine protection. By understanding the roles of the pump, sender, float, filter, and electrical connections, vehicle owners can better diagnose issues and maintain optimal performance. This integrated design not only streamlines installation but also enhances the overall reliability of the fuel system.
