Disconnecting a fuel pump relay in a General Motors (GM) vehicle is a straightforward task that requires basic automotive knowledge and a few tools. The fuel pump relay is a crucial component in the vehicle’s fuel system, responsible for controlling the power supply to the fuel pump. By disconnecting it, you can safely disable the fuel pump, which is often necessary for maintenance, repairs, or diagnostic purposes. This process typically involves locating the relay in the fuse box, identifying the correct relay based on the vehicle’s manual, and carefully removing it. Ensuring the ignition is off before starting is essential for safety. Understanding how to disconnect the fuel pump relay in a GM vehicle can save time and prevent potential issues during automotive work.
| Characteristics | Values |
|---|---|
| Vehicle Compatibility | GM vehicles (specific models may vary, check manual for exact fitment) |
| Location of Relay | Typically found in the underhood fuse/relay box or near the fuel pump |
| Tools Required | Flathead screwdriver or relay puller tool |
| Safety Precautions | Ensure ignition is off, disconnect battery if necessary |
| Steps to Disconnect | 1. Locate the relay box. 2. Identify the fuel pump relay. 3. Use a tool to pry or pull the relay straight out. |
| Relay Identification | Consult vehicle manual or diagram to confirm correct relay |
| Alternative Method | Some GM vehicles may have a fuse for the fuel pump instead of a relay |
| Post-Disconnection Check | Verify fuel pump operation is disabled (e.g., listen for pump noise) |
| Reinstallation | Align and push the relay back into place firmly |
| Common Issues | Relay may stick or require gentle force to remove |
| Professional Assistance | Recommended if unsure or if relay is difficult to access |
Explore related products
What You'll Learn
- Locate the Relay: Identify the fuel pump relay's position in the fuse box
- Access the Fuse Box: Open the hood and locate the under-hood fuse box
- Remove the Relay: Pull the relay straight out of its slot carefully
- Test the Relay: Use a multimeter to check for continuity and proper function
- Reconnect Safely: Reinsert the relay or replace it if faulty, ensuring a secure fit

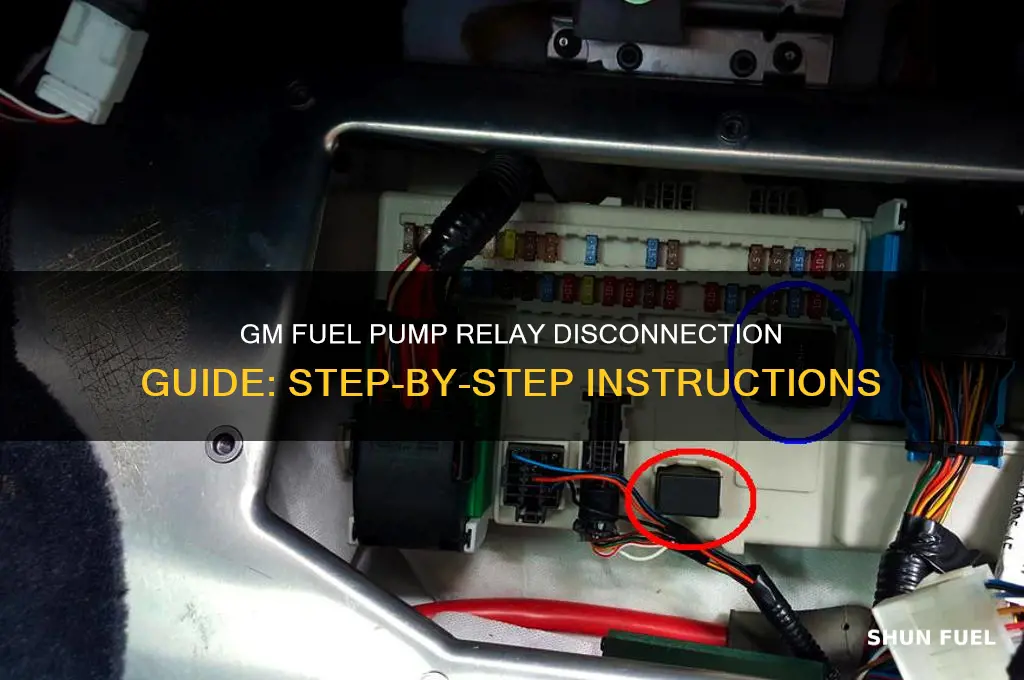

Locate the Relay: Identify the fuel pump relay's position in the fuse box
The fuel pump relay in a GM vehicle is a critical component, often tucked away in the fuse box, which can be a labyrinth of switches and relays for the uninitiated. Locating it is the first step in any disconnection process, and it requires a blend of patience and precision. Start by consulting your vehicle’s manual, which typically includes a diagram of the fuse box layout. This diagram is your roadmap, pinpointing the exact position of the fuel pump relay among the myriad of other components. If the manual is unavailable, online resources specific to your GM model can serve as a reliable alternative.
Once armed with the diagram, open the fuse box, usually located under the hood or near the driver’s side dashboard. The fuel pump relay is often labeled with a symbol resembling a fuel pump or simply marked as "FUEL" or "FP." However, GM models may vary, so cross-reference the diagram with the physical layout. If labels are unclear or missing, look for a relay that matches the diagram’s description in size and shape. Pro tip: Use a flashlight to illuminate the area, as fuse boxes are often in dimly lit spots.
For GM vehicles, the fuel pump relay is typically positioned near other engine management relays, such as those for the ignition or injectors. This clustering can help narrow your search. If you’re still unsure, test the relays by gently pulling each one out and comparing it to the diagram. The fuel pump relay will often have a distinct number of pins (usually four or five) and may feel slightly heavier than other relays due to its internal components.
A common mistake is confusing the fuel pump relay with the fuel pump fuse. While both are critical, the relay is a switch that controls power to the fuel pump, whereas the fuse is a safety device. The relay is typically larger and rectangular, while the fuse is smaller and blade-shaped. Always double-check before proceeding to avoid unnecessary complications.
In summary, locating the fuel pump relay in a GM fuse box is a task that combines research, observation, and careful comparison. With the right tools—a diagram, a flashlight, and a methodical approach—you can confidently identify the relay’s position. This step is foundational for any further work on the fuel pump system, ensuring safety and efficiency in your automotive endeavors.
Step-by-Step Guide: Removing Fuel Pump in 2005 Honda Accord LX
You may want to see also
Explore related products
Access the Fuse Box: Open the hood and locate the under-hood fuse box
The under-hood fuse box is your gateway to the fuel pump relay, but accessing it requires a methodical approach. Start by parking your GM vehicle on a flat surface, engaging the parking brake, and allowing the engine to cool for at least 30 minutes. Safety first—a hot engine bay can lead to burns or component damage. Once the hood is released from the interior latch, locate the secondary hood release near the grille. This two-step process is standard on most GM models, ensuring the hood doesn’t accidentally open while driving.
With the hood propped open, identifying the fuse box is your next challenge. GM vehicles often house the under-hood fuse box near the battery or along the fender wall, depending on the model year and platform. Look for a rectangular or square-shaped module with a removable lid, typically labeled "Fuse Box" or "Electrical Center." If the location isn’t immediately obvious, consult your vehicle’s owner’s manual or a GM-specific repair guide. Pro tip: Use a flashlight to illuminate hard-to-see areas, especially in older models where components may be obscured by dust or debris.
Removing the fuse box lid requires precision. Most lids have a latch or tab that releases with gentle pressure, but some may require a small screwdriver to pry open carefully. Avoid forcing the lid, as plastic components can crack. Once open, you’ll encounter a grid of fuses and relays, often labeled with diagrams on the lid’s underside. If the diagram is faded or missing, take a photo of the layout before proceeding—this ensures you can return everything to its original position.
Before proceeding to the fuel pump relay, verify you’ve identified the correct fuse box. GM vehicles sometimes have multiple fuse boxes (e.g., one under the hood and another in the cabin), and confusing them can lead to unnecessary troubleshooting. The under-hood box typically handles high-amperage circuits like the fuel pump, while the interior box manages lower-amperage systems like lighting or infotainment. Double-checking now saves time later.
In summary, accessing the under-hood fuse box is a straightforward but detail-oriented task. By prioritizing safety, using proper tools, and verifying the correct location, you set the stage for successfully disconnecting the fuel pump relay. This step is foundational—skip it, and you risk misdiagnosing issues or causing unintended damage. Done correctly, it transforms a potentially daunting task into a manageable DIY repair.
Mechanical Fuel Pump Air Bubbles: Causes, Detection, and Solutions
You may want to see also
Explore related products
Remove the Relay: Pull the relay straight out of its slot carefully
The fuel pump relay in a GM vehicle is a critical component, acting as the switch that controls power to the fuel pump. When you turn the ignition, this relay engages, allowing fuel to flow to the engine. However, there are instances—such as troubleshooting, maintenance, or preventing fuel delivery in emergency situations—when you may need to disconnect it. The process begins with locating the relay, typically found in the under-hood fuse/relay box or inside the cabin fuse panel, depending on the GM model. Once identified, the next step is to remove it carefully to avoid damage to the relay or its slot.
Pulling the relay straight out of its slot is a straightforward task, but it requires precision. Start by firmly gripping the relay’s body, ensuring your fingers or tool are positioned evenly on both sides. Apply steady, even pressure as you pull, avoiding any twisting or tilting that could bend the relay’s terminals or damage the socket. Think of it like removing a key from a lock—smooth and deliberate. If the relay feels stuck, gently wiggle it side-to-side while pulling, but avoid excessive force. Most GM relays are designed for easy removal, but age, dirt, or corrosion can make them stubborn.
A practical tip is to inspect the relay and its slot before and after removal. Look for signs of corrosion, melted plastic, or burnt terminals, which could indicate an underlying issue. If the relay is difficult to remove, use a non-conductive tool, such as a plastic pry tool, to assist. Avoid metal tools that could short circuits or damage components. Once removed, store the relay in a safe place if you plan to reinstall it later, or replace it with a known-good relay for testing purposes.
Comparatively, removing a fuel pump relay is simpler than dealing with older mechanical fuel pumps, which often required more invasive procedures. Modern relays are designed for accessibility, reflecting advancements in automotive engineering. However, this simplicity doesn’t diminish the importance of caution. Mishandling the relay can lead to electrical issues or fuel system malfunctions, emphasizing the need for careful execution.
In conclusion, removing the fuel pump relay in a GM vehicle is a task that balances simplicity with precision. By pulling the relay straight out of its slot carefully, you ensure the integrity of both the relay and its housing. This step, though minor, is crucial for effective troubleshooting or maintenance, highlighting the importance of attention to detail in automotive repairs. Always approach the task methodically, treating each component with the care it deserves.
Step-by-Step Guide to Replacing a GM Big Block Fuel Pump
You may want to see also
Explore related products
Test the Relay: Use a multimeter to check for continuity and proper function
Testing the fuel pump relay with a multimeter is a critical step in diagnosing fuel system issues in GM vehicles. Begin by locating the relay, typically found in the underhood fuse/relay box. Identify the specific relay by consulting your vehicle’s manual or using a diagram. Once located, remove the relay carefully to avoid damaging the terminals. A multimeter will help determine if the relay is functioning properly by checking for continuity and proper switching. This process ensures you’re not replacing parts unnecessarily, saving time and money.
To test for continuity, set your multimeter to the ohms (Ω) setting. With the relay removed, place the probes on the input and output terminals, typically labeled as 30 (input) and 87 (output). A functional relay should show low resistance (near 0 ohms), indicating a clear path for current. If the reading is infinite or high, the relay is likely faulty. Next, test the control circuit by applying power to the relay’s coil terminals (usually 85 and 86). When energized, the relay should click, and the multimeter should show continuity between terminals 30 and 87. If not, the relay’s internal switch is defective.
A common mistake is overlooking the power supply to the relay. Before condemning the relay, verify that power is reaching terminal 86 when the ignition is on. Use the multimeter to check for 12 volts at this terminal. If power is absent, the issue may lie elsewhere, such as a faulty ignition switch or wiring. This step ensures you’re not misdiagnosing the relay as the problem when the root cause is external.
For GM vehicles, some relays have additional terminals for ground or signal inputs. Familiarize yourself with the relay’s pinout diagram to avoid confusion. For instance, terminal 87a may provide a secondary switched output, which can be tested similarly. Always ensure the multimeter is properly connected to avoid false readings. If the relay passes all tests, the issue may be with the fuel pump itself or the wiring harness, narrowing down the diagnostic process efficiently.
In conclusion, testing the fuel pump relay with a multimeter is a straightforward yet powerful diagnostic technique. By systematically checking continuity and function, you can determine whether the relay is operational or needs replacement. This method not only saves time but also prevents unnecessary part replacements. Always cross-reference your findings with the vehicle’s wiring diagram for accuracy, ensuring a precise diagnosis.
How to Check Fuel Pump Voltage: A Step-by-Step Guide
You may want to see also
Explore related products
Reconnect Safely: Reinsert the relay or replace it if faulty, ensuring a secure fit
After disconnecting a GM fuel pump relay for diagnostics or maintenance, the critical next step is safely reconnecting it. This process demands precision to avoid electrical faults or fuel system issues. Begin by inspecting the relay for signs of wear, corrosion, or damage. Even minor defects like cracked housings or burnt pins can compromise functionality, necessitating replacement. Genuine GM parts are recommended to ensure compatibility and reliability, though high-quality aftermarket options may suffice if budget constraints apply.
Reinsertion requires aligning the relay’s tabs with the slots in the fuse box. Apply gentle, even pressure until the relay clicks securely into place. Avoid forcing it, as misalignment can damage both the relay and the socket. Verify the fit by lightly tugging the relay; it should remain firmly seated. If the relay feels loose or fails to engage, recheck alignment and try again. A poorly seated relay can cause intermittent fuel pump operation, leading to stalling or starting difficulties.
When replacing a faulty relay, ensure the new unit matches the original’s specifications, including amperage rating and pin configuration. Mismatched relays can overload circuits or fail to activate the fuel pump correctly. After installation, test the system by turning the ignition to the "On" position (without starting the engine) and listening for the fuel pump’s priming cycle. A humming sound for 2–3 seconds indicates proper operation. If no sound is heard, recheck connections and relay orientation.
Safety precautions are paramount during reconnection. Always work with the ignition off to prevent accidental fuel pump activation. If the vehicle was recently running, allow the engine bay to cool to avoid burns. Wear insulated gloves when handling electrical components, especially in damp conditions, to mitigate shock risks. Finally, consult the vehicle’s service manual for model-specific relay locations and procedures, as GM designs vary across years and platforms.
In summary, reconnecting a GM fuel pump relay involves meticulous inspection, precise reinsertion or replacement, and thorough testing. By prioritizing compatibility, secure fitment, and safety, you ensure the fuel system operates reliably, safeguarding both vehicle performance and driver safety.
Diagnosing Fuel Pump Control Module: Step-by-Step Testing Guide
You may want to see also
Frequently asked questions
A fuel pump relay is an electrical switch that controls power to the fuel pump. Disconnecting it may be necessary for maintenance, troubleshooting, or preventing fuel delivery in emergency situations.
The fuel pump relay is typically found in the underhood fuse/relay box or near the driver’s side firewall. Refer to your vehicle’s manual for the exact location.
Turn off the ignition, locate the relay, and pull it straight out of its socket. Ensure the vehicle is cool and on a level surface to avoid accidents.
No, disconnecting the relay will not damage the vehicle. However, the engine will not start without it, as fuel delivery will be interrupted.
After removing the relay, attempt to start the engine. If it cranks but doesn’t start, the relay is successfully disconnected. You can also check for continuity with a multimeter.
