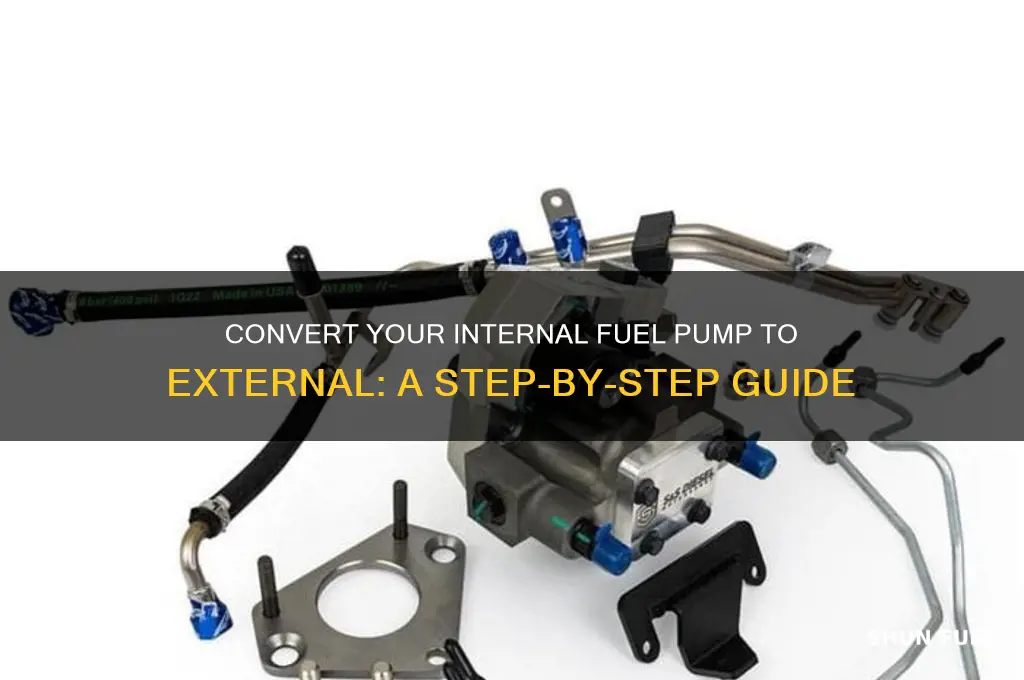

Converting an internal fuel pump to an external setup is a modification often undertaken by automotive enthusiasts to improve fuel delivery efficiency, especially in high-performance or racing applications. This process involves relocating the fuel pump from inside the fuel tank to an external location, typically near the tank or along the fuel line. The primary benefits include easier access for maintenance, reduced heat exposure, and the ability to install higher-capacity pumps to meet increased fuel demands. However, the conversion requires careful planning, as it involves modifying the fuel system, ensuring proper fuel lines and fittings, and addressing safety concerns such as fuel leaks or vapor lock. Proper research and adherence to best practices are essential to ensure a reliable and safe installation.
| Characteristics | Values |
|---|---|
| Purpose | To relocate the fuel pump from inside the fuel tank to an external location, often for performance, accessibility, or safety reasons. |
| Common Applications | Racing vehicles, high-performance builds, or vehicles with fuel tank access issues. |
| Required Tools | Wrenches, sockets, screwdrivers, fuel line disconnect tools, hose clamps, and possibly a drill. |
| Materials Needed | External fuel pump, fuel lines (high-pressure), fuel filter, mounting bracket, electrical wiring, and connectors. |
| Steps | 1. Disconnect the battery. 2. Remove the fuel tank or access the internal pump. 3. Disconnect the fuel lines and electrical connections from the internal pump. 4. Install the external pump in a suitable location (e.g., near the fuel tank or in the engine bay). 5. Route and connect new high-pressure fuel lines from the tank to the external pump and then to the engine. 6. Install a fuel filter in the line (if not already integrated with the pump). 7. Secure the pump with a mounting bracket. 8. Reconnect the electrical wiring to the external pump. 9. Test for leaks and ensure proper operation. |
| Safety Considerations | Work in a well-ventilated area, avoid open flames or sparks, and use safety goggles. Relieve fuel system pressure before starting. |
| Benefits | Easier maintenance, improved cooling for high-performance pumps, and reduced risk of fuel tank contamination. |
| Drawbacks | Increased complexity, potential for external leaks, and additional cost for parts and installation. |
| Legal Compliance | Ensure modifications comply with local vehicle regulations and safety standards. |
| Cost | Varies widely depending on the pump, materials, and labor; typically ranges from $200 to $800+. |
| Time Required | 4-8 hours, depending on experience and vehicle complexity. |
| Difficulty Level | Intermediate to advanced; requires mechanical and electrical knowledge. |
Explore related products
What You'll Learn
Choosing the Right External Fuel Pump
Converting an internal fuel pump to an external setup demands careful selection of the replacement pump to ensure compatibility, performance, and safety. Begin by identifying your vehicle’s fuel system requirements, including flow rate, pressure, and fuel type (gasoline, diesel, or ethanol blends). External pumps often need to handle higher demands, especially in modified or high-performance engines, so consult your vehicle’s specifications or a trusted mechanic to avoid under- or over-sizing. For example, a pump rated at 30–40 psi and 100–150 liters per hour (LPH) typically suits naturally aspirated engines, while turbocharged or supercharged setups may require 200+ LPH and 60–80 psi.
Next, consider the pump’s construction and material. Anodized aluminum or stainless steel housings offer durability and heat resistance, critical for external mounting where exposure to elements is greater. Avoid plastic components unless explicitly rated for high-temperature environments. Additionally, in-tank fuel pumps often rely on fuel submersion for cooling, so external pumps must include integrated cooling fins or a remote cooler to prevent overheating. Brands like Aeromotive, Walbro, and DeatschWerks provide models designed for external use, often featuring these enhancements.
Installation location is another critical factor. External pumps should be mounted close to the fuel tank to minimize pressure drop but away from extreme heat sources like exhaust manifolds. Use rubber isolators to reduce vibration and ensure all fittings are compatible with your fuel lines (AN, push-lock, or OEM-style). If your vehicle uses a return-style fuel system, opt for a pump with a dual-outlet design to maintain proper fuel circulation. For returnless systems, a single-outlet pump suffices but verify it meets the engine’s flow demands under all conditions.
Finally, prioritize safety and regulatory compliance. External fuel pumps must meet local emissions and safety standards, particularly if your vehicle is street-driven. Ensure the pump is certified for use with your fuel type and includes safeguards like check valves to prevent backflow and overpressure relief valves. Always install a pre-filter before the pump and a post-filter after it to protect against debris. While cost is a consideration, investing in a reputable brand with a proven track record can prevent costly failures and potential hazards down the line.
In summary, choosing the right external fuel pump involves matching specifications to your engine’s needs, selecting durable materials, optimizing installation, and adhering to safety standards. Take the time to research and consult experts to ensure a seamless conversion that enhances performance without compromising reliability.
