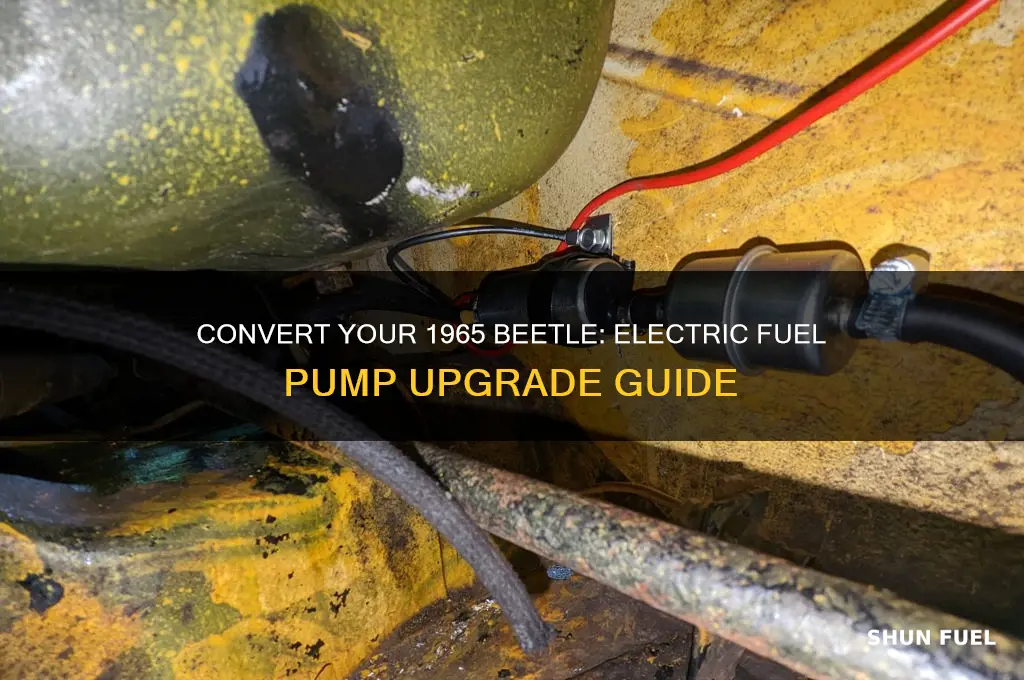

Converting a 1965 Volkswagen Beetle to an electric fuel pump can significantly enhance its reliability and performance, especially for classic car enthusiasts looking to modernize their vehicle. The original mechanical fuel pump in these iconic air-cooled engines is prone to wear and can struggle under high-performance or extended driving conditions. Upgrading to an electric fuel pump not only ensures a consistent fuel supply but also simplifies maintenance and reduces the risk of fuel starvation. This conversion involves selecting a compatible electric pump, modifying the fuel system, and ensuring proper wiring and integration with the vehicle’s electrical system. By following a step-by-step guide, enthusiasts can successfully complete this upgrade, preserving the Beetle’s classic charm while improving its drivability and efficiency.
Explore related products
What You'll Learn
- Choosing the right electric fuel pump for your 1965 Beetle
- Wiring and connecting the electric fuel pump to the battery
- Removing the mechanical fuel pump and installing the new electric one
- Adjusting fuel pressure and testing the electric pump for performance
- Troubleshooting common issues with electric fuel pump conversions in Beetles
Choosing the right electric fuel pump for your 1965 Beetle
Converting a 1965 Beetle to an electric fuel pump requires careful selection to balance performance, compatibility, and reliability. The original mechanical fuel pump, driven by the camshaft, operates at a modest 2–3 PSI, sufficient for the stock 30 PIC (pounds per square inch of carburetor) setup. Electric pumps, however, can deliver 4–7 PSI or more, which may overwhelm the float bowls of the stock Solex or Zenith carburetors, leading to flooding or erratic fuel delivery. To avoid this, choose a pump rated at 4–5 PSI with an integrated pressure regulator, or install an external regulator to maintain safe operating pressure.
Analyzing the Beetle’s fuel system reveals another critical factor: flow rate. A pump with a flow rate of 30–40 gallons per hour (GPH) is ideal for the 1.5L or 1.6L engine, ensuring adequate fuel supply without overworking the system. High-flow pumps (60+ GPH) are unnecessary and can lead to excessive heat buildup, reducing the pump’s lifespan. Look for pumps with a quiet, brushless motor to minimize noise, a common concern in air-cooled engines where mechanical sounds are already prominent.
Installation considerations are equally important. The 1965 Beetle’s fuel tank is located in the front, requiring a pump that can be mounted externally or in-tank. External pumps, such as those from Carter or Holley, are easier to install but may require additional shielding from heat and debris. In-tank pumps, like those from Walbro, offer better cooling and protection but necessitate modifying the fuel tank, a task best suited for experienced DIYers or professionals. Ensure the pump’s inlet and outlet fittings match the Beetle’s 5/16-inch fuel line to avoid leaks or restricted flow.
Finally, reliability and brand reputation cannot be overlooked. Opt for pumps from established manufacturers like Aeromotive, Bosch, or Facet, known for durability and consistent performance. Avoid cheap, no-name pumps, as they often fail prematurely, leaving you stranded. A warranty of at least one year is a good indicator of quality. Pair the pump with a fuel filter rated for 5–10 microns to protect the carburetors from debris, and consider adding a check valve to prevent fuel backflow and maintain prime during engine shutdown.
In summary, choosing the right electric fuel pump for your 1965 Beetle involves matching pressure, flow rate, and installation type to the vehicle’s needs while prioritizing reliability. By selecting a pump with 4–5 PSI, 30–40 GPH flow, and a brushless motor, and ensuring compatibility with the Beetle’s fuel system, you’ll achieve a seamless conversion that enhances performance without compromising safety or longevity.
Crown Vic Fuel Pump Reliability: How Often Does It Fail?
You may want to see also
Explore related products
Wiring and connecting the electric fuel pump to the battery
Converting a 1965 Beetle to an electric fuel pump requires careful attention to wiring and battery connection to ensure reliability and safety. The electric fuel pump must be powered directly from the battery to maintain consistent fuel pressure, especially during engine start and high-load conditions. Begin by selecting a fuel pump rated for your engine’s fuel demands—typically 3-5 psi for a stock Beetle engine. Ensure the pump’s amperage draw aligns with your battery’s capacity; most pumps draw 3-5 amps, which a standard 12V automotive battery can handle.
Start by routing a 12-gauge or thicker wire from the battery’s positive terminal to the fuel pump’s power input. Use a fused relay to protect the circuit—install a 10-15 amp inline fuse within 12 inches of the battery to prevent overheating or fire in case of a short. Connect the relay’s control circuit to the ignition switch, so the pump activates only when the key is turned on. This prevents unnecessary battery drain and reduces the risk of fuel pressure buildup when the engine is off. Ground the pump securely to the chassis using a clean metal surface and a short ground wire to minimize voltage drop.
Consider adding a fuel pressure regulator and filter to the system for optimal performance. The regulator maintains consistent pressure to the carburetor, while the filter protects the pump from debris. Mount these components near the pump to reduce the length of fuel lines and minimize pressure loss. Use rubber or nylon fuel line rated for ethanol-blended gasoline to avoid degradation over time. Secure all lines and wires with zip ties or clamps to prevent chafing or interference with moving parts.
Test the system thoroughly before driving. With the key on, listen for the pump’s priming cycle (a brief humming sound) and check for leaks at all connections. Use a fuel pressure gauge to verify the pump delivers the correct pressure. If the pump fails to activate, inspect the fuse, relay, and wiring for continuity. A multimeter is invaluable for diagnosing electrical issues—check voltage at the pump’s terminals to ensure it’s receiving power.
Finally, prioritize safety throughout the installation. Work in a well-ventilated area, away from open flames or sparks, and disconnect the battery before handling wires. Label all connections for future reference, especially if troubleshooting or upgrading the system later. While the wiring process is straightforward, attention to detail ensures a functional and safe conversion that enhances your Beetle’s performance and reliability.
Understanding Fuel Cutoff Solenoid Functionality in Stanadyne Injection Pumps
You may want to see also
Explore related products
Removing the mechanical fuel pump and installing the new electric one
The mechanical fuel pump in a 1965 Beetle is driven by the camshaft, relying on engine motion to deliver fuel. Removing it requires disconnecting the fuel lines and unbolting the pump from the engine block. Before starting, ensure the engine is cool and the fuel system is depressurized to avoid spills or accidents. Use a wrench to loosen the fuel lines, capturing any residual fuel in a container. Once the lines are free, remove the mounting bolts and carefully lift the pump out, taking note of its orientation for reference during the electric pump installation.
Installing an electric fuel pump involves selecting a unit compatible with your Beetle’s fuel system. Most electric pumps mount externally, often near the fuel tank or along the chassis. Secure the pump using brackets or clamps, ensuring it’s vibration-resistant and accessible for maintenance. Connect the pump to the fuel lines, using appropriate fittings and hoses rated for fuel compatibility. Many electric pumps require a pre-filter and a check valve to prevent fuel backflow, so install these components as per the manufacturer’s instructions. Double-check all connections for tightness and alignment before proceeding.
Wiring the electric pump is a critical step that demands precision. The pump typically requires a 12V power source, which can be wired directly to the battery or through a dedicated relay. Use a fuse in the power line to protect against short circuits. Connect the pump’s ground wire to a clean metal surface on the chassis for a reliable earth. If your Beetle has an ignition-switched power source, wire the pump to activate only when the engine is running. Test the wiring by turning the ignition on and listening for the pump’s hum, ensuring it operates smoothly without drawing excessive current.
After installation, prime the fuel system by cycling the ignition key on and off a few times to build pressure. Check for leaks at all connections, using a fuel-safe spray or soapy water to detect bubbles. Once confirmed leak-free, start the engine and monitor the pump’s performance. Adjust the pump’s pressure regulator if necessary to match the carburetor’s requirements, typically around 2.5 to 3 PSI for a Beetle. Regularly inspect the pump and wiring for wear or damage, as electric systems are more exposed than mechanical ones. This conversion not only improves reliability but also eliminates the engine-driven load, potentially boosting efficiency.
Cavalier Electric Fuel Pump Calibration: Essential Tips and Troubleshooting Guide
You may want to see also
Explore related products
Adjusting fuel pressure and testing the electric pump for performance
Once the electric fuel pump is installed in your '65 Beetle, achieving optimal performance hinges on precise fuel pressure adjustment and rigorous testing. The stock mechanical pump likely delivered around 2-3 PSI, but electric pumps often generate higher pressures, requiring calibration to match your carburetor’s needs. Most Beetle carburetors, like the Solex 30 PICT-3, operate efficiently between 2.5 and 4 PSI. Exceeding this range risks fuel vaporization or flooding, while insufficient pressure starves the engine. Use a fuel pressure gauge to measure output at the carburetor inlet, adjusting the pump’s regulator screw incrementally until the desired pressure is achieved.
Testing the electric pump’s performance involves more than pressure verification. Start by priming the system—turn the ignition on for 10-15 seconds to fill the lines and ensure the pump is functioning. Listen for a consistent, smooth hum; erratic noises or excessive vibration indicate potential issues. Next, simulate load conditions by revving the engine and monitoring pressure stability. A well-performing pump maintains consistent pressure across RPM ranges. If pressure drops under load, inspect for leaks, clogged filters, or inadequate pump capacity.
A comparative analysis of fuel delivery systems highlights the importance of this step. Unlike mechanical pumps driven by the camshaft, electric pumps rely on electrical integrity and precise regulation. Voltage fluctuations can affect pump speed and pressure, so test the system at varying battery voltages (12V to 13.8V) to ensure reliability. Additionally, compare the pump’s flow rate to the carburetor’s demand. A pump rated for 30 GPH (gallons per hour) is typically sufficient for a stock Beetle, but high-performance setups may require higher capacity.
Practical tips streamline the adjustment and testing process. Always bleed air from the fuel lines after installation to prevent cavitation, which can damage the pump and disrupt fuel delivery. Use a catch container when testing to avoid spills and measure flow rate accurately. If pressure adjustments prove difficult, consider upgrading to an adjustable fuel pressure regulator for finer control. Finally, log baseline pressure readings at idle and under load for future reference, ensuring any deviations are quickly identified and addressed.
In conclusion, adjusting fuel pressure and testing the electric pump are critical steps in a Beetle conversion. Precision in calibration, thorough testing under various conditions, and attention to electrical stability ensure a reliable and efficient fuel delivery system. By treating these steps as a diagnostic routine rather than a one-time setup, you safeguard your engine’s performance and longevity.
Does ASC Warranty Cover Fuel Pump Repairs? A Comprehensive Guide
You may want to see also
Explore related products
Troubleshooting common issues with electric fuel pump conversions in Beetles
Electric fuel pump conversions in 1965 Beetles often encounter issues with fuel pressure regulation, a critical factor for engine performance. The stock mechanical pump in these vehicles operates at a consistent 1-2 PSI, but electric pumps can deliver 3-5 PSI or more, depending on the model. This discrepancy can lead to fuel delivery problems, such as flooding the carburetor or causing lean mixtures. To troubleshoot, install an adjustable fuel pressure regulator and set it to match the carburetor’s requirements, typically around 2.5-3.5 PSI. Use a fuel pressure gauge to monitor levels during operation, ensuring stability under varying RPMs. If pressure fluctuates, inspect the regulator for leaks or improper calibration.
Another common issue is electrical interference, which can cause the pump to malfunction or fail prematurely. Beetles’ aging wiring systems are particularly susceptible to voltage drops or spikes when the pump activates. To mitigate this, install a relay kit to isolate the pump’s power draw from the ignition switch. Ensure the pump is grounded directly to the chassis using a clean, unpainted surface to minimize resistance. If the pump still operates erratically, test the voltage at the pump’s terminals with a multimeter; consistent readings below 12V indicate a wiring issue. Upgrading to a thicker gauge wire (12-14 AWG) can improve reliability.
Vapor lock, a condition where fuel vaporizes in the lines, is more prevalent in electric conversions due to the pump’s higher operating temperature. Symptoms include stalling or difficulty restarting after the engine warms up. To address this, insulate fuel lines near heat sources like the exhaust manifold using high-temperature sleeves. Relocating the fuel filter and lines away from hot components can also help. If vapor lock persists, consider installing a fuel cooler or switching to a pump with a lower heat output. Running a return-style fuel system, though more complex, eliminates excess pressure and reduces heat buildup.
Finally, improper pump placement can lead to noise, vibration, or mechanical stress. Mounting the pump too close to the engine or without adequate support can cause it to resonate at certain frequencies, shortening its lifespan. Secure the pump using rubber isolators to dampen vibrations, and position it in a location with sufficient airflow to prevent overheating. Avoid mounting it directly on the chassis or near moving parts. If unusual noises occur, inspect the mounting points for looseness or misalignment. A well-mounted pump should operate quietly and remain stable under all driving conditions.
Quick Tips to Start Your Fuel Pump Efficiently and Safely
You may want to see also
Frequently asked questions
The main components include an electric fuel pump, a fuel pump relay, a wiring harness, an inline fuel filter, and a fuel pressure regulator. You may also need a new fuel line and fittings depending on your setup.
Yes, you can use the original fuel tank, but ensure it is clean and free of debris. You may need to install a new fuel pump mounting plate or adapter to fit the electric pump properly.
Wire the electric fuel pump to a switched 12V power source, such as the ignition switch, using a relay to handle the current. Ground the pump securely to the chassis, and ensure the wiring is protected from heat and abrasion.
For a carbureted 1965 Beetle, set the fuel pressure between 2.5 to 3.5 PSI. Use a fuel pressure regulator to maintain consistent pressure and prevent overfeeding the carburetor.
It’s recommended to inspect and possibly upgrade the fuel lines, especially if they are old or deteriorated. Use high-quality fuel line rated for modern fuel systems to ensure safety and reliability.
