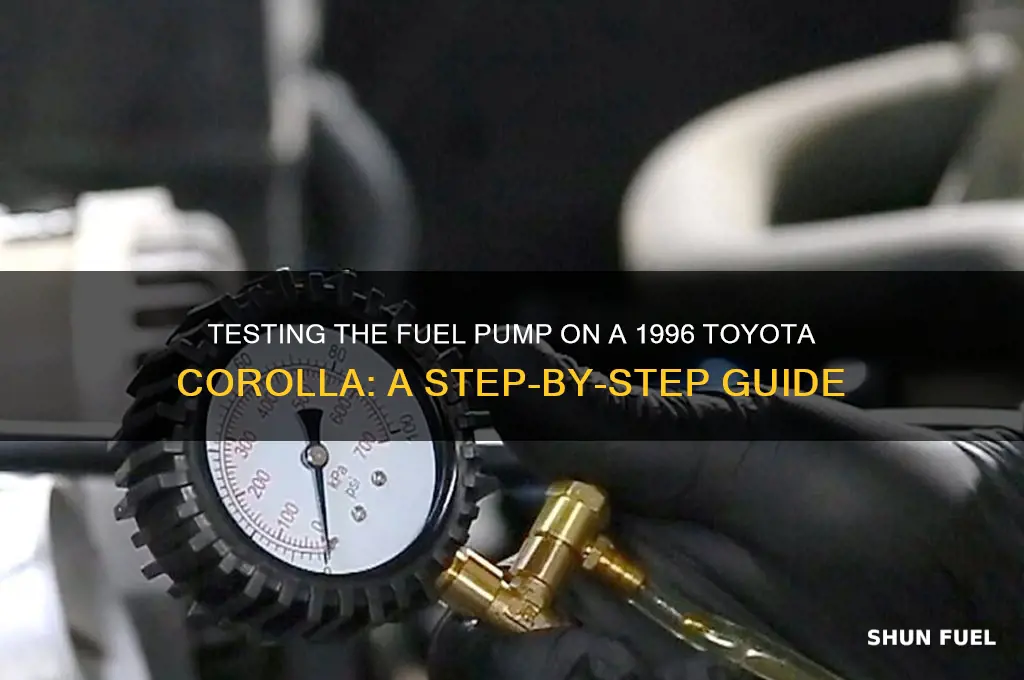

Testing the fuel pump on a 1996 Toyota Corolla is a critical diagnostic step to ensure your vehicle’s fuel system is functioning properly. Symptoms like difficulty starting, stalling, or poor engine performance may indicate a failing fuel pump. To test it, start by checking the fuel pump fuse and relay for any signs of damage or corrosion. Next, listen for the fuel pump’s hum by placing your ear near the fuel tank while someone turns the ignition to the on position—a brief whirring sound should be audible. If no sound is heard, use a multimeter to verify power and ground at the fuel pump connector. Additionally, measure fuel pressure using a gauge to ensure it meets the manufacturer’s specifications. If all tests point to a faulty pump, replacement may be necessary to restore proper vehicle operation. Always consult the vehicle’s manual or a trusted repair guide for specific instructions tailored to your 1996 Toyota Corolla.
| Characteristics | Values |
|---|---|
| Fuel Pump Location | Inside the fuel tank (access through the rear seat or trunk). |
| Tools Required | Multimeter, screwdriver, wrench, rubber mallet, and safety gear. |
| Testing Method 1: Listen for Operation | Turn the ignition to the "ON" position and listen for the fuel pump hum. |
| Testing Method 2: Fuel Pressure Test | Use a fuel pressure gauge to check pressure at the fuel rail (should be 30-40 psi). |
| Testing Method 3: Voltage Check | Measure voltage at the fuel pump connector (should be 12V with ignition on). |
| Testing Method 4: Resistance Check | Check fuel pump resistance (typically 1-3 ohms for a 1996 Corolla). |
| Common Symptoms of Failure | Engine cranks but won’t start, stalling, loss of power, or no fuel delivery. |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, and avoid sparks. |
| Replacement Access | Remove the rear seat or trunk lining to access the fuel pump assembly. |
| Fuel Pump Relay Location | Typically under the hood in the fuse/relay box (check manual for exact location). |
| Diagnostic Trouble Codes (DTCs) | Use an OBD-I scanner to check for fuel pump-related codes (e.g., P0171, P0174). |
| Fuel Filter Check | Inspect or replace the fuel filter if clogged (located near the fuel pump). |
| Estimated Repair Time | 2-4 hours for DIY, depending on experience. |
| Estimated Cost (Parts) | $100-$300 for a new fuel pump assembly (prices vary by brand). |
| Difficulty Level | Moderate to difficult (requires mechanical skills and tools). |
Explore related products
What You'll Learn
Check Fuel Pump Fuse and Relay
A faulty fuel pump can leave you stranded, but before replacing it, check the fuel pump fuse and relay—common culprits in a 1996 Toyota Corolla’s fuel delivery issues. These components act as gatekeepers, controlling power to the pump. If either fails, the pump won’t operate, regardless of its condition. Start by locating the fuse box, typically under the dashboard or in the engine bay. Consult your Corolla’s manual for the exact position of the fuel pump fuse and relay, as they vary by model.
Begin with the fuse. Using a fuse puller or needle-nose pliers, carefully remove it and inspect the metal strip inside. A blown fuse will show a visible break or burn mark. If damaged, replace it with a fuse of the same amperage—usually 15 or 20 amps for a Corolla. However, don’t stop here. A blown fuse often indicates an underlying issue, such as a short circuit or overloaded system. If the fuse blows again after replacement, further investigation is needed.
Next, test the relay. Relays are switches that activate the fuel pump when the ignition is turned on. To check it, locate the fuel pump relay in the fuse box and swap it with a similar relay (e.g., the horn relay). If the fuel pump engages after starting the car, the original relay is faulty. Alternatively, use a multimeter to test for continuity across the relay’s terminals. A lack of continuity indicates a defective relay.
While testing, consider the conditions under which the issue occurs. Does the fuel pump fail only when hot? This could suggest heat-related relay failure. Does it work intermittently? A corroded relay socket might be the cause. Cleaning the socket with electrical contact cleaner and a small brush can sometimes restore functionality.
In conclusion, checking the fuel pump fuse and relay is a straightforward yet critical step in diagnosing fuel delivery problems in a 1996 Toyota Corolla. It’s a cost-effective measure that can save you from unnecessary repairs. Always keep spare fuses and a multimeter in your toolkit for quick troubleshooting. If both components check out, proceed to test the fuel pump itself, but start here to rule out the simplest causes first.
Boost Your Engine's Performance: Effective Tips to Strengthen a Weak Fuel Pump
You may want to see also
Explore related products
Test Fuel Pump Pressure and Volume
Fuel pump issues can manifest as hard starts, stalling, or poor engine performance, making pressure and volume testing a critical diagnostic step for a 1996 Toyota Corolla. This test verifies the pump’s ability to deliver sufficient fuel at the correct pressure, ensuring optimal engine operation. Unlike newer vehicles with complex diagnostics, the 1996 Corolla relies on straightforward mechanical testing, making it accessible for DIY mechanics with basic tools and knowledge.
To begin, locate the fuel pump test port, typically found on the fuel rail near the engine. Attach a fuel pressure gauge to this port, ensuring a secure connection to prevent fuel leaks. With the ignition in the "ON" position but the engine off, observe the gauge reading. A healthy fuel pump on a 1996 Corolla should maintain pressure between 30 and 40 psi, depending on the specific engine variant. If the pressure falls outside this range, the pump may be failing or the fuel pressure regulator could be faulty.
Next, test fuel volume by disconnecting the fuel line at the rail and directing it into a graduated container. Start the engine and let it run for 15 seconds, measuring the fuel output. A properly functioning pump should deliver approximately 1 pint (0.5 liters) of fuel during this time. Insufficient volume indicates a weak pump, clogged fuel filter, or restricted fuel lines. Always exercise caution when working with fuel, as it is flammable and can cause fires or skin irritation.
Comparing these results to factory specifications is essential for accurate diagnosis. For instance, if pressure is adequate but volume is low, the issue may lie in the fuel filter or lines rather than the pump itself. Conversely, low pressure with normal volume suggests a failing pump or regulator. This analytical approach helps pinpoint the problem, saving time and money on unnecessary repairs.
In conclusion, testing fuel pump pressure and volume on a 1996 Toyota Corolla is a practical, hands-on process that requires minimal tools but precise attention to detail. By systematically evaluating both pressure and volume, you can diagnose fuel delivery issues with confidence, ensuring your vehicle runs smoothly and efficiently. Always prioritize safety and consult a repair manual for model-specific details.
Rewire Your Fuel Pump: Step-by-Step Guide for DIY Enthusiasts
You may want to see also
Explore related products
Listen for Fuel Pump Hum at Startup
One of the simplest yet most effective ways to diagnose a fuel pump issue in a 1996 Toyota Corolla is to listen for the characteristic hum it produces during startup. This sound, often described as a faint whirring or buzzing, is a crucial indicator that the fuel pump is functioning correctly. To perform this test, start by ensuring your fuel tank is at least a quarter full, as an empty tank can lead to inaccurate results. Turn the ignition key to the "On" position—just before cranking the engine—and pay close attention to the area near the fuel tank. A healthy fuel pump should emit a brief, consistent hum lasting 2-3 seconds, signaling it’s priming the fuel system. If this sound is absent, weak, or irregular, it may suggest a failing pump or electrical issue.
The science behind this hum lies in the fuel pump’s operation. Located inside the fuel tank, the pump activates momentarily when the ignition is turned on to build pressure in the fuel lines. This ensures fuel is readily available for combustion when the engine starts. In a 1996 Corolla, the fuel pump’s relay and fuse are typically located under the hood or near the driver’s side kick panel, making it easier to isolate electrical problems if the hum is missing. However, before jumping to conclusions, consider environmental factors: a noisy engine bay or loud exterior sounds can mask the hum, so perform the test in a quiet area with the windows up.
For a more precise diagnosis, use a mechanic’s stethoscope or a length of rubber hose to amplify the sound near the fuel tank. Place one end of the hose against the tank and listen through the other end while activating the ignition. This method enhances the hum, making it easier to detect even faint or abnormal noises. If the hum is present but the engine still fails to start, the issue may lie elsewhere, such as a clogged fuel filter or faulty injectors. Conversely, a missing hum often points directly to the fuel pump or its electrical circuit, narrowing your troubleshooting scope significantly.
While listening for the fuel pump hum is a valuable initial test, it’s not foolproof. False positives can occur if the pump runs momentarily but lacks sufficient pressure to deliver fuel. To confirm suspicions, follow up with a fuel pressure test using a gauge connected to the fuel rail. This provides quantitative data to complement your qualitative observations. Additionally, inspect the fuel pump relay and fuse for signs of damage or corrosion, as these components are common culprits in electrical failures. Combining auditory checks with these supplementary tests ensures a comprehensive diagnosis, saving time and preventing unnecessary part replacements.
In conclusion, listening for the fuel pump hum at startup is a quick, cost-effective method to assess its functionality in a 1996 Toyota Corolla. By understanding the mechanics behind the sound and employing simple tools to enhance detection, you can pinpoint potential issues with confidence. While this test is a strong starting point, it should be part of a broader diagnostic approach, including pressure testing and electrical inspections. With patience and attention to detail, you’ll be well-equipped to address fuel pump problems efficiently, keeping your Corolla running smoothly for years to come.
Step-by-Step Guide: Replacing the Fuel Pump on a 1980 Buick Regal V6
You may want to see also
Explore related products
![ECCPP® Fuel Pump for: Chevy S10 Blazer & GMC S15 Jimmy 98-03, GMC Envoy 98-00, Oldsmobile Bravada 99-01 [4 DOOR MODELS] E3992M 323-01213](https://m.media-amazon.com/images/I/61phqMlJIIL._AC_UY218_.jpg)
Inspect Fuel Pump Wiring and Connections
Faulty wiring or connections can cripple a fuel pump, mimicking pump failure. Before condemning the pump itself, a thorough inspection of the electrical system is crucial. This involves a systematic approach, combining visual examination with basic electrical testing.
Visual Inspection: Begin by locating the fuel pump wiring harness, typically found near the fuel tank access panel. Look for obvious signs of damage: frayed wires, cracked insulation, loose connections, or corrosion. Pay close attention to areas where wires rub against sharp edges or are exposed to heat sources. Even minor damage can lead to intermittent power loss or voltage drops, affecting pump performance.
Continuity and Resistance Testing: Armed with a multimeter, verify continuity throughout the wiring harness. Disconnect the pump connector and test for continuity between the pump's power and ground terminals. A break in the circuit will indicate a wiring fault. Additionally, measure resistance across the pump terminals. Compare this value to the manufacturer's specifications; deviations suggest internal pump issues or wiring problems.
Voltage Drop Testing: With the ignition on, measure voltage at the pump connector. A significant drop compared to battery voltage points to high resistance in the circuit, often caused by corroded connections, loose terminals, or undersized wiring. This test helps pinpoint the location of the electrical issue.
Ground Verification: A solid ground is essential for proper pump operation. Use the multimeter to check for continuity between the pump's ground terminal and a known good chassis ground. A lack of continuity indicates a faulty ground connection, which can be remedied by cleaning the ground point or replacing the ground wire.
By meticulously inspecting the fuel pump wiring and connections, you can often diagnose and rectify electrical issues without resorting to costly pump replacement. This systematic approach, combining visual inspection with basic electrical testing, empowers you to tackle fuel pump problems with confidence and accuracy. Remember, a thorough electrical inspection is a vital step in any fuel pump diagnostic process.
Wiring an Electric Fuel Pump: Step-by-Step Guide for DIY Enthusiasts
You may want to see also
Explore related products
Use Multimeter to Test Fuel Pump Circuit
A multimeter is an indispensable tool for diagnosing fuel pump issues in a 1996 Toyota Corolla. By testing the fuel pump circuit, you can determine whether the problem lies in the pump itself, the wiring, or the relay. This methodical approach saves time and eliminates guesswork, ensuring you address the root cause rather than replacing parts unnecessarily.
To begin, locate the fuel pump relay in the fuse box under the hood. Consult the owner’s manual or a repair guide for its exact position. With the ignition off, remove the relay and inspect its terminals. Using the multimeter set to the ohms (resistance) setting, test the continuity between the relay’s power and ground terminals. A reading of infinity indicates an open circuit, suggesting a faulty relay. If the relay passes, reconnect it and proceed to test the circuit’s voltage.
Next, set the multimeter to the DC voltage setting and connect the red lead to the fuel pump’s power wire (usually at the pump connector) and the black lead to a good ground. Have an assistant turn the ignition to the "on" position but do not start the engine. A healthy circuit should show battery voltage (around 12 volts). If no voltage is present, trace the wiring back to the relay and fuse to identify breaks or corrosion. If voltage is present, the issue may lie in the pump’s internal windings or its ground connection.
For a more comprehensive test, measure the resistance across the fuel pump’s terminals with the multimeter. Disconnect the pump’s connector and set the multimeter to ohms. A typical fuel pump should read between 1.0 and 3.0 ohms, depending on the model. A significantly higher or lower reading indicates a faulty pump. Always compare your findings to the manufacturer’s specifications for accuracy.
In conclusion, using a multimeter to test the fuel pump circuit in a 1996 Toyota Corolla is a systematic process that requires attention to detail. By verifying voltage, continuity, and resistance, you can pinpoint the source of the problem efficiently. This approach not only saves money but also ensures your vehicle’s fuel system operates reliably. Always prioritize safety by working in a well-ventilated area and avoiding sparks near fuel lines.
