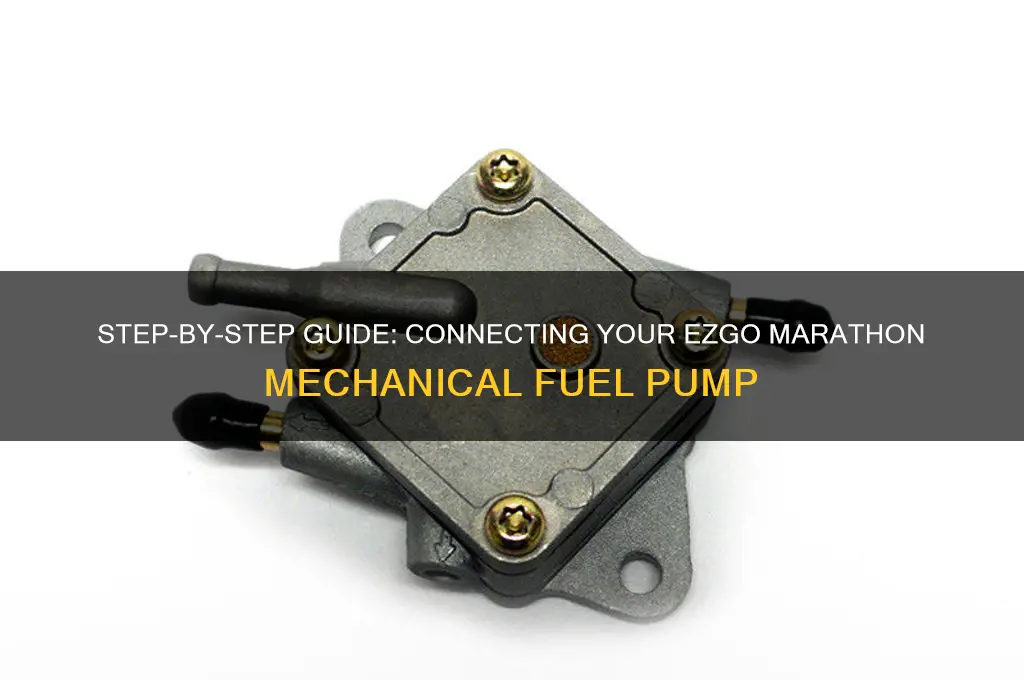

Connecting an EZGO Marathon mechanical fuel pump is a straightforward process that ensures your golf cart’s engine receives a consistent fuel supply. This task requires basic mechanical skills and a few tools, including wrenches and a screwdriver. Begin by locating the fuel pump, typically mounted near the fuel tank or carburetor, and disconnect the fuel lines carefully to avoid spills. Next, remove the old pump by unscrewing the mounting bolts and detach the linkage arm connected to the engine’s camshaft. Install the new pump by reversing these steps, ensuring the linkage arm is properly aligned and secured. Finally, reconnect the fuel lines, check for leaks, and test the pump’s operation by starting the engine. Proper installation is crucial for optimal performance and longevity of your EZGO Marathon’s fuel system.
| Characteristics | Values |
|---|---|
| Pump Type | Mechanical Fuel Pump |
| Vehicle Compatibility | EZGO Marathon Golf Cart (Gas Models) |
| Mounting Location | Typically on the engine block or near the fuel tank |
| Fuel Line Connections | Inlet (from fuel tank) and Outlet (to carburetor) |
| Connection Method | Use fuel line hoses with clamps or fittings |
| Tools Required | Wrenches, screwdrivers, fuel line disconnect tool, safety goggles |
| Safety Precautions | Work in a well-ventilated area, ensure engine is off, avoid sparks |
| Pump Operation | Driven by the engine camshaft or pushrod |
| Troubleshooting Tips | Check for leaks, ensure proper fuel flow, inspect for clogs |
| Replacement Interval | Replace if pump fails or shows signs of wear (e.g., fuel starvation) |
| Common Issues | Leaks, reduced fuel pressure, pump failure |
| Maintenance Tips | Regularly inspect fuel lines and connections for wear or damage |
| Part Number (Reference) | Varies by model; check EZGO parts catalog for specific pump |
| Installation Difficulty | Moderate (requires mechanical knowledge and tools) |
| Cost (Approximate) | $50 - $100 (depending on brand and quality) |
Explore related products
What You'll Learn
Pump Removal and Disassembly
Removing the mechanical fuel pump from an EZGO Marathon golf cart is a task that demands precision and care. Begin by disconnecting the battery to prevent accidental ignition. Locate the pump, typically mounted on the engine block, and identify the fuel lines connected to it. Use a wrench to loosen the fittings, ensuring you have a container ready to catch any residual fuel. Once the lines are detached, remove the mounting bolts securing the pump to the engine. Take note of the pump’s orientation for reassembly, as improper alignment can lead to inefficiency or damage.
Disassembly of the pump requires a methodical approach to avoid losing small components or damaging internal mechanisms. Start by removing the pump cover, often held in place by screws or a retaining ring. Inspect the diaphragm for cracks or wear, as this is a common failure point. Carefully lift out the diaphragm and spring assembly, setting them aside for cleaning or replacement. Next, examine the valve assembly, which includes the inlet and outlet valves. Clean these components with carburetor cleaner to remove debris, ensuring smooth operation when reassembled.
A critical aspect of disassembly is understanding the pump’s internal workings. The diaphragm creates a vacuum to draw fuel from the tank, while the valves regulate flow to the carburetor. If the diaphragm is damaged or the valves are clogged, fuel delivery will be compromised. Compare the condition of your pump’s components to a service manual or online diagram to identify wear patterns. This analysis will help determine whether parts need replacement or if a thorough cleaning will suffice.
Reassembly follows the reverse order of disassembly but requires attention to detail. Ensure all components are clean and undamaged before reinstalling them. Lubricate the diaphragm lightly with silicone grease to prevent sticking, but avoid over-application, which can contaminate the fuel system. Secure the pump cover and reattach the fuel lines, tightening fittings hand-tight to avoid stripping threads. Finally, remount the pump on the engine, ensuring it aligns correctly with the block. Test the system for leaks and proper operation before reconnecting the battery and starting the engine.
By approaching pump removal and disassembly with care and understanding, you can diagnose and resolve fuel delivery issues effectively. This process not only saves on repair costs but also extends the life of your EZGO Marathon’s fuel system. Always prioritize safety and precision, as even small mistakes can lead to significant problems down the line.
DIY Guide: Repairing Your Nissan Frontier's Fuel Pump Easily
You may want to see also
Explore related products
Gasket Replacement and Sealing
A worn or damaged gasket can compromise the fuel pump's performance, leading to leaks, reduced efficiency, or even engine failure. When replacing the gasket on an EZGO Marathon mechanical fuel pump, precision and attention to detail are paramount. Begin by selecting the correct gasket material, typically a fuel-resistant rubber or composite, to ensure compatibility with gasoline and the pump's operating conditions. Measure the gasket's dimensions against the pump's mating surfaces to confirm an exact fit, as even minor discrepancies can lead to sealing issues.
The process of gasket replacement involves disassembling the fuel pump, which requires careful removal of the pump's cover or housing. Use appropriate tools to avoid damaging the pump's components, such as a screwdriver or wrench, depending on the fastening mechanism. Once the cover is removed, inspect the existing gasket for signs of wear, cracking, or debris. Clean the mating surfaces thoroughly with a solvent or degreaser to remove any residue, ensuring a smooth and even surface for the new gasket.
Installing the new gasket demands a methodical approach. Position the gasket onto the pump's base, aligning it perfectly with the mounting holes or grooves. Apply a thin, even layer of high-temperature sealant or gasket adhesive to enhance the seal, but avoid over-application, as excess material can interfere with the pump's operation. Reassemble the pump, tightening the fasteners in a diagonal pattern to ensure even pressure distribution across the gasket. Torque specifications vary by model, so consult the EZGO Marathon manual for precise values.
Sealing integrity is critical for the fuel pump's functionality. After reassembly, perform a leak test by pressurizing the fuel system and inspecting for any signs of leakage around the gasket. If leaks are detected, disassemble the pump again, reinspect the gasket and mating surfaces, and reapply the sealant as needed. Regular maintenance, including periodic gasket inspections, can prevent unexpected failures and extend the pump's lifespan. By prioritizing precision and adherence to best practices, gasket replacement becomes a straightforward yet essential task in maintaining the EZGO Marathon's mechanical fuel pump.
Step-by-Step Guide to Accessing and Opening Your BMW Fuel Pump
You may want to see also
Explore related products
Fuel Line Connection Guide
Connecting the fuel lines to your EZGO Marathon mechanical fuel pump requires precision and attention to detail to ensure a leak-free and efficient system. Begin by identifying the inlet and outlet ports on the pump, typically marked with arrows or labels. The inlet port connects to the fuel tank, while the outlet port directs fuel to the carburetor. Use fuel line tubing compatible with gasoline, such as rubber or nylon, ensuring it fits snugly over the ports. Secure the connections with clamps designed for fuel lines, tightening them enough to prevent leaks but not so much that they damage the tubing.
One common mistake is using incorrect tubing sizes or materials, which can lead to poor performance or fuel leaks. For EZGO Marathon models, the standard fuel line diameter is typically 5/16 inch, but always verify this with your specific model’s manual. If replacing old lines, inspect the original tubing for markings indicating size and material. When cutting new tubing, ensure clean, straight cuts to facilitate a tight seal. Applying a small amount of silicone-based lubricant to the tubing ends can ease installation without compromising the connection.
A critical step often overlooked is priming the fuel pump after connection. With the lines secured, manually pump the fuel pump lever several times to draw fuel from the tank and eliminate air pockets. This ensures the carburetor receives a consistent fuel supply, preventing engine sputtering or stalling. If the engine fails to start after priming, check for leaks at the connections and verify that the fuel filter is not clogged.
For long-term reliability, inspect the fuel lines periodically for cracks, brittleness, or signs of fuel degradation. Ethanol-blended fuels can accelerate rubber deterioration, so consider upgrading to ethanol-resistant tubing if your vehicle operates in areas where such fuels are common. Additionally, keep clamps tight but not over-tightened, as excessive force can crush the tubing and restrict fuel flow. Regular maintenance of these connections will extend the life of your fuel system and ensure your EZGO Marathon runs smoothly.
In summary, connecting the fuel lines to an EZGO Marathon mechanical fuel pump involves selecting the correct tubing, securing it with appropriate clamps, and priming the pump for optimal performance. Attention to detail during installation and regular inspections can prevent common issues like leaks or fuel flow restrictions. By following these steps, you’ll maintain a reliable fuel system that supports the efficient operation of your vehicle.
Choosing the Right Electric Fuel Pump: A Comprehensive Guide
You may want to see also
Explore related products
Pump Installation and Alignment
Proper alignment is critical during the installation of an EZGO Marathon mechanical fuel pump to ensure efficient operation and prevent premature wear. Misalignment can lead to excessive vibration, reduced fuel flow, and even mechanical failure. Begin by securing the pump to the engine block using the provided mounting bolts, ensuring the pump’s drive shaft is parallel to the engine’s camshaft. Use a straightedge or alignment tool to verify parallelism, adjusting as necessary. Tighten the bolts in a crisscross pattern to achieve even pressure and avoid warping the mounting flange.
Once the pump is mounted, focus on connecting the drive mechanism. The EZGO Marathon pump typically uses a pushrod or eccentric wheel driven by the camshaft. Ensure the pushrod or wheel engages the pump’s arm smoothly without binding. If using a pushrod, check that it has sufficient clearance and is properly lubricated to reduce friction. For eccentric wheel setups, verify that the wheel’s groove aligns with the pump arm’s roller, allowing for full travel without slippage.
Alignment isn’t just about static positioning—it’s also about dynamic operation. After initial installation, manually rotate the pump arm to simulate operation, observing for any resistance or uneven movement. If the arm sticks or moves jerkily, recheck the alignment and ensure no debris is obstructing the mechanism. A properly aligned pump should move freely and engage the drive mechanism without hesitation, ensuring consistent fuel delivery.
Finally, test the system before finalizing installation. With the engine off, crank the starter to observe the pump’s movement. If the pump operates smoothly and quietly, proceed to secure all connections and reattach fuel lines. If issues persist, revisit the alignment process, as even minor discrepancies can cause significant operational problems. Proper alignment not only extends the pump’s lifespan but also ensures your EZGO Marathon runs reliably, delivering fuel efficiently under all operating conditions.
Pump Precision: Unveiling the Accuracy of Octane Ratings at Fuel Stations
You may want to see also
Explore related products
Testing for Proper Operation
Once the EZGO Marathon mechanical fuel pump is installed, testing its operation is crucial to ensure reliable performance. Begin by verifying the pump’s mechanical linkage to the engine. With the ignition off, manually rotate the engine crankshaft to confirm the pump’s rocker arm moves freely and engages the pump diaphragm. This initial check ensures the linkage isn’t binding or misaligned. Next, turn the ignition on and listen for the pump’s rhythmic ticking sound, which indicates it’s cycling properly. If the sound is absent or irregular, inspect the linkage for obstructions or adjust the pump’s mounting position.
A more precise test involves measuring fuel pressure at the carburetor inlet. Attach a fuel pressure gauge to the fuel line and crank the engine. A healthy pump should produce 2–4 psi, depending on the carburetor’s requirements. If pressure is low or nonexistent, check for leaks in the fuel lines or a faulty diaphragm. Alternatively, disconnect the fuel line at the carburetor and crank the engine briefly to observe fuel flow. A steady, consistent stream confirms proper operation, while a weak or intermittent flow suggests a clogged filter, air leak, or worn pump components.
For a dynamic test, start the engine and let it idle. Gradually increase throttle and observe carburetor response. If the engine hesitates or stalls under load, the pump may not be delivering sufficient fuel. Compare performance to a known operational vehicle if possible, noting differences in acceleration and smoothness. This comparative analysis can highlight subtle issues like partial pump failure or inadequate fuel supply at higher RPMs.
Finally, perform a long-term test by running the vehicle under normal operating conditions for 15–20 minutes. Monitor for consistent engine behavior, unusual noises, or fuel leaks. After shutdown, inspect the pump for overheating or fuel residue, which could indicate internal wear or improper installation. These steps ensure the fuel pump operates reliably, preventing future breakdowns and optimizing engine efficiency.
Diagnosing C6 Corvette Fuel Pump Issues: A Step-by-Step Guide
You may want to see also
Frequently asked questions
You will need a wrench or socket set, pliers, a screwdriver, Teflon tape or thread sealant, and a fuel line disconnect tool if applicable.
Use a fuel line disconnect tool or pliers to carefully release the clamps holding the fuel line to the old pump. Ensure the fuel system is depressurized before proceeding.
The pump should be mounted close to the fuel tank, typically on the frame or a bracket near the tank, ensuring it’s secure and accessible for maintenance.
Attach the fuel lines to the pump’s inlet and outlet ports, ensuring the arrows on the lines match the flow direction. Secure the lines with clamps and check for leaks.
Check for air leaks in the fuel lines, ensure the pump is properly mounted, and verify that the fuel tank has sufficient fuel. Crank the engine to help prime the pump if necessary.
