Rajan Wilcox

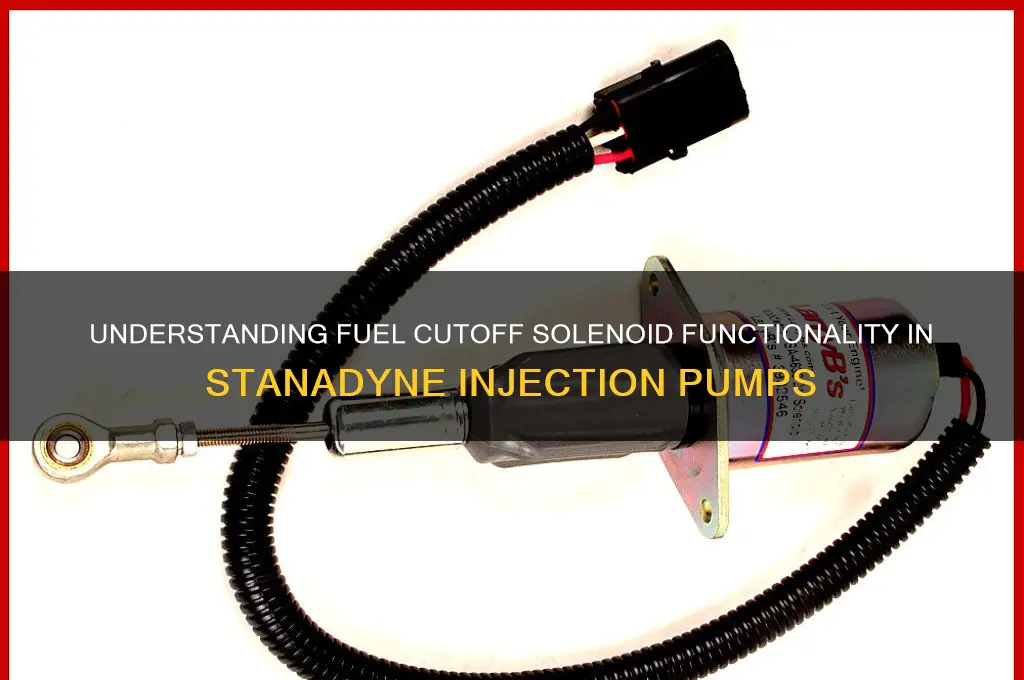

The fuel cutoff solenoid in a standing injection pump plays a critical role in controlling the fuel supply to the engine, ensuring it shuts off promptly when the ignition is turned off or during emergency situations. This solenoid is an electromechanical device that operates by receiving an electrical signal from the engine control unit (ECU) or ignition switch. When activated, the solenoid moves a plunger or valve to block the fuel flow from the injection pump to the engine, effectively cutting off the fuel supply. This mechanism is essential for safety, preventing the engine from running unintentionally and reducing the risk of fuel-related accidents. In standing injection pumps, the fuel cutoff solenoid is typically integrated into the pump assembly, working in tandem with the pump's mechanical components to ensure precise and reliable fuel management. Understanding its operation is key to diagnosing and maintaining the efficiency and safety of diesel engines equipped with such systems.
| Characteristics | Values |
|---|---|
| Function | Controls fuel supply to the engine by actuating the fuel cutoff mechanism. |
| Operation Principle | Electromagnetic solenoid pulls a plunger to open/close the fuel passage. |
| Activation | Activated by the Engine Control Unit (ECU) via an electrical signal. |
| Power Source | 12V DC (typical for most vehicles). |
| Location | Integrated into the mechanical fuel injection pump. |
| Response Time | Milliseconds (rapid actuation for immediate fuel cutoff). |
| Failure Symptoms | Engine stall, difficulty starting, or inability to shut off the engine. |
| Maintenance | Requires periodic inspection for electrical connectivity and mechanical wear. |
| Compatibility | Specific to mechanical fuel injection systems (e.g., diesel engines). |
| Safety Feature | Ensures immediate fuel cutoff in emergencies or during engine shutdown. |
| Material | Typically made of corrosion-resistant metals (e.g., stainless steel). |
| Temperature Range | Operates in -40°C to 120°C (-40°F to 248°F). |
| Lifespan | 100,000 to 150,000 miles (varies by usage and maintenance). |
Explore related products
What You'll Learn
- Solenoid Activation Mechanism: Explains how the solenoid receives signals to cut off fuel supply in the pump
- Electrical Circuit Operation: Details the role of the electrical circuit in controlling solenoid function
- Fuel Flow Interruption: Describes how the solenoid physically blocks fuel delivery to the engine
- Timing and Precision: Highlights the importance of accurate timing in solenoid activation for engine efficiency
- Common Failure Modes: Lists typical issues like sticking or electrical faults affecting solenoid performance
Solenoid Activation Mechanism: Explains how the solenoid receives signals to cut off fuel supply in the pump
The fuel cutoff solenoid in a stanadyne injection pump is a critical component that ensures the engine stops when the ignition is turned off. Its activation mechanism is a precise interplay of electrical signals and mechanical response. When the ignition key is switched to the "off" position, the engine control unit (ECU) sends a signal to the solenoid, typically a 12-volt pulse. This signal energizes the solenoid, causing its internal plunger to move and block the fuel supply line. The process is nearly instantaneous, ensuring the engine shuts down safely and efficiently.
To understand the solenoid's activation, consider its internal structure. The solenoid consists of a coil of wire wrapped around a metal core, with a movable plunger inside. When the ECU sends an electrical signal, the coil generates a magnetic field, pulling the plunger toward the core. This movement physically obstructs the fuel passage, cutting off the supply to the injection pump. The precision of this mechanism is vital; even a slight delay or malfunction could allow fuel to continue flowing, potentially causing engine damage or unsafe conditions.
A key factor in the solenoid's operation is the quality of the electrical signal it receives. The ECU must deliver a consistent voltage and duration to ensure reliable activation. For example, a 12-volt signal is standard, but fluctuations below 10 volts or above 14 volts can impair performance. Additionally, the signal duration is typically calibrated to 50–100 milliseconds, ensuring the plunger moves swiftly without unnecessary strain on the solenoid. Regular maintenance, such as checking wiring connections and cleaning terminals, can prevent signal degradation and ensure the solenoid functions optimally.
Comparing the solenoid's activation to other fuel cutoff systems highlights its efficiency. Unlike mechanical systems that rely on levers or linkages, the solenoid operates silently and with minimal wear. Its electronic nature also allows for integration with advanced diagnostics, enabling the ECU to monitor its performance and alert the driver to potential issues. For instance, if the solenoid fails to activate, the ECU can trigger a warning light on the dashboard, prompting immediate inspection.
In practical terms, troubleshooting a malfunctioning solenoid involves a systematic approach. Start by verifying the ECU is sending the correct signal using a multimeter; a missing or weak signal indicates an issue with the control unit or wiring. If the signal is present, inspect the solenoid for physical damage or debris blocking the plunger. Replacement is often necessary if the solenoid is faulty, but ensure compatibility with the specific stanadyne pump model. Regular testing, such as simulating an ignition cutoff during maintenance, can preemptively identify issues before they escalate.
By understanding the solenoid's activation mechanism, operators can ensure their stanadyne injection pump functions reliably. This knowledge not only enhances safety but also prolongs the lifespan of the engine by preventing fuel-related damage. Whether through routine checks or diagnostic tools, staying proactive with this component is a small but crucial step in maintaining overall system integrity.
Diagnosing a Faulty HIPA Fuel Pump: Signs and Solutions
You may want to see also
Explore related products
Electrical Circuit Operation: Details the role of the electrical circuit in controlling solenoid function
The fuel cutoff solenoid in a stanadyne injection pump relies on precise electrical control to manage fuel delivery. At its core, the electrical circuit acts as the orchestrator, dictating when the solenoid engages or disengages to either allow or halt fuel flow. This circuit typically comprises a power source, a control module, wiring, and the solenoid itself. When the control module receives a signal—often from the ignition switch or engine management system—it completes the circuit, sending current through the solenoid coil. This current generates a magnetic field, which either pulls the solenoid plunger open or closed, directly controlling fuel flow to the injectors.
Consider the sequence of events during engine shutdown. When the ignition is turned off, the control module interrupts the circuit, cutting power to the solenoid. Without current, the magnetic field collapses, and a return spring pushes the plunger back to its default position, blocking fuel flow. This immediate cutoff prevents fuel from reaching the injectors, ensuring the engine stops efficiently. Conversely, during startup, the circuit re-energizes the solenoid, allowing fuel to pass through the injection pump. This binary on-off control is critical for engine safety and performance, highlighting the circuit’s role as the solenoid’s gatekeeper.
Practical troubleshooting of the electrical circuit begins with verifying power delivery. Use a multimeter to check voltage at the solenoid’s terminals with the ignition on; a reading of 12V indicates the circuit is supplying power. If voltage is absent, inspect the fuse, relay, and wiring for faults. Next, test the solenoid’s resistance, typically around 10–20 ohms for a healthy unit. If resistance is out of range, the solenoid may be damaged. Always disconnect the battery before handling wiring to avoid short circuits. These steps isolate whether the issue lies in the circuit or the solenoid itself, streamlining repairs.
Comparing the electrical circuit’s role to a light switch illustrates its function. Just as a switch controls current flow to a bulb, the circuit governs power to the solenoid. However, unlike a simple switch, the circuit in a fuel cutoff system is integrated with the vehicle’s broader electrical network, responding to inputs like ignition status or emergency shutdown signals. This integration ensures the solenoid operates in harmony with other engine systems, emphasizing the circuit’s dual role as both controller and communicator. Without this coordination, the solenoid’s mechanical action would be isolated and ineffective.
In conclusion, the electrical circuit is the linchpin of fuel cutoff solenoid operation, translating control signals into mechanical action. Its reliability ensures the solenoid responds instantaneously to commands, maintaining engine safety and efficiency. Understanding its components and function not only aids in diagnostics but also underscores the importance of electrical integrity in mechanical systems. Treat the circuit with the same care as the solenoid itself, as its failure can render the entire fuel cutoff mechanism inoperative.
How Gas Station Fuel Pumps Work: A Comprehensive Guide
You may want to see also
Explore related products
$38.5
Fuel Flow Interruption: Describes how the solenoid physically blocks fuel delivery to the engine
The fuel cutoff solenoid in a stanadyne injection pump is a critical safety and control component, designed to halt fuel delivery to the engine when necessary. Its primary function is to physically block the fuel flow, ensuring the engine stops or reduces power in emergency situations or during shutdown procedures. This mechanism is essential in preventing over-revving, engine damage, or hazardous conditions, especially in industrial and marine applications where precision and safety are paramount.
Mechanism of Fuel Flow Interruption
When activated, the solenoid receives an electrical signal, typically from the engine control unit (ECU) or a manual shutdown switch. This signal energizes the solenoid, causing its internal plunger to move. The plunger is strategically positioned to obstruct the fuel passage within the injection pump. In stanadyne pumps, this obstruction occurs at a critical point in the fuel delivery system, such as the metering valve or high-pressure fuel line. The plunger’s movement is swift and precise, ensuring immediate cessation of fuel flow. Without fuel, the engine loses power and stalls, effectively shutting it down.
Practical Considerations and Tips
For optimal performance, ensure the solenoid’s electrical connections are clean and secure, as corrosion or loose wiring can delay activation. Regularly inspect the plunger and its sealing surfaces for wear or debris, as these can compromise the solenoid’s ability to block fuel flow effectively. In marine environments, use corrosion-resistant coatings or materials to protect the solenoid from saltwater damage. Test the solenoid periodically by simulating a shutdown to verify its responsiveness. If the engine fails to stop immediately, replace the solenoid to avoid potential safety risks.
Comparative Analysis with Other Systems
Unlike electronic fuel injection systems that rely on software-based fuel cutoffs, the stanadyne injection pump’s solenoid provides a mechanical fail-safe. This physical interruption of fuel flow is more reliable in harsh conditions where electronic systems might fail. For instance, in heavy machinery or diesel generators, the solenoid’s robustness ensures consistent performance even under extreme temperatures or vibrations. While electronic systems offer finer control, the solenoid’s simplicity and durability make it a preferred choice for critical applications where safety cannot be compromised.
Takeaway for Maintenance and Operation
Understanding the solenoid’s role in fuel flow interruption is key to maintaining engine safety and efficiency. Operators should familiarize themselves with the solenoid’s location and function, enabling quick response in emergencies. During routine maintenance, include the solenoid in inspections alongside fuel filters and pump components. Keep a spare solenoid on hand, especially for remote or high-stakes operations, to minimize downtime. By prioritizing this component, you ensure the engine’s reliability and protect against costly damage or accidents.
Mercury 115 Fuel Pump: Does the 1995 Model Have One?
You may want to see also
Explore related products
Timing and Precision: Highlights the importance of accurate timing in solenoid activation for engine efficiency
In the intricate dance of a diesel engine's operation, the fuel cutoff solenoid plays a pivotal role, acting as the gatekeeper of fuel supply to the injection pump. This component's primary function is to control the flow of fuel, ensuring it is delivered precisely when needed. The timing of its activation is critical, as it directly impacts the engine's performance, efficiency, and overall health. A delay or advance in solenoid response, even by milliseconds, can lead to inefficient combustion, increased emissions, and potential engine damage. For instance, in a typical diesel engine, the solenoid must activate within a window of 2-5 milliseconds after receiving the cutoff signal to ensure optimal fuel cessation, especially during sudden deceleration or engine shutdown.
Consider the process as a finely choreographed routine: the engine control unit (ECU) sends a signal to the solenoid, which must respond instantly to cut off fuel supply. This action prevents over-fueling, a common issue that can cause diesel engines to continue running momentarily after the ignition is turned off. The precision required here is akin to a surgeon’s steady hand—a slight tremor can lead to complications. In practical terms, a solenoid with a response time of 3 milliseconds can reduce post-shutdown run-on by up to 70%, compared to older models with slower activation times. This not only enhances safety but also minimizes fuel wastage, contributing to better fuel economy.
To achieve such precision, modern solenoids are engineered with advanced materials and designs. For example, the use of low-friction coatings on the plunger and optimized magnetic circuits ensures rapid movement with minimal lag. Additionally, the ECU’s programming plays a crucial role, as it must account for variables like engine temperature, load, and speed to determine the exact moment the solenoid should activate. A well-calibrated system can adjust solenoid timing in real-time, ensuring consistent performance across different operating conditions. For DIY enthusiasts or mechanics, testing solenoid response time using a multimeter and oscilloscope can help diagnose issues before they escalate.
Comparatively, older mechanical fuel cutoff systems relied on governor mechanisms, which were less precise and slower to respond. These systems often struggled with abrupt changes in engine load, leading to inefficiencies. The transition to electronic solenoids marked a significant leap in engine management technology, offering tighter control and adaptability. For instance, in heavy-duty trucks, where fuel efficiency directly impacts operational costs, a solenoid with precise timing can improve mileage by up to 5%, translating to substantial savings over time.
In conclusion, the timing and precision of solenoid activation are not just technical details but critical factors that define an engine’s efficiency and reliability. Whether you’re maintaining a fleet of vehicles or troubleshooting a single engine, understanding this component’s role and ensuring its optimal performance can yield significant benefits. Regular maintenance, such as cleaning the solenoid contacts and updating ECU software, can further enhance its responsiveness. By prioritizing accuracy in solenoid operation, you’re not just fine-tuning an engine—you’re maximizing its potential.
1997 Nissan Maxima Fuel Pump Lifespan: What to Expect
You may want to see also
Explore related products
Common Failure Modes: Lists typical issues like sticking or electrical faults affecting solenoid performance
The fuel cutoff solenoid in a stanadyne injection pump is a critical component that ensures the engine shuts off when the ignition is turned off. However, like any mechanical or electrical part, it is prone to failure, which can lead to unsafe operating conditions or engine damage. Understanding the common failure modes of this solenoid is essential for timely diagnosis and repair.
One typical issue is sticking, where the solenoid plunger fails to return to its original position after the current is removed. This can be caused by contamination from debris or fuel varnish, which accumulates over time and hinders smooth movement. For instance, in diesel engines operating in dusty environments, fine particles can infiltrate the fuel system, leading to increased friction within the solenoid. Regular fuel filter changes and periodic cleaning of the injection pump can mitigate this risk, especially in high-contamination settings.
Electrical faults are another common failure mode, often stemming from wiring issues, corroded terminals, or internal coil damage. Voltage drops below the solenoid’s operating range (typically 10-14 volts for a 12V system) can prevent it from actuating properly, while overvoltage conditions may burn out the coil. A practical tip is to use a multimeter to check the solenoid’s resistance (usually 10-20 ohms) and verify the supply voltage when troubleshooting. If the coil resistance is out of spec, replacement is necessary.
Thermal stress can also degrade solenoid performance, particularly in high-temperature engine compartments. Prolonged exposure to heat accelerates insulation breakdown within the coil, leading to intermittent operation or complete failure. Installing heat shields or ensuring proper ventilation around the injection pump can help prolong the solenoid’s lifespan. For engines operating in extreme climates, consider using solenoids rated for higher temperature tolerance.
Lastly, mechanical wear over time can cause the solenoid’s internal components to lose precision, resulting in sluggish response or incomplete actuation. This is more common in older engines with high operating hours. Inspecting the solenoid for physical damage and replacing it as part of routine maintenance at the 100,000-mile mark (or equivalent hours) can prevent unexpected failures. Always refer to the manufacturer’s guidelines for specific intervals and procedures.
Bintelli Breeze Scooter: Does It Feature a Fuel Pump?
You may want to see also
Frequently asked questions
The fuel cutoff solenoid is responsible for shutting off the fuel supply to the engine by interrupting the flow of fuel from the injection pump, typically in emergency or shutdown situations.
The solenoid operates by receiving an electrical signal, which activates an electromagnet. This magnet either moves a plunger or valve to block the fuel passage, stopping fuel delivery to the engine.
The solenoid is typically triggered by an emergency shutdown signal from the engine control unit (ECU), a manual shutdown switch, or safety systems detecting critical issues like overheating or low oil pressure.
Yes, the solenoid can fail due to electrical issues, mechanical wear, or contamination. Symptoms include the engine not shutting down when commanded, unintended engine shutdown, or difficulty starting the engine.
Regular maintenance involves checking for electrical connectivity, cleaning the solenoid and its contacts, and testing its functionality during routine inspections. Replace the solenoid if it shows signs of failure.
