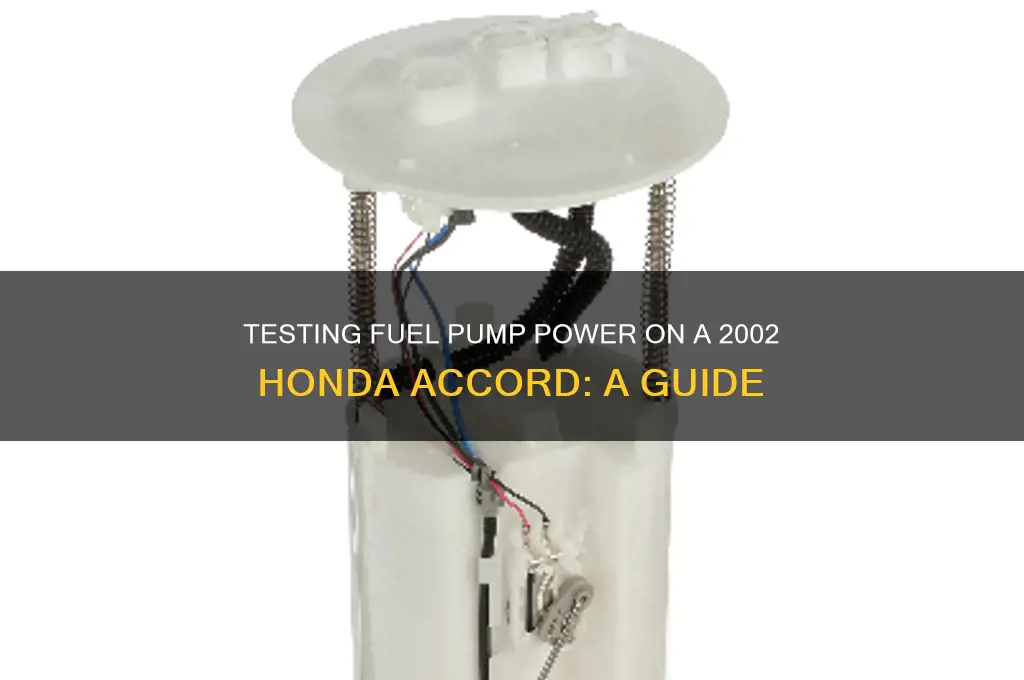

Checking the power to the fuel pump on a 2002 Honda Accord is a critical step in diagnosing fuel system issues. Start by locating the fuel pump relay, typically found in the under-hood fuse box, and verify it is functioning correctly. Next, use a multimeter to test for voltage at the fuel pump connector, ensuring the ignition is in the ON position. If voltage is present, the issue may lie with the fuel pump itself; if not, inspect the fuse, relay, and wiring for faults. Always exercise caution when working with electrical components, and consult the vehicle’s manual for specific locations and procedures.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2002 Honda Accord |
| Fuel Pump Location | Inside the fuel tank (access through the rear seat or trunk) |
| Tools Required | Multimeter, screwdriver, safety gloves, safety goggles |
| Power Supply to Fuel Pump | 12V DC |
| Fuel Pump Relay Location | Under the dashboard or in the engine bay fuse/relay box |
| Fuel Pump Fuse Location | Check owner's manual for specific fuse number and location |
| Testing Power at Fuel Pump Connector | Use a multimeter to check for voltage at the fuel pump connector |
| Voltage Range for Fuel Pump | 10-12V DC (with key in "ON" position) |
| Fuel Pump Operation Time | Fuel pump should run for 2-3 seconds when ignition is turned to "ON" |
| Safety Precautions | Ensure vehicle is off, disconnect battery, work in a well-ventilated area |
| Common Issues | Blown fuse, faulty relay, damaged wiring, failed fuel pump |
| Diagnostic Trouble Codes (DTCs) | Use an OBD-II scanner to check for fuel pump-related codes (e.g., P0230) |
| Professional Assistance | Consult a mechanic if unable to diagnose or repair |
Explore related products
What You'll Learn
- Locate Fuel Pump Fuse: Check owner’s manual for fuse box diagram and fuel pump fuse location
- Test Fuel Pump Relay: Identify relay position, swap with similar relay, and listen for clicks
- Check Power at Pump Connector: Use multimeter to verify voltage at fuel pump connector wires
- Listen for Fuel Pump Hum: Turn key to ON, listen near fuel tank for pump activation
- Inspect Fuel Pump Inertia Switch: Locate and reset inertia switch if equipped (if applicable)
Locate Fuel Pump Fuse: Check owner’s manual for fuse box diagram and fuel pump fuse location
The first step in diagnosing a potential fuel pump issue in your 2002 Honda Accord is to locate the fuel pump fuse. This small but crucial component acts as a safeguard, protecting the fuel pump circuit from electrical surges. A blown fuse can render the fuel pump inoperative, leading to a no-start condition. To begin, consult your vehicle's owner's manual, which is a treasure trove of information specific to your Accord's make and model. Within its pages, you'll find a detailed fuse box diagram, a visual representation of the various fuses and their corresponding functions.
In the context of the 2002 Accord, the fuse box is typically located under the dashboard on the driver's side, near the brake pedal. However, the exact location of the fuel pump fuse may vary depending on the trim level and engine type. For instance, in some models, the fuel pump fuse is situated in the under-hood fuse box, often labeled as "Main" or "Battery." The owner's manual will provide a clear indication of the fuse's position, ensuring you don't waste time searching in the wrong place. This step is essential, as attempting to test the fuel pump without verifying the fuse's integrity can lead to inaccurate diagnoses and unnecessary repairs.
A comparative analysis of fuse box diagrams across different Accord models reveals a consistent pattern: Honda engineers have designed the fuse layout with accessibility and logic in mind. The fuel pump fuse is often grouped with other engine management fuses, making it easier to identify. For example, in the 2002 Accord, the fuel pump fuse is typically a 15-amp fuse, distinguishable by its color-coding or labeling. By understanding this layout, you can quickly narrow down potential issues and focus on the fuel pump circuit. This approach not only saves time but also minimizes the risk of misdiagnosis, ensuring a more efficient troubleshooting process.
To locate the fuel pump fuse effectively, follow these steps: first, ensure the vehicle is turned off and the keys are removed from the ignition. Then, open the fuse box cover and compare the actual fuse layout with the diagram in the owner's manual. Take note of the fuse's position, color, and amperage rating. If the fuse appears discolored, broken, or burnt, it's likely blown and requires replacement. However, a visual inspection alone may not always reveal a faulty fuse. In such cases, a multimeter can be used to test the fuse's continuity, providing a more definitive answer.
In conclusion, locating the fuel pump fuse in your 2002 Honda Accord is a straightforward process when armed with the right information. By consulting the owner's manual and understanding the fuse box diagram, you can quickly identify the fuel pump fuse and assess its condition. This initial step is crucial in diagnosing fuel pump issues, as it eliminates one potential cause of failure. Remember, a systematic approach to troubleshooting, starting with the fuse, can save time, money, and frustration, ultimately leading to a more efficient resolution of the problem. With this knowledge, you're now better equipped to tackle fuel pump-related concerns in your Accord.
Step-by-Step Guide to Mounting an Electric Fuel Pump Correctly
You may want to see also
Explore related products
Test Fuel Pump Relay: Identify relay position, swap with similar relay, and listen for clicks
The fuel pump relay in a 2002 Honda Accord is a critical component that controls power delivery to the fuel pump. If your vehicle isn’t starting or is experiencing fuel delivery issues, testing the relay is a straightforward diagnostic step. Begin by locating the relay, typically found in the under-hood fuse/relay box. Consult your owner’s manual or a repair guide to identify the exact position of the fuel pump relay, as it’s often labeled or marked with a diagram. Once identified, this relay becomes the focal point of your troubleshooting.
Swapping the fuel pump relay with a similar one from the same fuse box is a practical method to test its functionality. Relays like the A/C compressor or horn relay often share the same pin configuration and can serve as substitutes. Before swapping, ensure the engine is off and the ignition is in the "OFF" position to avoid electrical mishaps. Carefully pull out the suspected fuel pump relay and insert the substitute into its slot. Turn the ignition to the "ON" position (but don’t start the engine) and listen closely for a clicking sound, which indicates the relay is engaging. If the substitute relay clicks but the original doesn’t, the fuel pump relay is likely faulty and needs replacement.
Listening for the relay’s click is a simple yet effective diagnostic technique. The click signifies that the relay is closing the circuit, allowing power to flow to the fuel pump. If no click is heard, the relay may be stuck open, preventing power delivery. However, lack of a click doesn’t always confirm a bad relay; it could also indicate a wiring issue or a problem with the relay’s control circuit. To isolate the issue, use a multimeter to test for voltage at the relay’s terminals, ensuring power is reaching the relay in the first place.
A cautionary note: while swapping relays is a useful test, avoid using relays with significantly different amperage ratings, as this can damage the circuit. Stick to relays with similar specifications, typically found within the same fuse box. Additionally, if the substitute relay clicks but the fuel pump still doesn’t operate, the issue may lie elsewhere, such as a faulty fuel pump, blown fuse, or wiring problem. In such cases, further testing of the fuel pump’s power and ground circuits is necessary.
In conclusion, testing the fuel pump relay by identifying its position, swapping it with a similar relay, and listening for clicks is a quick and effective way to diagnose power delivery issues in a 2002 Honda Accord. This method not only helps pinpoint a faulty relay but also narrows down potential causes, saving time and effort in troubleshooting. Always approach this test methodically, ensuring safety and accuracy in each step.
DIY Guide: Replacing the Fuel Pump on a 1995 Chevy Camaro
You may want to see also
Explore related products
Check Power at Pump Connector: Use multimeter to verify voltage at fuel pump connector wires
One of the most reliable ways to diagnose a fuel pump issue in a 2002 Honda Accord is to verify power at the fuel pump connector using a multimeter. This method directly tests whether the fuel pump is receiving the necessary voltage to operate, bypassing guesswork and pinpointing electrical faults. Start by locating the fuel pump connector, typically found near the fuel tank or along the chassis. Ensure the vehicle is turned off and the ignition is in the "Off" position to avoid electrical hazards.
To begin the test, set your multimeter to the DC voltage setting, typically ranging from 0 to 20 volts. Connect the multimeter’s red lead to the wire supplying power to the fuel pump and the black lead to a solid ground, such as the vehicle’s chassis. With the ignition in the "On" position (but not started), the multimeter should read battery voltage, usually around 12 to 14 volts. If voltage is present, the issue likely lies with the fuel pump itself or its internal circuitry. If no voltage is detected, the problem could be a blown fuse, a faulty relay, or a broken wire in the circuit.
A critical step often overlooked is testing for voltage during cranking. The fuel pump in a 2002 Accord typically receives full power only when the engine is being cranked. To check this, have an assistant crank the engine while you observe the multimeter. Voltage should spike to battery level during this process. If it doesn’t, the fuel pump relay or the powertrain control module (PCM) may be at fault. Always consult a wiring diagram for your specific Accord model to identify the correct wires and relay locations.
Practical tips include using a backprobe to test the connector without damaging the wires and ensuring the multimeter leads are securely connected. If you’re unsure about wire colors, refer to a repair manual or online resources specific to the 2002 Accord. This method not only saves time but also prevents unnecessary part replacements, making it an essential skill for DIY mechanics and professionals alike. By systematically verifying voltage at the fuel pump connector, you can confidently narrow down the root cause of fuel delivery issues.
Wiring Your Fuel Pump to the Ignition Switch: A Step-by-Step Guide
You may want to see also
Explore related products
Listen for Fuel Pump Hum: Turn key to ON, listen near fuel tank for pump activation
One of the simplest yet most effective ways to check if your 2002 Honda Accord’s fuel pump is receiving power is to listen for its activation hum. This method requires no tools beyond your ears and a basic understanding of the vehicle’s systems. When you turn the ignition key to the ON position (without starting the engine), the fuel pump should engage momentarily to pressurize the fuel system. This engagement produces a distinct, low-pitched hum that originates from the fuel tank area, typically located beneath the rear seat or in the trunk. If you hear this sound, it’s a strong indicator that power is reaching the pump and it’s functioning as intended.
To perform this check effectively, start by ensuring the vehicle is in a quiet environment to minimize background noise. Have an assistant turn the key to the ON position while you kneel or crouch near the fuel tank. Place your ear close to the tank or use a mechanic’s stethoscope for better clarity. The hum should last for about 2–3 seconds as the pump primes the system. If the sound is faint or absent, it could signal a problem with power delivery, a faulty pump, or a malfunctioning relay. However, keep in mind that some fuel pumps are quieter than others, so a faint hum isn’t always cause for alarm.
Comparing this method to other diagnostic techniques highlights its accessibility. Unlike using a multimeter to test voltage at the pump connector or checking fuel pressure with a gauge, listening for the hum requires no specialized equipment. It’s a preliminary step that can quickly narrow down potential issues before moving to more complex tests. For instance, if you hear the hum but the engine still won’t start, the problem may lie elsewhere, such as with the fuel injectors or ignition system. Conversely, no hum suggests focusing on the fuel pump circuit.
A practical tip to enhance this method is to tap lightly on the fuel tank while listening. Sometimes, vibrations can make the hum more audible. Additionally, if you’re unsure what the hum sounds like, try starting the engine and listening again; the pump may engage briefly during operation. If you still can’t detect the sound, it’s time to inspect the fuel pump relay, fuse, or wiring for faults. This approach not only saves time but also provides a clear starting point for further diagnostics.
In conclusion, listening for the fuel pump hum is a straightforward yet powerful diagnostic tool for a 2002 Accord. It’s a quick way to confirm power delivery to the pump and can guide you toward the next steps in troubleshooting. While it’s not a definitive test, it’s an essential first step that leverages your senses to identify potential issues efficiently. Pairing this method with other checks ensures a comprehensive approach to resolving fuel system problems.
Step-by-Step Guide: Installing a Fuel Pump on a Ranger 800 XP
You may want to see also
Explore related products
Inspect Fuel Pump Inertia Switch: Locate and reset inertia switch if equipped (if applicable)
The 2002 Honda Accord, like many vehicles of its era, may be equipped with a fuel pump inertia switch, a safety feature designed to cut power to the fuel pump in the event of a collision. This switch is a critical component in preventing fuel-related fires, but it can also be a source of confusion when diagnosing fuel pump issues. If your Accord’s engine fails to start or stalls unexpectedly, the inertia switch could be the culprit, especially if it has tripped due to a minor impact or rough handling. Understanding how to locate and reset this switch can save you time and money on unnecessary repairs.
Locating the inertia switch in a 2002 Accord typically involves identifying its position in the vehicle’s cabin or trunk area. In most cases, it is mounted in the trunk, near the left or right side panel, or under the rear seat. The switch is often a small, red button recessed into a plastic housing, labeled with a fuel pump symbol or the word "RESET." To find it, consult your vehicle’s manual or search for model-specific diagrams online. If the switch is not immediately visible, use a flashlight to inspect hidden areas, as it may be tucked behind panels or under carpeting. Once located, ensure the area around the switch is clean and accessible to avoid accidental damage during the reset process.
Resetting the inertia switch is a straightforward task, but it requires caution. First, turn off the ignition to ensure no power is flowing to the fuel system. Then, press the reset button firmly until it clicks into place. This action re-engages the circuit, allowing power to reach the fuel pump again. After resetting, wait a few minutes before attempting to start the engine, as this allows the fuel system to repressurize. If the switch trips repeatedly, however, it may indicate an underlying issue, such as a faulty switch or persistent impacts, which warrants further investigation by a professional.
While the inertia switch is a valuable safety feature, its presence is not universal across all 2002 Accord models. Some trims or regional variants may lack this component, relying instead on other safety mechanisms. To confirm whether your vehicle is equipped with an inertia switch, check the owner’s manual or contact a Honda dealership with your VIN. If your Accord does not have this switch, focus your diagnostics on other potential causes of fuel pump failure, such as a blown fuse, relay issues, or a malfunctioning pump itself.
In conclusion, inspecting and resetting the fuel pump inertia switch is a simple yet often overlooked step in diagnosing fuel system issues in a 2002 Honda Accord. By familiarizing yourself with its location and function, you can quickly rule out this common problem and avoid unnecessary repairs. However, always approach this task with care, ensuring the vehicle is in a safe, stable condition before attempting any work. If in doubt, consult a professional to ensure the issue is resolved safely and effectively.
Locate Your 2001 Toyota Tundra's Fuel Pump ECM: A Step-by-Step Guide
You may want to see also
Frequently asked questions
Locate the fuel pump relay in the under-hood fuse/relay box. Use a multimeter to test for power at the relay's input and output terminals. With the key in the "ON" position, you should see battery voltage at the input terminal and the output terminal when the relay is engaged.
Common symptoms include a no-start condition, engine cranking but not starting, or a lack of fuel pressure. You may also notice that the engine runs rough or stalls, especially under load or at high speeds.
While a multimeter is the most accurate way to test for power, you can try a few basic checks. First, listen for the fuel pump's hum by placing your ear near the fuel tank while someone turns the key to the "ON" position. If you don't hear the pump, check the fuel pump fuse and relay for any signs of damage or corrosion. However, for a definitive test, a multimeter is recommended.
