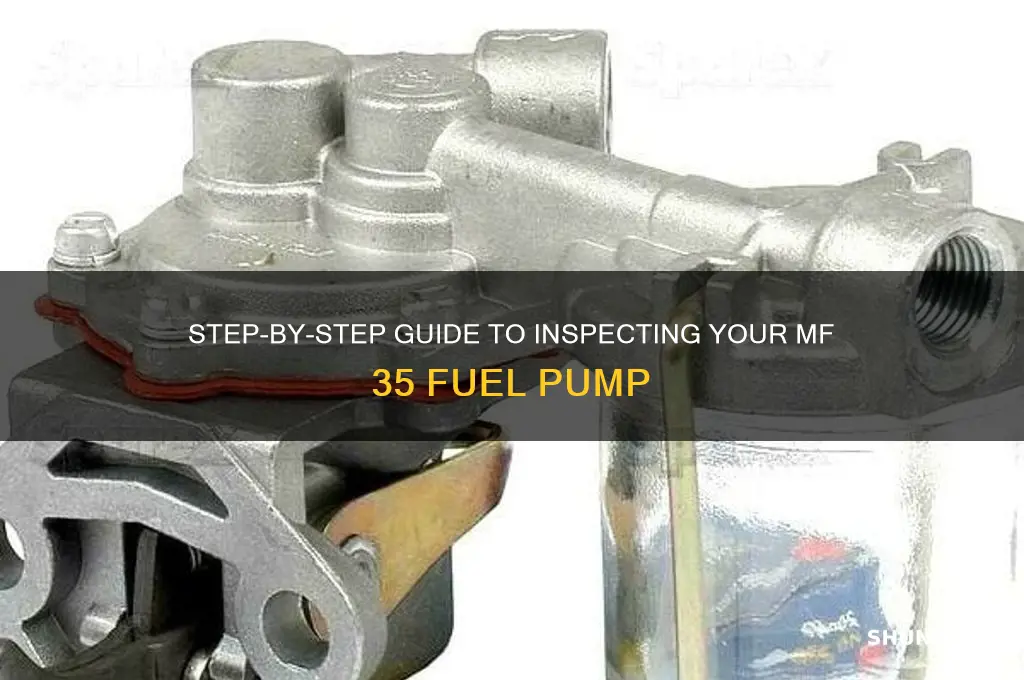

Checking the fuel pump on a Massey Ferguson MF 35 tractor is a critical maintenance task to ensure optimal engine performance and prevent breakdowns. The fuel pump is responsible for delivering fuel from the tank to the engine, and any issues can lead to poor starting, stalling, or reduced power. To inspect the fuel pump, start by locating it on the engine, typically mounted on the side of the injection pump or fuel filter housing. Begin by checking for visible leaks, cracks, or damage to the pump body and connections. Next, verify that the pump is delivering fuel by loosening the fuel line at the injection pump and cranking the engine to observe fuel flow. If flow is weak or absent, the pump may need to be cleaned, repaired, or replaced. Additionally, ensure the pump’s diaphragm and valves are functioning correctly by performing a pressure test or consulting the tractor’s manual for specific diagnostics. Regular inspection and maintenance of the fuel pump will help keep your MF 35 running smoothly and efficiently.
| Characteristics | Values |
|---|---|
| Fuel Pump Type | Mechanical diaphragm pump |
| Location | Mounted on the engine block, typically on the left side |
| Fuel Flow Direction | Draws fuel from the tank and pushes it to the carburetor |
| Testing Method 1: Visual Inspection | Check for cracks, leaks, or damage to the pump body and lines |
| Testing Method 2: Suction Test | Disconnect the fuel line at the carburetor and crank the engine to check for fuel flow; should produce a steady stream |
| Testing Method 3: Pressure Test | Use a fuel pressure gauge to measure pressure; should match specifications (typically 1-2 psi) |
| Testing Method 4: Diaphragm Check | Remove the pump and inspect the diaphragm for tears or damage; replace if necessary |
| Common Issues | Leaks, weak fuel flow, diaphragm failure, clogged fuel lines |
| Replacement Parts | Diaphragm kit, gaskets, fuel lines |
| Tools Required | Wrenches, screwdrivers, fuel pressure gauge, container for fuel |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, avoid open flames |
| Maintenance Tips | Regularly clean fuel filters, inspect fuel lines for wear, use clean fuel |
Explore related products
What You'll Learn
- Locating the Fuel Pump: Identify the MF 35 fuel pump's position in the engine compartment for easy access
- Visual Inspection: Check for leaks, cracks, or damage on the fuel pump and its connections
- Pressure Testing: Use a gauge to verify the fuel pump delivers the correct pressure for optimal performance
- Electrical Testing: Test the pump's electrical connections and wiring for continuity and proper voltage
- Fuel Flow Check: Ensure fuel flows smoothly from the pump to the carburetor without obstructions
Locating the Fuel Pump: Identify the MF 35 fuel pump's position in the engine compartment for easy access
The MF 35's fuel pump is a critical component, and its location is key to efficient troubleshooting. Positioned on the left side of the engine compartment, it sits near the fuel filter and is easily accessible once the hood is open. This placement allows for straightforward inspection and maintenance, ensuring you can quickly address any fuel delivery issues. Familiarizing yourself with this location saves time and reduces the risk of misdiagnosis when checking the pump’s functionality.
To locate the fuel pump, start by opening the hood and standing on the left side of the tractor. Look for a cylindrical or rectangular component connected to the fuel line, typically near the engine block. It’s often secured with brackets and may have a lever or arm for manual operation. If the pump is obscured by other components, consult the MF 35 service manual for a diagram or remove any obstructing parts carefully. Proper identification ensures you don’t mistake it for other similar-looking components, such as the fuel filter or injector pump.
Once located, assess the pump’s condition by checking for leaks, corrosion, or damage to the housing. Ensure the fuel lines are securely attached and free from cracks. If the pump has a manual lever, operate it to verify smooth movement and listen for unusual noises. A sticking lever or grinding sound indicates internal wear, while leaks suggest seal failure. These observations provide critical clues about the pump’s health and whether it requires repair or replacement.
For a thorough inspection, disconnect the fuel line at the pump inlet and outlet to test fuel flow. Use a clear hose or container to catch fuel and check for adequate pressure and volume. If flow is weak or nonexistent, the pump may be clogged or faulty. Always work in a well-ventilated area and avoid open flames or sparks when handling fuel. This hands-on approach not only confirms the pump’s functionality but also helps diagnose related issues in the fuel system.
In summary, locating the MF 35 fuel pump is the first step in ensuring reliable engine performance. Its strategic placement in the engine compartment simplifies access, allowing for quick visual and functional checks. By understanding its position and conducting systematic inspections, you can maintain optimal fuel delivery and address potential problems before they escalate. This knowledge empowers you to keep your tractor running smoothly, minimizing downtime and maximizing productivity.
DIY Guide: Replacing the Fuel Pump on a 2002 Ford Explorer
You may want to see also
Explore related products
Visual Inspection: Check for leaks, cracks, or damage on the fuel pump and its connections
A thorough visual inspection is the first line of defense in diagnosing fuel pump issues on an MF 35 tractor. Begin by locating the fuel pump, typically mounted on the engine block near the fuel filter. With the engine off and cool, carefully examine the pump body for any signs of physical damage. Cracks, even hairline ones, can compromise the pump's integrity, leading to fuel leaks or reduced performance. Pay close attention to areas where the pump housing meets the engine block, as these junctions are prone to stress-induced fractures.
Next, inspect the fuel lines and connections attached to the pump. Look for wet spots, stains, or fuel residue around fittings and hoses, which indicate leaks. Tighten loose connections with a wrench, but avoid over-tightening, as this can damage threads or warp components. If hoses appear brittle, cracked, or swollen, replace them immediately—aged hoses are a common culprit for fuel system leaks. Ensure all clamps are secure and in good condition, as loose clamps can allow air into the system, disrupting fuel flow.
While inspecting, consider the pump’s operational environment. Exposure to dirt, debris, or corrosive substances can accelerate wear. Wipe down the pump and surrounding area with a clean rag to remove grime, making it easier to spot subtle issues. If the tractor operates in harsh conditions, such as muddy fields or salty environments, inspect more frequently, as these conditions expedite deterioration.
Finally, compare your findings to the manufacturer’s specifications or a service manual for the MF 35. Some minor surface imperfections may be normal, but any significant damage or leaks require immediate attention. If in doubt, consult a mechanic or refer to diagnostic guides specific to the MF 35’s fuel system. A proactive visual inspection not only prevents costly repairs but also ensures the tractor operates safely and efficiently.
Stock Fuel Pump Lifespan: Durability Insights for 500 EXCF Models
You may want to see also
Explore related products
Pressure Testing: Use a gauge to verify the fuel pump delivers the correct pressure for optimal performance
Fuel pressure is a critical factor in the performance of your MF 35's engine. Insufficient pressure can lead to poor combustion, reduced power, and even engine stalling, while excessive pressure can cause fuel leaks and damage to the injection system. To ensure your fuel pump is operating within the optimal range, pressure testing is essential. This process involves using a gauge to measure the fuel pressure at various points in the system, allowing you to identify potential issues before they escalate.
To perform a pressure test, you'll need a fuel pressure gauge specifically designed for diesel engines, as well as a set of adapters to connect the gauge to your MF 35's fuel system. Begin by locating the fuel pump and identifying the appropriate test port, typically found on the pump's outlet side. With the engine off, depressurize the fuel system by loosening the fuel lines or using a dedicated depressurization tool. Next, connect the gauge to the test port, ensuring a secure and leak-free connection. Start the engine and allow it to reach operating temperature, then observe the gauge reading. Compare the measured pressure to the manufacturer's specifications for your MF 35 model, typically ranging from 15 to 25 psi (pounds per square inch) for diesel engines.
A comparative analysis of the gauge reading can reveal valuable insights into your fuel pump's performance. If the pressure is significantly lower than the recommended range, it may indicate a weak pump, clogged fuel filter, or air leak in the system. Conversely, excessive pressure could suggest a faulty pressure regulator or restricted fuel return line. In either case, addressing the issue promptly can prevent further damage and restore your MF 35's performance. Keep in mind that fuel pressure can fluctuate with engine speed and load, so it's essential to test the pressure at various RPMs to get a comprehensive understanding of the pump's behavior.
When conducting a pressure test, it's crucial to prioritize safety and follow best practices. Always work in a well-ventilated area, away from open flames or sparks, and wear protective gear, including gloves and safety goggles. Be cautious when handling fuel, as it can be hazardous if spilled or ingested. If you're unsure about any aspect of the testing process, consult your MF 35's service manual or seek guidance from a qualified mechanic. By taking a systematic and cautious approach to pressure testing, you can ensure the accuracy of your results and make informed decisions about necessary repairs or maintenance. With the right tools and techniques, you can keep your MF 35's fuel pump operating at peak performance, maximizing power, efficiency, and reliability.
Does Fuel City Offer DEF at the Pump? Find Out Here
You may want to see also
Explore related products
Electrical Testing: Test the pump's electrical connections and wiring for continuity and proper voltage
A faulty electrical connection can cripple your MF 35's fuel pump, leading to sputtering, stalling, or complete engine failure. Before condemning the pump itself, a systematic electrical test is crucial. This process isolates potential issues within the wiring harness, connectors, and power supply, saving you time and money on unnecessary replacements.
Grab your multimeter, set it to the continuity setting, and begin by checking the pump's ground connection. A broken or corroded ground wire will prevent the pump from receiving the necessary current. Touch one probe to the pump's ground terminal and the other to a known good ground point on the tractor's chassis. A reading of near zero ohms indicates a solid connection; anything significantly higher suggests a problem.
Next, verify the power supply. With the ignition on, connect your multimeter to the pump's power terminal and a good ground. The voltage reading should match your tractor's battery voltage (typically 12 volts). A lower reading points to a voltage drop somewhere in the wiring, possibly due to a loose connection, frayed wire, or a faulty relay.
Remember, safety first. Always disconnect the battery before working on any electrical components. Visually inspect wires for damage and clean connectors with electrical contact cleaner to ensure accurate readings.
By methodically testing continuity and voltage, you can pinpoint electrical faults with precision, ensuring your MF 35's fuel pump receives the power it needs to keep your tractor running smoothly. This diagnostic approach empowers you to tackle electrical issues with confidence, avoiding costly guesswork and unnecessary part replacements.
Mastering the Fuel Syphon Hand Pump: A Step-by-Step Guide
You may want to see also
Explore related products
![2N3600 New Steering Wheel [Keyed center] COMPATIBLE WITH Massey Ferguson 20 35 50 65 85 88 135 2135 TE20 TEA20+](https://m.media-amazon.com/images/I/61Tk8bzThCL._AC_UL320_.jpg)
Fuel Flow Check: Ensure fuel flows smoothly from the pump to the carburetor without obstructions
A clogged fuel line or malfunctioning pump can starve your MF 35's engine, leading to poor performance or complete failure. To diagnose this issue, a fuel flow check is essential. This simple test verifies that fuel is reaching the carburetor unimpeded, ensuring your tractor runs smoothly.
Begin by locating the fuel pump, typically mounted on the engine block. With the engine off, disconnect the fuel line from the carburetor inlet. Place a clean container beneath the disconnected line to catch any fuel. Have an assistant crank the engine while you observe the fuel flow.
Ideal fuel flow should be a steady, uninterrupted stream. If the flow is weak, intermittent, or non-existent, suspect a clogged fuel filter, a faulty pump diaphragm, or a blocked fuel line. Remember, safety is paramount. Always work in a well-ventilated area, away from open flames or sparks. Fuel is highly flammable, so exercise caution during this procedure.
This basic check provides valuable insight into your MF 35's fuel delivery system. If you encounter issues, further investigation into the specific component causing the obstruction is necessary. Consulting your tractor's manual or seeking professional assistance can guide you in resolving the problem and getting your MF 35 back to work.
Why Briggs Fuel Pumps Fail: Common Causes and Prevention Tips
You may want to see also
Frequently asked questions
Start by checking for fuel flow at the pump outlet with the engine cranking. If no fuel is delivered, inspect the pump for leaks, clogs, or damage.
Common signs include difficulty starting the engine, sputtering during operation, or a complete lack of fuel delivery to the carburetor.
Yes, you can test it by disconnecting the fuel line at the carburetor and cranking the engine to check for fuel flow. If no fuel comes out, the pump may be faulty.
Inspect the fuel pump annually or after 500 hours of operation. Replace it if you notice reduced performance, leaks, or if it fails during testing.
