Checking the voltage to a 2009 Volkswagen Beetle's fuel pump is a critical diagnostic step to ensure the fuel system is functioning correctly. The fuel pump is responsible for delivering fuel from the tank to the engine, and insufficient voltage can lead to poor performance or a no-start condition. To begin, locate the fuel pump relay and connector, typically found in the engine bay or near the fuel tank. Using a multimeter set to the DC voltage range, connect the positive lead to the fuel pump’s power wire and the negative lead to a good ground. With the ignition in the on position, measure the voltage; it should match the vehicle’s battery voltage (typically around 12 volts). If the reading is low or absent, inspect the fuse, relay, and wiring for faults. Always consult the vehicle’s service manual for specific wiring diagrams and safety precautions.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2009 Volkswagen Beetle |
| Fuel Pump Location | Under the rear seat (access through the trunk or removing the rear seat) |
| Voltage Range (Operating) | 12V (within the range of 11.5V to 14.5V when running) |
| Voltage Range (Key On, Engine Off) | 12V (battery voltage, typically 12.6V when fully charged) |
| Tools Required | Multimeter, screwdriver (for seat removal if needed) |
| Wiring Colors (Typical) | Red (positive), Black (ground) |
| Connector Type | 2-pin connector (fuel pump relay or direct pump connection) |
| Relay Location | Under the hood, fuse box, or near the battery |
| Safety Precautions | Disconnect battery, avoid sparks near fuel lines |
| Testing Procedure | Measure voltage at fuel pump connector with key on, engine off/running |
| Common Issues | Low voltage (faulty relay, wiring), no voltage (blown fuse, bad pump) |
| Diagnostic Codes | P0087 (low fuel pressure), P0191 (fuel rail pressure too low) |
| Replacement Part | OEM fuel pump (VW part number specific to 2009 Beetle) |
| Estimated Repair Time | 1-2 hours (depending on access to fuel pump) |
| Cost of Replacement | $200-$500 (parts + labor, varies by location) |
Explore related products
What You'll Learn
- Locate Fuel Pump Fuse: Identify fuse box location, find fuel pump fuse, and check for continuity
- Test Fuel Pump Relay: Access relay, swap with similar relay, and listen for pump activation
- Measure Voltage at Pump: Disconnect pump connector, use multimeter to check voltage supply
- Inspect Wiring Harness: Check for damage, corrosion, or loose connections in the wiring harness
- Use Scan Tool: Connect OBD-II scanner to diagnose fuel pump circuit faults or codes
Locate Fuel Pump Fuse: Identify fuse box location, find fuel pump fuse, and check for continuity
The 2009 Volkswagen Beetle's fuel pump fuse is a critical component in ensuring your vehicle's engine receives the necessary fuel for operation. To diagnose potential issues, locating and inspecting this fuse is a crucial step. The first challenge lies in identifying the fuse box's location, which, in the 2009 Beetle, is typically found in the engine compartment, near the battery. This placement is a common design choice, allowing for easy access and protection from the elements.
Once you've located the fuse box, the next task is to pinpoint the fuel pump fuse. This requires consulting the fuse diagram, usually found on the inside cover of the fuse box or in the vehicle's owner's manual. The diagram will provide a labeled map of each fuse, enabling you to identify the specific fuse responsible for the fuel pump. In the 2009 Beetle, this fuse is often labeled as "Fuel Pump" or "FP," with a rating of 15-20 amps, depending on the model and engine type.
With the fuel pump fuse identified, the next step is to check for continuity. This process involves using a multimeter, a device that measures electrical current and resistance. Set the multimeter to the continuity setting, typically denoted by a diode symbol or the word "beep." Touch the multimeter probes to the fuse's terminals; if the fuse is functioning correctly, the multimeter will emit a beep or display a reading indicating a complete circuit. A lack of continuity suggests a blown fuse, which may be the root cause of your fuel pump issues.
It's essential to approach this task with caution, as working with electrical components can be hazardous. Ensure the vehicle is turned off and the keys are removed from the ignition before beginning. Additionally, be mindful of the fuse's amperage rating when selecting a replacement, as using an incorrect fuse can lead to further complications. By systematically locating the fuse box, identifying the fuel pump fuse, and checking for continuity, you can effectively diagnose and address potential issues with your 2009 Beetle's fuel pump system. This methodical approach empowers you to tackle automotive problems with confidence and precision.
Bypassing a Fuel Pump Relay Switch: A Step-by-Step Guide
You may want to see also
Explore related products
Test Fuel Pump Relay: Access relay, swap with similar relay, and listen for pump activation

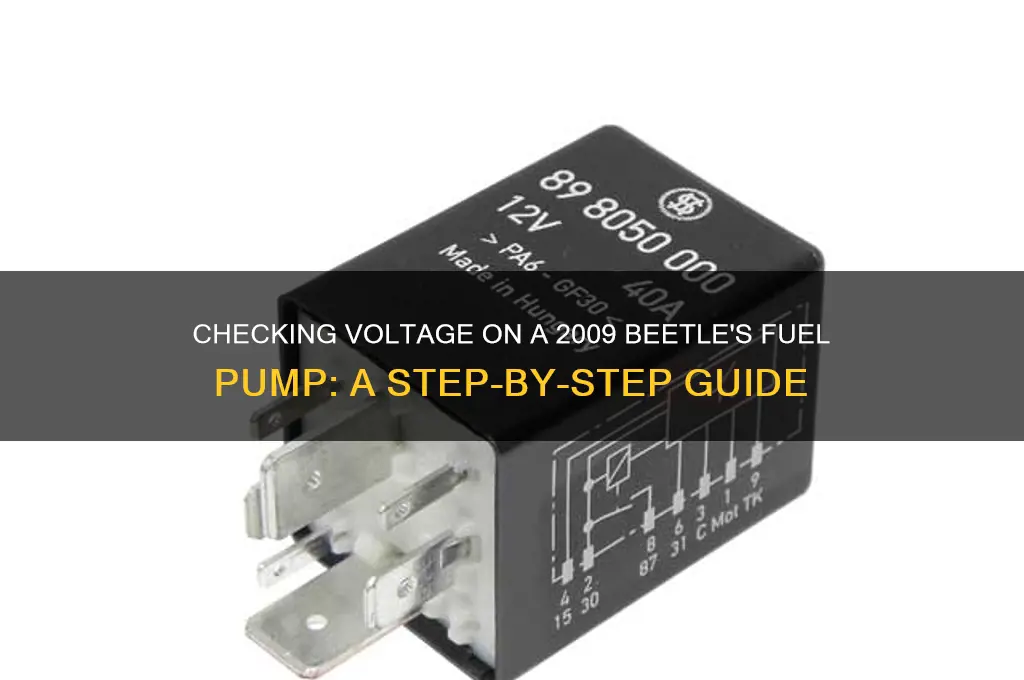

The fuel pump relay is a critical component in your 2009 Beetle's fuel system, acting as a switch that controls power to the fuel pump. If the relay fails, the pump won’t activate, leading to a no-start condition. Testing the relay is a straightforward process that can save you time and money before diving into more complex diagnostics. Start by locating the relay, typically found in the fuse box under the hood or near the battery. Consult your vehicle’s manual for the exact location, as it varies by model.
Once you’ve identified the fuel pump relay, carefully remove it from its slot. A practical tip is to take a photo of the fuse box layout before starting to ensure you return everything to its correct position. Next, find a similar relay in the fuse box—often the horn or radiator fan relay—and swap it with the fuel pump relay. These relays are usually interchangeable due to their identical pin configurations. After swapping, turn the ignition to the "on" position (not start) and listen carefully near the fuel tank for the characteristic humming sound of the fuel pump activating. If you hear it, the original relay is likely faulty.
If the pump doesn’t activate after the swap, the issue may lie elsewhere, such as a bad fuel pump, blown fuse, or wiring problem. In this case, further testing is needed. However, if the pump activates with the swapped relay, replace the fuel pump relay immediately. Relays are inexpensive and widely available at auto parts stores. Ensure you purchase the correct part number for your 2009 Beetle to avoid compatibility issues.
A cautionary note: always handle relays with care, as they contain delicate internal components. Avoid dropping or exposing them to moisture. Additionally, never attempt this test with the engine running or while refueling, as it poses a safety risk. This method is a quick, non-invasive way to isolate relay issues, making it a valuable first step in diagnosing fuel pump problems in your 2009 Beetle.
Step-by-Step Guide to Testing Your Lawn Mower's Fuel Pump
You may want to see also
Explore related products
Measure Voltage at Pump: Disconnect pump connector, use multimeter to check voltage supply
To accurately diagnose fuel pump issues in a 2009 Volkswagen Beetle, measuring voltage directly at the pump is a critical step. This method bypasses potential wiring faults and ensures the pump itself is receiving the correct power. Start by locating the fuel pump connector, typically found near the fuel tank. Disconnect the connector carefully, ensuring no damage to the terminals. With the connector detached, you’ll expose the wires responsible for supplying power to the pump. This direct access eliminates variables like corroded connections or damaged wiring that could skew readings elsewhere in the circuit.
Using a multimeter is the next essential step in this process. Set the multimeter to the DC voltage range, typically 20V or higher, to safely measure the electrical supply. Connect the multimeter’s probes to the appropriate terminals on the fuel pump connector: the positive probe to the power wire (usually red or pink) and the negative probe to the ground wire (often black). With the ignition in the "on" position but the engine off, observe the voltage reading. A healthy fuel pump system should show a voltage close to the vehicle’s battery voltage, typically around 12V. If the reading is significantly lower or nonexistent, it indicates a power delivery issue, narrowing down potential causes to faulty wiring, a bad relay, or a failing pump.
While this method is straightforward, it’s crucial to exercise caution. Always disconnect the battery before working near the fuel tank to prevent accidental sparks or short circuits. Additionally, ensure the vehicle is on a level surface and the fuel tank is not overfilled, as fuel spillage could pose a fire hazard. If you’re unsure about wire colors or terminal locations, consult the vehicle’s service manual for precise diagrams. This step-by-step approach not only identifies voltage issues but also builds confidence in troubleshooting automotive electrical systems.
Comparing this method to indirect voltage checks, such as testing at the fuel pump relay, highlights its precision. Indirect tests can be misleading if there’s a break in the wiring harness between the relay and the pump. By measuring voltage directly at the pump, you isolate the problem area more effectively. This technique is particularly useful when dealing with intermittent issues, as it provides a clear snapshot of the pump’s power supply under specific conditions. For DIY enthusiasts and professional mechanics alike, mastering this procedure is invaluable for diagnosing fuel system problems efficiently.
In conclusion, measuring voltage directly at the fuel pump connector is a definitive way to assess power delivery in a 2009 Beetle. It combines simplicity with accuracy, making it a go-to method for troubleshooting. Armed with a multimeter and basic safety precautions, anyone can perform this test to determine whether the fuel pump’s electrical issue lies in the power supply or the pump itself. This focused approach not only saves time but also reduces the likelihood of misdiagnosis, ensuring the right repair is made the first time.
Does the 152 Model Include a Fuel Pump? Find Out Here
You may want to see also
Explore related products
Inspect Wiring Harness: Check for damage, corrosion, or loose connections in the wiring harness
The wiring harness is the circulatory system of your 2009 Beetle's fuel pump, delivering vital electrical signals and power. Any compromise in its integrity can lead to erratic fuel delivery or complete pump failure. Before diving into voltage checks, a thorough inspection of the wiring harness is crucial.
Visual inspection is your first line of defense. Carefully trace the harness from the fuel pump connector to the fuse box and relay. Look for telltale signs of damage: frayed wires, exposed copper, cracked insulation, or burn marks. Pay close attention to areas where the harness bends or rubs against other components, as these are prone to wear and tear.
Corrosion, often hidden beneath the surface, can be just as detrimental. Moisture intrusion, especially in areas exposed to the elements, can lead to oxidation and corrosion on connectors and terminals. This resistance impedes electrical flow, leading to voltage drops and potential pump malfunction. Use a bright light and a magnifying glass to scrutinize connectors for greenish deposits or a white, powdery residue.
Corrosion can be sneaky, lurking beneath seemingly clean surfaces. Gently probe connectors with a small screwdriver or pick tool to check for looseness or a gritty feel, indicating internal corrosion. If corrosion is suspected, disassemble the connector and clean the terminals with a wire brush and electrical contact cleaner.
Loose connections are another common culprit. Over time, vibrations and temperature fluctuations can cause connectors to loosen, leading to intermittent contact and voltage fluctuations. Ensure all connectors are securely seated, with locking tabs engaged. Wiggle the connectors gently to check for any play. If a connection feels loose, disconnect and reconnect it firmly, ensuring a snug fit.
Electric Fuel Pumps: Understanding Dead Heading and Its Impact
You may want to see also
Explore related products
Use Scan Tool: Connect OBD-II scanner to diagnose fuel pump circuit faults or codes
Diagnosing fuel pump issues in a 2009 Volkswagen Beetle can be streamlined using an OBD-II scanner, a tool that communicates directly with the vehicle’s onboard computer. This method is particularly effective for identifying circuit faults or error codes related to the fuel pump, which may not be immediately apparent through visual inspection or voltage testing alone. By connecting the scanner to the OBD-II port, typically located beneath the dashboard on the driver’s side, you gain access to real-time data and diagnostic trouble codes (DTCs) that pinpoint specific malfunctions. This approach not only saves time but also reduces the guesswork involved in troubleshooting complex electrical systems.
The process begins with powering on the vehicle’s ignition without starting the engine, ensuring the scanner can establish a stable connection. Once the OBD-II scanner is plugged in, navigate to the “Read Codes” or “Diagnostics” menu, depending on the device. The scanner will retrieve any stored DTCs, which are alphanumeric codes corresponding to particular faults. For fuel pump-related issues, common codes include P0087 (low fuel pressure), P0088 (high fuel pressure), or P0230 (fuel pump primary circuit malfunction). These codes provide a starting point for further investigation, allowing you to focus on the specific circuit or component causing the problem.
While the scanner is invaluable for identifying faults, it’s essential to interpret the results in context. For instance, a code indicating low fuel pressure could stem from a failing fuel pump, a clogged fuel filter, or a faulty pressure regulator. To narrow down the cause, cross-reference the scanner’s data with symptoms such as engine sputtering, difficulty starting, or reduced power. Additionally, some scanners offer live data streaming, enabling you to monitor fuel pump voltage, current draw, and pressure in real-time. This feature is particularly useful for verifying whether the pump is receiving adequate power or if the control module is functioning correctly.
A practical tip when using an OBD-II scanner is to clear any existing codes after repairs to confirm the issue has been resolved. If the same code reappears, it indicates a persistent problem requiring further attention. Keep in mind that not all scanners are created equal; professional-grade tools often provide more detailed information and advanced features compared to basic models. For a 2009 Beetle, ensure the scanner supports VW-specific codes and protocols, such as ISO 9141 or CAN bus, to avoid compatibility issues.
In conclusion, leveraging an OBD-II scanner to diagnose fuel pump circuit faults in a 2009 Beetle is a precise and efficient method. By interpreting diagnostic codes and live data, you can isolate the root cause of the issue with greater accuracy. However, this tool is most effective when combined with a systematic approach to troubleshooting, including visual inspections and voltage tests. Together, these techniques ensure a comprehensive diagnosis, minimizing downtime and repair costs.
BMW M3 Fuel System: Understanding the Dual Fuel Pump Setup
You may want to see also
Frequently asked questions
The fuel pump is located in the fuel tank. To access it, you’ll need to remove the rear seat and the fuel pump access panel. Disconnect the negative battery terminal before starting.
You’ll need a multimeter to measure voltage, a fuel pump access tool (if required), and basic hand tools to remove the access panel and disconnect the fuel pump connector.
The fuel pump relay is typically located in the relay panel under the hood or near the fuse box. Consult the owner’s manual for the exact location.
With the ignition on, you should see approximately 12 volts at the fuel pump connector. If the voltage is lower or absent, check the fuse, relay, and wiring for issues.
Yes, you can test the voltage at the fuel pump connector without removing the tank. Access the connector through the fuel pump access panel in the rear of the vehicle.
