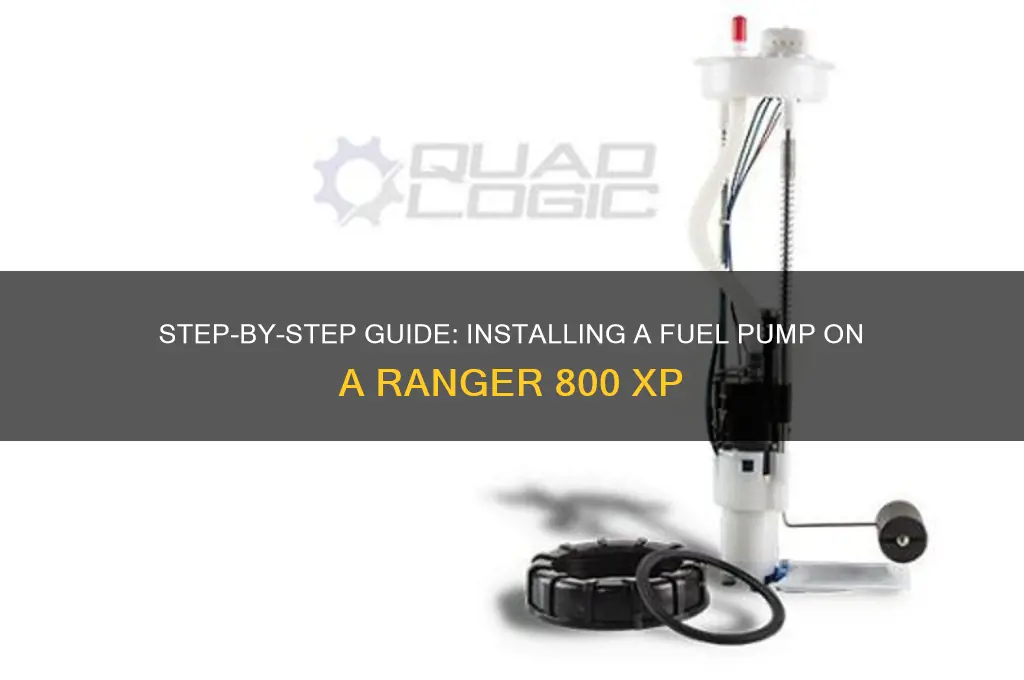

Installing a fuel pump on a Ranger 800 XP requires careful preparation and attention to detail to ensure proper functionality and safety. Begin by gathering the necessary tools and replacement parts, including the new fuel pump, wrenches, and safety gear. Start by disconnecting the battery to prevent electrical hazards, then locate the fuel pump, typically situated near the fuel tank. Relieve the fuel system pressure by loosening the Schrader valve on the fuel rail. Carefully disconnect the fuel lines and electrical connectors, taking note of their positions for reassembly. Remove the old fuel pump by unscrewing the retaining bolts, then install the new pump, ensuring it is securely mounted and aligned. Reattach the fuel lines and electrical connectors, double-checking for tightness and proper connections. Finally, reconnect the battery, start the vehicle, and check for leaks or unusual noises to confirm the installation is successful. Always refer to the Ranger 800 XP service manual for model-specific instructions and safety guidelines.
| Characteristics | Values |
|---|---|
| Vehicle Model | Polaris Ranger 800 XP |
| Fuel Pump Location | Inside the fuel tank (requires tank removal) |
| Tools Required | Socket set, wrenches, screwdriver, pliers, new fuel pump, gasket, sealant |
| Tank Removal Steps | 1. Relieve fuel pressure 2. Disconnect battery 3. Remove straps and hoses 4. Lower tank carefully |
| Fuel Pump Replacement | 1. Access pump through tank opening 2. Disconnect electrical connector and fuel lines 3. Remove old pump and install new one with gasket 4. Reattach lines and connector |
| Reinstallation Steps | 1. Reinstall fuel tank securely 2. Reconnect hoses and straps 3. Refill fuel and check for leaks 4. Reconnect battery and test operation |
| Safety Precautions | Work in well-ventilated area, avoid sparks, use safety goggles |
| Difficulty Level | Intermediate to Advanced (requires mechanical skills) |
| Estimated Time | 2-4 hours depending on experience |
| Common Issues | Fuel leaks, faulty connections, pump failure |
| Maintenance Tips | Regularly inspect fuel lines and pump for wear or damage |
Explore related products
What You'll Learn
- Gather Tools and Parts: Ensure you have all necessary tools and replacement parts before starting the installation
- Disconnect Battery: Safely disconnect the battery to prevent electrical accidents during the fuel pump replacement
- Access Fuel Tank: Locate and remove the fuel tank to access the fuel pump assembly
- Remove Old Pump: Carefully detach the old fuel pump, ensuring no debris enters the tank
- Install New Pump: Securely install the new fuel pump, reconnect lines, and reassemble the fuel tank
Gather Tools and Parts: Ensure you have all necessary tools and replacement parts before starting the installation
Before diving into the installation of a fuel pump on your Ranger 800 XP, it's crucial to gather all the necessary tools and replacement parts. This preparatory step is often overlooked but can save you significant time and frustration. Imagine getting halfway through the process only to realize you’re missing a critical component or tool. To avoid such setbacks, start by verifying you have the fuel pump assembly, fuel lines, clamps, a wrench set (including metric sizes like 10mm and 12mm), screwdrivers (flathead and Phillips), a torque wrench, and safety equipment like gloves and safety goggles. Additionally, consider having a fuel line disconnect tool and a container to catch any residual fuel during the process.
Analyzing the specific requirements for the Ranger 800 XP, you’ll notice that the fuel pump is often located near the fuel tank, which may require removing the seat or bed for access. This means having a socket set and possibly a trim removal tool could be beneficial. If you’re replacing the fuel pump due to a malfunction, ensure the new part is compatible with your vehicle’s make and model. OEM (Original Equipment Manufacturer) parts are generally recommended for reliability, but aftermarket options can work if they meet the specifications. Always double-check the part number to avoid compatibility issues.
From a practical standpoint, organizing your workspace is just as important as gathering the tools. Lay out all parts and tools in a logical order, starting with those you’ll need first. For instance, keep the fuel pump assembly and fuel lines within easy reach, while storing the torque wrench and safety gear nearby for later stages. If you’re working in a garage, ensure proper ventilation to avoid inhaling fuel vapors. A small tip: label the fuel lines or take a photo of their original configuration before disconnecting them to simplify reassembly.
Comparing this step to other DIY vehicle repairs, the emphasis on preparation here is particularly critical due to the fuel system’s complexity. Unlike changing a tire or replacing a battery, fuel pump installation involves working with flammable materials and precise connections. Skipping the preparation phase could lead to leaks, improper installation, or even safety hazards. For instance, using the wrong size clamp or overtightening a connection can cause fuel leaks, while neglecting safety gear increases the risk of chemical burns or eye injuries.
In conclusion, treating the "Gather Tools and Parts" phase as a standalone, meticulous process is key to a successful fuel pump installation on your Ranger 800 XP. It’s not just about having the right items but also about understanding their role in the process. By taking the time to prepare, you’ll streamline the installation, reduce errors, and ensure a safer, more efficient repair. Think of it as setting the foundation for the entire project—skimp on this step, and the rest of the process becomes unnecessarily challenging.
Nissan SM Pickup: Electric Fuel Pump or Mechanical?
You may want to see also
Explore related products
Disconnect Battery: Safely disconnect the battery to prevent electrical accidents during the fuel pump replacement
Before diving into the fuel pump replacement on your Ranger 800 XP, prioritize safety by disconnecting the battery. This critical step eliminates the risk of electrical shock or accidental component activation during the installation process. Even with the engine off, residual charge in the system can pose a hazard, making this a non-negotiable precaution.
Steps to Safely Disconnect the Battery:
- Locate the Battery: On the Ranger 800 XP, the battery is typically housed under the front hood or in a designated compartment. Refer to your owner’s manual for the exact location.
- Prepare the Tools: Use a wrench or socket set appropriate for the battery terminal size (usually 10mm or 13mm). Ensure the tools are insulated or wear insulated gloves for added safety.
- Remove Negative Terminal First: Loosen the nut on the negative (-) terminal using the tool, then carefully lift the cable away from the battery post. This breaks the electrical circuit and minimizes the risk of short circuits.
- Secure the Cable: To prevent accidental reconnection, wrap the negative cable in electrical tape or secure it away from the battery terminal.
- Optional: Remove Positive Terminal: While not always necessary, removing the positive (+) terminal provides an extra layer of safety, especially if working near sensitive electrical components.
Cautions and Practical Tips:
- Always disconnect the negative terminal first and reconnect it last to avoid arcing or damage to the electrical system.
- If the battery terminals are corroded, clean them with a mixture of baking soda and water before proceeding.
- Label the cables or take a photo before removal to ensure correct reconnection later.
By taking these precautions, you not only protect yourself but also safeguard the vehicle’s electrical system from potential damage during the fuel pump replacement. This simple yet vital step sets the foundation for a smooth and accident-free installation process.
Evinrude Fuel Pump Testing Guide: Step-by-Step Troubleshooting Tips
You may want to see also
Explore related products
Access Fuel Tank: Locate and remove the fuel tank to access the fuel pump assembly
The fuel tank on a Polaris Ranger 800 XP is typically located beneath the driver's seat, secured by a combination of bolts and straps. To access the fuel pump assembly, you’ll need to remove this tank, a process that requires both precision and care to avoid damaging components or spilling fuel. Begin by ensuring the vehicle is on a level surface, the engine is cool, and the key is removed to prevent accidental starts. Place a drain pan under the tank to catch any residual fuel, as even a small spill can pose a fire hazard or environmental risk.
Removing the fuel tank involves disconnecting the fuel lines, vent hose, and electrical connectors first. Use a wrench or pliers to loosen the hose clamps, but avoid over-tightening on reassembly, as this can crack the hoses. The electrical connector for the fuel pump is typically a quick-disconnect type—press the release tab and pull firmly but gently to separate it. Labeling these connections with tape or taking a photo beforehand can save time during reassembly, ensuring everything is reconnected correctly. Once disconnected, remove the bolts securing the tank straps and carefully lower the tank, being mindful of its weight and any sharp edges.
A critical step often overlooked is relieving fuel system pressure before removal. On the Ranger 800 XP, this can be done by locating the Schrader valve on the fuel rail (if equipped) and pressing it with a tool to release pressure. If no valve is present, running the engine until it stalls will achieve the same result, though this method is less precise and increases spill risk. Always wear safety goggles and gloves during this process, as fuel exposure can irritate skin and eyes, and fumes can be hazardous in enclosed spaces.
Once the tank is removed, inspect the fuel pump assembly for signs of wear, such as cracks in the housing or a damaged strainer. If replacing the pump, ensure the new unit is compatible with the Ranger 800 XP’s fuel system specifications, typically requiring a flow rate of 25–30 gallons per hour (GPH) and operating at 3–5 psi. Reinstallation follows the reverse process, but always test for leaks by filling the tank partially and running the engine briefly before full operation. This step-by-step approach ensures safe, efficient access to the fuel pump assembly, minimizing risks while maximizing repair accuracy.
Mastering Fuel Pump Maintenance: How to Move a Push Rod
You may want to see also
Explore related products
Remove Old Pump: Carefully detach the old fuel pump, ensuring no debris enters the tank
The first step in replacing the fuel pump on your Ranger 800 XP is a delicate operation: removing the old pump without contaminating the fuel tank. This process demands precision and cleanliness to prevent debris from entering the tank, which could lead to costly damage or performance issues. Before you begin, ensure you have the necessary tools, such as a wrench or socket set, and a clean work area to minimize the risk of dirt or debris falling into the tank.
Analytical Approach: The fuel pump's removal is a critical juncture in the installation process, as it sets the stage for the new pump's performance and longevity. A contaminated fuel tank can lead to clogged filters, reduced fuel efficiency, and even engine damage. To mitigate these risks, consider using a vacuum or compressed air to clean the area around the pump before detachment. Additionally, inspect the old pump's mounting area for signs of corrosion or wear, as these issues may require further attention before installing the new pump.
Instructive Steps: Begin by relieving the fuel system pressure, typically done by disconnecting the fuel line and allowing the system to depressurize. Next, locate the old fuel pump, which is usually mounted inside the fuel tank. Carefully detach the electrical connector and fuel lines, taking note of their positioning for reassembly. Using the appropriate tool, loosen the pump's mounting bolts or screws, being cautious not to strip or damage the threads. As you remove the old pump, cover the tank opening with a clean cloth or plastic wrap to prevent debris from entering.
Practical Tips: To minimize the risk of debris entering the tank, work in a clean, well-lit area, and consider using a bright LED light to illuminate the work space. If possible, remove the fuel tank from the vehicle to provide better access and reduce the chances of contamination. When handling fuel lines, be gentle to avoid kinking or damaging them, as this can lead to fuel flow restrictions. Keep a container nearby to catch any residual fuel that may spill during the removal process.
Cautions and Conclusion: Be aware that fuel pumps can be heavy, especially when filled with fuel, so exercise caution when lifting and handling the old pump. Avoid using excessive force when detaching the pump, as this may cause damage to the tank or surrounding components. Once the old pump is removed, inspect the tank's interior for any signs of debris or contamination. If necessary, clean the tank using a suitable solvent or fuel system cleaner before proceeding with the new pump installation. By taking a meticulous approach to removing the old fuel pump, you'll create a solid foundation for a successful installation, ensuring optimal performance and reliability from your Ranger 800 XP's new fuel pump.
Are Fuel Pumps Failing? Causes, Symptoms, and Solutions Explained
You may want to see also
Explore related products
Install New Pump: Securely install the new fuel pump, reconnect lines, and reassemble the fuel tank
Installing a new fuel pump on your Ranger 800 XP requires precision and attention to detail to ensure optimal performance and safety. Begin by positioning the new fuel pump assembly into the tank, aligning it carefully with the mounting holes. Secure the pump using the provided hardware, tightening bolts evenly to the manufacturer’s torque specifications—typically 8 to 12 foot-pounds for most Polaris models. Over-tightening can damage the pump housing, while under-tightening risks leaks. Double-check that the pump is seated firmly and flush against the tank to prevent vibration-induced wear over time.
Reconnecting the fuel lines is a critical step that demands methodical execution. Attach the inlet and outlet lines to their respective ports on the pump, ensuring the quick-disconnect fittings click securely into place. Inspect the lines for cracks or wear, replacing them if necessary to avoid future leaks. Use a small amount of silicone grease on the O-rings to improve sealing without compromising flexibility. Avoid forcing connections, as this can damage the fittings and lead to fuel system issues. Once connected, tug gently on each line to confirm they are locked in position.
Reassembling the fuel tank involves more than just reversing the disassembly process. Start by reinstalling the tank’s retaining straps or bolts, ensuring they are tightened to factory specifications. Reattach the fuel tank vent hose, if applicable, to maintain proper pressure balance within the system. Before securing the tank fully, verify that all electrical connectors are plugged in and that the pump wiring harness is routed away from moving parts or hot surfaces. A poorly routed harness can melt or short circuit, causing costly repairs.
A practical tip for this stage is to perform a dry run of the reassembly without fully tightening all components. This allows you to check for alignment issues, interference, or forgotten steps before committing to final assembly. Once satisfied, tighten all fasteners and reconnect the battery to power the system. Turn the ignition to the "on" position and listen for the pump’s priming cycle, confirming fuel delivery to the engine. If no leaks are detected after running the vehicle for a few minutes, the installation is complete. Regularly inspect the fuel system for leaks or abnormalities, especially after the first few rides, to ensure long-term reliability.
Step-by-Step Guide: Removing Fuel Pump from 2001 CLK 320
You may want to see also
Frequently asked questions
You will need basic hand tools such as a socket set, wrenches, screwdrivers, pliers, and possibly a trim removal tool for accessing the fuel tank.
Yes, it is recommended to drain the fuel tank or relieve the fuel pressure to avoid spills and ensure a safe installation process.
The fuel pump is typically located inside the fuel tank. You will need to remove the tank to access and replace the pump.
Start by relieving fuel pressure, then disconnect the fuel lines and electrical connectors. Remove the straps or mounting bolts securing the tank, and carefully lower it to access the pump.
Ensure the new pump is compatible with your model, avoid contaminating the fuel system, and double-check all connections and seals to prevent leaks.
