Rajan Wilcox

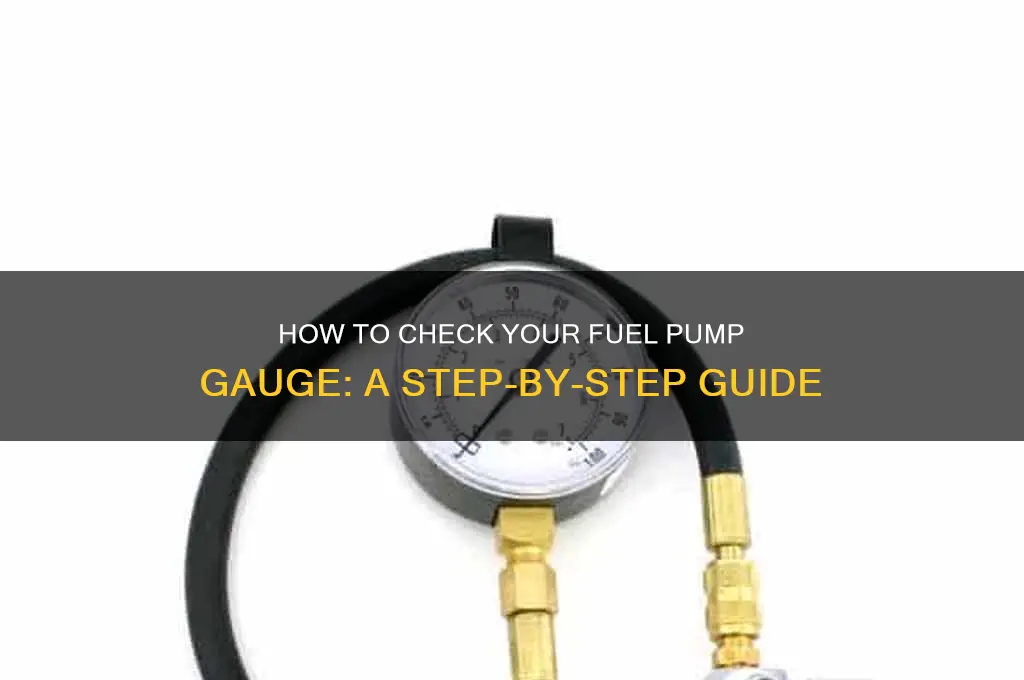

Checking the fuel pump gauge is a crucial step in maintaining your vehicle's performance and ensuring it runs efficiently. The fuel pump gauge provides essential information about the fuel pressure, which directly impacts the engine's operation. To check the gauge, start by locating the fuel pressure test port, typically found near the fuel injectors or on the fuel rail. Connect a fuel pressure gauge to the port, ensuring a secure fit to prevent leaks. With the engine running, observe the gauge reading; it should match the specifications outlined in your vehicle’s manual. If the pressure is too low or too high, it may indicate a malfunctioning fuel pump, clogged fuel filter, or other issues that require immediate attention. Regularly monitoring the fuel pump gauge can help diagnose problems early, saving time and money on potential repairs.
| Characteristics | Values |
|---|---|
| Purpose | To verify the functionality and accuracy of the fuel gauge and fuel pump. |
| Tools Required | Multimeter, Fuel Pressure Gauge, Screwdriver, Pliers, Safety Gloves. |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, avoid sparks. |
| Steps to Check Fuel Gauge | 1. Test gauge resistance with a multimeter. 2. Simulate fuel level changes. 3. Compare readings to specifications. |
| Steps to Check Fuel Pump | 1. Listen for pump noise during ignition. 2. Test fuel pressure with a gauge. 3. Check for leaks or clogs. |
| Common Issues | Faulty sending unit, inaccurate gauge, weak fuel pump, clogged fuel filter. |
| Diagnostic Codes | P0190 (Fuel Tank Level Output Circuit), P0193 (Fuel Rail Pressure Sensor Circuit). |
| Replacement Cost | Fuel pump: $200-$800 (parts + labor), Fuel gauge: $100-$300. |
| Frequency of Inspection | Check annually or if symptoms (e.g., gauge fluctuation, engine sputtering) occur. |
| Professional Assistance | Recommended for complex issues or lack of DIY experience. |
| Environmental Impact | Proper disposal of old fuel pump and filter required to avoid contamination. |
| Vehicle Compatibility | Procedures vary by make/model; consult vehicle manual or online resources. |
Explore related products
What You'll Learn
Symptoms of a Failing Fuel Pump
A failing fuel pump can manifest in subtle yet alarming ways, often mimicking other engine issues. One of the earliest signs is a sputtering engine at high speeds, as if the car is struggling to maintain power. This occurs because the pump cannot deliver sufficient fuel to meet the engine’s demand under load. If you notice this symptom, it’s crucial to act promptly, as prolonged driving in this condition can lead to further damage.
Another telltale symptom is difficulty starting the vehicle, especially after it has been sitting for a while. A weak fuel pump may struggle to build pressure in the fuel lines, resulting in extended cranking times or a complete failure to start. To test this, try starting the car after it’s been parked overnight. If it hesitates or requires multiple attempts, the fuel pump could be the culprit.
Unusual noises from the fuel tank area, such as whining or humming, are often overlooked but highly indicative of a failing pump. These sounds typically occur when the pump’s internal components wear out or become clogged. If you hear such noises, particularly during startup or while accelerating, it’s a strong signal to inspect the fuel pump immediately.
A comparative analysis of fuel efficiency can also reveal a failing pump. A sudden drop in miles per gallon without changes in driving habits or conditions suggests the engine isn’t receiving the correct amount of fuel. Modern vehicles often display this in real-time via the fuel economy gauge, making it easier to identify anomalies.
Lastly, a descriptive symptom is the loss of power during acceleration or climbing uphill. This happens when the fuel pump cannot supply enough fuel to meet the increased demand. If your vehicle feels sluggish or unresponsive under these conditions, it’s a practical tip to check the fuel pump’s health before assuming the issue lies elsewhere. Addressing these symptoms early can prevent costly repairs and ensure your vehicle remains reliable.
Testing Your Hyundai Elantra's Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Tools Needed for Fuel Pump Inspection
Inspecting a fuel pump requires a blend of diagnostic tools and safety equipment to ensure accuracy and prevent hazards. At the core, a fuel pressure gauge is indispensable—it directly measures the pump’s output, confirming whether it meets manufacturer specifications. For instance, a gasoline fuel pump typically operates between 30 and 60 PSI, while diesel systems may require 15,000 to 25,000 PSI. Pair this with a multimeter to test the pump’s electrical circuit, checking for voltage drops or continuity issues that could indicate a failing component. Without these tools, diagnosing the pump’s condition becomes guesswork.
Beyond diagnostics, safety tools are non-negotiable. Fuel is highly flammable, so a fire extinguisher must be within reach. Nitrile gloves and safety goggles protect against skin and eye irritation from fuel exposure. Additionally, a non-sparking wrench is critical for loosening fuel lines, as traditional tools can generate sparks that ignite fumes. These precautions transform a potentially dangerous task into a controlled procedure, ensuring both the mechanic’s safety and the vehicle’s integrity.
For a comprehensive inspection, specialized tools like a fuel line disconnect tool simplify the process of accessing the pump without damaging components. This tool is particularly useful for modern vehicles with quick-connect fittings. A stethoscope—either mechanical or electronic—can also be employed to listen for abnormal noises, such as whining or grinding, which may signal internal pump damage. While not always necessary, these tools elevate the inspection from basic to thorough, catching issues before they escalate.
Finally, a scan tool or OBD-II reader is invaluable for vehicles with electronic fuel systems. It retrieves error codes related to fuel delivery, such as a malfunctioning pump or clogged filter. For example, a P0089 code indicates low fuel pressure, narrowing down the diagnostic path. Combining this data with physical measurements from the pressure gauge provides a complete picture of the pump’s health. Without this tool, modern fuel system diagnostics remain incomplete, leaving potential issues unresolved.
In summary, the right tools—from pressure gauges to safety gear—transform fuel pump inspection from a risky chore into a precise, actionable process. Each tool serves a unique purpose, ensuring both diagnostic accuracy and personal safety. By investing in these essentials, mechanics can confidently identify and address fuel pump issues before they lead to costly repairs or breakdowns.
Diagnosing Your Classic Holley Fuel Pump: Is It Still Functional?
You may want to see also
Explore related products
Steps to Test Fuel Pressure
Testing fuel pressure is a critical diagnostic step when troubleshooting a vehicle's fuel system. The process begins with gathering the necessary tools: a fuel pressure gauge, a screwdriver, and safety gear, including gloves and safety goggles. Ensure the vehicle is parked on a level surface, the engine is off, and the parking brake is engaged. Locate the fuel pressure test port, typically found on the fuel rail or near the fuel injectors, and consult the vehicle’s manual for exact placement. This initial preparation ensures accuracy and safety during the test.
Once equipped, connect the fuel pressure gauge to the test port securely to prevent fuel leaks. Start the engine and observe the gauge reading, comparing it to the manufacturer’s specifications for your vehicle. A healthy fuel system should maintain pressure within a specific range, typically between 30 and 60 psi, depending on the engine. If the pressure drops significantly when the engine is idling or under load, this may indicate a failing fuel pump or clogged fuel filter. Note any irregularities, as these will guide further diagnostics.
Next, perform a static fuel pressure test to assess the fuel pump’s ability to hold pressure. Turn the ignition to the "on" position without starting the engine and observe the gauge. The pressure should rise to the specified range and hold steady for several minutes. If the pressure drops rapidly, the check valve in the fuel pump may be faulty, causing fuel to drain back into the tank. This test isolates issues related to the pump’s internal components rather than external factors like clogged lines.
Finally, consider the fuel pump’s performance under load by testing pressure during acceleration. Have an assistant monitor the gauge while you rev the engine to 2,000 RPM. The pressure should remain stable or increase slightly, reflecting the pump’s ability to meet higher fuel demands. If the pressure drops or fluctuates, the pump may be nearing failure. This dynamic test provides a real-world assessment of the fuel system’s reliability, ensuring no issues are overlooked.
In conclusion, testing fuel pressure involves a systematic approach: preparation, connection, observation, and analysis. Each step provides unique insights into the fuel pump’s condition, from static hold to performance under load. By following these steps and comparing results to manufacturer specifications, you can accurately diagnose fuel system issues and determine whether the fuel pump requires repair or replacement. This methodical process ensures a thorough evaluation, saving time and preventing misdiagnosis.
Mounting a Holley Electric Fuel Pump: Step-by-Step Guide for Enthusiasts
You may want to see also
Explore related products
Checking Fuel Pump Noise and Operation
A faulty fuel pump can manifest as poor engine performance, stalling, or even a no-start condition. Before replacing the pump, a critical diagnostic step is assessing its noise and operation. This involves both auditory and procedural checks to determine if the pump is functioning correctly.
Start by locating the fuel pump, typically found inside the fuel tank. With the ignition in the "on" position but the engine off, listen carefully near the fuel tank for a faint humming or whirring sound. This indicates the pump is priming the fuel system. The noise should last for a few seconds and then stop. If no sound is heard, it could signify a failed pump, a blown fuse, or a faulty relay.
For a more definitive test, use a fuel pressure gauge. Disconnect the fuel line at the engine (after relieving fuel pressure) and attach the gauge. Have an assistant crank the engine while you observe the gauge. The pressure should rise to the manufacturer's specified range (typically 30-60 psi for most vehicles) and hold steady. If pressure is low or non-existent, the pump may be weak or failed.
Remember, working with fuel systems can be dangerous. Always relieve fuel pressure before disconnecting lines, and ensure proper ventilation to avoid fuel vapors. If you're unsure about any step, consult a qualified mechanic.
Signs Your Lawn Mower Fuel Pump is Failing: Quick Diagnosis Guide
You may want to see also
Explore related products
Diagnosing Electrical Issues in Fuel Pumps
Electrical issues in fuel pumps can manifest subtly, often starting with inconsistent engine performance or difficulty starting the vehicle. The fuel pump relies on a complex electrical system, including relays, fuses, and wiring, all of which can fail over time. To diagnose these problems, begin by checking the fuel pump fuse, typically located in the fuse box under the hood or dashboard. A blown fuse is a common culprit and can be identified by a broken or melted wire inside the fuse. If the fuse is intact, proceed to test the fuel pump relay using a multimeter. A faulty relay will fail to send power to the pump, causing it to stop working.
Next, verify the fuel pump’s electrical connection by accessing the pump’s wiring harness, usually located near the fuel tank. Use a multimeter to check for voltage at the pump’s connector when the ignition is turned on. If voltage is present but the pump isn’t running, the issue may lie within the pump itself. However, if no voltage is detected, trace the wiring back to identify any breaks, corrosion, or loose connections. Water damage or rodent activity can compromise these wires, so inspect them carefully. Repair or replace damaged wiring as needed, ensuring all connections are secure and insulated.
A less obvious but critical step is testing the fuel pump’s ground connection. A poor ground can prevent the pump from operating correctly, even if power is supplied. Disconnect the ground wire and clean both the wire terminal and the grounding point with a wire brush to remove corrosion. Reconnect and retest the pump. If the issue persists, use a multimeter to check for continuity between the ground wire and the vehicle’s chassis. A lack of continuity indicates a faulty ground that requires repair or replacement.
For a more advanced diagnosis, use a fuel pressure gauge to test the pump’s output. Connect the gauge to the fuel rail and start the engine. Compare the pressure reading to the manufacturer’s specifications, typically found in the vehicle’s service manual. Low pressure may indicate a weak pump, while no pressure suggests an electrical failure. If the pump is receiving power and ground but still isn’t functioning, it’s likely mechanically failed and needs replacement. Always prioritize safety when working with fuel systems, ensuring the engine is off and the fuel pressure relieved before proceeding.
Finally, consider the fuel pump’s age and usage history. Most fuel pumps last between 100,000 and 200,000 miles, but factors like contaminated fuel or frequent short trips can shorten their lifespan. If the pump is old and showing signs of failure, replacement may be more cost-effective than continued troubleshooting. Keep detailed records of symptoms and test results to aid in diagnosis and justify repairs to a mechanic if needed. By systematically addressing electrical issues, you can restore your vehicle’s fuel system to optimal performance.
Understanding the Dodge Charger Fuel Pump: Functionality and Operation Explained
You may want to see also
Frequently asked questions
To check if your fuel pump is functioning correctly, start by listening for the pump's hum when you turn the ignition to the "on" position (but don't start the engine). You can use a fuel pressure gauge to test the pressure at the fuel rail, ensuring it matches the manufacturer's specifications. Additionally, inspect for any signs of fuel leaks or unusual noises during operation.
Common symptoms of a failing fuel pump include difficulty starting the engine, sputtering or stalling at high speeds, loss of power during acceleration, and a whining noise from the fuel tank. If you notice any of these issues, it’s advisable to test the fuel pump or consult a mechanic.
Yes, you can test a fuel pump without removing it by using a multimeter to check for voltage at the pump’s electrical connector or by using a fuel pressure tester to measure the pressure output. Additionally, listening for the pump’s priming hum when the ignition is turned on can provide a quick initial check.
