Rajan Wilcox
Checking the fuel pump relay unit in a Volvo S40 is a crucial step in diagnosing fuel system issues, such as a no-start condition or inconsistent engine performance. The fuel pump relay is responsible for controlling the power supply to the fuel pump, ensuring it operates only when the engine is running or being started. To inspect the relay, locate it in the fuse box, typically found in the engine bay or under the dashboard. Begin by consulting the vehicle’s manual to identify the correct relay and its position. Once located, check for signs of damage, corrosion, or loose connections. You can also perform a continuity test using a multimeter to verify the relay’s functionality. If the relay is faulty, replacing it with a compatible unit is often a straightforward fix to restore proper fuel pump operation. Always ensure the ignition is off before handling electrical components to avoid accidents.
| Characteristics | Values |
|---|---|
| Location of Fuel Pump Relay | Typically located in the fuse box under the hood or near the battery. |
| Tools Required | Multimeter, screwdriver, and possibly a relay puller. |
| Steps to Check Relay | 1. Locate the relay in the fuse box. 2. Disconnect the relay. 3. Use a multimeter to test for continuity and proper voltage across the terminals. 4. Swap with a known good relay if available. |
| Relay Terminals | Usually 5 terminals: 30 (power in), 87 (power out to fuel pump), 85 (ground), 86 (control signal), and 87a (optional). |
| Expected Voltage | 12V at terminal 30 when ignition is on. |
| Common Symptoms of Faulty Relay | Engine cranks but doesn’t start, no fuel pressure, or intermittent starting issues. |
| Replacement Part | Volvo OEM fuel pump relay or compatible aftermarket part. |
| Safety Precautions | Disconnect the battery before working on electrical components. |
| Additional Tips | Check the fuel pump fuse and wiring harness for damage or corrosion. |
Explore related products
What You'll Learn
- Locate the Relay Unit: Identify the fuel pump relay location in your Volvo S40's fuse box
- Test for Power: Use a multimeter to check for voltage at the relay terminals
- Inspect Relay Condition: Look for signs of damage, corrosion, or overheating on the relay
- Swap Relays: Temporarily replace the fuel pump relay with a similar one to test functionality
- Listen for Pump Operation: Turn the ignition on and listen for the fuel pump humming sound

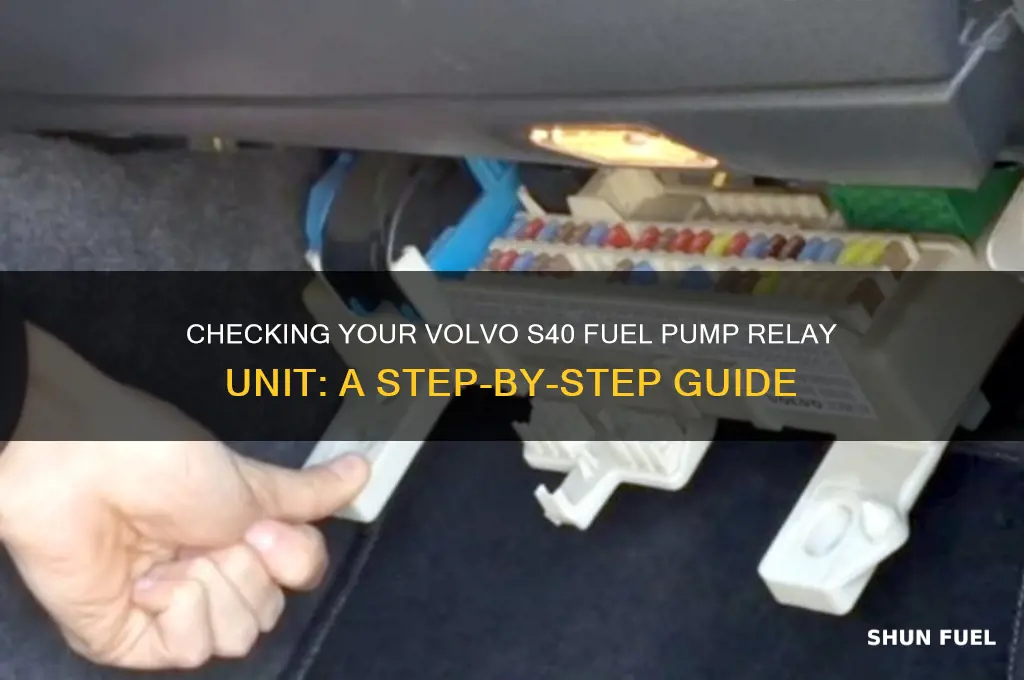

Locate the Relay Unit: Identify the fuel pump relay location in your Volvo S40's fuse box
The fuel pump relay in your Volvo S40 is a critical component that ensures your engine receives the necessary fuel for operation. Locating this relay within the fuse box is the first step in diagnosing potential issues or performing maintenance. The fuse box in a Volvo S40 is typically located in the engine compartment, but its exact position can vary depending on the model year. For most 2000–2004 models, the fuse box is situated near the battery, often on the driver’s side. Later models, such as those from 2004–2012, may have the fuse box placed on the passenger side or closer to the firewall. Always consult your vehicle’s manual for precise location details.
Once you’ve identified the fuse box, opening it reveals a diagram or label indicating the position of each relay and fuse. The fuel pump relay is usually labeled as “FUEL PUMP” or “FP RELAY” on this diagram. If the labels are unclear or missing, refer to the owner’s manual or online resources specific to your Volvo S40’s year and trim. The relay itself is a small, rectangular component with four to five pins, often black or gray in color. It’s designed to be easily removable for testing or replacement, making it a user-friendly part to work with.
To locate the fuel pump relay efficiently, start by ensuring the vehicle is turned off and the ignition key is removed. This prevents accidental electrical shorts or injuries. Open the fuse box cover and inspect the diagram carefully. If the diagram is faded or missing, use a flashlight to examine the relays closely. The fuel pump relay is often positioned near other engine management relays, such as those for the ignition or injectors. Once identified, gently pull the relay straight out of its socket—do not twist or force it, as this can damage the pins or the socket.
A practical tip for verification is to compare the removed relay with a known good one or a replacement part. Relays are often standardized across similar Volvo models, so cross-referencing part numbers can confirm you’ve located the correct component. If you’re unsure, take a photo of the fuse box layout before removing any relays to ensure you can return everything to its original position. This simple precaution saves time and avoids confusion during reassembly.
In summary, locating the fuel pump relay in your Volvo S40’s fuse box requires a systematic approach: identify the fuse box location, consult the diagram or manual, and carefully remove the relay for inspection. By following these steps, you’ll be well-prepared to diagnose or address fuel pump relay issues effectively. Always prioritize safety and accuracy to ensure your vehicle remains in optimal condition.
DIY Fuel Pump Lock Ring Removal: Tool-Free Quick Fix Guide
You may want to see also
Explore related products
Test for Power: Use a multimeter to check for voltage at the relay terminals
A faulty fuel pump relay can leave your Volvo S40 stranded. Before replacing the entire unit, a multimeter becomes your diagnostic ally. Testing for voltage at the relay terminals pinpoints whether the relay is receiving the necessary power to activate the fuel pump. This simple test saves time and money by isolating the problem to the relay itself or pointing towards other issues in the circuit.
A multimeter, set to the voltage setting (typically 20V DC), is your tool for this investigation. Locate the fuel pump relay in your Volvo S40's fuse box, often found under the hood or near the driver's side dashboard. Consult your vehicle's manual for the exact location. Identify the relay's terminals, usually labeled with numbers or symbols.
With the ignition switched on, carefully touch the multimeter's probes to the appropriate relay terminals. One probe goes to the power input terminal (often marked with a symbol like a battery), and the other to the ground terminal (usually marked with a symbol like a downward arrow). A healthy relay should show voltage readings within the specified range, typically around 12 volts. If no voltage is present, the problem likely lies upstream – a blown fuse, faulty wiring, or a malfunctioning ignition switch.
If voltage is present at the input terminal but absent at the output terminal, the relay itself is likely faulty. This indicates the relay isn't switching the power signal to the fuel pump. In this case, replacing the relay is the recommended course of action. Remember, always consult a qualified mechanic if you're unsure about any step of the process.
Step-by-Step Guide to Installing a Fuel Pump Regulator Easily
You may want to see also
Explore related products
$100.99 $123.74
Inspect Relay Condition: Look for signs of damage, corrosion, or overheating on the relay
A visual inspection of the fuel pump relay is a critical first step in diagnosing potential issues with your Volvo S40's fuel system. Begin by locating the relay, typically found in the engine bay fuse box. Once identified, carefully remove the relay from its slot, ensuring you note its orientation for proper reinstallation. The condition of the relay can reveal much about its functionality and potential problems.
Signs of Damage and Wear: Examine the relay for any physical damage, such as cracks or breaks in the plastic housing. Over time, the relay may endure stress from heat and vibration, leading to structural weaknesses. Even minor cracks can allow moisture and debris to enter, causing internal damage. Look for discolored or burnt areas, which could indicate overheating or electrical arcing. These visual cues are essential in determining whether the relay is functioning optimally or if it requires replacement.
Corrosion and Its Impact: Corrosion is a common issue, especially in older vehicles or those exposed to harsh environmental conditions. Inspect the relay's terminals and pins for any signs of corrosion, which appears as a greenish or whitish residue. Corroded terminals can lead to poor electrical contact, resulting in intermittent or complete loss of fuel pump operation. If corrosion is detected, it's crucial to clean the affected areas using a suitable electrical contact cleaner and a soft brush. This simple maintenance step can often restore the relay's functionality.
Overheating and Its Consequences: Overheating is a serious concern, as it can cause the relay to malfunction or fail prematurely. Feel the relay's surface; if it's excessively hot to the touch, it may indicate an internal short circuit or excessive current draw. Overheating can also lead to melted or discolored components within the relay. In such cases, replacement is necessary to prevent further damage to the fuel system. Regularly checking for overheating signs can help identify potential issues before they escalate.
Practical Tips for Inspection: When inspecting the relay, ensure the vehicle is turned off and the ignition is in the 'OFF' position to avoid electrical hazards. Use a bright light source to illuminate the relay, making it easier to spot subtle signs of damage or corrosion. If you notice any issues, consider consulting a Volvo service manual or seeking professional advice to determine the best course of action. Regularly inspecting the fuel pump relay is a simple yet effective way to maintain your Volvo S40's reliability and performance.
Should You Upgrade Your RX7 FC Fuel Pump? Key Considerations
You may want to see also
Explore related products
Swap Relays: Temporarily replace the fuel pump relay with a similar one to test functionality
A faulty fuel pump relay can leave your Volvo S40 stranded. Before condemning the relay itself, consider a simple yet effective diagnostic technique: swapping relays. This method leverages the fact that many relays in your vehicle perform similar functions and share compatible pin configurations. By temporarily replacing the fuel pump relay with a known-good relay of a similar type, you can isolate the problem to the relay itself or point to a deeper issue within the fuel pump circuit.
This approach is particularly useful when you lack specialized diagnostic tools or need a quick roadside assessment.
Identifying a Suitable Relay: Not all relays are created equal. Look for a relay with the same number of pins and a similar physical size. Common candidates include the A/C compressor relay, cooling fan relay, or even the horn relay. Consult your Volvo S40 service manual or online forums to confirm pin compatibility. Remember, the goal is to find a relay that physically fits and electrically matches the fuel pump relay's specifications.
Execution and Observation: With the ignition off, locate both the fuel pump relay and your chosen substitute. Swap their positions in the fuse box. Attempt to start the engine. If the engine starts and runs normally, the original fuel pump relay is likely faulty. If the problem persists, the issue may lie elsewhere in the fuel pump circuit, such as a bad fuel pump, clogged fuel filter, or wiring fault.
Cautions and Considerations: While relay swapping is a valuable diagnostic tool, exercise caution. Ensure the substitute relay can handle the current draw of the fuel pump. Avoid using relays from critical safety systems, such as airbags or ABS. Always return the original relay to its position after testing, unless you're certain it's defective. If in doubt, consult a professional mechanic to avoid potential damage or safety risks.
Accessing Your Crosstour's Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Listen for Pump Operation: Turn the ignition on and listen for the fuel pump humming sound
One of the simplest yet most effective ways to diagnose fuel pump relay issues in a Volvo S40 is to listen for the pump’s operation. When you turn the ignition to the "on" position (without starting the engine), the fuel pump should activate briefly, producing a distinct humming sound. This sound originates from the fuel tank and is a clear indicator that the relay is functioning and sending power to the pump. If you hear this hum, it suggests the relay and pump are communicating correctly, narrowing down potential issues to other components of the fuel system.
The humming sound typically lasts for 2–3 seconds, as the pump primes the fuel lines with pressure. To ensure accuracy, perform this test in a quiet environment with the radio and air conditioning turned off. Place your ear near the fuel tank or use a mechanic’s stethoscope to amplify the sound. If the hum is absent, it could signal a faulty relay, a blown fuse, or a failed pump. However, before jumping to conclusions, verify that the fuel pump fuse is intact and that the relay is properly seated in its socket.
A comparative approach can also be helpful: if you have access to another Volvo S40, compare the humming sound between the two vehicles. This can provide a baseline for what a healthy fuel pump sounds like. Alternatively, consult the vehicle’s service manual for a detailed diagram of the fuel pump relay location and its associated components. Understanding the relay’s role in the circuit—acting as a switch between the battery and the pump—can further guide your troubleshooting process.
For a more analytical perspective, consider the timing of the humming sound. If the pump activates but fails to maintain pressure when the engine is running, the issue may lie with the pump itself rather than the relay. In such cases, a fuel pressure gauge can provide additional data. However, for the purpose of this test, focus on the initial activation sound. If it’s missing, proceed to test the relay’s continuity with a multimeter or swap it with a known-good relay from another circuit to confirm its failure.
In conclusion, listening for the fuel pump’s humming sound is a quick, non-invasive diagnostic step that can save time and effort in identifying relay-related issues. It’s a practical tip that leverages your senses to gather critical information about the Volvo S40’s fuel system. Pair this method with visual inspections and further electrical tests for a comprehensive diagnosis.
Bosch Fuel Pumps Review: Reliability, Performance, and Value Explained
You may want to see also
Frequently asked questions
The fuel pump relay unit in a Volvo S40 is typically located in the fuse box under the hood. Refer to your vehicle’s manual for the exact location, as it may vary by model year.
Common symptoms include difficulty starting the engine, stalling, or a complete failure to start. You may also notice the engine sputtering or losing power while driving.
Use a multimeter to check for continuity in the relay’s terminals. Swap the fuel pump relay with another relay of the same type in the fuse box (e.g., the horn relay) to see if the issue persists. If the problem moves, the relay is likely faulty.
