Checking the fuel pump pressure on a Ford Ranger is a critical diagnostic step to ensure the vehicle’s fuel system is functioning correctly. The fuel pump delivers fuel from the tank to the engine at the required pressure, and any deviation can lead to poor performance, stalling, or even engine failure. To check the fuel pump pressure, you’ll need a fuel pressure gauge specific to your Ford Ranger’s fuel system (typically Schrader valve type for most models). Start by locating the fuel pressure test port, often found on the fuel rail or near the fuel filter, depending on the year and model. With the engine off, relieve the fuel system pressure, then connect the gauge and start the engine to observe the pressure reading. Compare the result to the manufacturer’s specifications, typically found in the vehicle’s service manual, to determine if the fuel pump is operating within the acceptable range. If the pressure is too low or too high, further inspection of the fuel pump, filter, or related components may be necessary.
| Characteristics | Values |
|---|---|
| Vehicle Model | Ford Ranger |
| Tool Required | Fuel Pressure Gauge |
| Location of Fuel Test Port | Near the fuel injector rail or on the fuel pump itself (varies by year and model) |
| Recommended Fuel Pressure (PSI) | Typically 30-60 PSI (varies by engine type and year; consult manual) |
| Steps to Check Pressure | 1. Locate fuel test port 2. Connect fuel pressure gauge 3. Start engine and observe pressure 4. Compare reading to specifications |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Common Symptoms of Low Pressure | Hard starting, stalling, lack of power, engine misfires |
| Applicable Ford Ranger Years | 1995-2023 (varies by engine and fuel system design) |
| Fuel Pump Type | Electric in-tank or external (depends on model year) |
| Diagnostic Trouble Codes (DTCs) | P0087, P0191 (low fuel pressure-related codes) |
| Professional Assistance | Recommended if unsure or for complex fuel system issues |
Explore related products
What You'll Learn
Tools needed for testing fuel pump pressure
Testing fuel pump pressure on a Ford Ranger requires a precise set of tools to ensure accuracy and safety. The primary tool is a fuel pressure gauge, specifically designed to measure the pressure delivered by the fuel pump. Opt for a gauge with a range that matches your vehicle’s specifications, typically between 30 to 60 PSI for most Ford Rangers. Ensure the gauge has compatible fittings for your fuel system, such as Schrader valve connections, to avoid leaks or damage.
Beyond the gauge, a fuel line disconnect tool is essential for accessing the fuel system safely. This tool allows you to release the fuel line’s quick-connect fittings without causing damage or spilling fuel. Always work in a well-ventilated area and use safety goggles to protect against accidental fuel spray. A flashlight is also handy for illuminating hard-to-see areas under the hood, especially when locating the fuel rail or Schrader valve.
For a more comprehensive test, consider using a multimeter to check the fuel pump’s electrical circuit. This tool verifies that the pump is receiving power and grounding properly, which can help diagnose issues beyond pressure. Additionally, a shop towel or rag is invaluable for wiping away any fuel residue during the process, maintaining cleanliness and reducing fire hazards.
Lastly, a jack and jack stands or ramps are necessary to safely elevate the vehicle, providing access to the fuel pump and lines underneath. Always follow proper safety protocols when working under a raised vehicle. With these tools in hand, you’ll be well-equipped to accurately test and diagnose fuel pump pressure issues on your Ford Ranger.
Delphi Fuel Pumps: Reliability, Performance, and Longevity Reviewed
You may want to see also
Explore related products

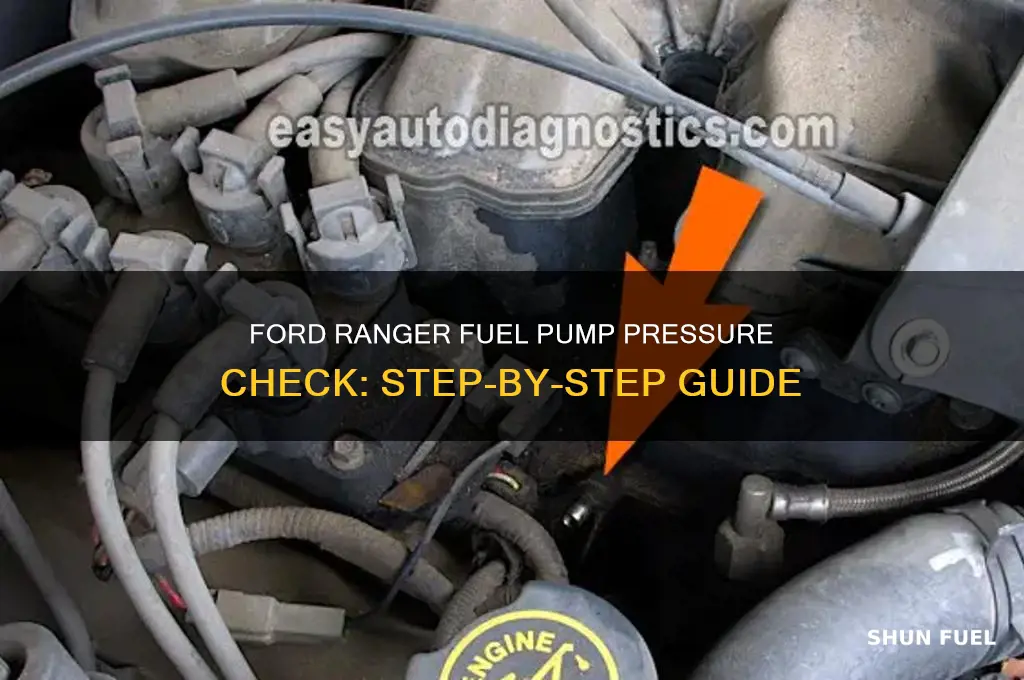

Locating the fuel pump Schrader valve
The Schrader valve, a critical component for checking fuel pump pressure, is often tucked away in the fuel system, requiring a bit of detective work to locate. In the Ford Ranger, this valve is typically found on the fuel rail, a metal pipe that distributes fuel to the injectors. Understanding its location is the first step in diagnosing fuel system issues, as it allows you to connect a pressure gauge and assess the pump’s performance. Without this knowledge, even the most experienced mechanic might struggle to pinpoint problems like insufficient fuel delivery or pump failure.
To locate the Schrader valve on a Ford Ranger, start by opening the hood and identifying the fuel rail, usually positioned near the engine’s intake manifold. The valve itself resembles a tire valve stem, often protected by a small cap to prevent debris from entering. If the valve isn’t immediately visible, consult the vehicle’s service manual or online resources specific to your Ranger’s model year. For instance, in some models, the valve may be hidden beneath a plastic cover or near the fuel injectors. A flashlight and a keen eye are essential tools for this task, as the valve’s location can vary slightly depending on the engine configuration.
Once you’ve located the Schrader valve, the next step is to ensure it’s accessible for testing. Disconnect the negative battery terminal to prevent accidental fuel ignition, and relieve fuel system pressure by locating the pressure relief valve or following the manufacturer’s procedure. This precautionary step is crucial, as working on a pressurized fuel system can be hazardous. After relieving pressure, remove the valve’s protective cap and prepare to attach a fuel pressure gauge. Proper preparation ensures both safety and accuracy during the testing process.
Comparing the Ford Ranger’s Schrader valve location to other vehicles highlights its design efficiency. Unlike some models where the valve is buried deep within the engine bay, the Ranger’s valve is relatively easy to access, making pressure checks more straightforward. However, this accessibility doesn’t diminish the importance of precision. Misidentifying the valve or skipping safety steps can lead to costly mistakes. By contrast, understanding the valve’s exact location and following proper procedures transforms a potentially daunting task into a manageable one.
In conclusion, locating the fuel pump Schrader valve on a Ford Ranger is a blend of observation, preparation, and caution. Its position on the fuel rail, though consistent across models, requires careful inspection due to variations in engine layouts. Armed with this knowledge, you can confidently proceed to test fuel pump pressure, ensuring your Ranger’s fuel system operates optimally. This small but significant step underscores the importance of detail in automotive diagnostics, where even the most minor oversight can lead to major issues.
Ford Freestar 2004: Fuel Pump Location and Function Explained
You may want to see also
Explore related products
Connecting the pressure gauge correctly
To ensure accurate fuel pump pressure readings on a Ford Ranger, connecting the pressure gauge correctly is paramount. Start by locating the fuel Schrader valve, typically found on the fuel rail near the engine. This valve resembles a tire valve stem and is the access point for measuring fuel pressure. Before proceeding, relieve the fuel system pressure by disconnecting the fuel pump inertia switch or using a similar method specified in your vehicle’s manual. Failure to do so can result in fuel spraying or system damage.
Once the system is depressurized, attach the pressure gauge to the Schrader valve using a compatible adapter. Ensure the connection is tight to prevent leaks, but avoid over-tightening, as this can damage the valve. Use Teflon tape or a thread sealant if the threads are prone to leaking. For precise measurements, select a gauge with a range suitable for your Ford Ranger’s fuel system, typically 0–100 psi. Low-quality gauges may provide inaccurate readings, leading to misdiagnosis of fuel pump issues.
Next, start the engine and observe the gauge. The pressure should stabilize within the manufacturer’s specifications, usually around 30–60 psi depending on the model year. If the gauge fluctuates excessively or fails to reach the required pressure, this may indicate a faulty fuel pump or clogged fuel filter. Compare the reading to the vehicle’s service manual for exact values, as tolerances vary by engine type and configuration.
A common mistake is neglecting to account for external factors that can skew readings. For instance, a warm engine may show slightly lower pressure than a cold one due to fuel expansion. To ensure consistency, perform the test under similar conditions each time. Additionally, if using a manual pump to pressurize the system, apply steady pressure and avoid overloading the gauge, which can cause permanent damage.
In conclusion, connecting the pressure gauge correctly involves careful preparation, precise attachment, and attentive observation. By following these steps and considering environmental factors, you can accurately diagnose fuel pump issues in your Ford Ranger. Always prioritize safety and refer to the vehicle’s manual for model-specific details. A correctly connected gauge is not just a tool—it’s the key to understanding your fuel system’s health.
Pump Fuel Insanity: Does It Contain DMAA? Unveiling the Truth
You may want to see also
Explore related products
Interpreting fuel pressure readings accurately
Fuel pressure readings are a critical diagnostic tool for assessing the health of your Ford Ranger's fuel system. A pressure gauge connected to the fuel rail provides a snapshot of the system's performance, but interpreting these readings requires understanding the context and specifications of your vehicle. For instance, a Ford Ranger with a 4.0L V6 engine typically operates within a fuel pressure range of 30 to 45 PSI at idle. Readings outside this range may indicate issues such as a failing fuel pump, clogged fuel filter, or leaking fuel pressure regulator. Always refer to your vehicle’s service manual for precise specifications, as variations exist between models and years.
Environmental factors and testing conditions also play a role in accurate interpretation. Fuel pressure can fluctuate with temperature, so test the system when the engine is at operating temperature for consistent results. Additionally, ensure the fuel tank is at least half full to avoid inaccurate readings caused by low fuel levels. A common mistake is testing pressure with a nearly empty tank, which can lead to lower-than-normal readings due to inadequate fuel pump immersion. Always replicate testing conditions for reliable comparisons over time.
To troubleshoot effectively, correlate pressure readings with symptoms your Ranger may be exhibiting. For instance, low fuel pressure combined with rough idling or stalling could confirm a fuel delivery issue. However, high pressure paired with fuel leaks suggests a regulator problem. If readings are within spec but issues persist, inspect other components like injectors or the fuel pressure sensor. A systematic approach—combining pressure data with symptom analysis—ensures you don’t misdiagnose the root cause.
Finally, invest in a quality fuel pressure gauge and adapter kit specific to your Ford Ranger’s fuel system. Inaccurate tools can lead to misinterpretation, wasting time and resources. After testing, compare your findings to known benchmarks and consult a professional if unsure. Accurate interpretation of fuel pressure readings not only diagnoses current issues but also helps prevent future problems by identifying early warning signs. Master this skill, and you’ll maintain your Ranger’s performance with confidence.
Does Honda Manufacture Its Own Fuel Pumps? Uncovering the Truth
You may want to see also
Explore related products
Troubleshooting common pressure issues effectively
Fuel pump pressure issues in a Ford Ranger can manifest as poor engine performance, stalling, or difficulty starting. To troubleshoot effectively, begin by verifying the fuel pump’s pressure specifications for your specific model year, as these can vary. For instance, a 2005 Ford Ranger with a 4.0L V6 engine typically requires a fuel pressure reading between 30 and 45 PSI. Armed with this baseline, you can use a fuel pressure gauge to test the pump’s output at the fuel rail. If the reading falls outside the recommended range, the issue could stem from a clogged fuel filter, a failing pump, or a faulty pressure regulator. Always disconnect the battery before testing to prevent accidental ignition.
Analyzing the symptoms can narrow down the root cause. For example, if the pressure is too low, inspect the fuel filter for clogs, as debris can restrict fuel flow. A filter that hasn’t been replaced in over 30,000 miles is a likely culprit. Conversely, if the pressure is excessively high, the regulator may be malfunctioning, causing fuel to return to the tank inefficiently. In both cases, replacing the faulty component often resolves the issue. However, if the pressure is within range but the engine still performs poorly, the problem may lie elsewhere, such as a clogged injector or a failing fuel pump relay.
When troubleshooting, consider the age and mileage of your Ford Ranger. Older vehicles with high mileage are more prone to fuel system wear. For instance, a fuel pump in a 10-year-old Ranger with over 150,000 miles may operate at reduced efficiency, even if the pressure reading appears normal. In such cases, a preemptive replacement of the pump and filter can prevent future failures. Additionally, inspect the fuel lines for cracks or leaks, as these can cause pressure drops and fuel delivery issues.
A comparative approach can also be useful. If you have access to another Ford Ranger of the same model year, compare fuel pressure readings to ensure your gauge is accurate. Discrepancies may indicate a faulty testing tool rather than a vehicle issue. Furthermore, consult the vehicle’s repair manual for diagnostic trouble codes (DTCs) related to the fuel system. Codes like P0087 (low fuel rail pressure) or P0088 (high fuel rail pressure) provide targeted insights into the problem. Pairing these codes with pressure readings can streamline the troubleshooting process.
In conclusion, effective troubleshooting of fuel pump pressure issues in a Ford Ranger requires a systematic approach. Start with accurate pressure testing, analyze symptoms and vehicle history, and leverage comparative diagnostics and trouble codes. By addressing common culprits like clogged filters, failing regulators, and worn pumps, you can restore optimal fuel system performance and ensure your Ranger runs smoothly. Always prioritize safety and consult professional guidance if uncertainties arise.
Mercruiser Mechanical Seawater Fuel Pump Lifespan: What to Expect
You may want to see also
Frequently asked questions
To check the fuel pump pressure, locate the fuel test port (usually near the fuel filter or fuel rail), connect a fuel pressure gauge, and start the engine. Compare the reading to the specifications in your Ford Ranger’s service manual.
You’ll need a fuel pressure gauge, a wrench or socket set to disconnect fuel lines (if necessary), and safety equipment like gloves and safety goggles.
The correct fuel pump pressure varies by model and engine type, but it typically ranges between 30–60 PSI. Refer to your Ford Ranger’s service manual for the exact specification.
