Checking the fuel pump relay on a 2003 Ford Taurus is a crucial diagnostic step if you suspect fuel delivery issues. The fuel pump relay is located in the underhood fuse box, typically labeled as FP or Fuel Pump. To test it, start by locating the relay and swapping it with a similar relay in the fuse box, such as the horn relay, to see if the fuel pump engages when the ignition is turned on. If the fuel pump works after swapping, the original relay is likely faulty. Additionally, you can use a multimeter to check for continuity across the relay’s terminals or apply power directly to the fuel pump connector to confirm if the pump itself is functioning. Always ensure the ignition is off when handling electrical components to avoid accidents.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2003 Ford Taurus |
| Fuel Pump Relay Location | Under the hood, in the power distribution box (fuse box) |
| Relay Terminals | 5 terminals (30, 87, 85, 86, and 87a) |
| Power Source | Terminal 30 (Battery power) |
| Load Circuit | Terminal 87 (Power to fuel pump) |
| Control Circuit | Terminal 85 (Ground through PCM) |
| Test Procedure | 1. Locate the relay in the power distribution box. 2. Swap the fuel pump relay with a similar relay (e.g., horn relay) for testing. 3. Use a multimeter to check for continuity between terminals 30 and 87 when the ignition is on. 4. Activate the fuel pump by turning the key to the "ON" position and listen for the pump's hum. |
| Common Symptoms of Failure | No start condition, engine cranks but doesn’t start, intermittent starting issues |
| Tools Required | Multimeter, relay puller (optional), protective gloves |
| Safety Precautions | Disconnect the battery before working on the electrical system. |
| Additional Tips | Check the fuel pump fuse and inertia switch (if equipped) before testing the relay. |
Explore related products
What You'll Learn
Locate the fuel pump relay in the fuse box under the hood
The fuel pump relay in a 2003 Ford Taurus is a critical component that ensures your vehicle’s engine receives the necessary fuel for operation. Locating it begins with identifying the fuse box under the hood, typically positioned near the battery or along the driver’s side fender. This box houses various relays and fuses, each labeled for easy identification. However, the fuel pump relay’s exact location can vary slightly depending on the Taurus model or trim level, so consulting your owner’s manual or a vehicle-specific repair guide is advisable for precise placement.

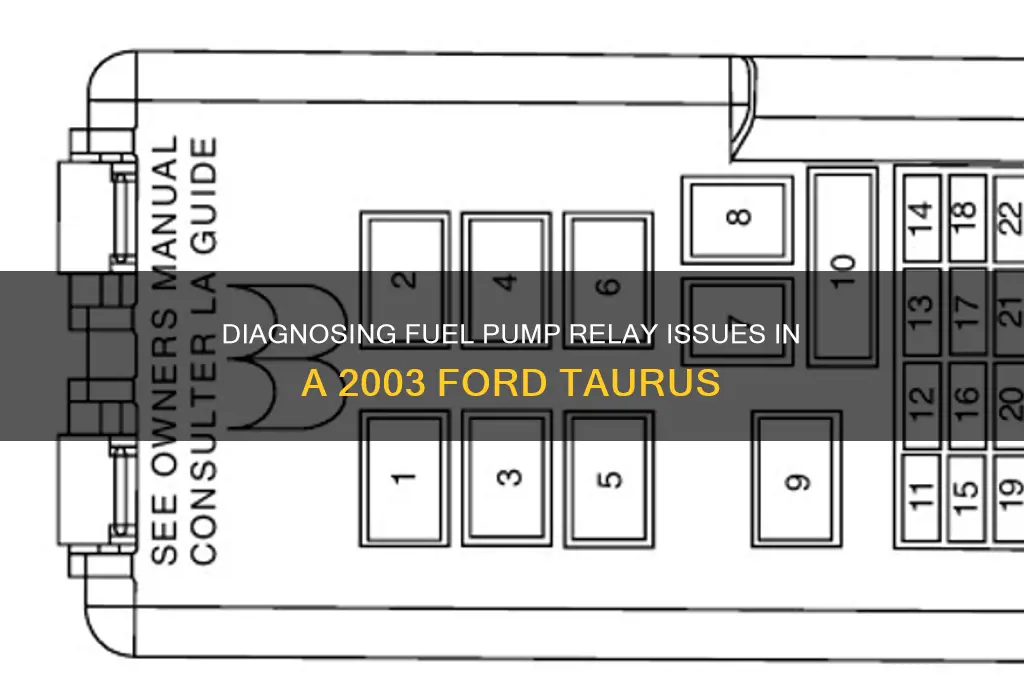

Once you’ve located the fuse box, open its cover to reveal a diagram on the underside, which labels each relay and fuse. The fuel pump relay is often marked as “FP Relay” or “Fuel Pump Relay.” If the diagram is unclear or missing, look for a relay with four or five pins, typically larger than standard fuses. It’s usually positioned in a row with other relays, distinguished by its size and pin configuration. A flashlight can be helpful here, as the area under the hood can be dimly lit, especially during evening repairs.
Removing the fuel pump relay requires a gentle but firm approach. Use a flathead screwdriver or a relay puller tool to carefully pry it out of its slot. Be cautious not to damage the surrounding components or bend the relay’s pins. Once removed, inspect the relay for signs of corrosion, burning, or physical damage, as these are common indicators of a faulty relay. If the relay appears intact, you can proceed with further testing using a multimeter to check for continuity and proper function.
For those unfamiliar with automotive electrical systems, it’s worth noting that the fuel pump relay operates under specific conditions. It activates when the ignition is turned on, sending power to the fuel pump to pressurize the fuel system. If the relay fails, the pump may not engage, leading to a no-start condition. Testing the relay involves checking for power at its input and output terminals, which can be done with a test light or multimeter. Always ensure the vehicle is off and the battery is disconnected before handling electrical components to prevent accidental short circuits.
In summary, locating the fuel pump relay in the fuse box under the hood of a 2003 Ford Taurus is a straightforward process that requires attention to detail. By identifying the correct fuse box, referencing the diagram, and carefully removing the relay, you can efficiently diagnose potential issues. This step is crucial for troubleshooting fuel system problems and ensuring your vehicle runs smoothly. With the right tools and precautions, even novice car owners can tackle this task with confidence.
Diagnosing Fuel Pump Issues in John Deere Equipment: A Step-by-Step Guide
You may want to see also
Explore related products
Identify the correct relay using the owner’s manual diagram
Locating the fuel pump relay in a 2003 Ford Taurus can be a straightforward task if you utilize the vehicle's owner's manual effectively. This manual is a treasure trove of information, often overlooked, yet it holds the key to many DIY repairs. The diagram within the manual is not just a random illustration; it's a detailed map designed to guide you through the intricate network of relays and fuses under the hood. By understanding this diagram, you can save time and avoid the frustration of trial and error.
The owner's manual typically includes a section dedicated to the vehicle's electrical system, featuring a comprehensive diagram of the fuse box and relay layout. For the 2003 Ford Taurus, this diagram is crucial in identifying the fuel pump relay, which is often located in the under-hood fuse/relay box. The diagram uses symbols and labels to represent each component, making it essential to decipher these codes. Look for a symbol resembling a rectangle with a small circle or a spring inside, which usually denotes a relay. The fuel pump relay might be labeled as "FP" or "Fuel Pump," depending on the manual's legend.
Here's a step-by-step approach to using the diagram: First, locate the fuse/relay box, usually found in the engine compartment. It might be covered with a protective lid that needs to be removed. Once exposed, compare the physical layout with the diagram in the manual. Identify the row and column where the fuel pump relay is positioned. The diagram will provide a clear visual reference, ensuring you don't mistake it for another relay. For instance, the fuel pump relay in the 2003 Taurus is often located in the second row, third position, but always cross-reference with your specific manual.
A practical tip is to use a marker or take a photo of the diagram for easy reference while working under the hood. This way, you can quickly match the physical components with the diagram without constantly flipping through the manual. Remember, the owner's manual is tailored to your vehicle, making it an invaluable resource for such tasks. By mastering the art of reading these diagrams, you gain a powerful skill applicable to various automotive maintenance tasks, ensuring you approach each repair with confidence and precision.
Step-by-Step Guide to Replacing Fuel Pump on 2001 Yukon
You may want to see also
Explore related products
Test the relay for continuity using a multimeter
A multimeter is an essential tool for diagnosing fuel pump relay issues in a 2003 Ford Taurus. By testing the relay for continuity, you can determine if the electrical circuit is complete, allowing current to flow and activate the fuel pump. This test is crucial because a faulty relay can mimic symptoms of a failing fuel pump, such as engine stalling or difficulty starting. Before proceeding, ensure the vehicle is turned off and the battery is disconnected to prevent electrical hazards.
To begin testing, locate the fuel pump relay in the under-hood fuse/relay box. Consult the owner’s manual or a repair guide for the exact position, as it may vary. Once identified, remove the relay by pulling it straight out of its socket. A multimeter set to the continuity or resistance mode (usually denoted by a diode symbol or the Greek letter omega) is your primary tool. Touch the multimeter probes to the relay’s terminals, specifically the input and output pins, which are typically labeled on the relay’s body or in the vehicle’s wiring diagram.
When testing for continuity, a functional relay will show a reading of near zero ohms, indicating a closed circuit. If the multimeter displays an infinite reading (OL or 1), the relay is faulty and should be replaced. It’s important to test all relevant terminals to ensure no internal damage exists. For instance, check the ground circuit by testing between the ground pin and a known good ground point on the vehicle’s chassis. A lack of continuity here could indicate a broken ground connection, which is often overlooked.
One practical tip is to compare the suspect relay with a known good one from the same fuse box, such as the A/C compressor relay, which often shares a similar design. Swap the relays temporarily and observe if the fuel pump operates. If it does, the original relay is likely defective. However, this method should only be used for preliminary diagnosis, as it doesn’t provide a detailed analysis of the relay’s internal components.
In conclusion, testing the fuel pump relay for continuity using a multimeter is a precise and effective method to diagnose electrical issues in a 2003 Ford Taurus. By systematically checking each terminal and comparing readings to expected values, you can accurately determine the relay’s condition. This approach not only saves time but also prevents unnecessary replacement of other components, ensuring a cost-effective repair. Always prioritize safety and refer to reliable resources when working with electrical systems.
Does ASC Warranty Cover Fuel Pump Repairs? A Comprehensive Guide
You may want to see also
Explore related products
Swap the relay with a similar one to check functionality
Swapping the fuel pump relay with a similar one is a straightforward yet effective method to diagnose potential issues in your 2003 Ford Taurus. This approach leverages the principle of substitution, allowing you to isolate whether the relay itself is faulty or if the problem lies elsewhere in the fuel system. Begin by locating the fuel pump relay in the fuse box, typically found under the hood or near the driver’s side dashboard. Consult your vehicle’s manual for the exact location, as it varies by model. Once identified, carefully remove the relay by pulling it straight out of its socket, ensuring not to damage the surrounding components.
Selecting a compatible relay for the swap is crucial. Look for a relay with the same pin configuration and amperage rating, often found in other systems of your vehicle, such as the horn or cooling fan. If you’re unsure, compare the part numbers or consult a mechanic. Insert the substitute relay into the fuel pump’s socket, ensuring it clicks securely into place. Afterward, start the engine to observe if the fuel pump engages. If the engine starts and runs smoothly, the original relay is likely defective. If not, the issue may stem from the fuel pump, wiring, or another component.
While this method is practical, exercise caution to avoid misdiagnosis. A relay that appears functional in another circuit may still fail under the specific load of the fuel pump. Additionally, ensure the vehicle is in a safe, well-ventilated area when performing this test, as working with the fuel system carries inherent risks. Always disconnect the battery before handling electrical components to prevent short circuits or accidental activation.
In conclusion, swapping the fuel pump relay is a quick diagnostic step that can save time and money by pinpointing the root cause of fuel delivery issues. However, if the problem persists, further investigation into the fuel pump, wiring harness, or fuel pressure regulator may be necessary. This method is a valuable tool in your troubleshooting arsenal, offering clarity in a system where symptoms can often overlap.
Could a Faulty Fuel Pump Cause Scraping Noise? Explained
You may want to see also
Explore related products
Inspect for corrosion or damage in the relay socket
Corroded or damaged relay sockets can disrupt the electrical connection to your fuel pump, leading to starting issues or erratic engine performance. Before condemning the relay itself, a thorough inspection of the socket is crucial. Locate the fuel pump relay in your 2003 Ford Taurus, typically found in the under-hood fuse box. Consult your owner's manual for the exact location.
Once identified, carefully remove the relay from its socket. Visually examine the socket for signs of corrosion, such as greenish deposits, rust, or a white powdery residue. These indicate moisture intrusion and potential electrical resistance.
Physical damage is another red flag. Look for cracked, melted, or deformed pins within the socket. Bent pins can prevent proper contact with the relay, while melted components suggest overheating due to excessive current draw. Even minor damage can compromise the connection, leading to intermittent fuel pump operation.
If you suspect corrosion, gently clean the socket using a cotton swab dipped in isopropyl alcohol. Be meticulous, ensuring all residue is removed. For stubborn corrosion, a small brush can be used, but avoid excessive force to prevent further damage.
In cases of physical damage, socket repair or replacement is necessary. Attempting to bend pins back into shape is often futile and can worsen the issue. Replacement sockets are readily available at auto parts stores, ensuring a reliable connection for your fuel pump relay. Remember, a healthy relay socket is essential for consistent fuel delivery and optimal engine performance.
Step-by-Step Guide to Mounting an Electric Fuel Pump Correctly
You may want to see also
Frequently asked questions
The fuel pump relay is located in the underhood fuse/relay box. It is typically labeled as "FPD" or "Fuel Pump Driver."
Symptoms include the engine not starting, stalling, or difficulty starting, as well as a lack of fuel pressure or no fuel pump operation when the key is turned to the "ON" position.
Use a multimeter to check for continuity across the relay’s terminals or swap it with a relay of the same type (e.g., the horn relay) to see if the fuel pump operates.
Yes, you can temporarily bypass the relay by connecting the fuel pump’s power wire directly to the battery (with a fuse in line) to test if the pump is functioning.
You’ll need a multimeter, a relay puller (optional), and possibly a wiring diagram to identify the correct relay and its terminals.
