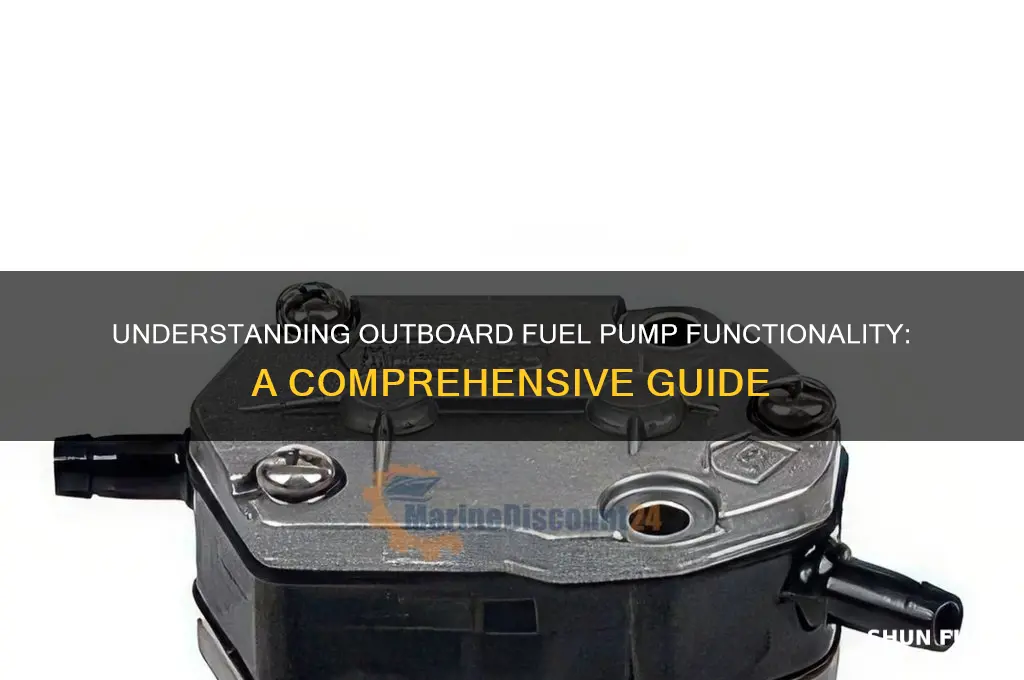

An outboard fuel pump is a critical component in marine engines, responsible for delivering fuel from the tank to the carburetor or fuel injection system, ensuring optimal engine performance. Typically located near the fuel tank, it operates by creating a vacuum that draws fuel through the lines, overcoming the resistance caused by the engine’s distance from the tank and the effects of gravity, especially in boats where the tank is positioned lower than the engine. Most outboard fuel pumps are mechanical, driven by the engine’s camshaft or a dedicated electric motor, and they use a diaphragm or rotary mechanism to pump fuel efficiently. Proper maintenance, including regular inspection for leaks and clogs, is essential to prevent fuel delivery issues and ensure reliable operation on the water. Understanding how an outboard fuel pump works is key to troubleshooting common problems and maintaining the longevity of a marine engine.
| Characteristics | Values |
|---|---|
| Function | Delivers fuel from the tank to the outboard motor's carburetor or fuel injection system. |
| Location | Typically mounted on the outboard engine or near the fuel tank. |
| Power Source | Powered by the outboard engine's electrical system (12V or 24V). |
| Type | Usually a diaphragm or electric roller vane pump. |
| Fuel Flow Rate | Varies by model, typically 10-30 gallons per hour (GPH). |
| Pressure Output | Typically 3-7 psi (pounds per square inch), depending on engine demands. |
| Fuel Compatibility | Compatible with gasoline, ethanol blends (E10, E15), and marine fuels. |
| Priming Capability | Includes a manual or automatic priming feature to remove air from lines. |
| Material | Constructed from corrosion-resistant materials (e.g., stainless steel, marine-grade plastics). |
| Maintenance | Requires periodic inspection, filter replacement, and diaphragm checks. |
| Safety Features | Includes overpressure protection and thermal cutoff to prevent overheating. |
| Noise Level | Generally quiet, with noise levels below 70 dB. |
| Size and Weight | Compact and lightweight, typically under 5 lbs for easy installation. |
| Compatibility | Designed for specific outboard engine brands (e.g., Mercury, Yamaha, Suzuki). |
| Environmental Compliance | Meets marine environmental regulations for fuel emissions and spills. |
| Lifespan | Typically 5-10 years with proper maintenance. |
| Cost | Ranges from $50 to $300, depending on brand and features. |
Explore related products
What You'll Learn
- Fuel Pump Components: Overview of the key parts: motor, diaphragm, valves, and pressure regulator
- Fuel Intake Process: How the pump draws fuel from the tank via suction and inlet valves
- Pressure Regulation: Mechanism to maintain consistent fuel pressure for optimal engine performance
- Fuel Delivery System: Process of pumping fuel to the carburetor or fuel injectors efficiently
- Maintenance and Troubleshooting: Common issues, cleaning, and steps to ensure pump longevity
Fuel Pump Components: Overview of the key parts: motor, diaphragm, valves, and pressure regulator
The heart of an outboard fuel pump's operation lies in its motor, a compact yet powerful component that drives the entire system. Typically, these motors are electric, designed to operate efficiently within the pump's housing. The motor's role is to generate the necessary force to move fuel from the tank to the engine, ensuring a consistent and reliable supply. Its speed and torque are precisely calibrated to handle the viscosity of marine fuel, which can vary depending on environmental conditions. For instance, a 12-volt motor is commonly used in outboard engines, providing sufficient power without overloading the boat's electrical system. Understanding the motor's specifications, such as its amperage draw and RPM, is crucial for diagnosing issues like overheating or fuel delivery inconsistencies.
Adjacent to the motor is the diaphragm, a flexible membrane that translates the motor's rotational energy into a pumping action. Made from durable materials like nitrile rubber or neoprene, the diaphragm withstands the corrosive effects of fuel and resists fatigue from constant flexing. As the motor activates, it causes the diaphragm to alternate between expanding and contracting, creating a vacuum that draws fuel into the pump and then pushes it out under pressure. This mechanism is particularly effective in marine environments, where fuel lines may run horizontally or uphill, requiring a pump capable of overcoming gravity and resistance. Regular inspection of the diaphragm for cracks or wear is essential, as failure can lead to fuel starvation and engine stalling.
Valves within the fuel pump act as gatekeepers, ensuring one-way fuel flow and maintaining system pressure. The inlet and outlet valves, often made of stainless steel or brass, open and close in response to the diaphragm's movement. The inlet valve allows fuel to enter the pump chamber during the suction phase, while the outlet valve prevents backflow, directing fuel toward the engine. These valves must operate with precision; even minor leaks or sticking can disrupt fuel delivery, leading to poor engine performance or starting difficulties. For optimal longevity, it’s recommended to use fuel additives that minimize valve deposits and ensure smooth operation, especially in saltwater environments where corrosion is a constant threat.
Completing the ensemble is the pressure regulator, a critical component that maintains fuel pressure within the engine's specified range. Typically set to deliver fuel at 3–5 PSI for most outboard engines, the regulator adjusts the pump's output to match the engine's demand. This ensures that the carburetor or fuel injectors receive the correct amount of fuel, optimizing combustion efficiency and reducing emissions. A malfunctioning regulator can cause symptoms like hard starting, rough idling, or excessive fuel consumption. Testing the regulator involves checking for consistent pressure output using a gauge, and replacement is often necessary if it fails to maintain the correct PSI. Proper calibration and regular maintenance of the pressure regulator are key to extending the life of both the pump and the engine.
Understanding the Number of Fuel Pumps Your Vehicle Requires
You may want to see also
Explore related products
Fuel Intake Process: How the pump draws fuel from the tank via suction and inlet valves
The fuel intake process in an outboard motor's fuel pump is a delicate dance of physics and engineering, where the pump's ability to draw fuel from the tank relies on the precise operation of suction and inlet valves. At the heart of this process is the creation of a pressure differential, which allows the pump to pull fuel from the tank and deliver it to the engine. When the pump's diaphragm or rotor moves, it creates a low-pressure zone, causing the fuel to be drawn in through the inlet valve. This valve, typically a one-way check valve, ensures that fuel flows in only one direction, preventing backflow and maintaining the necessary pressure differential.
Consider the analogy of drinking through a straw: as you suck on the straw, you create a low-pressure zone, which draws the liquid up from the container. Similarly, the fuel pump's suction action creates a partial vacuum, which pulls fuel from the tank, through the fuel lines, and into the pump. The inlet valve plays a critical role in this process, as it must open and close rapidly to allow fuel to enter the pump while preventing air from being drawn in. In practice, this means that the valve must be designed to operate with minimal resistance, ensuring a consistent and reliable fuel flow. For instance, some pumps use a spring-loaded valve that opens at a specific pressure differential, typically around 1-2 psi, to allow fuel to enter the pump.
To optimize the fuel intake process, it's essential to ensure that the fuel tank is properly vented, allowing air to enter the tank as fuel is drawn out. This prevents the formation of a vacuum in the tank, which can restrict fuel flow and cause the pump to work harder. A common recommendation is to use a vented fuel cap, which allows air to flow into the tank while preventing fuel vapors from escaping. Additionally, the fuel lines should be sized correctly, with a typical diameter of 1/4 inch to 3/8 inch, depending on the engine's fuel requirements. This ensures that the fuel can flow freely, minimizing resistance and pressure drop.
A key caution in the fuel intake process is the risk of air bubbles or vapor lock, which can occur when the fuel pump draws in air instead of fuel. This can happen if the fuel tank is not properly vented, or if the fuel lines are not correctly routed. To mitigate this risk, it's recommended to route the fuel lines away from hot surfaces, such as the engine exhaust, and to use a fuel filter to remove any contaminants or air bubbles from the fuel. In the event of vapor lock, a practical tip is to allow the engine to cool down, which can help dissipate the air bubbles and restore normal fuel flow. By understanding the intricacies of the fuel intake process, boaters can ensure a reliable and efficient fuel supply, even in demanding conditions.
In a comparative analysis, the fuel intake process in outboard motors can be contrasted with that of automotive fuel systems, which often use a submersible fuel pump located inside the fuel tank. While this design eliminates the need for a separate fuel pump and reduces the risk of vapor lock, it can be more complex and expensive to repair. In contrast, outboard fuel pumps are typically located outside the fuel tank, making them more accessible and easier to service. However, this design requires careful attention to fuel line routing and venting to ensure reliable operation. Ultimately, the choice of fuel pump design depends on the specific application and requirements, with each approach offering unique advantages and trade-offs. By carefully considering these factors, boaters can select the most suitable fuel pump system for their needs, ensuring a safe and enjoyable experience on the water.
1987 Ford F150 Fuel Pump Count: A Comprehensive Guide
You may want to see also
Explore related products
Pressure Regulation: Mechanism to maintain consistent fuel pressure for optimal engine performance
Maintaining consistent fuel pressure is critical for optimal engine performance in outboard motors, as fluctuations can lead to inefficient combustion, power loss, or even engine damage. Pressure regulation mechanisms within outboard fuel pumps are designed to counteract variables like temperature changes, fuel demand, and system wear, ensuring a steady supply of fuel at the precise pressure required by the engine. These systems typically employ a combination of mechanical and electronic components to monitor and adjust pressure in real time, balancing the needs of the engine under varying load conditions.
One common method of pressure regulation involves the use of a pressure relief valve, which acts as a safety and control mechanism. When fuel pressure exceeds the predetermined threshold (often around 40–60 PSI for outboard engines), the valve opens, diverting excess fuel back to the tank or reservoir. This prevents over-pressurization, which could otherwise strain fuel lines or injectors. Conversely, when pressure drops below the optimal range, the valve closes, allowing the pump to rebuild pressure. This simple yet effective design ensures that the fuel system operates within a narrow, safe pressure window, regardless of external factors.
Electronic fuel pumps often incorporate pressure regulators with integrated sensors and solenoids for finer control. These systems continuously monitor fuel pressure via a sensor and adjust the pump’s output or the regulator’s position to maintain consistency. For example, during high-demand situations like acceleration, the regulator may allow increased pressure to meet the engine’s needs, while idle conditions trigger a reduction in pressure to conserve fuel and reduce wear. This dynamic regulation is particularly important in modern outboard engines, where precision fuel delivery is essential for meeting emissions standards and maximizing efficiency.
Practical maintenance tips can help ensure the longevity and reliability of these pressure regulation systems. Regularly inspect fuel lines and connections for leaks or damage, as even small breaches can disrupt pressure regulation. Replace fuel filters at manufacturer-recommended intervals (typically every 100–200 hours of operation) to prevent clogs that could cause pressure drops. For electronic systems, verify sensor calibration during routine service to ensure accurate pressure readings. Lastly, use high-quality fuel and additives to minimize contamination, which can foul regulators and valves over time.
In summary, pressure regulation in outboard fuel pumps is a sophisticated yet essential process that relies on mechanical and electronic components working in harmony. By understanding the mechanisms involved and adhering to maintenance best practices, boaters can ensure their engines receive consistent fuel pressure, leading to smoother operation, improved fuel economy, and extended system life. Whether through a simple relief valve or a complex electronic regulator, the goal remains the same: to deliver fuel at the right pressure, every time.
Chevy Colorado Fuel Pump Lifespan: What to Expect and Maintenance Tips
You may want to see also
Explore related products
Fuel Delivery System: Process of pumping fuel to the carburetor or fuel injectors efficiently
The efficiency of a fuel delivery system hinges on its ability to maintain consistent pressure and flow, ensuring the engine receives the precise amount of fuel it demands under varying conditions. In outboard motors, this process is particularly critical due to the engine’s vertical orientation and the need to overcome gravity when drawing fuel from the tank. Outboard fuel pumps are designed to address these challenges by creating a vacuum or positive pressure, depending on the system, to move fuel from the tank to the carburetor or fuel injectors. This mechanism not only ensures reliable fuel delivery but also prevents airlocks, which can disrupt engine performance.
Consider the two primary types of fuel delivery systems in outboards: mechanical and electric. Mechanical systems rely on engine-driven components, such as a diaphragm pump, to draw fuel. These systems are simple and reliable but may struggle under high-demand conditions or when the fuel tank is nearly empty. Electric fuel pumps, on the other hand, use an electric motor to generate pressure, offering greater flexibility and precision. They are often paired with a pulse-width modulation (PWM) system to adjust fuel flow dynamically, ensuring optimal performance across RPM ranges. For instance, a PWM-controlled pump can deliver 3–5 psi at idle and ramp up to 60–80 psi under full throttle, matching the engine’s fuel requirements precisely.
One critical aspect of efficient fuel delivery is the prevention of vapor lock, a condition where fuel vaporizes prematurely due to heat, causing a loss of pressure and flow. Outboard fuel pumps mitigate this by incorporating features like in-line filters and heat-resistant materials. Additionally, locating the fuel pump closer to the engine and using insulated fuel lines can reduce heat exposure. For boaters operating in high-temperature environments, installing a fuel cooler or ensuring the fuel tank is shaded can further safeguard against vapor lock. Regular maintenance, such as cleaning the pump’s strainer and checking for leaks, is equally vital to maintain system integrity.
Comparing carbureted and fuel-injected systems highlights the importance of precise fuel delivery. Carburetors rely on venturi-induced vacuum to draw fuel, making them sensitive to pressure fluctuations. A well-designed fuel pump ensures a steady supply, preventing lean mixtures that can lead to overheating or backfiring. Fuel injectors, however, demand higher pressure and accuracy, typically requiring electric pumps capable of delivering fuel at 40–60 psi. The integration of a fuel pressure regulator in both systems is essential to maintain optimal pressure, ensuring neither excess nor deficiency in fuel delivery.
In practice, troubleshooting a fuel delivery system begins with diagnosing symptoms like sputtering, hesitation, or failure to start. For mechanical pumps, check for diaphragm wear or clogged lines; electric pumps may require testing for voltage and amperage draw. A simple test involves disconnecting the fuel line at the carburetor or injector and cranking the engine to observe fuel flow. If flow is weak or nonexistent, the pump or filter may be the culprit. Upgrading to a higher-capacity pump or adding a secondary filter can enhance reliability, especially in high-performance applications. By understanding the intricacies of the fuel delivery process, boaters can ensure their outboard motors operate efficiently, regardless of conditions.
Chevy Suburban Fuel Pump Hot Wires: Count and Function Explained
You may want to see also
Explore related products
Maintenance and Troubleshooting: Common issues, cleaning, and steps to ensure pump longevity
Outboard fuel pumps are critical for delivering fuel efficiently from the tank to the engine, but their reliability hinges on proper maintenance and proactive troubleshooting. One common issue is fuel contamination, where debris or water in the tank clogs the pump’s inlet filter or corrodes internal components. Regularly inspect and replace the fuel filter every 50–100 hours of operation, depending on fuel quality and usage conditions. Water in the fuel can be mitigated by using a water-separating fuel filter and adding a fuel stabilizer, especially during storage.
Cleaning the fuel pump is a preventative measure often overlooked. Over time, varnish and sediment buildup can impair pump performance. To clean, disassemble the pump (if possible) and soak its components in a carburetor or fuel injection cleaner for 30 minutes. Use a soft brush to remove stubborn deposits, ensuring no residue remains. Reassemble with new gaskets and seals to prevent leaks. For electric fuel pumps, inspect the wiring harness for corrosion or damage, as poor electrical connections can cause intermittent operation or failure.
Troubleshooting pump issues requires a systematic approach. If the engine sputters or stalls, check for adequate fuel pressure using a gauge. Low pressure may indicate a weak pump, clogged filter, or faulty pressure regulator. Listen for unusual noises, such as whining or grinding, which could signal internal damage. In such cases, replacement is often more cost-effective than repair. For mechanical pumps, inspect the diaphragm for cracks or tears, as these can lead to air leaks and reduced fuel delivery.
To ensure longevity, adhere to a strict maintenance schedule. Flush the fuel system annually with a high-quality cleaner to remove varnish and deposits. Store the boat with a full fuel tank to minimize condensation and treat the fuel with a stabilizer if storing for more than 30 days. Avoid running the engine on low fuel, as this can overheat the pump and draw in sediment from the tank’s bottom. Lastly, keep detailed maintenance records to track service intervals and identify recurring issues.
By addressing common issues, performing regular cleaning, and following preventative steps, you can maximize the lifespan of your outboard fuel pump and maintain reliable engine performance. Neglecting these practices not only risks costly repairs but also compromises safety and efficiency on the water.
Fuel Pump Voltage Requirements: Essential Power for Optimal Performance
You may want to see also
Frequently asked questions
An outboard fuel pump is a component in an outboard motor's fuel system that ensures a consistent and pressurized flow of fuel from the tank to the engine. It prevents fuel starvation, especially in engines mounted above the fuel tank, and maintains optimal engine performance.
An outboard fuel pump works by drawing fuel from the tank using a diaphragm or electric motor-driven mechanism. It then pressurizes the fuel and delivers it to the carburetor or fuel injectors, ensuring a steady supply for combustion, even when the fuel tank is lower than the engine.
Signs of a failing outboard fuel pump include engine sputtering, difficulty starting, loss of power, or complete engine stall. You may also notice fuel leaks, unusual noises from the pump, or inconsistent fuel pressure readings during diagnostics.
