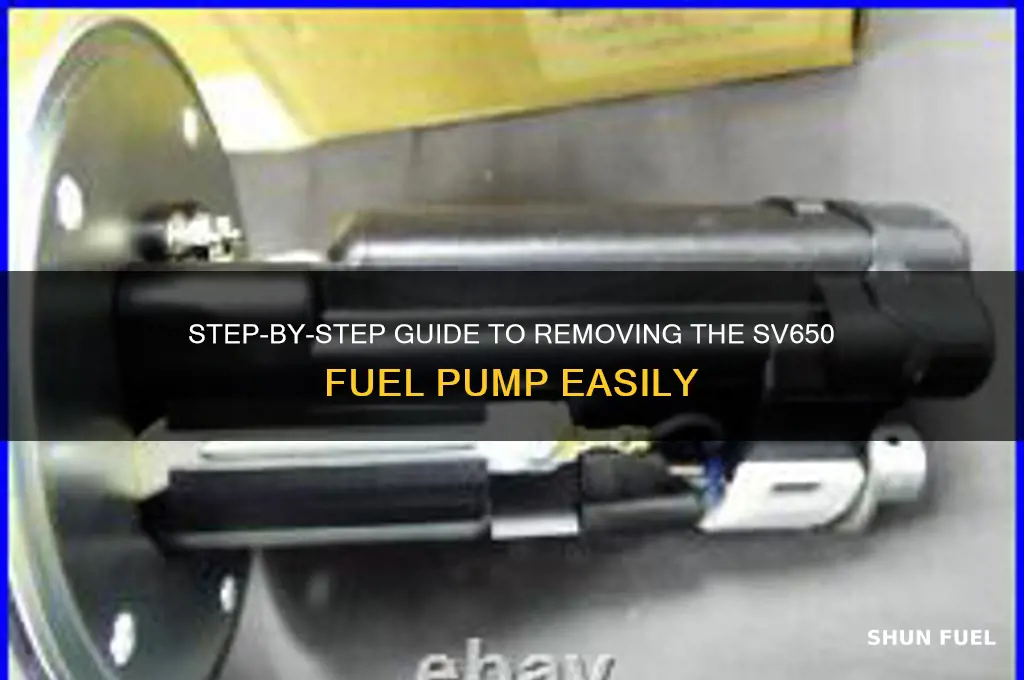

Removing the fuel pump from a Suzuki SV650 requires careful attention to detail and the right tools. Start by ensuring the motorcycle is on a stable surface and the fuel tank is as empty as possible to minimize spillage. Disconnect the negative battery terminal to prevent accidental electrical issues. Next, remove the seat and fuel tank to access the fuel pump assembly, which is typically located at the bottom of the tank. Disconnect the electrical connectors and fuel lines, taking note of their positions for reassembly. Carefully unscrew the retaining ring or bolts securing the pump to the tank, then gently lift the pump out. Always refer to the SV650 service manual for specific instructions and torque specifications to avoid damage during the process.
| Characteristics | Values |
|---|---|
| Tools Required | Socket wrench, screwdrivers, pliers, fuel line disconnect tool, drain pan |
| Preparation Steps | Turn off ignition, relieve fuel pressure, drain fuel system |
| Fuel Pump Location | Beneath the fuel tank, near the bottom of the bike |
| Access Method | Remove the seat, fuel tank, and any covering panels |
| Disconnect Fuel Lines | Use a fuel line disconnect tool to detach lines from the pump |
| Electrical Connector Removal | Unplug the electrical connector from the fuel pump |
| Mounting Bolts | Remove bolts securing the fuel pump to the chassis |
| Removal Technique | Carefully pull the fuel pump out after all connections are detached |
| Reinstallation Tips | Ensure proper alignment, reconnect fuel lines and electrical connector |
| Safety Precautions | Work in a well-ventilated area, avoid sparks near fuel vapors |
| Difficulty Level | Intermediate (requires mechanical knowledge and tools) |
| Estimated Time | 1-2 hours depending on experience and bike model |
| Applicable Models | Suzuki SV650 (2003-2023 models, may vary slightly by year) |
Explore related products
What You'll Learn
- Disconnecting Fuel Lines Safely: Properly detach fuel lines to avoid spills and ensure system integrity during pump removal
- Removing Fuel Tank Access: Access the pump by safely detaching and lifting the SV650’s fuel tank
- Unbolting the Fuel Pump: Loosen and remove mounting bolts securing the fuel pump to the tank
- Disconnecting Electrical Connectors: Safely unplug the pump’s electrical connectors to prevent damage or shorts
- Reinstalling the Fuel Pump: Steps to correctly reinstall the fuel pump after maintenance or replacement
Disconnecting Fuel Lines Safely: Properly detach fuel lines to avoid spills and ensure system integrity during pump removal
Fuel lines are the lifelines of your SV650's fuel system, and disconnecting them carelessly can lead to spills, contamination, or damage. Before attempting to remove the fuel pump, it's essential to understand the fuel line configuration and the tools required for safe detachment. Typically, the SV650's fuel lines consist of quick-disconnect fittings, which can be released using a pair of pliers or a specialized fuel line disconnect tool. To minimize the risk of spills, it's advisable to relieve the fuel system pressure by running the engine until it stalls or using a fuel pressure gauge to ensure the system is depressurized.
When detaching the fuel lines, consider the following steps: first, locate the quick-disconnect fittings on the fuel pump and the fuel tank. Using a pair of pliers or a fuel line disconnect tool, carefully depress the locking tab on the fitting and pull the line away from the pump. Be cautious not to damage the locking tab or the fuel line itself. Repeat this process for all fuel lines connected to the pump. To further prevent spills, have a drain pan or container ready to catch any residual fuel that may leak from the lines. Additionally, consider using a fuel line plug or cap to seal the open lines and prevent debris from entering the system.
A comparative analysis of fuel line detachment methods reveals that using a specialized fuel line disconnect tool offers several advantages over traditional pliers. These tools are designed to fit the specific shape and size of the quick-disconnect fittings, reducing the risk of damage to the locking tabs or fuel lines. Moreover, they often feature a built-in safety mechanism that prevents accidental disconnection, ensuring a more controlled and secure detachment process. While pliers can be used as a substitute, they may not provide the same level of precision and control, increasing the likelihood of spills or damage.
In practice, here’s a descriptive scenario to illustrate the process: imagine you’re working on your SV650 in a well-ventilated area, with all necessary tools within reach. You’ve already relieved the fuel system pressure and have a drain pan positioned beneath the fuel pump. Using a fuel line disconnect tool, you carefully depress the locking tab on the first fuel line, feeling a slight resistance as the tab releases. With a gentle pull, the line detaches from the pump, and you quickly cap it to prevent spills. You repeat this process for the remaining lines, taking care to avoid kinking or twisting the fuel lines. As you work, you notice the importance of patience and attention to detail in ensuring a clean and safe detachment.
To ensure system integrity during pump removal, it's crucial to inspect the fuel lines and fittings for signs of wear, damage, or corrosion. If any issues are detected, replace the affected components before reinstalling the fuel pump. Additionally, consider applying a small amount of fuel-resistant lubricant to the quick-disconnect fittings to facilitate smoother reconnection and prevent seizing. By following these guidelines and adopting a meticulous approach, you can safely detach the fuel lines, minimize the risk of spills, and maintain the overall health of your SV650's fuel system. Remember, a well-executed fuel line detachment is not only about avoiding immediate spills but also about preserving the long-term functionality and reliability of your motorcycle's fuel delivery system.
