If you're experiencing issues with your fuel injectors, it could be due to a blown fuse. This can be caused by a variety of factors, including a faulty ECM, a short in the wiring, or a problem with the ignition switch. To check if the fuel injector fuses are blown, you can use an ohm meter to test the resistance between the harness and ground, or between the injector and ground. You can also refer to the wiring diagrams and schematics specific to your vehicle's year, make, and model to help identify the issue.
| Characteristics | Values |
|---|---|
| Power source | Injector fuses |
| Ground side switch | ECM |
| Supply voltage | 12V |
| Wire colour | Pink |
| Wire route | Terminal C2, splice pack S164, INJ1 and INJ2 fuse bus, distributor |
| Wire connection point | Rear of fuse panel |
| Possible issues | Ignition switch, fusible links, fuse/connection at pigtail off the battery cable, pickup coil in the distributor |
| Testing method | Ohm meter, check resistance between the harness and ground or between injector and ground |
| Testing location | Injector harness |
| Potential causes | Alternator/voltage regulator assembly, engine vibration, wiring issues |
Explore related products
What You'll Learn
Check for a chafed wire
If you are experiencing issues with your fuel injectors, it is important to check for a chafed wire. This is because a chafed wire can cause a blown fuse, which can prevent your vehicle from starting.
To check for a chafed wire, you will need to inspect the wire harness behind the driver's side front wheel. This is a common area for chafing to occur due to the presence of an A/C line with a bulge that can rub against the harness. Even if the wire is not completely chafed through, it is important to take preventive measures by wrapping the wire in rubber and securing it with zip ties.
It is also recommended to remove the fender liner for easier access to the wire harness. Additionally, you can perform a "wiggle wire test" to check for an intermittent short to the ground, which may be caused by a chafed wire. This involves wiggling the wires while the engine is running to see if there is any disruption in the electrical connection.
If you suspect a chafed wire, it is important to repair or replace it as soon as possible. This may involve soldering or splicing the wire back together, ensuring that all connections are secure and insulated to prevent further damage. It is also a good idea to inspect other wires in the harness for any signs of wear or chafing to prevent future issues.
By taking the time to check for a chafed wire, you can help ensure the proper functioning of your fuel injectors and maintain the overall performance of your vehicle. It is a relatively simple task that can save you from more costly and time-consuming repairs down the road. Remember to take the necessary safety precautions when working with electrical systems and always consult a professional if you are unsure about any aspect of the process.
Fuel Injector Service: How Often is Necessary?
You may want to see also
Explore related products
Check the resistance to ground
Checking the resistance to ground of your fuel injectors can help identify if they are faulty or leaky. This test can be done with the injector still on the car. First, turn the car on, but make sure the engine is not running. Set up a DVOM to measure DC voltage and use the lowest range possible if the meter doesn't auto-range. Touch the negative lead of the DVOM to a ground source. The car's frame is connected to the ground, so look for an unpainted piece of the frame under the hood. Now, place the positive lead on the wiring harness terminal. The wiring harness will have two terminals that the prongs on the injector insert into. One will be connected to the ground and will read 0 volts. A normal resistance reading should be around 12 volts. A lower reading means there is excess resistance in the wire somewhere.
You can also use an ohm meter to measure the coil resistance of the injectors. The resistance of the coils should be within about plus or minus 10% of each other. For example, if one vehicle's injectors measure about 12 ohms, and another measures 8 ohms, the latter likely has shorted turns and needs replacement. The exact numbers will vary with the vehicle, and you can find the correct resistance for your injectors by searching online or in your vehicle's repair guide.
If you are experiencing any difficulty with testing your injectors, certified technicians can assist you with diagnosing the problem and replacing any bad fuel injectors.
Bleeding Fuel Injectors: Massey Ferguson 2615 Tractor Maintenance Guide
You may want to see also
Explore related products
Check the voltage regulator connection
To check the voltage regulator connection, start by ensuring that the key is in the off position. This test does not require power. Next, remove the injector wiring harness. There may be a slide lock that needs to be moved before pressing down on the tabs to remove the wiring harness.
Now, set a DVOM to measure ohms. If your meter doesn’t autorange, set it to the lowest range. Then, test the resistance with the DVOM by placing the meter leads on the prongs inside the connector, ensuring they do not touch each other. One will be connected to the ground and will read 0 volts. The other should read approximately 12 volts.
Repeat this process with all injector wiring harnesses, leaving the ground lead in position. They should all read around 12 volts. A lower reading indicates excess resistance in the wire.
If the injector resistance is normal, the next step is to remove the injector and test the spray pattern it produces on an injector tester. If you are experiencing any difficulty with testing your injectors, consult a certified technician.
Replacing Fuel Injectors in a 2001 Quest: Step-by-Step Guide
You may want to see also
Explore related products
Check the fusible links at the starter
Fusible links are an essential component of a car's electrical system, safeguarding it from damage. They are designed to melt when subjected to excessive electrical loads, breaking the circuit continuity and cutting off power to the component. This mechanism protects the rest of the electrical system from dangerous spikes that could lead to fire hazards.
To check the fusible links at the starter, you can begin by locating them. Typically, fusible links are found near the starter solenoid, underneath the car. They are usually wrapped in a black rubber segment or a fireproof covering, with 'Fusible Link' printed on them. These links are thinner than the wiring harnesses they are connected to and are made of a special alloy with non-flammable Hypalon insulation.
Once you have located the fusible links, you can perform a visual inspection for any signs of damage. Check if the links have stretched or melted. You can also use a voltmeter to test for electrical continuity. Additionally, you can perform a light test by attaching a test light to the battery's output terminal and the other end to a good ground. If the test light illuminates, the link is functioning properly.
If you suspect a blown fusible link, it is important to identify the cause and resolve it before replacing the link. Check the size of the old link and look for a replacement with matching dimensions. Ensure that you use a fusible link and not a standard wire or an inline fuse, as the fusible link is specifically designed to handle high-current electrical components.
Diagnosing Fuel Injector Connector Shorts: A Step-by-Step Guide
You may want to see also
Explore related products
Check the fuse/connection at the pigtail off the battery cable
To check the fuse/connection at the pigtail off the battery cable, you should first identify the pigtail. This may be a fusible link wire, so be sure to check that the wire has adequate protection (a fuse, fusible link, or circuit breaker) as close as possible to the power source. Follow the pigtail wire all the way back to the battery and look for a bulge along the wire, which indicates an inline fuse. Open the cap and check the fuse inside. If there is no inline fuse, the pigtail may be directly connected to the battery, in which case you should check the connection and tighten the battery terminals if necessary.
It is important to exercise caution when working with batteries, as improper handling can lead to electrical issues or damage to components. If you are unsure about the procedure or the specific characteristics of your vehicle's electrical system, it is recommended to consult a qualified technician or refer to vehicle-specific documentation.
Additionally, when checking the fuse/connection at the pigtail, it is important to work with the battery in a well-ventilated area and to wear appropriate protective gear, such as gloves and eye protection. Before proceeding, ensure that the battery is securely mounted and that there is no risk of it shifting or moving during the inspection. Place a layer of protective material, such as a rubber mat or cardboard, between the battery and any metal surfaces to prevent accidental short circuits.
In some cases, the pigtail may be located in a hard-to-reach area, requiring the removal of certain components for easier access. For example, you may need to remove the seat or trunk to access the pigtail and fuse. Refer to vehicle-specific repair manuals or seek advice from vehicle-specific forums or communities if you encounter specific challenges during the inspection process. Remember to re-install any removed components securely after completing the fuse check and connection inspection at the pigtail.
Cleaning Fuel Injectors: Bench Method for Optimal Performance
You may want to see also
Frequently asked questions

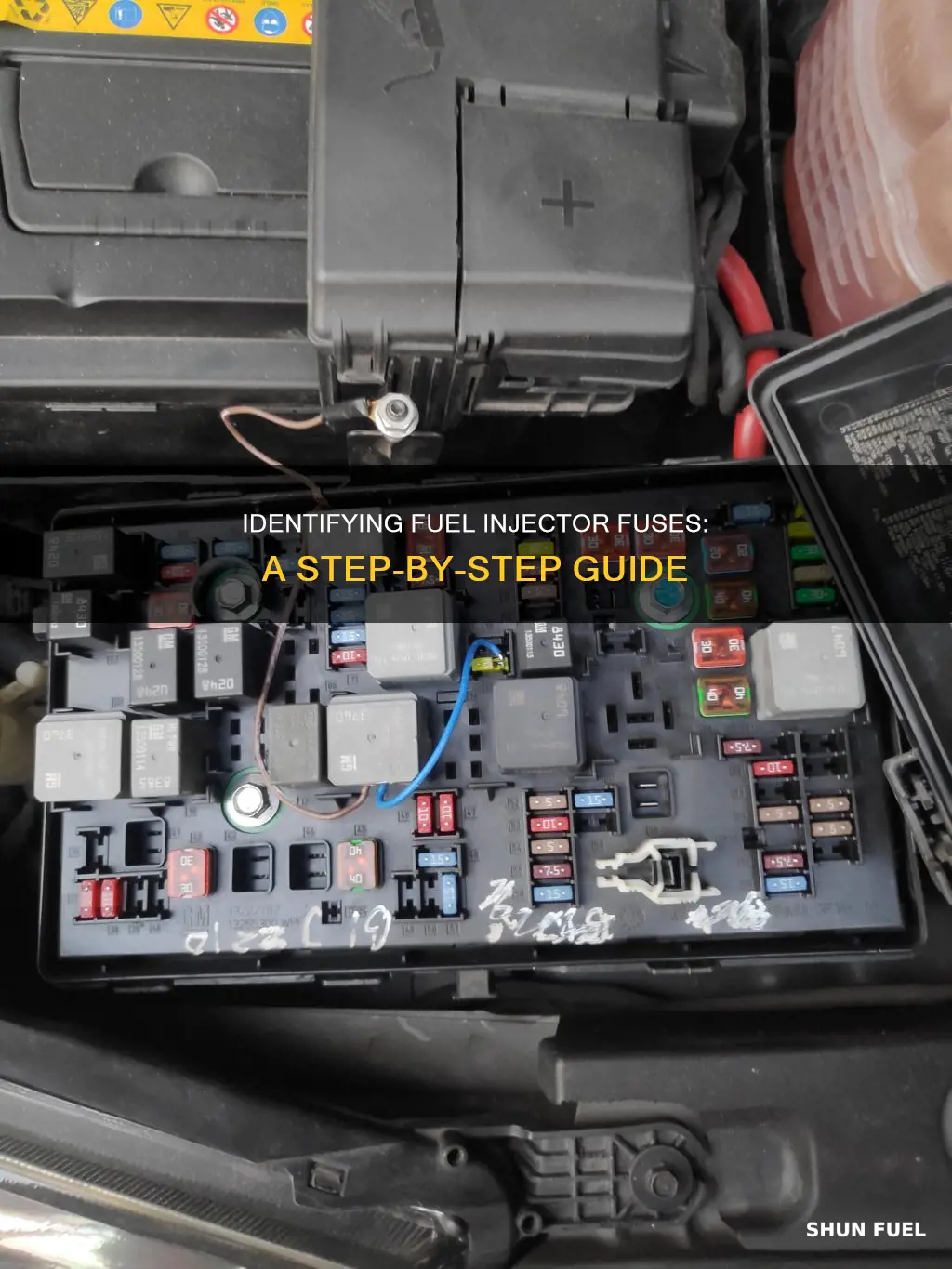

You can check your fuel injector fuses by locating the fuse box and checking for any blown fuses. If you are unsure about which fuse is for the fuel injector, refer to your car's manual or look for a label on the fuse box.
There could be a few reasons why your fuel injector fuses keep blowing. It could be due to a short circuit, a faulty wire, or a problem with the fuel injector itself. To diagnose the issue, you can use a multimeter to check for continuity and resistance.
If your fuel injector is faulty, you may experience symptoms such as a rough idle, poor fuel economy, or difficulty starting the engine. In some cases, you may also notice a strong fuel smell or see fuel leaks around the injector.
If you find a blown fuse, you should replace it with a new one of the same type and rating. It is important to address any issues with your fuel injector fuses as they can impact the performance and safety of your vehicle.
