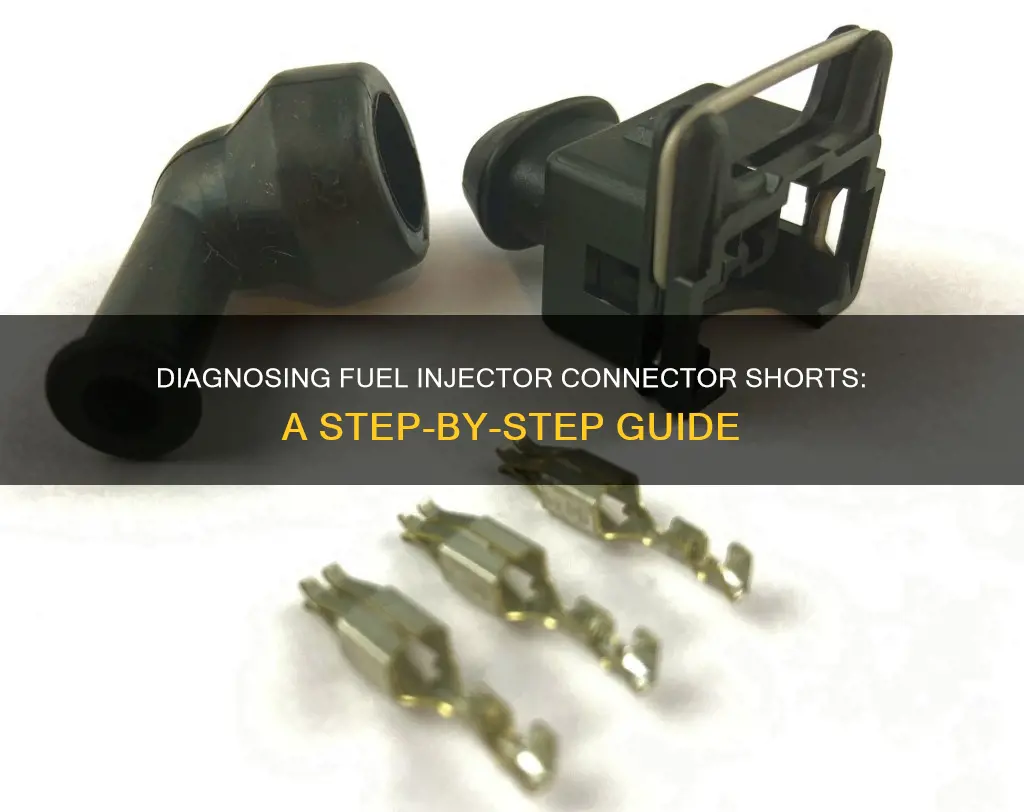

A fuel injector's function is to spray fuel into the cylinders of an engine, where it is combined with air and compressed before being ignited by a spark plug to generate power. A faulty fuel injector can cause an engine to run poorly or not at all. A shorted fuel injector will prevent electricity from activating the solenoid in the other plugs. There are several ways to check for a short in a fuel injector connector, including testing the injector spray pattern, using a voltmeter to check resistance, and checking for voltage with a test light.
Explore related products
What You'll Learn
Using a voltmeter to check for resistance
To check a fuel injector connector for a short using a voltmeter to test for resistance, follow these steps:
Firstly, ensure you have the correct resistance values for your injectors by checking online or in your vehicle's repair guide. The correct resistance will depend on the vehicle, but most injector readings should range between 11 and 14 ohms.
Now, turn the key to the 'on' position. You want battery power flowing but do not start the engine. Set up your voltmeter (or DVOM) to measure voltage. Use the lowest range possible if the meter does not auto-range.
With the key still in the 'on' position, use the voltmeter connected to the negative side of the battery. Gently probe both sides of the injector wiring connector. One of the wires should react by registering around 12 volts on the meter. Repeat this process with all injector wiring harnesses. A lower reading indicates excess resistance in the wire.
To further test the injector spray pattern, the injector must be removed. Attach a 12-volt power and ground source to the injector. Observe the spray pattern; it should be robust. If the pattern is muted, the injector should be replaced.
You can also test for a clicking sound. Start the engine and allow it to idle. Using a long metal rod or screwdriver, touch the end of the screwdriver to the injector. Gently place your ear close to the opposite end of the screwdriver to listen for a clicking sound, indicating the injector is working.
The Best Way to Add STP Fuel Injector Cleaner
You may want to see also
Explore related products
Testing the spray pattern
Firstly, it is important to note that the injector must be removed for an accurate assessment of the spray pattern. This is because the spray pattern inside the fuel injector needs to be directed at the correct angle and atomisation shape into the combustion chamber. Any deviations from the normal spray pattern can lead to engine misfires and other issues.
To begin the test, attach pressurised air to the inlet of the injector. It is important to ensure that traces of fuel remain in the injector, as this will help visualise the spray pattern. Energise the injector by attaching a 12-volt power and ground source.
As the compressed air is released from the outlet valve, observe the spray pattern. A healthy injector should produce a robust, fine spray or a light mist. If the pattern appears weak or muted, it indicates that the injector is not functioning optimally and may need to be replaced or cleaned.
Additionally, the spray pattern should be inspected for any signs of distortion. A single, solid spray or an irregular pattern can indicate a dirty or clogged injector. In such cases, cleaning the injector or using a high-quality fuel system additive can help rectify the issue.
Finally, it is important to take the necessary safety precautions during the testing process, especially since fuel may be present. Wear protective gear, including gloves and eye protection, to safeguard against any potential hazards.
Replacing Fuel Injectors: Step-by-Step Guide for '01 Focus
You may want to see also
Explore related products
Checking for voltage across terminals
First, it is important to ensure that the engine is turned off, as you won't need power for this test. Locate the fuel injectors by accessing the engine or referring to the vehicle's manual. Some engines have plastic panels or shields that need to be removed to access the injectors. These panels are typically secured by bolts and can be removed with a basic socket set, including an extension.
Once you have located the fuel injectors, the next step is to remove the injector wiring harness. There may be a slide lock that needs to be moved before pressing down on the tabs to remove the wiring harness. With the wiring harness removed, you can now set up your testing equipment.
For this test, you will need a Digital Volt-Ohmmeter (DVOM) or a multimeter capable of measuring voltage and resistance. Set your DVOM or multimeter to measure voltage. If your meter does not have an auto-range function, set it to the lowest range.
Now, locate the terminals on the injector wiring harness. The wiring harness will typically have two terminals: one connected to ground (0 volts) and the other reading around 12 volts. Connect the positive lead of your voltmeter to the terminal that should be at 12 volts. The negative lead of the voltmeter can be connected to the ground terminal.
With the voltmeter connected, observe the voltage reading on the meter. A reading of around 12 volts indicates that the injector is receiving the correct voltage. Repeat this test for all injector wiring harnesses, leaving the ground lead in position. A consistent reading of 12 volts across all injectors indicates that they are functioning properly. However, if you encounter a lower reading on any injector, it indicates excess resistance or a problem with the wiring that may require further investigation or professional assistance.
By following these steps and checking for voltage across the terminals, you can ensure that your fuel injectors are receiving the correct voltage and identify any potential issues with the wiring or injectors themselves.
Fuel Injector Cleaner: Top-up for a Full Tank
You may want to see also
Explore related products
Testing the ground signal
Firstly, ensure that the car's engine is running at an idle. You will need a test light or voltmeter for this test. If using a voltmeter, connect it to the negative side of the battery. With the key in the 'on' position, gently probe both sides of the injector wiring connector. One of the wires should register around 12 volts on the meter or illuminate the test light. This indicates a functioning injector.
To further test the ground signal, you can use a screwdriver or a thin metal rod. Place the metal rod on one of the injectors and listen closely for an audible clicking sound. This clicking sound indicates that the fuel injector is functioning properly. Repeat this test for each injector in your vehicle. If you find an injector that is not clicking, there may be an issue with the injector or the controlling electronic component.
For a more comprehensive test, you can use a multimeter to measure resistance. Set the multimeter to measure ohms, and place the meter leads on the prongs inside the connector, ensuring they do not touch each other. Operational fuel injectors will have similar ohm values, while a failed injector will have significantly different readings.
Additionally, you can test for continuity to ground. Disconnect all the fuel injector electronic plugs on the engine. Connect the multimeter's red lead to one of the disconnected plugs and the black lead to the vehicle battery's positive terminal. With the engine running, the voltage on the multimeter should alternate between 12 volts and 0 volts.
By following these steps, you can effectively test the ground signal of a fuel injector connector and identify any potential shorts or malfunctions.
Testing Fuel Injectors: A Comprehensive Guide
You may want to see also
Explore related products
Checking for leaks and corrosion
Visual Inspection:
Start by popping the hood of your car and locating the fuel injectors. Look for any wet spots, shiny substances that resemble gasoline, or an accumulation of dirt and grime around the injectors, as these could indicate potential leakage issues.
Smell and Sound Inspection:
Fuel leaks can also be detected by smell and sound. Start the engine and let it run, then move closer to the injectors and fuel rail to listen for any unusual sounds. Additionally, lean in and smell for the presence of gasoline.
Checking Spark Plugs:
Check the spark plugs for any fuel residue, as this could indicate a leaky injector.
Using a Voltmeter:
You can use a voltmeter to check for voltage and resistance across the fuel injector connector terminals. Set the voltmeter to measure ohms, and place the leads on the prongs inside the connector without letting them touch each other. A normal injector should have a reading between 11 and 14 ohms.
Checking Spray Pattern:
Remove the injector and attach pressurized air to the inlet, along with a 12-volt power and ground source. Observe the spray pattern; if it appears muted, the injector should be replaced.
O-Ring Seals:
Leaks on or around the fuel injector can indicate bad O-ring seals, which may need replacement.
Remember to take the necessary safety precautions when performing these checks, including wearing protective gloves and eyewear.
Signs of a Bad Fuel Injector: What to Look For
You may want to see also
Frequently asked questions
Turn off the vehicle and remove the electrical connector of the injector you want to check. Set a multimeter to the right value on the Ohms scale according to the resistance specs for your fuel injector. Place the multimeter leads into the fuel injector plug terminal and observe the resistance produced. A reading of zero resistance means the coil is shorted.
A shorted fuel injector will prevent electricity from activating the solenoid in the other plugs. This can cause issues with the vehicle's fuel delivery system, resulting in poor engine performance or even failure to run.
You can test the injector signal from the computer with a test light or a voltmeter. With the engine running, place a thin metal rod or screwdriver on one of the injectors and listen for an audible clicking sound, which indicates the fuel injector is functioning.
If there is a short in the fuel injector, you may not hear the usual clicking sound when testing with a metal rod or screwdriver.
