Mercedes Mullins
The fuel injector in a 2001 Nissan Quest is an electronic device that replaces the carburetor. It sprays fuel into the engine cylinders, regulated by the Engine Control Module. This system runs losslessly, meaning there are no cuts in the fuel lines, and the air-fuel ratio is fine-tuned for optimal engine performance. Fuel injectors can be mechanical or electrical and come in different varieties, including direct injection, indirect injection, multi-point injection, and single-point injection types. They work by pressurizing and metering the fuel before injecting it into the engine, ensuring the correct amount of fuel is delivered at the right time. While fuel injectors don't require extensive maintenance, periodic cleaning and replacement are necessary to maintain engine performance and prevent issues such as unstable idle, decreased power, and damage to catalytic converters and oxygen sensors.

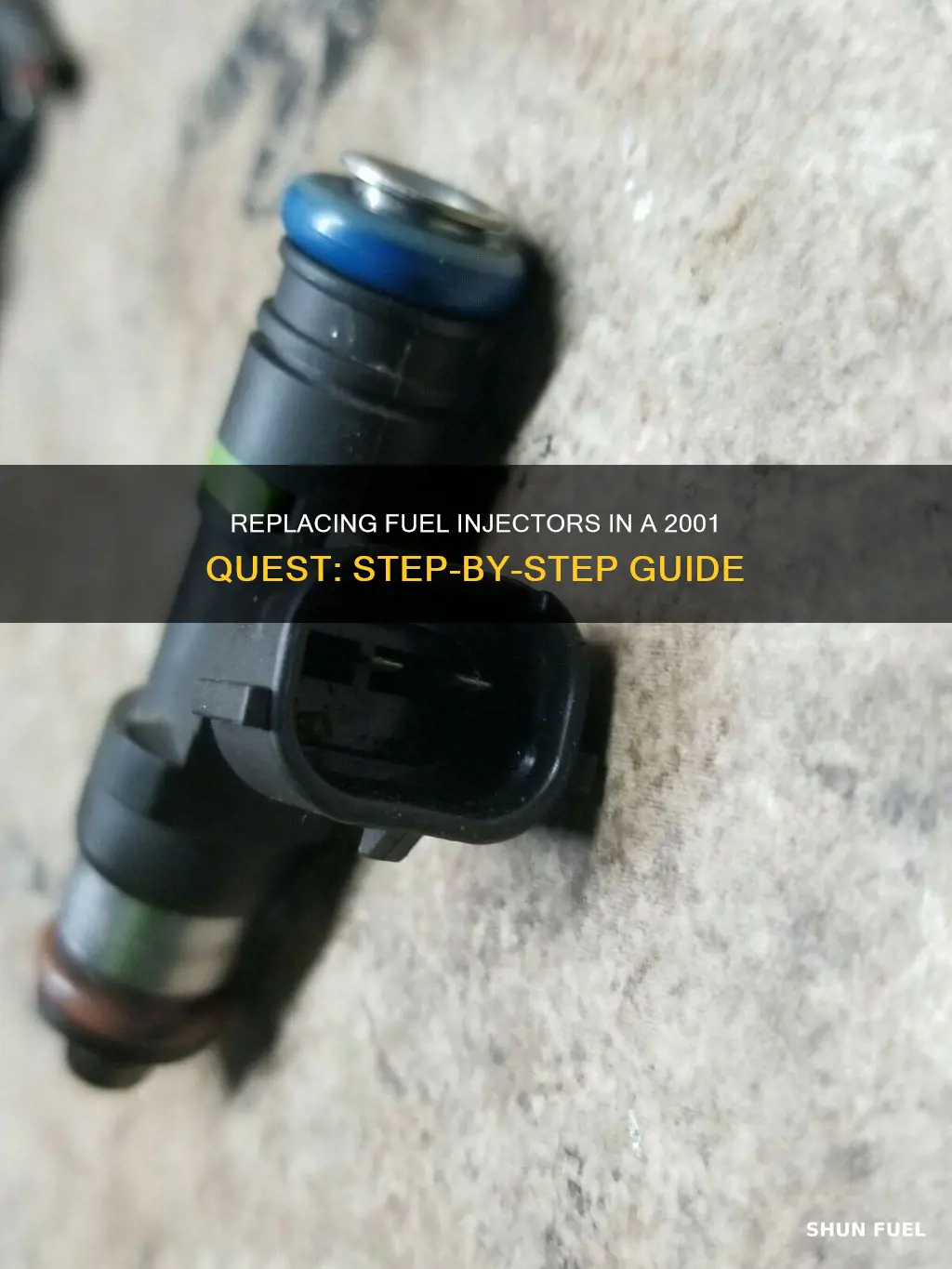

How to change fuel injector on a 2001 Quest
| Characteristics | Values |
|---|---|
| Difficulty | Easy to Medium |
| Time | 30-45 minutes for an experienced person, 1.5 hours for a beginner |
| Cost | $350-$700 for injectors, $1200 if done by a dealer |
| Tools | Socket set (8mm and 10mm sockets) |
| Steps | 1. Purge fuel lines of any fuel by removing fuse/cranking 2. Remove upper intake plenum 3. Unplug electrical connectors/remove screws 4. Pull out injector (may require prying with a flathead screwdriver) 5. Relieve fuel pressure 6. Disconnect the cable from the negative terminal of the battery 7. Disconnect fuel injector connectors 8. Remove injector cap screws and cap 9. Pull injector from fuel rail cup 10. Inspect O-rings for signs of deterioration and replace if necessary 11. Lubricate new O-rings with light grade oil 12. Install new injector into fuel rail cup with a light twisting motion |
Explore related products
What You'll Learn
- The fuel injector in a Nissan Quest is an electronic device that replaces the carburetor
- To replace the injector, disconnect the cable from the negative battery terminal
- The fuel injectors on the rear bank require removal of the upper intake manifold
- When servicing, it is not necessary to remove the fuel rail?
- Inspect the injector O-rings for signs of deterioration and replace if needed
The fuel injector in a Nissan Quest is an electronic device that replaces the carburetor
The fuel injector in a Nissan Quest is an electronic device that replaces the carburettor. It is an important component of the engine, delivering fuel to the cylinders. The injector is controlled by the engine's computer, which ensures the precise amount of fuel is delivered at the right time. This process is essential for efficient combustion and engine performance.
When replacing a fuel injector on a 2001 Nissan Quest, it is important to source a compatible and high-quality replacement part. Reputable suppliers like Advance Auto Parts offer a range of fuel injectors, including remanufactured OEM options, that are designed to meet or exceed original equipment specifications. These injectors undergo rigorous testing to ensure optimal performance, with features such as precision-wound solenoid windings and high-temperature Viton O-rings.
Before attempting the replacement, it is advisable to refer to repair manuals or seek guidance from experienced individuals or forums. The process typically involves purging the fuel lines, removing the upper intake plenum, disconnecting electrical connectors, and carefully removing the faulty injector. It is important to note that injectors can be challenging to remove from the rail, and prying them with a screwdriver is not recommended to avoid damage.
When installing the new fuel injector, ensure that it is securely connected and sealed. The replacement process may vary slightly depending on the specific model and year of the Nissan Quest, so it is always best to consult model-specific repair guides or seek assistance from a qualified technician if unsure.
Additionally, consider preventative maintenance practices to extend the lifespan of the fuel injectors. This can include regular cleaning services, such as sonic cleaning, to remove any built-up deposits and ensure optimal fuel flow and engine performance. By following these steps and staying proactive with maintenance, Nissan Quest owners can maintain the reliability and efficiency of their vehicles.
Testing Voltage to Fuel Injectors in a '95 YJ
You may want to see also
Explore related products
To replace the injector, disconnect the cable from the negative battery terminal
Once the battery is disconnected, you can proceed with the injector replacement process. Before removing the injector, it's important to purge the fuel lines by removing the fuse and cranking the engine. This step ensures that the fuel lines are empty, reducing the risk of fuel leakage during the replacement process.
After purging the fuel lines, you can start removing the upper intake plenum. This step gives you access to the fuel injector and its components. Be sure to unplug all electrical connectors and remove the necessary screws to detach the plenum completely.
With the upper intake plenum out of the way, you can now access the fuel injector. Depending on your vehicle's make and model, you might need to rotate the injector to break it free before removal. Using a thin flathead screwdriver can help pry the injector out, but be cautious not to damage any surrounding components.
It's worth noting that fuel injectors are engineered with precision and are designed to withstand high pressure and temperature. Therefore, they may be challenging to remove, especially if they are seized or stuck in place. In such cases, gently rotating the injector back and forth can help loosen it before pulling it out.
Backhoe Maintenance: Replacing Fuel Injectors for Optimal Performance
You may want to see also
Explore related products
The fuel injectors on the rear bank require removal of the upper intake manifold
To change the fuel injectors on a 2001 Quest, you will first need to remove the upper intake manifold. This process will involve several steps and require some tools, including a socket set.
First, you will need to remove the fuel lines bracket under the plenum (upper intake manifold). There will be two screws and two mounting bolts to remove. Next, you will need to remove the bolts holding the upper intake manifold in place. There will typically be around ten bolts, but this may vary depending on the model. Once the bolts are removed, you may need to remove the lower portion of the intake manifold to access the upper portion.
It is important to note that some sources suggest that it is not necessary to remove the entire upper intake manifold to replace the fuel injectors. However, others have found it necessary to do so to access the rear fuel injectors. It may be beneficial to refer to a repair manual, such as the Haynes manual, for specific instructions on removing the upper intake manifold for your vehicle's year and model.
Once the upper intake manifold is removed, you can access the fuel injectors and proceed with the replacement process. This typically involves purging the fuel lines, unplugging electrical connectors, and removing screws before pulling out the injector. It is recommended to use a flathead screwdriver to help pry the injector out, being careful not to damage it.
Backflushing 1979 Porsche 924 Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
When servicing, it is not necessary to remove the fuel rail
When servicing a 2001 Quest and looking to change the fuel injector, it is not necessary to remove the fuel rail. The fuel rail is the metal rod over the fuel injectors. The fuel injectors are supported by clips and the fuel rail.
To replace a fuel injector, you will need to remove the bolts and brackets holding the fuel rail in place. Depending on the model, some engines will need the fuel line disconnected from the fuel rail to move it. You should then use pliers to disconnect the electrical connector on each injector. This step usually depressurizes the fuel system in multi-port fuel-injected vehicles, but your engine may vary. Check your repair manual to be sure. Make sure the engine is cold enough to touch and disconnect the battery.
The injectors are usually difficult to remove from the rail, but it can be done without removing the entire rail. It is recommended to rotate the injectors to help break them free, then press them out from the bottom. You can also use a small flathead screwdriver to remove or depress the clip. Then, while wearing gloves, grasp the injector and work it back and forth while pulling to remove it from the fuel rail. The injector and rail will drip, so have shop towels ready.
Before installing the new fuel injectors, dip the fuel injector tip into a small amount of engine oil to wet the seals and prevent leaks.
Bleeding Air from Fuel Injectors on a 4700 International: Step-by-Step Guide
You may want to see also
Explore related products
![HiSport Fuel Injector Seal Kits Rebuild Set Include O-rings, Pintle Caps, Seal Spacers, Filter Baskets with 1pcs Filter Removal Tool [8 Set]](https://m.media-amazon.com/images/I/71D2r04zhLL._AC_UY218_.jpg)
![HiSport Fuel Injector Seal Kits Compatible with Ford Mercury Lincoln Jeep V8 5.4L 4.6L Include O-Rings, Pintle Caps, Seal Spacers and Filter Baskets Universal Repair Set Replaces 0280150962 [8 Set]](https://m.media-amazon.com/images/I/71r8hDT8hoS._AC_UY218_.jpg)
Inspect the injector O-rings for signs of deterioration and replace if needed
The injector O-rings are small, circular seals that are placed between the fuel injector and the fuel rail. They are critical components of a vehicle's fuel system, responsible for sealing the connection between the fuel injector and the fuel rail. Over time, these O-rings can become brittle, hard, and cracked, leading to fuel leaks. Other factors that contribute to the deterioration of the O-rings include exposure to high temperatures, harsh chemicals, and alcohol-based additives in fuel.
- Fuel leaks: If the O-rings are torn or worn out, they will leak fuel at the base or top of the injector.
- Fuel smell: A strong odor of fuel in the car is often one of the first signs of a problematic O-ring.
- "Check Engine" light: If the "Check Engine" light comes on, it could indicate an issue with the fuel injector O-ring.
- Engine performance issues: Issues such as difficulty starting the engine, misfires, loss of power, reduced acceleration, and decreased fuel efficiency may indicate a failing O-ring.
- Physical inspection: It is recommended to visually inspect the O-rings for any signs of deterioration, such as cracks or brittleness.
If you suspect that the injector O-rings on your 2001 Quest are failing or showing signs of deterioration, it is important to have them inspected and replaced by a professional mechanic or technician. They will have the specialized knowledge and tools required to access and replace the O-rings properly.
The Perfect Fuel Injector Spray: Angle, Pattern, and Droplet Size
You may want to see also
Frequently asked questions
Fuel injectors for the Nissan Quest range from $125 per injector to $78.15 for a set of 6.
It is recommended to change all your injectors after 80,000 miles at the first sign of trouble, or at about 140,000 miles if you intend to keep the car for 20,000 more miles.
Here are the steps to replace a fuel injector on a 2001 Nissan Quest:
- Relieve the fuel pressure.
- Disconnect the cable from the negative terminal of the battery.
- Remove the air intake plenum (upper intake manifold) from the lower intake manifold.
- Disconnect the fuel injector connectors.
- Remove the injector cap screws and cap.
- Pull the injector(s) from the fuel rail cup.
- Inspect the injector 0-rings for signs of deterioration and replace as required.
- Lubricate the new 0-rings with light-grade oil (not silicone grease).
- Install the new injector(s) into the fuel rail cup using a light twisting motion.
