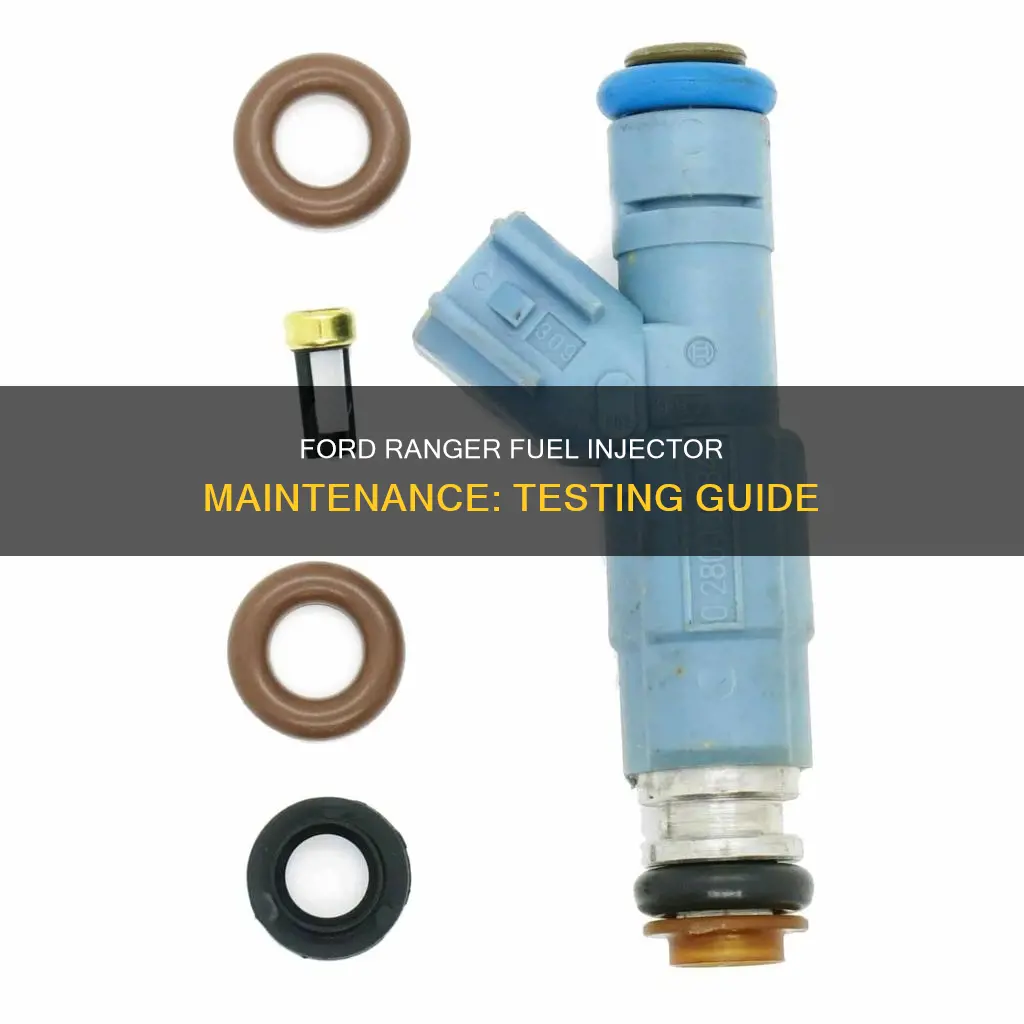

Fuel injectors are an essential component of a Ford Ranger's engine, regulating the amount of fuel used for each cycle. When a fuel injector fails or becomes clogged, it can cause serious issues, including reduced engine power, misfires, and even engine failure. To avoid these problems, it is crucial to regularly check and maintain the fuel injectors. While the task of troubleshooting the fuel injection system in a Ford Ranger can be daunting, this article will provide a comprehensive guide to help you understand the process and identify any potential issues. We will cover the steps involved in checking and, if necessary, replacing the fuel injectors, ensuring the continued reliability and optimal performance of your Ford Ranger.
Explore related products
What You'll Learn
Testing the fuel injectors with a digital multimeter
Step 1: Understand the Basics
Before you begin, it's important to know that a digital multimeter measures resistance, which can indicate whether your fuel injector has failed or is clogged. This is a crucial test as injector issues can lead to engine misfires, inconsistent idling, and even catastrophic engine failure.
Step 2: Prepare Your Vehicle
Park your Ford Ranger on a level surface and ensure the engine is turned off. For a 4-cylinder model, you will need to unclip the top of the intake system to access the injectors. It is recommended to have a notepad and pen ready to record your findings.
Step 3: Set Up the Multimeter
Turn on your digital multimeter and set it to measure resistance or OHMS. Consult your vehicle's manual or a mechanic if you're unsure about the correct resistance values for your specific Ford Ranger model and year.
Step 4: Disconnect the Injectors
Carefully disconnect the fuel injector harnesses. You can refer to the Ford Ranger fuel injector wiring diagram to identify the correct pins to probe (typically PIN 1 and PIN 2). This step may vary depending on your vehicle's year and model, so it's essential to have the correct information.
Step 5: Test the Injectors
With the injector harnesses disconnected, you can now use the digital multimeter to test each injector one at a time. Probe the specified pins on each injector and record the resistance values. Compare these values to the specified range for your vehicle. If the resistance is outside the specified range, it indicates a problem with the injector.
Step 6: Interpret the Results
If your Ford Ranger fuel injector doesn't respond within the specified resistance range, it's likely time to replace it. Consult a qualified mechanic or refer to a reliable repair guide for further confirmation and instructions on how to replace the faulty injector.
Remember, working on fuel injectors can be dangerous and complicated, so it's always best to leave significant repairs to professionals.
Applying Red Line Fuel Injector Cleaner: Step-by-Step Guide
You may want to see also
Explore related products
Troubleshooting the fuel-injection system
The first step in troubleshooting is to conduct a visual inspection for any fuel leaks where the injector is installed in the fuel rail, intake manifold, or cylinder head. If there are no visible issues, the next step is to check the fuel supply and electrical function. This can be done by attaching a fuel-pressure tester gauge to the test port on the fuel rail attached to the injectors. Cycle the ignition key from off to on several times to pressurise the system. If the system pressure is above 45 psi, the fuel supply is likely functioning correctly.
If there is no fuel pressure in the system, the issue could be related to the fuel pump, fuel pump fuse, or fuel pump relay. Check the fuel pump fuse at the under-hood fuse block using a circuit tester. If the fuse is good, check for power supply at the fuel pump electrical connector. If power is supplied but the pump is not functioning, replace the pump. If there is no power, replace the fuel pump relay.
If the fuel pressure is normal, the next step is to test the individual fuel injectors. For a 4-cylinder Ford Ranger, unclip the top of the intake system and unplug each injector one at a time. Use a digital multimeter to measure the internal resistance of each injector. The resistance value should fall within a specific range, depending on the year of the Ford Ranger. If the injector is outside of the specified range, it may need to be replaced.
It is important to note that fuel injector replacement can be a complex task and is best left to a professional. Improper removal or installation of the fuel injectors can lead to further damage to the vehicle.
Troubleshooting Fuel Injectors in a 1987 Toyota 4Runner
You may want to see also
Explore related products
Signs of a faulty fuel injector
A faulty fuel injector can cause serious issues for your Ford Ranger pickup truck. It can lead to engine failure if not addressed promptly. Here are some signs that indicate a faulty fuel injector:
- Poor Performance: A faulty fuel injector will starve your engine of fuel, resulting in decreased engine performance. You may notice a loss of power, making it harder to accelerate or maintain speed, especially on uphill roads.
- Rough Idling: A faulty injector can cause erratic revolutions per minute (RPMs), even when your foot is off the gas pedal. This "rough idling" may be accompanied by engine stalling, where the engine suddenly stops running.
- Decreased Fuel Economy: A faulty injector can disrupt the fuel-air mixture, leading to lousy gas mileage. You may find yourself refuelling more frequently than usual.
- Engine Misfiring: When the fuel-air mixture is unbalanced, it can cause the engine to misfire and stutter as it misses revolutions. This can also trigger the "check engine" light on your dashboard.
- Increased Emissions: A faulty injector can lead to an increase in vehicle emissions, which can be observed as excessive smoke from the tailpipe.
- Engine Knock and Other Issues: In more severe cases, a faulty injector can result in issues such as hydro lock, engine knock, and oil thinning, which could indicate potential catastrophic engine failure.
It is recommended to have a professional technician inspect and diagnose any suspected fuel injector issues to prevent further damage to your Ford Ranger's engine.
Checking Fuel Injectors in a 2007 Nissan Altima
You may want to see also
Explore related products
Replacing the fuel injectors
It is recommended that you do not attempt to replace the fuel injectors of your Ford Ranger yourself, as it can be a complicated process and may cause further damage to your vehicle if done incorrectly. The risk of fire is also a concern. Instead, you should seek the help of a professional technician.
However, if you still wish to replace the fuel injectors yourself, you should refer to your Ford manual for a step-by-step guide. The general process is as follows:
- Turn off the engine and check for fuel leaks where the injector is installed in the fuel rail, intake manifold, or cylinder head.
- Disconnect the air intake throttle body, fuel supply and fuel return lines, fuel line safety clips, and wiring harness from the injectors.
- Remove the vacuum line from the fuel pressure regulator valve.
- Take out the four fuel supply manifold retaining bolts (two on each side).
- Gently rock and lift the fuel rail assembly to carefully disconnect it from the fuel injectors.
- Remove the injectors by lifting and gently rocking them side to side.
- Install new injectors by lubricating all top O-rings with clean, light-grade oil and inserting them into the fuel rail with a light, twisting, pushing motion.
- Lubricate all lower O-rings with clean engine oil.
- Carefully install the rail assembly and injectors into the lower intake manifold, one side at a time, pushing the fuel rail down to ensure all injector O-rings are full and seated correctly.
The cost of replacing the fuel injectors on a Ford Ranger ranges from $291 to $357 on average, but it can vary depending on the specific car.
Replacing Fuel Injectors in Your 2009 Chevy Cobalt: Step-by-Step Guide
You may want to see also
Explore related products
Safety precautions when replacing the fuel injectors
Safety should be the top priority when replacing fuel injectors on your Ford Ranger. Fuel injector replacement is not a DIY job and should be left to a professional. The risk of fire is significant, and the repair process can be very complicated. A good amount of knowledge is required to remove the injectors, intake manifold, fuel rail, and other components, and incorrect removal can further damage the vehicle.
If you notice any fuel odor around your car, suspect a leaking fuel injector and do not start the engine due to the fire hazard. The battery should always be disconnected when working with fuel, and proper precautions must be taken against fire.
The fuel injector replacement process involves relieving the pressure within the fuel rail, removing the upper plenum on the intake manifold, and disconnecting electrical connectors, fuel lines, and other components. This process can be dangerous and complicated, and incorrect removal can damage the vehicle.
To avoid the risks associated with fuel injector replacement, it is recommended to seek the services of a certified technician or mechanic who has the necessary knowledge and experience to perform the replacement safely and effectively.
Backhoe Maintenance: Replacing Fuel Injectors for Optimal Performance
You may want to see also
Frequently asked questions
Signs that your Ford Ranger's fuel injectors are faulty include pollution and smoke coming from your tailpipe, engine misfires, and inconsistent idling. If the issue is severe, the engine may stall immediately after starting, fail to start, hesitate under throttle, or vibrate roughly.
You can test your Ford Ranger's fuel injectors by using a digital multimeter to measure the internal resistance of the injectors. First, turn the dial to read resistance or OHMS. Then, unclip the top of the intake system and unplug each injector one at a time, recording your findings. If your Ford Ranger is a 4-cylinder model, the resistance value should be between 11 and 18 Ω for vehicles manufactured between 1994 and 1997, and between 15 and 18 Ω for those made between 1990 and 1993. If your injector doesn't respond within these specifications, it needs to be replaced.
You can perform a load balance test, also known as a cylinder balance test. Start your engine and let it idle. Then, unplug one injector at a time. If the idle doesn't get worse when you unplug an injector, that injector is faulty. Unplugging a functioning injector should cause the idle to dip, and the engine may even threaten to shut off.
First, check the fuel supply and electrical function. Attach a fuel-pressure tester gauge to the test port on the fuel rail attached to the injectors. Cycle the ignition key from off to on several times to pressurize the system. The system pressure should be greater than 45 psi. If no fuel pressure develops, check the fuel pump fuse, fuel pump relay, or fuel pump.
The cost of replacing the fuel injectors in a Ford Ranger ranges from \$291 to \$357 on average, but it can vary depending on the vehicle. It is recommended that fuel injector replacement be left to a professional due to the risk of fire and the complexity of the repair.
