A fuel pressure regulator is an integral part of a vehicle's fuel system, responsible for maintaining the pressure of the fuel that flows through the vehicle. It is located between the vehicle's gas tank and its carburetor. If the regulator is faulty, it can affect the overall performance of your vehicle and may even leave you unable to start your car. To test your fuel pressure regulator, you can follow these steps: locate the regulator, test the vacuum line, test the fuel pressure regulator, and finish the testing. This process involves checking for leaks and measuring fuel pressure, which should be between 40-80 psi for most vehicles.
| Characteristics | Values |
|---|---|
| Average fuel pressure | 45-55 psi |
| Fuel pressure in throttle body injection system | 14-18 psi |
| What to do if the fuel pressure is off by more than 5 psi | Bring the car to a mechanic for service |
| What to do if there is fuel inside the vacuum line | Replace the fuel pressure regulator |
| What to do if the fuel pressure does not increase by 5 psi | Replace the fuel pressure regulator |
| What to do if the fuel pressure decreases | Troubleshoot the fuel filter or fuel pump |
| What to do if you don't hear the fuel pump buzz when you try to start your car | Replace the fuel pump |
| What to do if you feel no pressure when blocking the passage of the hose with your finger | Replace the fuel pump |
Explore related products
What You'll Learn
Locate the fuel pressure regulator
To locate the fuel pressure regulator, you must first find the fuel rail in your engine. The fuel rail is connected to the injectors of the car, and the fuel pressure regulator is located at the end of this rail. The fuel pressure regulator is usually attached to the fuel rail, so you can check in that area of the engine as you try to locate it.
The exact location of the fuel pressure regulator will depend on the specific car model. To determine the location, you can either follow the fuel rail around or try to locate the injectors directly.
The fuel pressure regulator plays a crucial role in the fuel system. It maintains a steady fuel supply, ensuring that the fuel rail has enough pressure to support the injectors. Without the regulator, the fuel will not reach the injectors and the fuel pump will force too much fuel into them, causing their failure.
The fuel pressure regulator consists of a diaphragm that controls the bypass valve, allowing it to adjust for a steady fuel delivery. It helps maintain a constant pressure, regardless of how much fuel is being drawn from the system, by reading manifold pressure or vacuum.
Adjusting Fuel Injector Pressure: A Comprehensive Guide
You may want to see also
Explore related products
Test the vacuum line
To test the vacuum line, you will need to check for any leaks in the vacuum side of the fuel pressure regulator (FPR).
Firstly, locate the vacuum hose connected to the regulator. Disconnect the hose and attach a fuel pressure tester to the service port on the rail. If the fuel pressure increases, the vacuum side of the FPR is working as it should. If not, there may be a leak in the vacuum line.
To test for a leak, replace the vacuum line with a length of clear tubing. Ensure that the tubing is the same diameter as your vacuum line. If your vacuum line is a standard small diameter hose, you can use airline tubing from an aquarium supply store. Rev the engine and observe the clear tubing. If the FPR is failing, you will see fuel seeping or spraying into the vacuum line. This indicates that the regulator needs to be replaced.
You can also try using a vacuum gauge to test the vacuum line. Connect the gauge to the FPR and perform the classic automotive diaphragm leak-down test. If the test fails, you will need to replace the FPR.
It is important to note that these tests should be performed with the engine running, as the vacuum pressure is generated by the engine. Additionally, some FPRs may require specific vacuum levels to function properly, so it is important to consult your vehicle's specifications before performing any tests.
Regulating Fuel Pressure in Returnless Systems: A Comprehensive Guide
You may want to see also
Explore related products
Test the fuel pressure regulator
Testing a fuel pressure regulator can be a tricky process, but it is important to identify any issues to avoid costly mistakes. Here is a detailed, step-by-step guide on how to test a fuel pressure regulator:
Step 1: Safety First
Before beginning any diagnostic tests, it is crucial to prioritise safety. Releasing fuel under pressure can be dangerous and may cause fires or injuries. Always wear protective gear, such as safety glasses and gloves. Ensure you work in a well-ventilated area, and refrain from smoking or doing anything that could create a spark.
Step 2: Check for Unusual Noises
Listen carefully to your engine. If your fuel pressure regulator is functioning correctly, there should be no popping or unusual sounds coming from it. Unusual noises could indicate an issue with the regulator or other components.
Step 3: Understand the Function of the Fuel Pressure Regulator
The fuel pressure regulator plays a critical role in maintaining the high-pressure level in a modern fuel injection system. It relies on vacuum pressure generated by the engine to maintain system pressure and predict fuel demands. By reading manifold pressure or vacuum, the regulator ensures that the fuel pressure remains constant, regardless of the amount of fuel drawn from the system.
Step 4: Test for Leaks in the Vacuum Side
One common issue with fuel pressure regulators is a leak in the vacuum port, which can cause fuel and pressure loss through the vacuum hose. To test for this, replace the vacuum line going into the regulator with a length of clear tubing of the same diameter. Aquarium tubing or tubing from your local hardware store should work. With this clear setup, you can visually inspect for any leaks. Have someone rev the engine up and down while you observe the clear tube. If you see fuel seeping or spraying into the vacuum line, it indicates a failure at the vacuum port, and the regulator will need to be replaced.

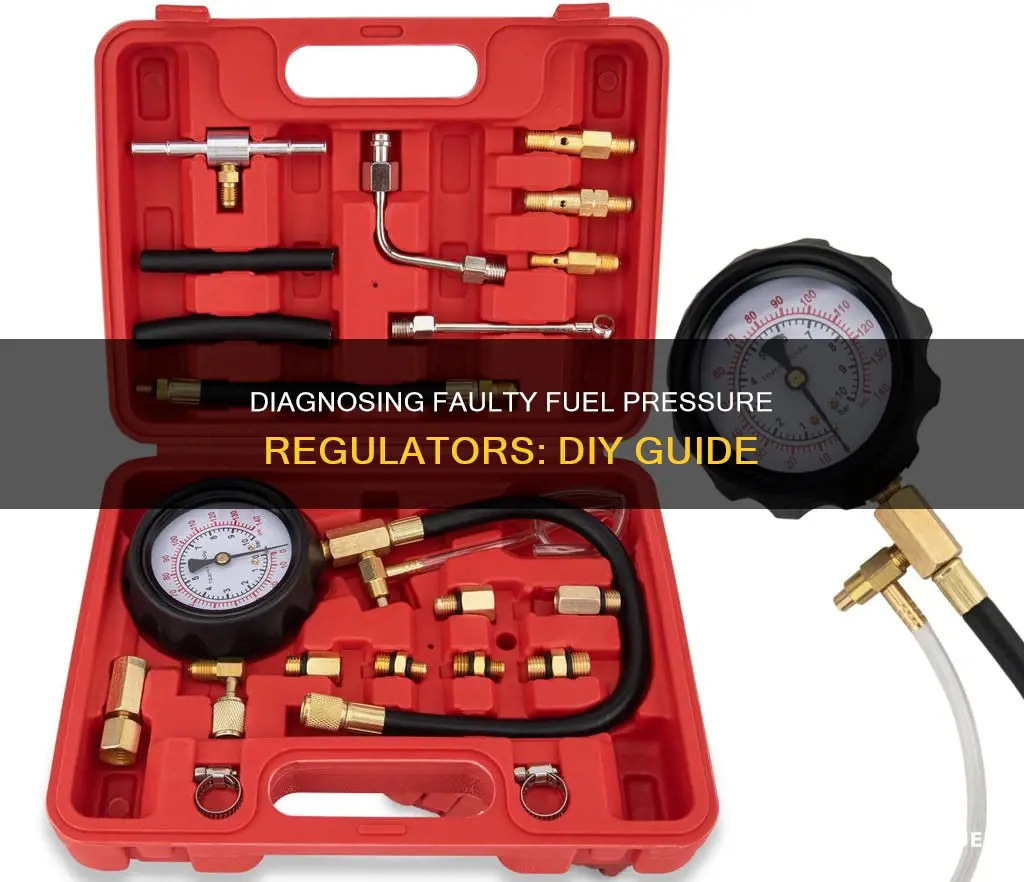

Step 5: Check Fuel Pressure
Start by starting the car and letting it idle. Install a fuel pressure gauge and run the pump, noting the pressure reading. Compare this reading to the manufacturer's specifications. If the pressure is lower than specified, there may be an issue with the regulator or other components.
Step 6: Perform a Fuel Volume Test
If the fuel pump is supplying sufficient pressure, move on to a fuel volume test to ensure the proper amount of fuel is being delivered to the fuel injectors. You can use a flowmeter for this test, or you can perform a timed fuel delivery test with a glass measuring container. Glass is recommended as fuel can corrode or fog up plastic. Run the pump for five seconds and collect a fuel sample. Compare the amount of fuel delivered to the manufacturer's specifications to determine if your system is working correctly.
Step 7: On-Vehicle Testing
According to some sources, the best method for testing a fuel pressure regulator is to perform the test with the regulator still installed in the vehicle. Connect a fuel pressure gauge to the engine at the Schraeder valve and check the fuel pressure at idle. Then, pull the vacuum line and check the pressure again, expecting an increase of 5-7 psi. Additionally, check for fuel coming out of the vacuum port. If there is fuel present, it indicates a faulty regulator.
Best Placement for Fuel Pressure Gauges in WRX STIs
You may want to see also
Explore related products
Finish the testing
After testing your fuel pressure regulator, there are a few final steps to complete the process. Start by removing the fuel pressure gauge and reattaching the screw cap to the regulator testing port or the fuel line assembly. This will ensure that your fuel system is returned to its original configuration.
Next, consult your vehicle's owner's manual or service manual to determine the optimal fuel pressure for your specific make and model. Compare this value to the readings you obtained during the testing process. If the pressure is off by more than 5 psi from the ideal state, it is recommended to bring your car to a mechanic for further inspection and service.
In some cases, you may need to pick up necessary parts for repair or replacement. It is important to follow your car's specifications and guidelines when performing any repairs or replacements to ensure compatibility and proper functioning. Faulty fuel delivery or delays in addressing issues can lead to more serious and costly problems with your engine.
Additionally, always exercise caution when working with fuel systems. Fuel is highly flammable, and any leaks or mishandling can pose safety risks. If you are unsure about any aspect of the testing or repair process, it is best to consult a professional mechanic for assistance.
Cleaning Fuel Pump Pressure: Tips and Tricks
You may want to see also
Explore related products
$9.99
Signs of a bad fuel pressure regulator
A faulty fuel pressure regulator can cause a range of issues with your vehicle's engine. Here are some telltale signs that your fuel pressure regulator is failing or faulty:
Illuminated Check Engine Light
The check engine light is a clear indicator that something is amiss. When the check engine light comes on, it means the engine computer has detected an issue that could lead to increased emissions or impaired engine performance. This is often accompanied by diagnostic trouble codes (DTCs) related to fuel delivery, such as code P0191 for low fuel pressure or P0193 for high fuel pressure.
Black Smoke from the Exhaust
The presence of thick, black smoke coming from the exhaust pipe is a sign that your engine is running rich, meaning there is too much fuel in the air-fuel mixture. This can be caused by a faulty fuel pressure regulator allowing too much fuel pressure to reach the injectors. As a result, unburned fuel exits through the tailpipe as black soot.
Engine Performance Problems
A bad fuel pressure regulator can lead to a range of engine performance issues, including hard-starting, rough running, stalling, and a noticeable loss of engine power. You may find it difficult to start your car, or experience stalling while the car is running. The engine may vibrate more than usual when idling, and you may notice a decrease in fuel efficiency.
Fuel in the Regulator's Vacuum Line
If you suspect a problem with your fuel pressure regulator, check the vacuum line for the presence of fuel. A ruptured diaphragm within the regulator can cause fuel to leak into the vacuum line. This can result in a rich running condition, as fuel is drawn into the engine's intake manifold.
Vehicle Cranks But Doesn't Start
A faulty fuel pressure regulator can prevent the engine from receiving the proper fuel pressure, resulting in a vehicle that cranks but refuses to start. This could be due to either too little or too much fuel pressure, causing a lean or rich condition, respectively.
Fuel Pump Efficiency: Building Pressure for Optimal Performance
You may want to see also
Frequently asked questions
The fuel pressure regulator is located between the vehicle's gas tank and its carburetor. Follow the fuel line to the throttle body or carburetor, where the regulator is most likely attached.
A faulty fuel pressure regulator can cause various issues, including poor fuel efficiency, difficulty starting the engine, and unusual engine noises. You may also notice smoke coming from the exhaust, discoloured spark plugs, or problems with acceleration and deceleration.
First, test the vacuum line leading into the regulator. Remove the vacuum hose and replace it with clear plastic tubing. Start the vehicle and manually open the butterfly valve on the carburetor, or press the gas pedal. If there is a leak in the regulator, fuel will escape into the line, which you will be able to see through the clear tubing.
Average fuel pressure can range from 40 to 55 psi, but it's important to consult your vehicle's service manual for the correct fuel pressure range.
