Checking the fuel pressure in your car is an important step in ensuring the health of your engine. A fuel pump transfers gas from the fuel tank to the engine, and if it malfunctions, it could lead to a lack of power output from the engine, or even cause the engine to stop working altogether. To check the fuel pressure, you will need a fuel pressure test kit, which consists of a fuel gauge and a fuel hose. You will also need to ensure you are wearing safety gear, such as gloves and glasses, and that you are working in a well-ventilated area. Once you have the necessary equipment, you can start by parking your car and applying the parking brake. Then, locate the fuel pressure test port and install the pressure tester. After that, turn on the ignition and run the engine, recording the pressure reading. Finally, compare the reading to the manufacturer's specifications to determine if your fuel pump is functioning correctly.
Explore related products
What You'll Learn
Safety precautions
Checking the fuel pressure of a vehicle is a potentially hazardous task that requires careful preparation and adherence to safety precautions. Here are some essential safety guidelines to follow when checking the flowing fuel pressure:
- Wear Protective Gear: Always wear safety glasses and gloves to protect your eyes and hands from fuel exposure.
- Ventilation: Work in a well-ventilated area to prevent the buildup of fuel vapors, which can be highly flammable.
- No Smoking: Refrain from smoking or allowing any open flames or sparks near the vehicle during the testing process.
- Prevent Sparks: Ensure there are no sources of sparks nearby, such as electrical equipment or metal tools that could create a spark when coming into contact with each other.
- Fire Extinguisher: Keep a Class B fire extinguisher nearby in case of a fire. Fuel fires cannot be extinguished with water, so a dry chemical extinguisher is necessary.
- Fuel Handling: When handling fuel, use approved containers to avoid leaks, and never use your mouth to start a siphon. Always use a pump or hose instead.
- No Idling: Do not leave the vehicle idling for extended periods during the testing process. Start the engine only when necessary and turn it off as soon as possible.
- Spill Preparedness: Keep spill response kits nearby in case of fuel leaks or spills. Absorbent materials, such as shop towels or dry absorbents, are useful for containing and cleaning up spills promptly.
- Pressure Release: Before beginning any work on the fuel system, relieve the pressure in the fuel lines to reduce the risk of fuel spray or vapor release.
- Clothing: Wear appropriate clothing, such as long sleeves and pants, to protect your skin from fuel exposure. Fire-resistant clothing is recommended to minimize the risk of ignition.
- Training: Ensure that you are properly trained and knowledgeable about the potential hazards and safety procedures when working with fuel systems.
- Emergency Preparedness: Familiarize yourself with emergency procedures and have a plan in place in case of a fire or other accidents. Keep emergency contacts and procedures readily available.
- Fuel Storage: Store excess fuel temporarily in approved containers labeled by Underwriters Laboratories (UL). These containers are designed to be airtight and chemically stable with fuel.
- Skin and Eye Protection: Take extra care to prevent fuel from coming into contact with your skin, eyes, or mouth, especially when working on high-pressure fuel systems. Fuel can penetrate the skin and cause irritation or burns.
- Wiping Surfaces: Wipe up any fuel leaks immediately, especially from engine surfaces. Engine surfaces can become hot enough to ignite spilled fuel.
Testing Fuel Pressure Regulators: A Step-by-Step Guide
You may want to see also
Explore related products
Checking fuel pressure
First, ensure your car is parked on flat ground, with the engine off and the emergency brake set. It is important to put safety first, so wear safety glasses and gloves, do not smoke, and work in a well-ventilated area. Locate the fuel pressure test port, which is usually on the engine fuel rail, and place a rag underneath it to catch any fuel that may be released.
Next, install a pressure tester to the test port. You may need to use an adapter from a test kit, which can be attached at the fuel filter or fuel pressure feed line. If you do not have access to a pressure tester, you can borrow one from an auto parts store for free in most cases.
Now, start the engine and record the pressure reading. With the ignition on, the pressure gauge should read between 45 and 58 psi for direct port injection systems, and between 13 and 17 psi for throttle body injection systems. If the pressure is low, this could indicate a problem with the fuel pump.
After taking the pressure reading, snap the throttle. The fuel system pressure should increase by around 5 psi, indicating that the fuel pump and pressure regulator are working correctly.
Finally, perform a load test to determine how the pump performs under load. This can be done by loading the engine while preventing the car from moving, either by holding the brake while giving the engine throttle, or by driving the car at low speeds with the hood open. The pressure should hold continuously throughout the test. If the fuel pressure drops under load or while idling, this could indicate a clogged fuel filter or a failing fuel pump.
Remember to always consult your vehicle's owner's manual for specific instructions and pressure requirements, as these can vary between different models.
Testing Fuel Pressure: Sea-Doo GTX DI Guide
You may want to see also
Explore related products
Using a flowmeter
The most accurate way to test fuel delivery is by using a flowmeter. A flowmeter is a device that measures the amount of liquid fuel flowing through it. This can be done using several technologies, including turbine flow meters, positive displacement meters, and ultrasonic flow meters. These devices are commonly used in the automotive, aviation, and marine industries to enable precise management of fuel consumption and optimize engine performance and energy efficiency.
Before you begin, ensure you are wearing safety glasses and gloves, and work in a well-ventilated area. Do not smoke or have anything around that could cause a spark, as fuel under pressure can cause fires and injuries.
To test the fuel pressure and flow, you will need to start by installing a fuel pressure gauge and starting the car. You can then check the fuel pressure; if it is low, you should address that problem first. If the fuel pump is supplying sufficient pressure, you can proceed to the flow test.
For the flow test, you will need to collect a fuel sample for a specified amount of time (typically five seconds) with the pump running. The pump should deliver a specific amount of fuel within that time frame, which you can find in your manufacturer's specification. You might need to convert the units to figure out if your pump is delivering the right amount.
Different types of flowmeters are available, each with its strengths and suitability for different situations. For example, turbine flow meters use a turbine mechanism that rotates at a speed proportional to the flow rate of the diesel, while positive displacement meters measure the flow by trapping small amounts of fluid in compartments and counting how many times these compartments are filled and emptied. Ultrasonic flow meters, on the other hand, use sound waves to determine the flow rate without cutting the fuel pipe.
Fuel Pressure Requirements: Edelbrock 1406 and the 4 PSI Question
You may want to see also
Explore related products
Interpreting pressure readings
Interpreting pressure gauge readings can be difficult, especially for those who are unfamiliar with them. Here are some steps to help you interpret pressure readings when checking flowing fuel pressure:
- Understand the Fundamentals: Familiarize yourself with the basic components of a pressure gauge. Typically, it includes a dial face, a needle, and a pointer that indicates the pressure level. The gauge face displays the pressure units, such as pounds per square inch (PSI), bars, or kilopascals (kPa).
- Examine the Scale Range: Ensure that the scale range on the gauge face is suitable for the pressure you are measuring. If the pressure exceeds the gauge's scale range, the readings may be unreliable, and the gauge could be damaged.
- Take Accurate Readings: When taking readings, position yourself at eye level with the gauge for maximum accuracy. Obtain measurements when the pressure is steady, and regularly calibrate the gauge to ensure its accuracy.
- Understand Positive and Negative Readings: The interpretation of readings depends on the gauge type and application. Gauges measuring vacuum pressure will show negative readings, while those monitoring positive pressure will show positive readings.
- Adjust as Needed: If the pressure reading is not within the desired range, adjust your system or equipment accordingly. For instance, if the pressure is too low, modify the system to boost pressure. Conversely, if the pressure is too high, make adjustments to lower it.
- Rail Pressure vs. Effective Pressure: When dealing with fuel pressure, it's important to understand the difference between rail pressure and effective (or differential) pressure. Rail pressure refers to the pressure inside the rail, which can be measured with a fuel pressure sensor. Effective pressure, on the other hand, is the actual applied pressure across the injector and is crucial for understanding injector flow rate.
- Fuel System Setups: There are two generic types of fuel system setups: returnless and return-style. Returnless systems do not return fuel to the tank, while return-style systems bleed excess fuel back to the tank through a regulator, helping to maintain a constant effective fuel pressure.
- Fuel Pressure Diagnostics: Checking fuel pressure is essential for troubleshooting fuel injection systems. High fuel pressure will cause an engine to run rich, while low fuel pressure will make it run lean or not at all. Refer to your vehicle's service manual for specific diagnostic procedures and pinpoint the faulty component.
- Fuel Pressure Fluctuations: Minor fluctuations in fuel pressure, such as +/- 1.5 psi, are typically not a cause for concern. However, if the pressure fluctuates by 20-30%, there may be an issue with the fuel system that requires further investigation.
- Fuel Volume and Flow: Remember that fuel pressure is just one aspect of the fuel system. It's also important to consider fuel volume and flow. Fuel volume refers to the quantity of fuel available, while fuel flow is the volume of fuel delivered over time. A loss of residual fuel pressure, extended engine cranking, or sudden loss of power while driving could indicate issues with fuel volume or flow.
Using a Schrader Valve to Check Fuel Pressure
You may want to see also
Explore related products
Testing a malfunctioning fuel pump
Part 1: Check if the Problem is Fuel-Related
If the engine won't start or exhibits performance issues, there are several tests you can perform to determine if the issue is fuel-related:
- Listen for the Fuel Pump: Put your ear near the fuel tank and turn the ignition key to the "on" position. A functional fuel pump should produce an audible noise.
- Whack the Fuel Tank: Ask an assistant to crank the engine while you gently hit the fuel tank with a rubber mallet. If the vehicle starts, it indicates a problem with the electric motor inside the pump.
- Use Starter Fluid (with caution): Spray starter fluid into the throttle body while attempting to start the vehicle. If it starts momentarily, it confirms a fuel-related issue, possibly a bad pump.
- Check Diagnostic Trouble Codes (DTCs): Use a scanner or code reader to check for DTCs in your car's computer. Faulty pump-related codes or air/fuel ratio problems may be present.
- Check Fuel Trim with a Scan Tool: If the engine is running, check the short-term fuel trim (STFT) reading. Typically, fuel trim readings should be between -10 and 10. If the reading is above 10, the engine is running lean, suggesting a potential issue with fuel delivery.
Part 2: Check Fuel Pressure and Volume
Checking fuel pressure and volume will help determine if enough fuel is reaching the engine from the tank. Here's how to do it:
- Ensure Safety: Before performing any tests, prioritize safety. Wear safety gear, including glasses and gloves, work in a well-ventilated area, and avoid smoking or sparks.
- Check Fuel Pressure: Start the car and let it idle. Install a fuel pressure gauge, run the pump, and record the pressure reading. Compare this reading to the manufacturer's specification. If the pressure is low, address the issue.
- Perform a Fuel Volume Test: If the fuel pump is supplying sufficient pressure, conduct a fuel volume test to ensure the correct amount of fuel is delivered to the fuel injectors. Use a flowmeter or a glass measuring container for accuracy.
Part 3: Advanced Tests
For more comprehensive diagnostics, consider the following advanced tests:
- Measure Current Draw with an Oscilloscope: Connect a low amp clamp probe to the pump's power wire and observe the waveform pattern. A good pump should show a pattern of even "humps," while a faulty pump will exhibit jagged and uneven humps.
- Use a Professional-Grade Scan Tool: Some high-end scan tools allow remote fuel pump testing. By activating the pump, you can see if it runs properly.
Part 4: Before Condemning the Pump
Before concluding that the fuel pump is faulty, check the following:
- Fuel Pump Electrical Circuit: Verify the integrity of the wiring in the pump circuit using a digital multimeter (DMM) to check for continuity, power, ground, and excessive resistance.
- Fuel Pressure Regulator: For continuous fuel systems, check the regulator by disconnecting the attached vacuum hose. If pressure does not increase, the regulator or its vacuum supply may be faulty.
- Fuel Filter: Continuous fuel systems have an external fuel filter. Rather than testing, consider installing a new filter to see if it resolves the issue. Remember to relieve fuel system pressure before replacement.
Ideal Fuel Pressure for Carburetors: How Much is Enough?
You may want to see also
Frequently asked questions
It's important to remember that releasing fuel under pressure can cause fires and injuries. As such, you should always wear safety glasses and gloves, work in a well-ventilated area, and avoid smoking or having anything around that could cause a spark.

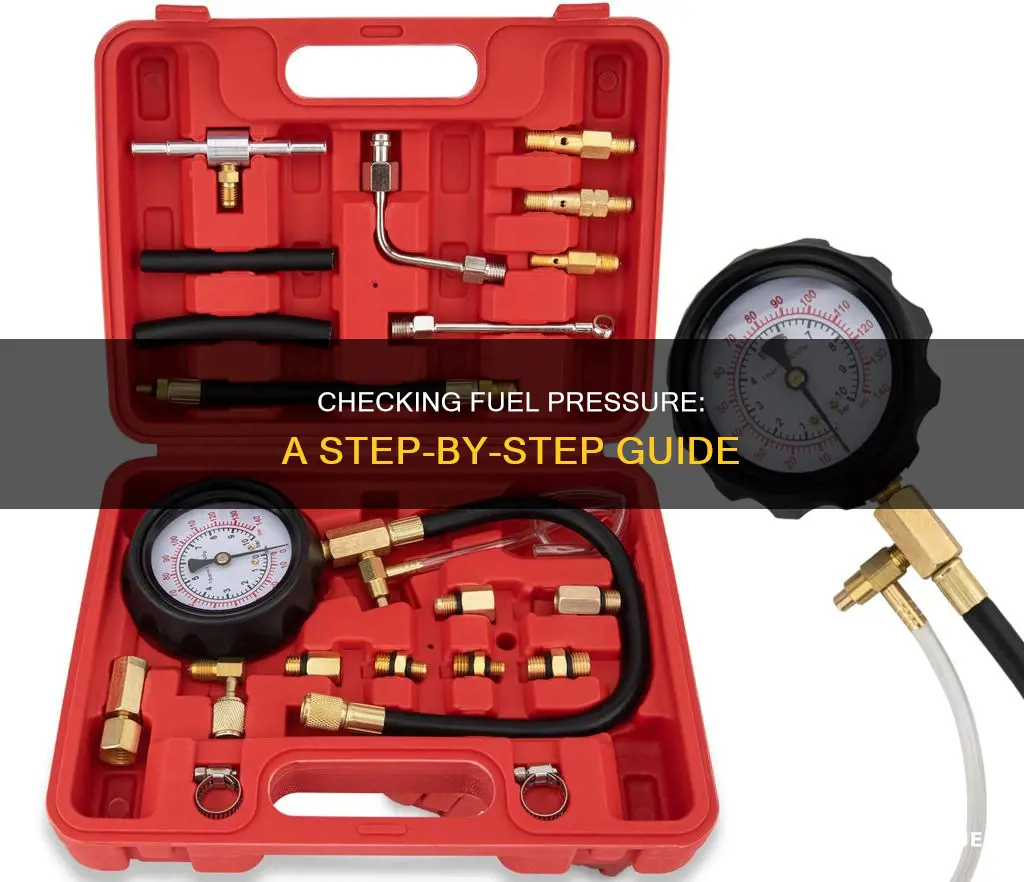

You will need a fuel pressure test kit, which includes a fuel gauge and the attached fuel hose. You may also need a screwdriver, ratchets, and sockets.
Ideal fuel pressure levels vary from model to model. Older throttle-body injected systems may need only 10 PSI, while multi-port injector systems usually require 60 PSI. Check your vehicle owner's manual to determine the recommended fuel pressure level for your specific vehicle.
