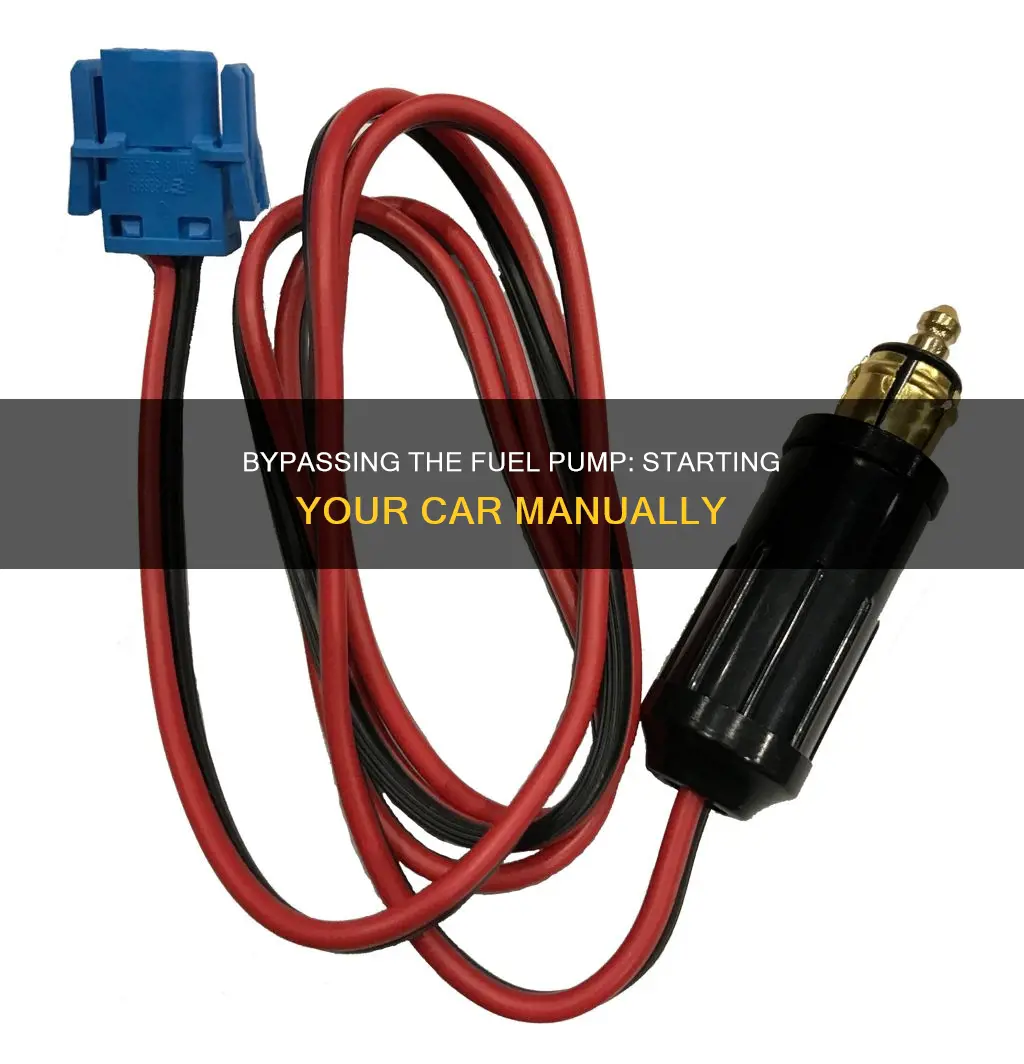

How to bypass fuel pump to start car
| Characteristics | Values |
|---|---|
| Purpose | To temporarily power the fuel pump directly, bypassing the relay to get the engine running again |
| Tools | Wire strippers, electrical connectors, multimeter for testing the circuit, insulated wire, fuse, safety goggles, gloves, battery disconnect tool |
| Safety precautions | Disconnect the battery before working with electrical components to prevent shocks or shorts; ensure proper ventilation when handling fuel-related tasks to mitigate fire risks; wear safety goggles and gloves to protect against potential sparks or accidental contact with live wires |
| Process | Locate the fuel pump relay, typically found in the fuse box or under the hood near the engine; use a multimeter to identify and document the relay pins responsible for sending power to the fuel pump; connect specific wires to establish an uninterrupted power supply to the fuel pump |
| Testing | Turn the ignition key to the "on" position without starting the engine; listen for the fuel pump to activate, indicating the bypass is successful; monitor fuel pump operation during a test drive to ensure the vehicle runs smoothly |
Explore related products
What You'll Learn
- Connect wires to establish an uninterrupted power supply to the fuel pump
- Use tools like wire strippers, electrical connectors, and a multimeter
- Disconnect the battery to prevent electrical shocks
- Test the fuel pump by turning the ignition key to the on position
- Observe the fuel pump during a test drive
Connect wires to establish an uninterrupted power supply to the fuel pump
Bypassing the fuel pump relay is a practical solution to overcome fuel pump relay failures. It provides a direct pathway for electrical current to reach the fuel pump when the relay malfunctions. This temporary fix can effectively restore fuel delivery and enable the engine to start, allowing you to resume your journey without extensive repairs or waiting for a mechanic.
To establish an uninterrupted power supply to the fuel pump, you will typically need to connect specific wires. This process usually involves the use of wire strippers, electrical connectors, and a multimeter for testing the circuit. It is important to prioritise safety precautions. Always disconnect the battery before working with electrical components to prevent shocks or shorts. Additionally, ensure proper ventilation when handling fuel-related tasks to reduce fire risks.
- Disconnect the negative terminal of the battery to prevent electrical shocks or shorts during the process.
- Locate the fuel pump relay, which is typically located in the fuse box or under the hood near the engine. You can refer to your vehicle's owner's manual for specific details.
- Identify the relay pins that are responsible for sending power to the fuel pump. Utilise a multimeter and refer to the relay diagram for accurate identification.
- Use insulated wire to connect the fuel pump directly. This will provide a safe and effective pathway for the electrical current.
- Install a fuse in the circuit to protect the electrical system during the bypass.
- Once the wires are connected, test the fuel pump by turning the ignition key to the "on" position without starting the engine.
- Listen carefully for the fuel pump to activate, indicating that the bypass was successful.
Remember, bypassing the fuel pump relay is only a temporary solution. For long-term vehicle reliability, it is essential to eventually replace the faulty relay or address the root cause of the fuel delivery issue.
