Sylvie Willis

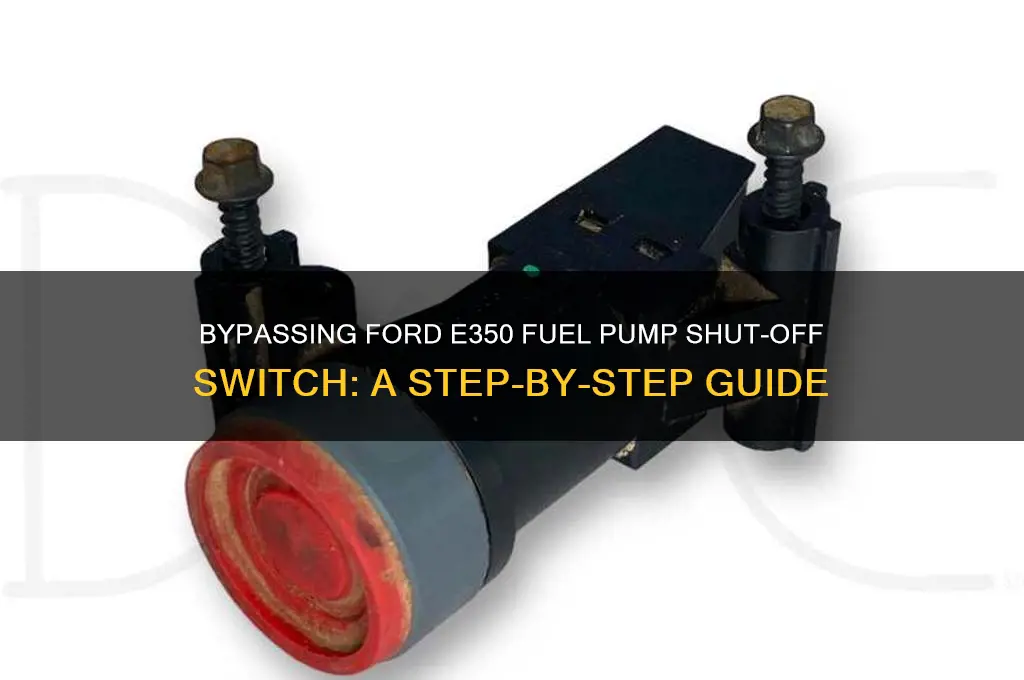

The Ford E350’s fuel pump shut-off switch, also known as the inertia switch, is a safety feature designed to cut power to the fuel pump in the event of an accident or sudden impact. However, in some cases, this switch may trigger inadvertently due to rough driving conditions or mechanical issues, causing the engine to stall. Bypassing the fuel pump shut-off switch can be a temporary solution to diagnose or address such problems, but it should be done with caution, as it disables a critical safety mechanism. This process typically involves locating the switch, often found in the passenger compartment or near the driver’s side kick panel, and either resetting it or bridging the wires to restore power to the fuel pump. It’s essential to consult a professional or refer to the vehicle’s manual before attempting any modifications to ensure safety and compliance with regulations.
| Characteristics | Values |
|---|---|
| Purpose of Bypass | To override the fuel pump shut-off switch in case of malfunction or testing |
| Safety Warning | Bypassing the switch can be dangerous; only do it temporarily for diagnosis |
| Common Reasons for Bypass | Faulty inertia switch, electrical issues, or diagnostic purposes |
| Tools Required | Wire strippers, electrical tape, jumper wires, multimeter |
| Location of Inertia Switch | Typically behind the driver's seat or under the dashboard |
| Bypass Method 1 (Temporary) | Connect the two wires leading to the inertia switch directly |
| Bypass Method 2 (Using a Relay) | Install a relay to bypass the inertia switch for a more controlled circuit |
| Legal Considerations | Bypassing safety features may violate vehicle regulations in some regions |
| Alternative Solution | Replace the faulty inertia switch instead of bypassing it |
| Diagnostic Steps Before Bypassing | Check for blown fuses, test the inertia switch, inspect wiring for damage |
| Risk of Fire | Bypassing the switch increases the risk of fuel pump running continuously |
| Professional Recommendation | Consult a certified mechanic for proper diagnosis and repair |
Explore related products
What You'll Learn
- Locating the Inertia Switch: Identify the fuel pump shut-off switch location in your Ford E350
- Testing the Switch: Use a multimeter to check if the switch is tripped or faulty
- Resetting the Switch: Push the reset button on the inertia switch to restore fuel pump operation
- Bypassing with a Wire: Temporarily connect the switch terminals with a wire to bypass it
- Replacing the Switch: Install a new inertia switch if the old one is damaged or malfunctioning
Locating the Inertia Switch: Identify the fuel pump shut-off switch location in your Ford E350
The Ford E350's fuel pump shut-off switch, also known as the inertia switch, is a critical safety feature designed to cut power to the fuel pump in the event of a collision or sudden impact. However, in some cases, you may need to locate this switch to reset it or bypass it temporarily for diagnostic purposes. The inertia switch is typically located in the passenger compartment, often near the floor or under the dashboard, to ensure easy access in case of an emergency.
To locate the inertia switch in your Ford E350, start by consulting your vehicle's manual, which should provide a diagram or description of the switch's location. If you don't have access to the manual, a general rule of thumb is to look for a small, rectangular or square-shaped switch with a red button or label. In most Ford E350 models, the inertia switch is situated in the passenger footwell, near the firewall or under the glove compartment. It's essential to note that the exact location may vary depending on the year and model of your vehicle, so be prepared to do some searching.
One effective method to pinpoint the inertia switch is to follow the fuel pump wiring harness from the engine compartment into the passenger compartment. The harness will typically lead you directly to the switch, which is often secured to a bracket or panel using screws or clips. Be cautious when removing any panels or components, as you don't want to accidentally damage any surrounding parts. If you're having trouble locating the switch, consider using a flashlight and mirror to inspect hard-to-reach areas, or enlist the help of a friend to assist with the search.
When you've successfully located the inertia switch, take a moment to familiarize yourself with its operation. The switch is designed to trip when it detects a sudden impact, cutting power to the fuel pump to prevent fuel leaks and potential fires. To reset the switch, simply press the red button or switch it back to its original position. Keep in mind that bypassing the inertia switch should only be done temporarily for diagnostic purposes, as it's a crucial safety feature that should not be disabled permanently. Always exercise caution when working with fuel system components, and ensure that your vehicle is in a safe, well-ventilated area before attempting any repairs or modifications.
In some cases, you may encounter a faulty inertia switch that trips frequently or fails to reset properly. If this occurs, it's recommended to replace the switch with a new one, following the manufacturer's guidelines and torque specifications. When purchasing a replacement switch, ensure that it's compatible with your specific Ford E350 model and year. Additionally, consider inspecting the fuel pump wiring harness and connectors for any signs of damage or corrosion, as these issues can also cause the fuel pump to shut off unexpectedly. By taking a systematic approach to locating and troubleshooting the inertia switch, you'll be better equipped to diagnose and resolve fuel pump-related issues in your Ford E350.
Semi Truck Fuel Pump Repair Costs: What to Expect
You may want to see also
Explore related products
Testing the Switch: Use a multimeter to check if the switch is tripped or faulty
Before attempting any bypass, it's crucial to determine if the fuel pump shut-off switch is actually the culprit. A faulty or tripped switch can mimic symptoms of a failed fuel pump, leading to unnecessary repairs. Testing the switch with a multimeter is a straightforward and accurate method to diagnose the issue.
Analytical Approach: The fuel pump shut-off switch, often located in the passenger compartment of a Ford E350, is a safety device designed to cut power to the fuel pump in the event of an accident or severe impact. When functioning correctly, it remains closed, allowing current to flow to the pump. However, if the switch trips or fails, it opens the circuit, halting fuel delivery. A multimeter can measure continuity across the switch, revealing whether it’s operational or needs attention.
Instructive Steps: To test the switch, first locate it—typically near the driver’s side kick panel or under the dashboard. Disconnect the switch’s wiring harness. Set your multimeter to the continuity or resistance mode (usually denoted by a diode symbol or Ω). Place one probe on each terminal of the switch. If the switch is closed (functional), the multimeter will show continuity (a low resistance reading or audible beep). If open (tripped or faulty), there will be no continuity, indicating the switch needs resetting or replacement.
Comparative Insight: Unlike visual inspections, which can be misleading, a multimeter test provides definitive data. For instance, a switch may appear intact but internally have a broken contact. This method is superior to bypassing the switch entirely, as bypassing without proper diagnosis can leave you vulnerable to safety risks, such as fuel leaks or fire hazards in the event of an accident.
Practical Tips: Ensure the vehicle is turned off and the ignition is in the "Off" position before testing. If the switch is tripped, attempt to reset it by pressing the button (if equipped) or manually resetting it according to your vehicle’s manual. If the multimeter shows no continuity after resetting, the switch is likely faulty and requires replacement. Always consult a professional if unsure, as fuel system repairs involve inherent risks.
Understanding Small Fuel Pump Amp Draw: A Comprehensive Guide
You may want to see also
Explore related products
Resetting the Switch: Push the reset button on the inertia switch to restore fuel pump operation
The inertia switch in a Ford E350 is a safety feature designed to shut off the fuel pump in the event of a collision or sudden impact. This switch, often located in the trunk, rear quarter panel, or near the fuel pump itself, includes a reset button that allows you to restore fuel pump operation after it has been triggered. Before attempting to bypass the system entirely, it’s critical to first try resetting the inertia switch, as this is the manufacturer-intended solution and avoids potential safety risks.
To reset the inertia switch, locate the button on the switch itself—it’s typically red or black and may be labeled "Reset." Press the button firmly until you hear or feel a click, indicating the switch has been reset. This action re-engages the fuel pump circuit, allowing fuel to flow to the engine again. If the vehicle starts immediately after resetting the switch, the issue was likely caused by a minor impact or jolt that triggered the safety mechanism. However, if the switch resets but the vehicle fails to start, further diagnosis is necessary, as the problem may lie elsewhere in the fuel system.
While resetting the inertia switch is straightforward, it’s important to understand why the switch activated in the first place. If the vehicle was involved in an accident or experienced a significant impact, inspect the fuel system for leaks or damage before attempting to drive. Ignoring potential hazards could lead to fuel spills, fire, or other dangerous situations. Additionally, if the inertia switch frequently triggers without apparent cause, this could indicate an underlying issue, such as a loose mounting or electrical fault, requiring professional inspection.
For those considering bypassing the inertia switch entirely, it’s essential to weigh the risks. Bypassing this safety feature eliminates a critical protection mechanism, leaving the vehicle vulnerable to fuel-related hazards in the event of a collision. Instead, focus on proper maintenance and troubleshooting to ensure the switch functions as intended. Regularly inspect the switch for signs of wear or damage, and ensure it is securely mounted to minimize false triggers. Resetting the inertia switch is not only the safest option but also the most cost-effective and time-efficient solution for restoring fuel pump operation in a Ford E350.
Understanding Fuel Pump Amp Draw: A Comprehensive Guide for Car Owners
You may want to see also
Explore related products
Bypassing with a Wire: Temporarily connect the switch terminals with a wire to bypass it
One straightforward method to bypass the Ford E350's fuel pump shut-off switch is by temporarily connecting the switch terminals with a wire. This technique essentially creates a direct circuit, circumventing the switch's function and allowing the fuel pump to operate continuously. It’s a quick fix often used in emergency situations, such as when the switch fails or triggers falsely, leaving the vehicle stranded. However, this method should be approached with caution, as it bypasses a safety feature designed to shut off fuel flow in the event of an accident or severe impact.
To execute this bypass, locate the fuel pump shut-off switch, typically found in the passenger compartment or under the dashboard. Identify the two terminals on the switch—these are the points where the wire will be connected. Use a piece of insulated wire, stripping about ¼ inch of insulation from each end to expose the conductive core. Connect one end of the wire to one terminal and the other end to the second terminal, ensuring a secure connection. This completes the circuit, effectively bypassing the switch. Start the vehicle to confirm the fuel pump is now operational.
While this method is simple, it’s crucial to understand its limitations and risks. Bypassing the shut-off switch eliminates a critical safety mechanism, increasing the risk of fuel leakage or fire in the event of a collision. Additionally, continuous operation of the fuel pump without the switch can strain the system, potentially leading to premature wear or failure. This technique should only be used as a temporary solution, and the switch should be replaced or repaired as soon as possible.
Comparatively, other bypass methods, such as using a relay or replacing the switch entirely, offer more permanent and safer alternatives. However, the wire bypass stands out for its immediacy and minimal tool requirements, making it a go-to for drivers in urgent need of a fix. It’s a trade-off between convenience and safety, highlighting the importance of weighing immediate needs against long-term vehicle integrity.
In practice, this method is best suited for situations where professional assistance is not immediately available, such as during a road trip or in remote areas. Always carry a spare wire in your emergency kit for such scenarios. Once the vehicle is running, plan to address the issue properly by consulting a mechanic or purchasing a replacement switch. Remember, while bypassing the switch with a wire can get you back on the road, it’s a temporary bandage, not a permanent solution.
Understanding Holley Electric Fuel Pump Amp Draw: A Comprehensive Guide
You may want to see also
Explore related products
Replacing the Switch: Install a new inertia switch if the old one is damaged or malfunctioning
The inertia switch in a Ford E350 is a critical safety component designed to shut off the fuel pump in the event of a collision. However, if this switch malfunctions or becomes damaged, it can mistakenly trigger a fuel pump shutdown, leaving you stranded. Replacing the inertia switch is a straightforward solution that restores functionality and ensures your vehicle operates reliably. This process requires basic mechanical skills and a few tools, making it accessible for most DIY enthusiasts.
To begin, locate the inertia switch, typically found near the fuel pump or in the rear of the vehicle. Consult your Ford E350’s service manual for the exact location, as it can vary by model year. Once identified, disconnect the battery to prevent accidental activation of the fuel pump during the replacement. Next, remove the wiring harness connected to the switch by gently releasing the locking tab and pulling the connector apart. Be cautious not to damage the wires or surrounding components.
With the wiring disconnected, remove the inertia switch by unscrewing or unclipping it from its mounting bracket. Inspect the mounting area for any signs of damage or corrosion, as these issues can affect the new switch’s performance. Install the new inertia switch by securing it in the same position as the old one, ensuring it is firmly attached. Reattach the wiring harness, making sure the connection is secure and properly seated.
After installation, reconnect the battery and test the system. Start the vehicle and check for proper fuel pump operation. If the fuel pump engages and the engine runs smoothly, the replacement was successful. However, if issues persist, verify that the new switch is functioning correctly and that there are no other underlying problems, such as a faulty fuel pump relay or wiring issues.
Replacing a damaged or malfunctioning inertia switch is a cost-effective and practical solution to bypass the fuel pump shut-off issue in a Ford E350. By following these steps, you can restore your vehicle’s reliability and avoid unnecessary downtime. Always prioritize safety and accuracy during the replacement process to ensure long-term performance.
Choosing the Right GPH Fuel Pump for Your Vehicle's Performance Needs
You may want to see also
Frequently asked questions
The fuel pump shut off switch, also known as the inertia switch, is a safety feature that cuts power to the fuel pump in the event of an accident or sudden impact. You might need to bypass it if the switch is malfunctioning, preventing the fuel pump from operating, or if you're troubleshooting fuel delivery issues.
The fuel pump shut off switch is typically located in the passenger compartment, often under the dash near the kick panel or on the firewall. Refer to your vehicle’s manual for the exact location. It usually has a button on top that can be pressed to reset it.
To bypass the switch, disconnect the wiring harness from the switch and connect the two main wires (usually one from the fuel pump relay and one to the pump) directly. Ensure the connection is secure and insulated to prevent shorts. Note: Bypassing the switch permanently removes a safety feature, so proceed with caution and consider replacing the switch instead.
