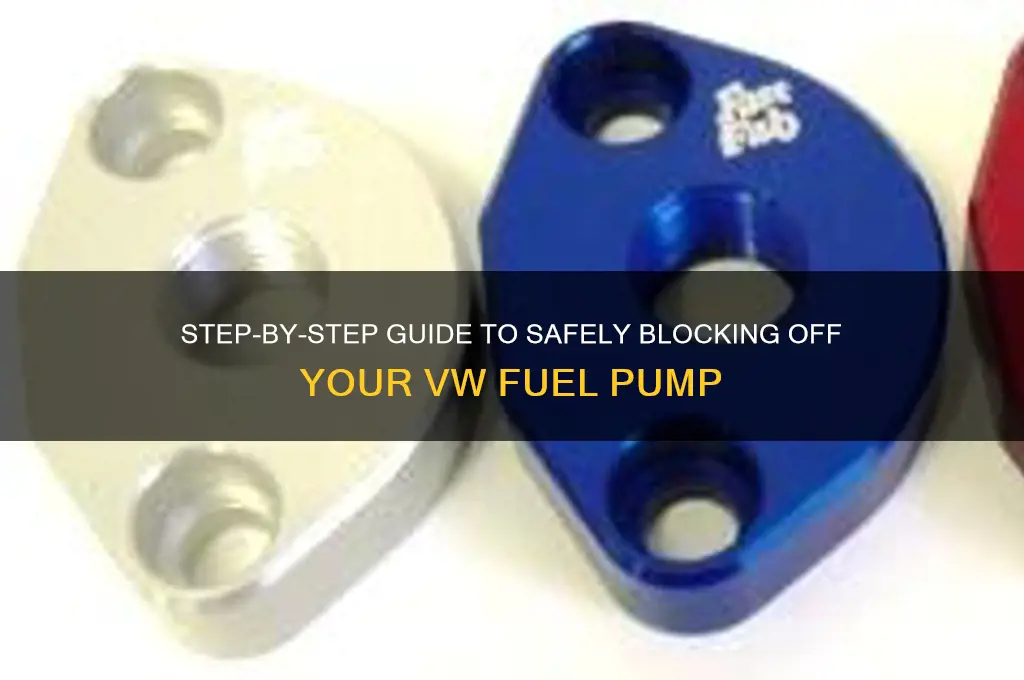

Blocking off a VW fuel pump is a task often undertaken during engine conversions or when switching to an external fuel pump system. This process involves disconnecting the factory fuel pump and sealing off the fuel lines to prevent leaks, ensuring the fuel system remains secure and functional. It’s crucial to use the correct tools and materials, such as a fuel pump block-off plate or plug, to maintain the integrity of the fuel tank and lines. Properly blocking off the fuel pump not only prevents fuel from entering the engine unnecessarily but also ensures safety and compliance with vehicle modifications. Always consult a repair manual or seek professional guidance to ensure the procedure is done correctly and safely.
| Characteristics | Values |
|---|---|
| Purpose | To prevent fuel delivery to the engine, typically for maintenance or diagnostic purposes. |
| Tools Required | Varies depending on method, but may include wrenches, screwdrivers, fuel line disconnect tools, and safety equipment. |
| Methods | 1. Fuel Pump Relay Removal: Disconnect the relay to cut power to the fuel pump. 2. Fuel Line Pinching: Use a clamp or pliers to pinch the fuel line, restricting fuel flow. 3. Fuel Pump Fuse Removal: Locate and remove the fuse that controls the fuel pump. 4. Fuel Pump Disconnect: Disconnect the electrical connector to the fuel pump. |
| Safety Precautions | - Work in a well-ventilated area. - Relieve fuel system pressure before attempting any work. - Use appropriate safety gear, including gloves and safety goggles. - Ensure the vehicle is on a level surface and the engine is off. |
| Vehicle Compatibility | Specific procedures may vary depending on the VW model and year. Always consult the vehicle's manual or a reliable repair guide. |
| Common VW Models | Golf, Jetta, Passat, Beetle, Tiguan, etc. |
| Difficulty Level | Moderate to Advanced, depending on the method chosen. |
| Time Required | 15-60 minutes, depending on the method and experience. |
| Cost | Minimal, primarily involving tools and safety equipment. |
| Environmental Impact | Ensure proper disposal of any fuel or contaminants to minimize environmental impact. |
| Legal Considerations | Follow local regulations regarding vehicle maintenance and fuel system work. |
| Alternative Solutions | Consider using a fuel pressure tester or consulting a professional mechanic for complex issues. |
Explore related products
What You'll Learn
- Locate Fuel Pump Fuse: Identify the fuse box and find the specific fuse for the fuel pump
- Disconnect Fuel Pump Relay: Access the relay panel and remove the fuel pump relay
- Use Fuel Pump Cutoff Switch: Install and activate an aftermarket fuel pump cutoff switch
- Remove Fuel Pump Fuse: Pull out the fuel pump fuse from the fuse box to disable it
- Disconnect Fuel Pump Wiring: Locate and unplug the wiring harness connected to the fuel pump
Locate Fuel Pump Fuse: Identify the fuse box and find the specific fuse for the fuel pump
The fuse box in a Volkswagen is typically located in one of two places: under the dashboard on the driver’s side or in the engine compartment. Start by consulting your vehicle’s manual to pinpoint the exact location for your model, as designs vary across years and trims. For instance, in a VW Jetta (2011-2018), the fuse box is often found behind a removable panel near the steering column, while in a VW Golf (2015-2020), it may be under a cover on the left side of the engine bay. Knowing this saves time and prevents unnecessary disassembly.
Once you’ve located the fuse box, the next step is identifying the fuel pump fuse. This requires referencing the fuse diagram, usually printed on the inside of the fuse box cover or in the vehicle manual. Look for labels like “Fuel Pump,” “FP,” or “Relay 109” (a common designation in VWs). For example, in a VW Passat B6, the fuel pump fuse is often Fuse 14 in the engine bay fuse box. If the diagram is missing or unclear, cross-reference with online forums or repair guides specific to your VW model.
To safely remove the fuel pump fuse, use a fuse puller (often included in the fuse box) or a pair of needle-nose pliers. Ensure the ignition is off to avoid electrical hazards. Once removed, verify the fuse is intact; a blown fuse will have a broken filament or darkened glass. If the fuse appears undamaged, store it securely, as reinserting it later may be necessary. Blocking the fuel pump via the fuse is a temporary measure, ideal for diagnostics or emergency situations, but not a long-term solution.
While this method effectively cuts power to the fuel pump, it’s crucial to understand its limitations. Removing the fuse halts fuel delivery, which can help isolate issues like a faulty pump or prevent fuel flow in specific scenarios. However, it doesn’t address underlying problems and may trigger error codes in modern VWs with advanced diagnostics. Always pair this step with further troubleshooting or professional inspection to ensure safety and resolve root causes.
Mastering Distributor Fuel Injection Pump Upgrades for Peak Engine Performance
You may want to see also
Explore related products
Disconnect Fuel Pump Relay: Access the relay panel and remove the fuel pump relay
One of the most straightforward methods to block off a VW fuel pump is by disconnecting the fuel pump relay. This approach is particularly useful for diagnostic purposes or when you need to temporarily disable the fuel pump without extensive modifications. The fuel pump relay is a critical component in the vehicle’s electrical system, acting as a switch that controls power to the fuel pump. By removing it, you effectively cut off the electrical supply, preventing the pump from operating.
To begin, locate the relay panel, typically found in the engine bay or under the dashboard, depending on your VW model. Consult your vehicle’s manual for the exact location, as it varies across different Volkswagen models. Once identified, open the relay panel cover, which is usually secured with clips or screws. Inside, you’ll find a series of relays, each labeled or numbered. Identify the fuel pump relay, often marked as "FUEL PUMP" or with a corresponding diagram. If unsure, cross-reference with the manual or use a multimeter to test for continuity when the ignition is on.
With the relay identified, carefully pull it out of its socket. This action immediately disables the fuel pump, as the circuit is now open. Ensure the relay is fully removed and stored safely if you plan to reinstall it later. For added safety, consider covering the exposed relay socket with electrical tape to prevent accidental contact or debris ingress. This method is reversible, making it ideal for temporary applications like testing for fuel pump-related issues or preventing fuel delivery during maintenance.
While this technique is effective, it’s essential to exercise caution. Disabling the fuel pump means the engine will not receive fuel, so avoid attempting to start the vehicle unless necessary. Additionally, prolonged disconnection of the relay may trigger error codes in the vehicle’s ECU, which can be cleared with a diagnostic tool. Always prioritize safety and ensure the vehicle is in a secure, well-ventilated area when working on the fuel system. This method, when executed correctly, provides a quick and non-invasive way to block off the VW fuel pump.
Fuel Pump Count: 2007 CLK 550's Pump Configuration Explained
You may want to see also
Explore related products
Use Fuel Pump Cutoff Switch: Install and activate an aftermarket fuel pump cutoff switch
Installing an aftermarket fuel pump cutoff switch is a practical and effective way to block off the fuel pump in a VW, offering both safety and control. This device acts as an emergency shutoff, preventing fuel delivery to the engine with the flip of a switch. Ideal for racing, theft prevention, or as a safety measure in case of accidents, the cutoff switch is a straightforward yet powerful modification. Before installation, ensure compatibility with your VW’s fuel system, as some models may require additional wiring or adapters.
The installation process begins with locating the fuel pump wiring harness, typically found near the fuel tank or under the rear seat in many VW models. Disconnect the harness and splice in the cutoff switch, ensuring a secure connection with heat-shrink tubing or electrical tape. Position the switch in an accessible location, such as the cabin or engine bay, for quick activation. Most aftermarket switches are universal, but double-check the voltage rating to match your vehicle’s system, usually 12V for VWs.
Activating the switch is simple: flip it to the "off" position to cut power to the fuel pump, immediately stopping fuel flow. This instant response makes it a reliable safety feature during emergencies. However, exercise caution—accidentally triggering the switch while driving can cause the engine to stall. Label the switch clearly to avoid confusion, and consider using a red cover or indicator light for visibility.
Compared to other methods like fuse removal or relay bypassing, a cutoff switch offers convenience and reversibility. It doesn’t require permanent alterations to the wiring harness and can be deactivated just as easily as it’s activated. For added security, choose a switch with a key lock or hidden mounting location to deter tampering.
In summary, an aftermarket fuel pump cutoff switch is a versatile and user-friendly solution for blocking off a VW’s fuel pump. With minimal installation effort and clear operational benefits, it’s a smart upgrade for both safety-conscious drivers and enthusiasts alike. Always test the switch after installation to ensure proper functionality and peace of mind.
Exploring the Diverse Types of Fuel Injection Pumps in Engines
You may want to see also
Explore related products
$37.99
Remove Fuel Pump Fuse: Pull out the fuel pump fuse from the fuse box to disable it
One of the simplest methods to block off a VW fuel pump is by removing the fuel pump fuse from the fuse box. This approach is straightforward, requires minimal tools, and can be completed in a matter of minutes. Locate your vehicle’s fuse box, typically found under the dashboard or in the engine compartment, depending on the VW model. Consult your owner’s manual or a fuse box diagram to identify the specific fuse associated with the fuel pump. Once identified, use a fuse puller or a pair of needle-nose pliers to carefully extract the fuse. This action immediately cuts power to the fuel pump, effectively disabling it.
While removing the fuel pump fuse is a quick fix, it’s essential to understand its implications. The fuel pump is critical for delivering fuel from the tank to the engine. Disabling it will cause the engine to stall or prevent it from starting altogether. This method is ideal for temporary situations, such as troubleshooting or preventing fuel delivery in emergency scenarios. However, it’s not a long-term solution, as it bypasses the vehicle’s safety systems and can lead to diagnostic trouble codes (DTCs) being stored in the ECU. Always reinsert the fuse once the issue is resolved or before driving the vehicle again.
For those unfamiliar with fuse boxes, here’s a practical tip: take a photo of the fuse box diagram before removing any fuses. This ensures you can accurately identify and replace the correct fuse later. Additionally, handle fuses with care to avoid damage or electrical shorts. If you’re unsure about the process, consider labeling the fuse with a piece of tape or marking its position on the diagram. This small step can save time and frustration when reinstalling the fuse.
Comparing this method to others, such as disconnecting the fuel pump relay or using an inline fuel cutoff valve, removing the fuse stands out for its simplicity and accessibility. It requires no specialized tools or mechanical expertise, making it a go-to option for DIY enthusiasts. However, it lacks the precision of other methods, as it completely disables the fuel pump rather than controlling fuel flow. For more controlled scenarios, such as tuning or testing, alternative methods may be preferable.
In conclusion, removing the fuel pump fuse is a quick and effective way to block off a VW fuel pump. It’s ideal for temporary situations but should be used judiciously to avoid long-term issues. By following these steps and precautions, you can safely disable the fuel pump when needed, ensuring both convenience and safety in your vehicle maintenance tasks.
Understanding the Fuel Pump System in a 2006 Dodge Charger
You may want to see also
Explore related products
Disconnect Fuel Pump Wiring: Locate and unplug the wiring harness connected to the fuel pump
The wiring harness is the lifeblood of your VW's fuel pump, delivering the electrical signal that keeps fuel flowing. Disconnecting it effectively halts the pump's operation, making it a crucial step in blocking off the fuel system. This process, while seemingly straightforward, demands precision and awareness of potential pitfalls.
Locating the wiring harness is the first hurdle. In most VW models, it's nestled near the fuel tank, often secured with clips or fasteners. Consult your vehicle's manual for specific location details, as designs vary across models and years. Once located, carefully inspect the harness for any signs of damage or corrosion, as these could indicate underlying issues requiring attention.
Unplugging the harness requires a delicate touch. Avoid forceful tugging, which can damage the connectors. Instead, identify the release mechanism, typically a tab or latch, and gently depress it while pulling the connectors apart. If the connection feels stubborn, double-check for any additional securing mechanisms. Remember, patience is key to avoiding costly repairs down the line.
After disconnection, consider securing the harness to prevent accidental reconnection. This is especially important if you're working on the vehicle for an extended period. Use zip ties or electrical tape to neatly bundle the wires and keep them out of harm's way. This simple step can save you from potential fuel system mishaps.
While disconnecting the wiring harness is a fundamental step in blocking off the VW fuel pump, it's crucial to remember that it's just one part of a larger process. Always prioritize safety by working in a well-ventilated area, using appropriate tools, and following established safety protocols. By approaching this task with care and attention to detail, you can effectively block off your VW's fuel pump and proceed with your intended repairs or modifications.
Upgrade Your Ride: Adding a Fuel Pump to Your 4-Wheeler
You may want to see also
Frequently asked questions
The fuel pump on most VW models is located inside the fuel tank. To access it, you’ll need to remove the fuel tank or use a specialized access panel if available. Consult your vehicle’s manual for exact location details.
You’ll typically need basic tools like wrenches, screwdrivers, and possibly a fuel line disconnect tool. If the pump is in the tank, you may also need a jack, jack stands, and a fuel tank removal kit.
Blocking off the fuel pump is often done during engine conversions or when using an external fuel pump. Ensure all fuel lines are properly capped or sealed to prevent leaks. Always work in a well-ventilated area and avoid open flames or sparks.
