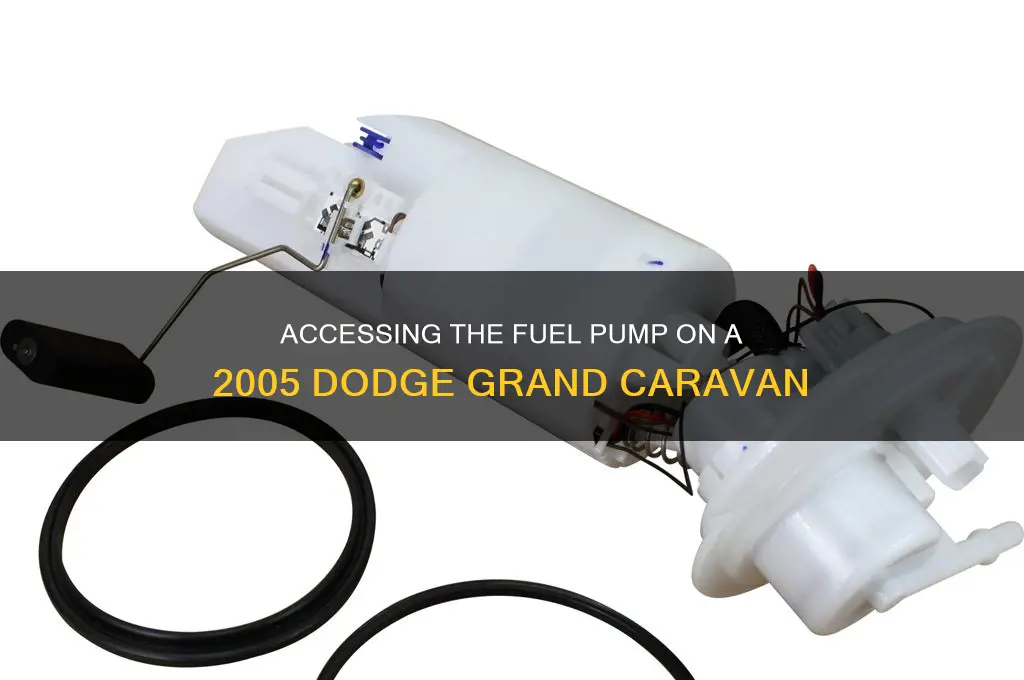

Accessing the fuel pump on a 2005 Dodge Grand Caravan requires careful steps due to its location within the fuel tank. Start by ensuring the vehicle is on a flat surface, the engine is off, and the fuel tank is as empty as possible to minimize hazards. Disconnect the negative battery terminal to prevent electrical accidents. Locate the fuel tank access panel, typically found beneath the rear passenger side of the vehicle. Remove the necessary trim or underbody panels to expose the fuel tank. Use appropriate tools to lower the tank slightly or access the fuel pump module from underneath. Always refer to the vehicle’s service manual for specific instructions and safety precautions.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2005 Dodge Grand Caravan |
| Fuel Pump Location | Inside the fuel tank |
| Access Method | Remove the fuel tank or access through the service panel (if available) |
| Tools Required | Jack, Jack Stands, Wrenches, Screwdrivers, Pliers, Safety Equipment |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Steps to Access | 1. Relieve fuel pressure 2. Raise vehicle and secure on stands 3. Remove fuel tank straps 4. Lower tank to access pump |
| Alternative Access (if applicable) | Some models may have a service panel above the fuel tank for easier access |
| Difficulty Level | Moderate to Difficult (requires mechanical skill and proper tools) |
| Estimated Time | 2-4 hours depending on experience and tools |
| Common Issues | Fuel tank rust, difficult access due to vehicle age |
| Replacement Parts | Fuel pump module, fuel tank (if damaged) |
| Recommended Resources | Repair manuals, online tutorials, professional mechanic assistance |
Explore related products
What You'll Learn
Locate fuel tank access panel under rear passenger seat
The 2005 Dodge Grand Caravan’s fuel pump is nestled within the fuel tank, but accessing it doesn’t require dropping the entire tank. Instead, Dodge engineers designed a convenient access panel located under the rear passenger seat. This panel provides a direct route to the fuel pump, saving time and effort compared to more invasive methods. Understanding its location and how to reach it is the first step in any fuel pump-related repair or maintenance.
To locate the fuel tank access panel, start by removing the rear passenger seat. This involves lifting the seat cushion and unbolting the seat base from the floor. Once the seat is out, you’ll notice a rectangular panel on the floor of the vehicle, typically covered by a carpeted mat or trim piece. This panel is secured by a series of screws or clips, depending on the trim level of your Grand Caravan. Removing these fasteners will expose the access panel, which is your gateway to the fuel pump.
Removing the access panel requires caution to avoid damaging surrounding components. Use a trim removal tool or a flathead screwdriver to gently pry the panel loose, taking care not to scratch the interior. Beneath the panel, you’ll find a protective cover over the fuel pump assembly. This cover is usually sealed to prevent fuel vapors from escaping, so ensure you have the proper tools to remove it without causing leaks. Once the cover is off, the fuel pump module will be visible, allowing you to proceed with inspection, replacement, or repair.
While this method is straightforward, it’s essential to prioritize safety. Always work in a well-ventilated area and ensure the vehicle is on a level surface with the engine off. Disconnect the battery to prevent accidental sparks, and use a fuel line disconnect tool if you need to relieve pressure in the system. If you’re replacing the fuel pump, consider replacing the fuel filter and strainer as well, as these components often wear out simultaneously. This approach not only ensures a thorough repair but also extends the life of your fuel system.
In summary, locating the fuel tank access panel under the rear passenger seat is a key step in accessing the fuel pump on a 2005 Dodge Grand Caravan. By carefully removing the seat, access panel, and protective cover, you can efficiently reach the fuel pump without extensive disassembly. This method combines convenience with safety, making it an ideal approach for both DIY enthusiasts and professional mechanics. With the right tools and precautions, you can tackle fuel pump issues confidently and effectively.
