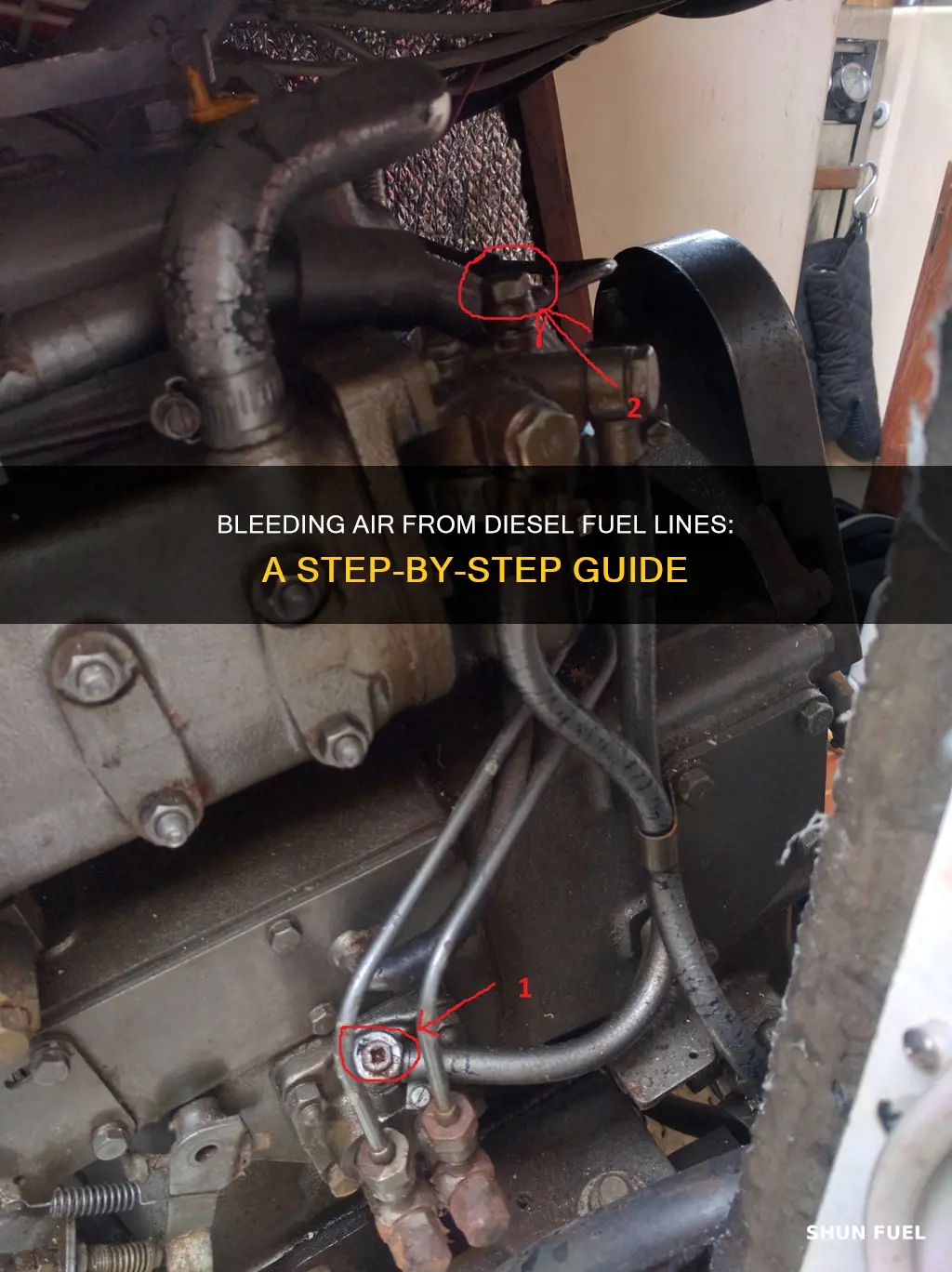

Bleeding air from a diesel fuel line is a common maintenance task for diesel engine owners. Air in the fuel system can cause issues with starting the engine and reduce its power. This can be caused by a variety of factors, such as running out of fuel, leaks in the fuel lines, or a fuel filter change. The process of bleeding air from a diesel fuel system involves several steps, including gathering the necessary tools, familiarizing oneself with the engine, working with the fuel filter, and bleeding air from the fuel injectors. It is important to exercise caution and follow safety guidelines when performing this task.
Explore related products
What You'll Learn
Identify how air entered the fuel system
Before attempting to bleed the air from the fuel system, it is important to identify how air entered the diesel fuel system in the first place. This is crucial to prevent air from re-entering the system after completing the bleeding process.
Firstly, it is important to understand the symptoms of air in the diesel fuel system. These symptoms include unstable idling, a decrease in engine power with increasing load, the appearance of black smoke from the exhaust pipe, and uneven engine operation at high speeds. Engine stalling or misfiring, reduced acceleration, and poor power output are also signs of air in the diesel fuel system.
Now, to identify the root cause of the issue, you should inspect your fuel system for any visible signs of air bubbles in the fuel line, which could indicate a leak or other issues. Inspect the fuel lines, connections, and components for any signs of wear, damage, or loose fittings. Any crack or gap can let air into the system, disrupting the flow. If there are no obvious signs, you can use a fuel pressure gauge to test the pressure in the fuel system. Low pressure may indicate the presence of air.
Some common causes of air entering the diesel fuel system include leaks in the fuel lines, air bubbles in the fuel, and faulty components such as a faulty gasket, a crack or cut in the fuel hose, or faulty seals in the fuel filter. Additionally, air can enter the system when replacing the fuel filter if the procedure is not carried out correctly or if the filter is contaminated or clogged.
Removing Old Fuel Lines: A Step-by-Step Guide
You may want to see also
Explore related products
Gather tools and materials
To start, gather the tools and materials needed for the job. This includes basic protective equipment, such as gloves and safety goggles, to ensure you are safe from any fuel spills or debris. You will also need a wrench or socket set to loosen the fuel line connections and injectors. If your fuel filter has a bleeder screw, you will need a screwdriver to open and close it. Additionally, you should have a container or rag nearby to catch any spilled fuel during the bleeding process.
If your vehicle has a manual lever, you will need to locate it. This lever is usually found on the lift pump, which may be part of the injector pump. If you cannot find a manual lever, your vehicle may have a hand priming pump lever instead. Check your operator's manual to confirm the location and type of pump lever in your vehicle.
In some cases, you may need to replace the fuel filter, especially if it is old or if that was the source of the air entering the system. If you plan to replace the fuel filter, make sure to purchase a new one that is compatible with your vehicle, along with any necessary gaskets and O-rings to ensure a tight seal.
Before beginning the bleeding process, it is important to identify the key components of your engine's diesel fuel system. Familiarize yourself with the fuel tank, fuel lines, fuel filter, and fuel injectors. Review the engine's fuel system layout and connections to ensure you understand how everything is interconnected.
Finally, if you encounter any difficulties or persistent issues during the bleeding process, it is recommended to consult a professional diesel mechanic or contact the vehicle manufacturer for further assistance. They can provide expert guidance and ensure that the job is completed safely and effectively.
Routing Fuel Lines: Engine Compartment Safety and Efficiency
You may want to see also
Explore related products
Familiarise yourself with the engine
Familiarising yourself with the engine is a crucial step in the process of bleeding air from a diesel fuel system. This step will help you identify the key components of the diesel fuel system and understand their functions, enabling you to work on the engine effectively and safely. Here is a detailed overview of the diesel engine and its components:
The diesel engine is a type of internal combustion engine (ICE) that relies on the compression of air and fuel to generate power. This process occurs within the cylinder, which is enclosed by the cylinder head and the piston, with the piston creating the bottom of the combustion chamber. The piston moves up and down in the cylinder during the engine's operation, compressing the air and fuel mixture, which is then ignited to produce power. This movement of the piston is converted into a rotational motion through the crankshaft, which is connected to the piston by the connecting rod. The crankshaft is a critical and intricate component, similar in motion to a bicycle, and it bears the weight of the piston. The crankcase surrounds and supports the crankshaft, directing excess oil to the oil pan.
Another essential component is the fuel injector, which sprays fuel into the cylinder in precise patterns and with precise timing. This fuel is supplied from the fuel tank, which is typically made of sheet metal and includes a fuel gauge and a drain plug. The fuel passes through a water separator to remove dirt and water, then through a feed pump, and finally, through a filter to ensure clean fuel reaches the injection pump and, ultimately, the injector nozzle. The camshaft plays a role in controlling the timing of valve openings and fuel injection, and its revolutions are set in motion by lobes on the shaft.
The engine also incorporates an oil cooler to maintain optimal oil temperature and prevent the formation of harmful oil films between moving parts. Additionally, an air cleaner, typically a filter with micron-sized pores, prevents dust from entering the cylinder bore, enhancing filtration. The turbocharger is another vital component that compresses air from the air filter, increasing the efficiency of the engine.
Understanding these components and their functions is essential for effectively bleeding air from the diesel fuel system and ensuring the engine's optimal performance.
Removing Fuel Lines: 2001 Cougar, Step-by-Step Guide
You may want to see also
Explore related products
Locate the fuel filter
The fuel filter is a crucial component of a diesel engine, responsible for ensuring that clean fuel is delivered to the injectors. When air enters the fuel system, it can cause operational issues, and in some cases, prevent the engine from starting altogether. To address this, it is essential to locate and access the fuel filter to initiate the bleeding process. Here is a detailed guide to help you find the fuel filter:
First and foremost, it is important to understand the purpose of the fuel filter and its role in the diesel engine. The fuel filter is designed to remove impurities and contaminants from the fuel before it reaches the injectors. By doing so, it helps protect the engine from damage and ensures optimal performance.
Now, let's move on to locating the fuel filter in your diesel engine. The fuel filter is typically located between the fuel tank and the engine. It is usually positioned along the fuel line, which carries fuel from the tank to the engine. In some vehicles, the fuel filter may be found near the fuel pump, while in others, it could be placed closer to the engine block. Refer to your vehicle's manual for specific locations.
To access the fuel filter, you may need to raise the vehicle and safely position it on jack stands. Once you have secured the vehicle, look for the fuel tank and follow the fuel lines connected to it. These lines will lead you directly to the fuel filter. In some cases, the fuel filter may be located within a housing or a protective cover, which you can carefully remove to access the filter.
It is worth noting that the fuel filter's location can vary depending on the vehicle's make, model, and year. Modern vehicles may have the fuel filter positioned inside the fuel tank, while in older models, it may be mounted on the frame rail or even inside the engine compartment. Again, consulting your vehicle's manual or seeking guidance from a mechanic can provide specific details for your vehicle.
Once you have located and accessed the fuel filter, you can proceed with the bleeding process to remove trapped air from the diesel fuel system. Remember to exercise caution and follow safety guidelines throughout this process.
How Air Enters Diesel Fuel Lines
You may want to see also
Explore related products
Bleed air from the fuel injectors
Bleeding air from the fuel injectors is a crucial maintenance task for diesel engines. Air in the fuel system can cause issues with starting the engine, reduce engine power, or even lead to a complete inability to start the engine. Therefore, it is essential to know how to bleed air from the fuel injectors. Here is a detailed guide to help you with this process:
Firstly, identify the root cause of air entering the fuel system. Common causes include running out of fuel, leaks in fuel lines, or a recent fuel filter change. Understanding the cause will help prevent air from re-entering the system after bleeding. Additionally, consider replacing the fuel filter if it is old or nearing the end of its lifespan.
Next, gather the necessary tools and materials, and familiarize yourself with the engine. Identify key components such as the fuel tank, fuel lines, fuel filter, and fuel injectors. Review the engine's fuel system layout and connections. Ensure you exercise caution and adhere to safety guidelines throughout the process.
Now, let's begin the bleeding process:
- Turn off the engine and remove the ignition key from the cylinder.
- Locate the fuel injectors, typically connected to the fuel lines.
- Use a wrench or socket set to loosen the fuel line connection at the injectors. Be careful not to twist or bind the steel lines.
- Crank the engine for a few seconds to allow air to escape. Be cautious of potential fuel spills.
- Continue cranking the engine until you observe a steady flow of fuel without air bubbles.
- Tighten the fuel line connection once the air has escaped and fuel flows smoothly.
Finally, dispose of any spilled fuel properly, clean up, and return your tools to their designated locations. If issues persist, consult a professional diesel mechanic or the manufacturer for further guidance.
By following these steps, you can effectively bleed air from the fuel injectors, ensuring optimal fuel delivery and engine performance.
Best Places to Buy Heat Shields for Fuel Lines
You may want to see also
Frequently asked questions
If there is air in your diesel engine's fuel system, it can cause a delay in starting the engine, reduce the engine's power, or cause the inability to start the engine.
Air can enter the fuel system by running out of fuel, from leaks in the fuel lines, or after changing the fuel filter.
You will need a wrench or socket set, and possibly two wrenches to prevent the binding or twisting of steel lines. You may also need a hand priming pump lever, which most equipment has.
First, turn off the fuel valve and clean the outside of the filter housing. Install a new filter element and new gaskets with some oil on the gasket. Fill a spin-on filter with clean fuel and open the bleed plug on the filter closest to the fuel tank. Open the fuel supply valve, and pump fuel through the system using the hand priming pump lever. Continue pumping until only fuel, without air bubbles, escapes from the bleed plug holes. Tighten the bleeder screw securely.
