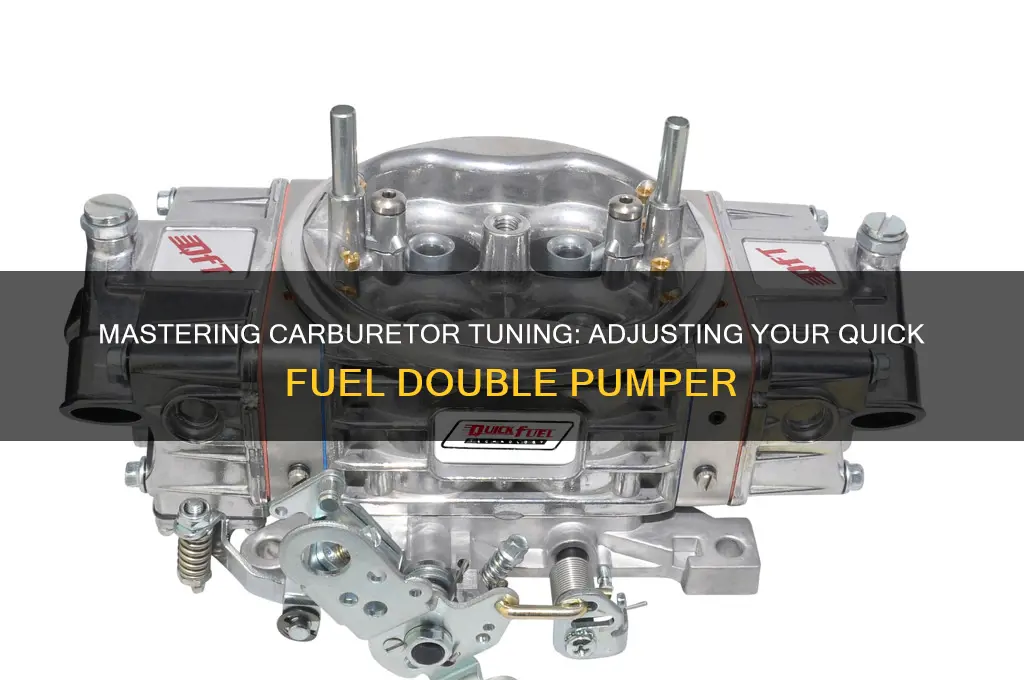

Adjusting a Quick Fuel Double Pumper carburetor is a critical process for optimizing engine performance, ensuring proper fuel delivery, and maintaining efficiency. This high-performance carburetor, designed for racing and high-horsepower applications, requires precise tuning to balance air and fuel mixtures under varying load and RPM conditions. Key adjustments include setting the float level to ensure consistent fuel supply, fine-tuning the primary and secondary throttle plates for smooth transitions, and calibrating the power valve to manage fuel enrichment during high-load situations. Additionally, synchronizing the metering blocks and adjusting the idle mixture screws are essential for achieving a stable idle and responsive throttle. Proper adjustment not only enhances power output but also prevents issues like flooding, lean conditions, or rough idling, making it a vital skill for anyone working with this carburetor.
| Characteristics | Values |
|---|---|
| Adjustment Tool Required | Flathead screwdriver or appropriate tool for adjusting screws. |
| Primary Fuel Bowl Adjustment | Turn the screw on the primary fuel bowl clockwise to increase fuel pressure, counterclockwise to decrease. |
| Secondary Fuel Bowl Adjustment | Adjust the screw on the secondary fuel bowl similarly to the primary, but focus on high RPM performance. |
| Float Level Adjustment | Bend the float arm gently to achieve the correct fuel level (typically 1/4" below the fuel bowl lid). |
| Pressure Setting | Use a fuel pressure gauge to set the pressure according to the carburetor's specifications (usually 6-7 PSI). |
| Idle Mixture Adjustment | Turn the idle mixture screws in or out to achieve a smooth idle (1.5 to 2 turns out from fully seated is common). |
| Power Valve Adjustment | Ensure the power valve is functioning correctly; replace if necessary for optimal mid-range performance. |
| Accelerator Pump Adjustment | Adjust the accelerator pump cam or stroke for proper off-idle and throttle response. |
| Fuel Inlet Fitting | Ensure the fuel inlet fitting is tight and secure to prevent leaks. |
| Gasket and Seal Check | Inspect and replace gaskets and seals if damaged or leaking. |
| Testing and Fine-Tuning | Start the engine and test under various loads, adjusting as needed for optimal performance. |
| Safety Precautions | Work in a well-ventilated area, avoid open flames, and disconnect the battery during adjustments. |
| Recommended Fuel Type | Use high-octane fuel (91+ octane) for best performance with a double pumper carburetor. |
| Maintenance Frequency | Regularly inspect and adjust every 5,000 miles or as needed based on performance. |
Explore related products
What You'll Learn
Carburetor Removal and Preparation
Removing a carburetor, particularly a Quick Fuel double pumper, requires precision and care to avoid damage to both the carburetor and the engine. Begin by disconnecting the fuel lines, ensuring the engine is cool to prevent fuel spills or fires. Loosen the carburetor mounting nuts and carefully lift the unit, taking note of its orientation for reinstallation. Inspect the gasket for wear or damage; replacing it now can prevent future leaks. This step is critical because a compromised gasket can lead to air leaks, disrupting the fuel-air mixture and engine performance.
Preparation of the carburetor for adjustment or maintenance involves cleaning and inspection. Use a carburetor cleaner to remove dirt, varnish, and debris from the jets, passages, and throttle plates. Pay special attention to the power valves and float bowls, as clogs in these areas can cause erratic fuel delivery. After cleaning, reassemble the carburetor, ensuring all components are securely tightened but not over-torqued, as this can warp the housing. A clean carburetor not only ensures accurate adjustments but also prolongs the life of the unit.
Comparing the removal process of a double pumper to that of a single-barrel carburetor highlights the complexity of the former. Double pumpers have additional circuits and linkages, requiring careful disconnection of the throttle and choke linkages. Unlike simpler carburetors, the double pumper’s secondary throttle plates must be aligned precisely during reinstallation to ensure smooth operation. This comparison underscores the need for methodical work and a systematic approach when dealing with high-performance carburetors.
Persuasively, investing time in proper removal and preparation pays dividends in performance and reliability. Skipping steps like gasket replacement or thorough cleaning can lead to issues such as rough idling, poor acceleration, or even engine damage. For instance, a clogged jet can cause a lean condition, overheating the engine and potentially warping pistons. By treating this phase as a foundation for subsequent adjustments, enthusiasts ensure their Quick Fuel double pumper operates at its peak, delivering the power and responsiveness expected from such a high-performance component.
2006 Ford Mustang Fuel Pump Count: What You Need to Know
You may want to see also
Explore related products
Float Level Adjustment Steps
The float level in a Quick Fuel double pumper carburetor directly influences fuel delivery, affecting engine performance and drivability. Proper adjustment ensures the fuel bowl maintains the correct volume, preventing flooding or starvation. This process requires precision and an understanding of the carburetor’s mechanics.
Steps for Float Level Adjustment:
- Access the Float Bowl: Begin by removing the fuel bowl cover, typically secured with four screws. Clean the area to avoid debris entering the carburetor.
- Inspect the Float: Gently lift the float assembly and observe its condition. Ensure it moves freely and isn’t damaged or fuel-logged.
- Adjust the Float Height: Use a feeler gauge to measure the gap between the float hinge and the needle valve. Quick Fuel recommends a setting of 0.032” to 0.036” for most applications. Bend the float tang carefully to achieve the desired height.
- Test and Reassemble: Reinstall the float assembly and fuel bowl cover. Turn the fuel pump on and check for leaks. Start the engine and verify fuel level stability under idle and throttle conditions.
Cautions During Adjustment:
Over-bending the float tang can lead to permanent damage, requiring replacement. Avoid excessive force and make incremental adjustments. Fuel vapors are flammable, so work in a well-ventilated area away from open flames.
Practical Tips for Success:
Use a bright light to inspect the float bowl for proper fuel level. If the fuel reaches the sight hole, the float is too high. For stubborn adjustments, consider using a float height adjustment tool for precision. Always refer to the Quick Fuel manual for model-specific guidelines.
Mastering float level adjustment is critical for optimizing carburetor performance. With patience and attention to detail, you can ensure your Quick Fuel double pumper delivers consistent fuel flow, enhancing engine reliability and efficiency.
Dodge Challenger Fuel Pump Count: Understanding Your Muscle Car's System
You may want to see also
Explore related products
Metering Block Setup Guide
The metering block is the heart of your Quick Fuel double pumper carburetor, controlling fuel delivery under varying engine loads. Proper setup ensures optimal performance, preventing issues like flooding, lean conditions, or rough idling. This guide walks you through the process, focusing on precision and practicality.
Understanding Metering Block Basics
Analyzing the metering block's function reveals its role as a fuel restriction system. It uses jets and power valves to regulate fuel flow based on manifold vacuum. Primary jets handle low-speed and cruising operation, while secondary jets take over during high-speed and high-load conditions. The power valve, activated by manifold vacuum, enriches the mixture under load. Understanding these components is crucial for effective adjustments.
Adjustment Steps: A Methodical Approach
- Baseline Setting: Start with manufacturer-recommended jet sizes and power valve settings for your engine's displacement and application. This provides a starting point for fine-tuning.
- Primary Jet Adjustment: Begin with the engine at operating temperature. If idling is rough or the engine stalls, adjust the primary jets. Richen the mixture by increasing jet size in increments of 2-3 sizes until a smooth idle is achieved. Conversely, lean out the mixture by decreasing jet size if the engine runs too rich, evidenced by black smoke or fouled spark plugs.
- Secondary Jet Tuning: With the engine under load (e.g., during acceleration), observe for hesitation or flat spots. If present, increase secondary jet size in 2-3 size increments to enrich the mixture. Decrease jet size if the engine feels overly rich under load.
- Power Valve Calibration: The power valve opens at a specific manifold vacuum, typically around 6-8 inches Hg. Use a vacuum gauge to verify this opening point. If the valve opens too early, causing a rich condition, replace it with a higher vacuum-rated valve. If it opens too late, causing a lean condition, use a lower vacuum-rated valve.
Fine-Tuning and Considerations
Remember, carburetor tuning is an iterative process. Small adjustments yield significant results. Keep a log of changes and their effects for future reference. Factors like altitude, fuel quality, and engine modifications influence carburetor settings. Consult a carburetor specialist for complex setups or persistent issues.
A properly configured metering block unlocks the full potential of your Quick Fuel double pumper. By understanding its principles and following a systematic approach, you can achieve optimal fuel delivery, ensuring smooth operation, maximum power, and fuel efficiency. Remember, patience and attention to detail are key to mastering this crucial aspect of carburetor tuning.
E31 850i Fuel Pump Count: Understanding Its Fuel System Setup
You may want to see also
Explore related products
Power Valve Tuning Tips
The power valve in a Quick Fuel double pumper carburetor is a critical component that adjusts fuel delivery under load, ensuring optimal performance across varying engine demands. Proper tuning of this valve can significantly enhance throttle response, fuel efficiency, and overall engine power. To begin, locate the power valve, typically found on the carburetor’s metering block, and identify its current setting. This valve operates based on manifold vacuum, opening at a specific pressure to allow additional fuel into the system. Understanding this mechanism is the first step toward effective tuning.
One practical tip for power valve tuning is to start by assessing your engine’s vacuum curve under load. Use a vacuum gauge to measure manifold pressure at different throttle positions. For most street applications, the power valve should open between 6 and 8 inches of mercury (Hg). If your engine operates at higher vacuum levels, consider installing a power valve with a higher opening pressure, such as 8 or 10 inches Hg, to delay fuel enrichment and improve part-throttle efficiency. Conversely, racing applications may benefit from a lower opening pressure, around 4 inches Hg, to maximize fuel delivery under high-load conditions.
When adjusting the power valve, follow a systematic approach. Begin by running the engine at idle and gradually increase throttle while monitoring air/fuel ratios with a wideband oxygen sensor. If the mixture leans out under load, the power valve may be opening too late or not providing enough fuel. In this case, install a power valve with a lower opening pressure or check for restrictions in the power valve circuit. Conversely, if the mixture is excessively rich, the valve may be opening too early, requiring a higher pressure setting. Always make incremental changes and retest to avoid over-compensating.
A common mistake in power valve tuning is neglecting the interaction between the power valve and other carburetor circuits. For instance, the power valve works in conjunction with the jets and metering blocks to deliver fuel. If you adjust the power valve without considering jet sizing, you may create imbalances that affect performance. Ensure all components are harmonized by referencing a carburetor tuning guide or consulting a professional. Additionally, keep in mind that altitude and ambient conditions can influence power valve operation, so adjustments may need to be fine-tuned for specific environments.
Finally, regular maintenance is key to preserving power valve performance. Over time, debris or varnish can accumulate in the power valve circuit, causing erratic operation. Periodically disassemble the carburetor, clean the power valve and its passages with carburetor cleaner, and inspect for wear or damage. Reassemble with new gaskets and seals to ensure a tight fit. By combining precise tuning with routine care, you can maximize the efficiency and responsiveness of your Quick Fuel double pumper carburetor, ensuring it delivers consistent power across all driving conditions.
Understanding the Fuel Pump System in Mercedes-Benz Vehicles
You may want to see also
Explore related products
Final Calibration and Testing
After the initial adjustments, the final calibration and testing phase is where precision meets performance. This stage ensures your Quick Fuel double pumper carburetor operates optimally under all driving conditions, from idle to full throttle. Begin by verifying the float level, which should be set between 1-1/16 and 1-1/8 inches from the top of the float bowl to the top of the float. Use a drill bit or a calibrated measuring tool for accuracy, and adjust the float arm if necessary. A float level that’s too high or too low can lead to flooding or lean conditions, respectively, so precision here is critical.
Next, focus on the idle circuit. With the engine at operating temperature, adjust the idle mixture screws until the engine runs smoothly at idle. Turn each screw in or out in equal increments, testing the engine’s response after each adjustment. The goal is to achieve the highest stable idle speed without causing a rough or erratic sound. A common mistake is over-tightening the screws, which can strip the threads or damage the carburetor. Aim for 1.5 to 2 turns out as a starting point, then fine-tune based on engine feedback.
The power valve is another critical component in this phase. Ensure it’s calibrated to open at the correct vacuum level, typically around 6 to 8 inches of mercury. This can be tested using a vacuum gauge connected to the carburetor’s vacuum source. If the valve opens too early or too late, adjust the spring tension or replace the valve if necessary. Proper power valve operation ensures smooth transitions from low to high throttle and prevents flat spots during acceleration.
Finally, conduct a road test to evaluate real-world performance. Pay attention to throttle response, acceleration, and fuel efficiency. If the engine hesitates under load, check the secondary throttle plates for proper synchronization with the primaries. Use a throttle position sensor or a visual inspection to ensure both sets of plates open uniformly. Similarly, monitor for backfiring or popping, which may indicate a lean condition or improper jetting. Adjust the secondary metering blocks or jets as needed, typically in 2- to 4-size increments, until the issue resolves.
In conclusion, final calibration and testing is a meticulous process that bridges the gap between theoretical adjustments and practical performance. By focusing on float levels, idle circuits, power valves, and real-world testing, you ensure the Quick Fuel double pumper delivers consistent power and efficiency. Patience and attention to detail are key—small adjustments can yield significant improvements, transforming a good carburetor into a great one.
Secure Your Vehicle: Easy Steps to Install a Fuel Pump Kill Switch
You may want to see also
Frequently asked questions
To adjust the float level, remove the sight plug on the carburetor’s side, then loosen the float hinge screw. Bend the float tab gently to raise or lower the float until fuel reaches the bottom edge of the sight plug hole. Tighten the hinge screw and recheck the level.
Start by turning the idle mixture screws in until they lightly seat, then back them out 1.5 to 2 turns. Fine-tune by adjusting each screw in or out while monitoring engine idle quality. Aim for the smoothest idle without causing a rich or lean condition.
Ensure the throttle plates are fully closed at idle and fully open at wide-open throttle. Adjust the linkage by loosening the lock nuts on the linkage arms and moving them to achieve proper throttle plate travel. Tighten the lock nuts once the correct position is set.
With the primary throttle plates fully open, adjust the secondary throttle plate screws to ensure the secondary plates open smoothly and fully. Use a screwdriver to turn the screws in or out until the plates align properly with the primaries at wide-open throttle.
