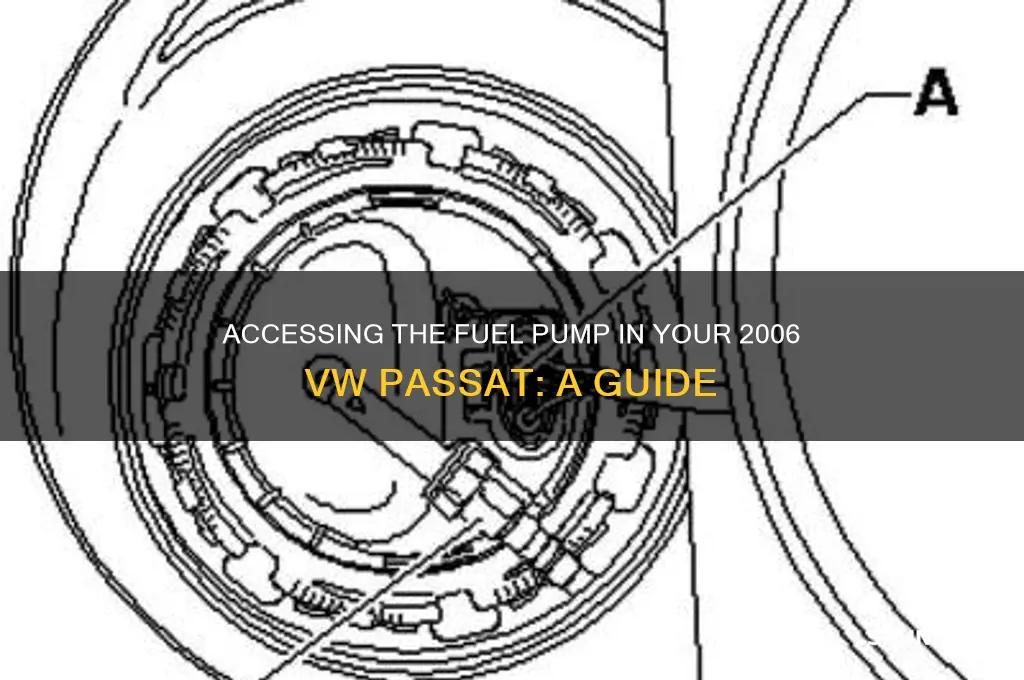

Accessing the fuel pump on a 2006 Volkswagen Passat requires careful steps due to its location within the fuel tank. To begin, ensure the vehicle is parked on a flat surface, the engine is off, and the fuel tank is as empty as possible to minimize hazards. Start by relieving the fuel system pressure using the appropriate valve, typically located near the engine bay. Next, disconnect the negative battery terminal to prevent electrical accidents. Locate the fuel tank access panel, usually found beneath the rear seat or trunk area, and remove any interior components obstructing access. Once exposed, carefully disconnect the electrical connectors and fuel lines attached to the pump, taking note of their positions for reassembly. Finally, remove the retaining bolts or straps securing the fuel pump assembly to the tank, allowing it to be carefully lifted out for inspection or replacement. Always follow safety guidelines and consult a repair manual for model-specific details.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2006 Volkswagen Passat |
| Fuel Pump Location | Inside the fuel tank |
| Access Method | Requires removing the rear seat and fuel pump access panel |
| Tools Required | Screwdriver, socket set, trim removal tool |
| Safety Precautions | Relieve fuel system pressure, disconnect battery |
| Steps to Access | 1. Remove rear seat cushion 2. Locate and remove access panel 3. Disconnect electrical connectors and fuel lines 4. Remove fuel pump assembly |
| Difficulty Level | Moderate to Difficult (requires mechanical knowledge) |
| Estimated Time | 1-2 hours |
| Common Issues | Fuel pump failure, clogged fuel filter |
| Replacement Parts | Fuel pump assembly, fuel filter |
| Diagnostic Codes | P0087, P0088 (low fuel pressure) |
| Maintenance Tips | Regularly check fuel filter and pump for wear |
