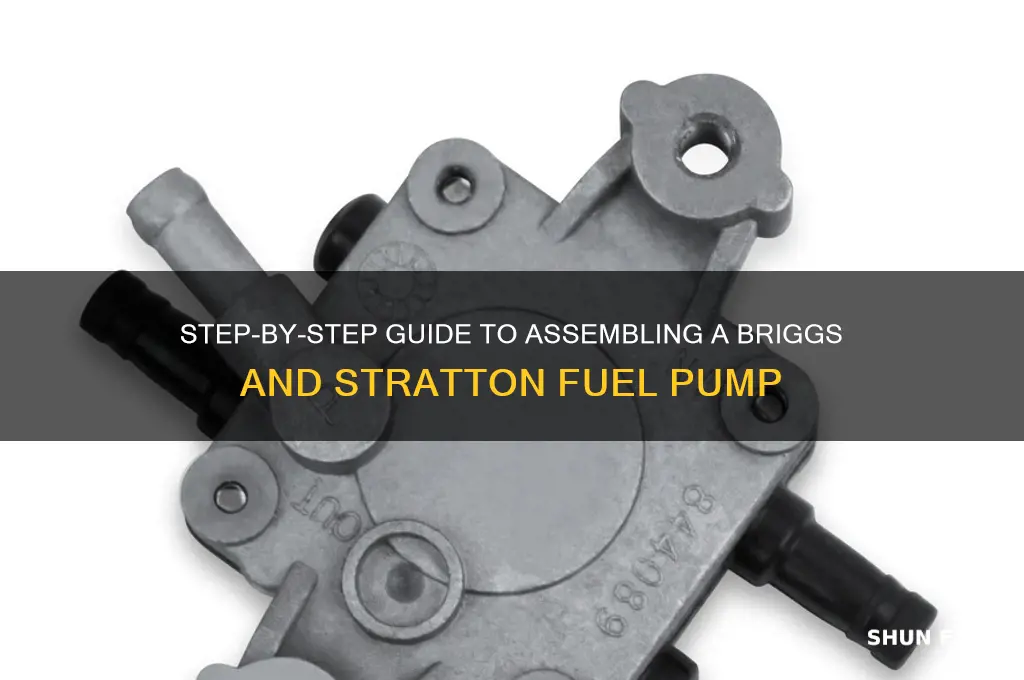

Assembling a Briggs and Stratton fuel pump is a straightforward process that ensures your small engine operates efficiently by delivering the correct amount of fuel to the carburetor. Before beginning, gather the necessary tools, such as a wrench, screwdriver, and new fuel pump components if replacing any parts. Start by disconnecting the fuel lines and removing the old pump, taking care to clean the mounting area to prevent debris from entering the system. Next, align the new pump with the engine block, securing it with the provided bolts and ensuring a tight seal. Reconnect the fuel lines, making sure they are properly seated to avoid leaks, and then prime the pump by manually operating the primer bulb if applicable. Finally, test the engine to confirm the fuel pump is functioning correctly, allowing for smooth and reliable operation of your Briggs and Stratton-powered equipment.
| Characteristics | Values |
|---|---|
| Fuel Pump Type | Briggs & Stratton Inline Fuel Pump (Commonly used in small engines) |
| Tools Required | Screwdriver, Pliers, Wrench, Needle-Nose Pliers, Safety Gloves |
| Assembly Steps | 1. Disconnect fuel lines and electrical connections. 2. Remove mounting screws/bolts. 3. Inspect diaphragm and valves for damage. 4. Replace faulty components if necessary. 5. Reinstall pump with new gaskets. 6. Reconnect fuel lines and electrical connections. 7. Test for leaks and proper operation. |
| Diaphragm Material | Typically rubber or synthetic material resistant to fuel degradation |
| Valve Type | Check valves (one-way valves) to ensure proper fuel flow direction |
| Mounting Method | Bolted or screwed onto the engine block or fuel tank |
| Fuel Line Compatibility | Compatible with standard 1/4" or 5/16" fuel lines |
| Pressure Rating | Typically operates at 3-5 PSI (Pounds per Square Inch) |
| Maintenance Interval | Inspect and clean every 50-100 hours of engine operation |
| Common Issues | Leaks, diaphragm failure, clogged valves, improper fuel flow |
| Replacement Parts | Diaphragm kit, valves, gaskets, fuel lines |
| Safety Precautions | Work in a well-ventilated area, avoid open flames, and wear protective gear |
| Compatibility | Fits Briggs & Stratton engines with inline fuel pump systems |
| Troubleshooting Tips | Check for air leaks, ensure proper fuel flow, inspect for cracked components |
| Warranty | Typically 90 days to 1 year, depending on the manufacturer |
| Manual Availability | Available online or in the engine's user manual |
Explore related products
What You'll Learn
- Gather Tools and Parts: Collect required tools, replacement parts, and safety gear before starting assembly
- Disassemble Old Pump: Carefully remove the old fuel pump, noting its connections and orientation
- Install New Pump: Position the new pump, ensuring proper alignment and secure mounting
- Connect Fuel Lines: Attach fuel lines to the pump, checking for leaks and secure fittings
- Test and Adjust: Prime the pump, start the engine, and verify smooth fuel delivery
Gather Tools and Parts: Collect required tools, replacement parts, and safety gear before starting assembly
Before diving into the assembly of a Briggs and Stratton fuel pump, it’s crucial to ensure you have everything at hand. This step is often overlooked but can save hours of frustration. Start by verifying the specific model of your fuel pump, as Briggs and Stratton designs vary, and each requires unique components. Refer to the user manual or online resources to identify the exact tools, replacement parts, and safety gear needed. Common tools include wrenches, screwdrivers, and pliers, while replacement parts might involve diaphragms, gaskets, or valves. Safety gear, such as gloves and safety goggles, is non-negotiable to protect against fuel spills or debris.
Analyzing the assembly process reveals that preparation is half the battle. For instance, a missing gasket can halt progress entirely, forcing a trip to the hardware store mid-project. To avoid this, lay out all items on a clean, well-lit workspace before beginning. Group tools by function and parts by assembly stage to streamline the process. For example, keep fasteners like screws and bolts in small containers labeled by size or type. This organization not only speeds up assembly but also minimizes the risk of losing small components in the chaos of disassembly and reassembly.
Persuasively, investing time in gathering the right tools and parts is a proactive measure that pays dividends. Consider the scenario where you’re halfway through the assembly, only to realize the diaphragm is cracked or the wrong size. Such oversights can turn a straightforward task into a costly and time-consuming ordeal. By double-checking compatibility and condition of parts beforehand, you ensure a seamless experience. Additionally, having safety gear ready prevents accidents, such as chemical burns from fuel or eye injuries from flying debris, which are common risks in mechanical work.
Comparatively, assembling a Briggs and Stratton fuel pump without proper preparation is akin to navigating a maze blindfolded. Those who skip this step often face delays, errors, or even damage to the pump. In contrast, a well-prepared assembler can complete the task efficiently, with minimal stress. For example, using a magnetic parts tray can prevent small screws from rolling away, a simple yet effective tip that seasoned mechanics swear by. Similarly, keeping a parts diagram nearby allows for quick reference, ensuring each component is placed correctly the first time.
Descriptively, imagine your workspace as a command center, equipped with every tool and part within arm’s reach. The air smells faintly of metal and oil, and the sound of organized movement—tools clicking into place, parts being carefully handled—fills the space. This setup not only fosters confidence but also transforms a potentially daunting task into a methodical, even enjoyable, process. By treating this step as a ritual, you set the stage for success, turning assembly into a demonstration of precision and preparedness rather than a test of patience.
