Accessing the fuel pump on a 2006 Chrysler 300C requires careful steps due to its location within the fuel tank. Begin by ensuring the vehicle is on a flat surface, the engine is off, and the fuel tank is as empty as possible to minimize hazards. Disconnect the negative battery terminal to prevent electrical accidents. Locate the fuel tank access panel, typically found in the trunk, and remove any carpet or trim covering it. Use appropriate tools to disconnect the fuel lines and electrical connectors attached to the pump assembly. Lower the fuel tank slightly or remove it entirely, depending on your comfort level and available space, to access and replace the fuel pump unit. Always refer to a repair manual for specific details and safety precautions.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2006 Chrysler 300C |
| Fuel Pump Location | Inside the fuel tank |
| Access Method | Remove the rear seat and fuel pump access panel |
| Tools Required | Screwdriver, socket set, trim removal tool, jack, jack stands |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Steps to Access | 1. Relieve fuel pressure 2. Disconnect battery 3. Remove rear seat 4. Remove access panel 5. Disconnect electrical connectors 6. Remove fuel pump assembly |
| Difficulty Level | Moderate to Difficult (requires mechanical skill) |
| Estimated Time | 1-2 hours |
| Common Issues | Fuel pump failure, clogged fuel filter, electrical connection problems |
| Replacement Parts | Fuel pump module, fuel filter, O-rings, electrical connectors |
| Diagnostic Tips | Check fuel pressure, listen for pump operation, inspect fuses and relays |
| Professional Assistance | Recommended if unsure or lacking tools/experience |
Explore related products
What You'll Learn
- Locate Fuel Pump: Identify the fuel pump location in the fuel tank of the 2006 Chrysler 300C
- Safety Precautions: Ensure vehicle is on level ground, ignition off, and fuel system depressurized
- Remove Rear Seat: Access the fuel pump by removing the rear seat cushion
- Disconnect Battery: Prevent electrical accidents by disconnecting the negative battery terminal
- Access Fuel Pump Module: Remove the fuel pump module cover and inspect for damage or leaks
Locate Fuel Pump: Identify the fuel pump location in the fuel tank of the 2006 Chrysler 300C

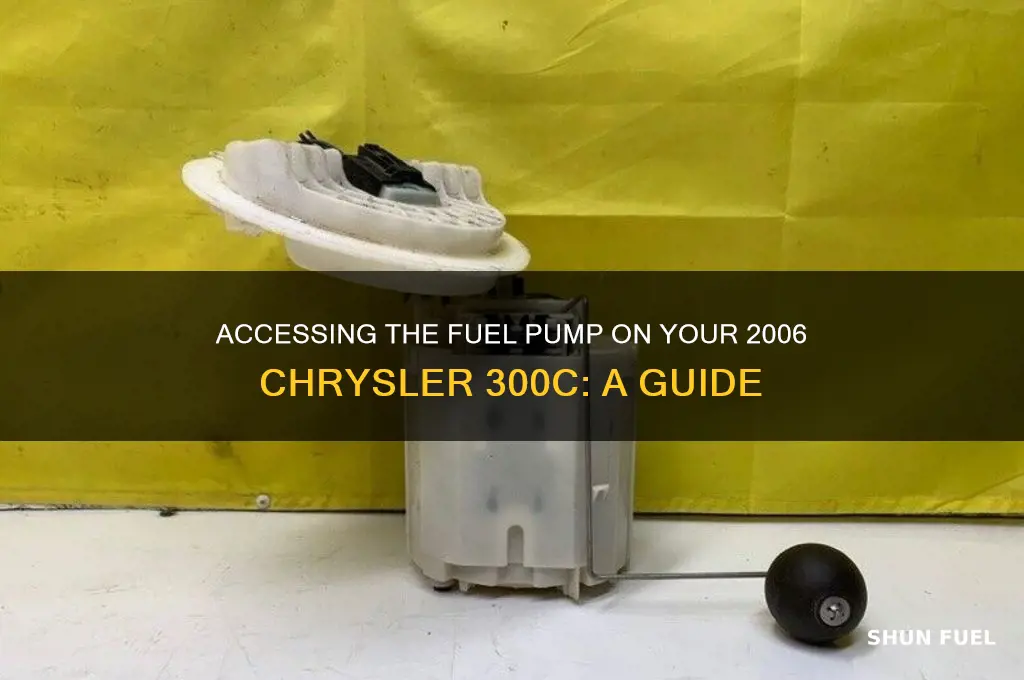

The fuel pump in a 2006 Chrysler 300C is nestled within the fuel tank, a design choice that protects the pump from external damage and maintains fuel system integrity. This location, while secure, complicates access for maintenance or replacement. Understanding its exact position is crucial before attempting any work, as it dictates the tools and procedures required.
To identify the fuel pump’s location, start by locating the fuel tank itself. In the 2006 Chrysler 300C, the fuel tank sits beneath the rear seat area, extending toward the rear axle. The fuel pump module, which includes the pump, sender unit, and float, is mounted at the top of the tank. This module is accessible through a service port in the tank, typically sealed with a locking ring or bolts.
Accessing the fuel pump requires removing the rear seat and the fuel tank access panel. Begin by disconnecting the negative battery terminal to prevent electrical hazards. Next, relieve the fuel system pressure using the Schrader valve located near the fuel rail. Remove the rear seat by pressing the release tabs and lifting it out. Beneath the seat, you’ll find the access panel secured by screws or clips. Remove the panel to expose the fuel pump module.
Once the access panel is removed, you’ll see the fuel pump module’s locking ring or bolts. Use the appropriate tool to loosen and remove the ring, taking care not to damage the tank seal. With the ring removed, the fuel pump module can be carefully lifted out of the tank. Note that the module may still contain fuel, so have a drain pan ready to catch any spillage.
Identifying the fuel pump’s location in the 2006 Chrysler 300C is straightforward once you understand the vehicle’s layout. By following these steps, you can confidently locate and access the fuel pump for inspection, repair, or replacement. Always prioritize safety by working in a well-ventilated area and avoiding open flames or sparks during the process.
Voltage Testing Mercruiser Fuel Boost Pump: Essential Steps and Tips
You may want to see also
Explore related products
Safety Precautions: Ensure vehicle is on level ground, ignition off, and fuel system depressurized
Before attempting to access the fuel pump on a 2006 Chrysler 300C, it's crucial to prioritize safety by ensuring the vehicle is on level ground. This simple yet often overlooked step prevents the car from shifting unexpectedly, which could lead to accidents or damage during the repair process. Park the vehicle on a flat, stable surface, and engage the parking brake to secure it in place. Uneven ground can cause tools or components to roll away or create instability while working underneath the car.
With the vehicle securely positioned, the next critical step is to turn off the ignition. This action eliminates the risk of electrical surges or accidental starts, which could ignite fuel vapors or cause injury. Allow the engine to cool for at least 30 minutes before proceeding, as residual heat can still pose a hazard. Disconnecting the negative battery terminal provides an additional layer of safety by cutting power to the entire system, ensuring no electrical components activate unexpectedly.
Depressurizing the fuel system is perhaps the most vital safety precaution when accessing the fuel pump. The 2006 Chrysler 300C’s fuel system operates under high pressure, and failure to relieve this pressure can result in fuel spraying or leaking, increasing the risk of fire or chemical burns. To depressurize the system, locate the fuel pump relay in the fuse box and remove it. Then, start the engine and let it run until it stalls, effectively releasing pressure from the lines. Always wear safety goggles and nitrile gloves during this process to protect against fuel exposure.
Once these precautions are in place, verify the system is depressurized by attempting to start the engine again. If it fails to start and no fuel injector noise is heard, the system is safe to work on. However, if in doubt, use a fuel pressure gauge to confirm the pressure has been fully relieved. Skipping this step or rushing through it can lead to catastrophic consequences, making it a non-negotiable part of the process. By meticulously following these safety measures, you create a secure environment to access and service the fuel pump effectively.
1987 Ford F150 Fuel Pump Count: A Comprehensive Guide
You may want to see also
Explore related products
Remove Rear Seat: Access the fuel pump by removing the rear seat cushion
The rear seat cushion of a 2006 Chrysler 300C serves as a discreet gateway to the fuel pump, a critical component often tucked away for safety and space optimization. Unlike front-wheel-drive vehicles where the fuel pump is typically under the back seat, the 300C’s rear-wheel-drive layout places it in the rear of the vehicle, necessitating this unique access method. Removing the rear seat cushion is a straightforward process, but it requires precision to avoid damaging interior components or misplacing hardware.
Steps to Remove the Rear Seat Cushion:
- Locate the Retention Clips: The rear seat cushion is secured by plastic clips along the front edge. Insert a flathead screwdriver or trim removal tool between the cushion and seat base, gently prying upward to disengage the clips. Work from one side to the other to prevent uneven stress.
- Lift and Tilt the Cushion: Once the clips release, lift the rear edge of the cushion upward, then tilt it forward to clear the seatback. Be cautious not to snag the fabric or leather on sharp edges.
- Set Aside Safely: Place the cushion in a clean area, ensuring it doesn’t come into contact with dirt or grease. If the cushion is heavy or awkward to handle, enlist assistance to avoid strain.
Cautions and Practical Tips: Avoid using excessive force when prying the clips, as this can break them or damage the seat frame. If the cushion feels stuck, double-check for hidden screws or additional fasteners, though the 2006 300C typically relies solely on clips. For vehicles with rear seat heaters, disconnect the wiring harness before fully removing the cushion to prevent damage.
Takeaway: Removing the rear seat cushion is the first step in accessing the fuel pump on a 2006 Chrysler 300C. This process combines simplicity with the need for care, ensuring you gain access without compromising the vehicle’s interior integrity. With the cushion removed, the fuel pump module becomes visible, allowing for diagnostics, replacement, or maintenance as needed.
Understanding Fuel Pump Wiring: How Many Wires Are Required?
You may want to see also
Explore related products
Disconnect Battery: Prevent electrical accidents by disconnecting the negative battery terminal
Before diving into the intricacies of accessing the fuel pump on a 2006 Chrysler 300C, it's crucial to address a fundamental safety measure: disconnecting the battery. This step is often overlooked but is essential to prevent electrical accidents that can occur when working on a vehicle’s fuel system. The negative battery terminal acts as the grounding point for the vehicle’s electrical system, and removing it breaks the circuit, minimizing the risk of sparks or shorts that could ignite fuel vapors.
Analytically, the process is straightforward yet critical. Start by locating the battery, typically found in the engine bay. Identify the negative terminal, marked with a "-" symbol or a black cable. Use a wrench or socket to loosen the nut securing the cable, then carefully pull the cable away from the terminal. Ensure the cable is secured and cannot accidentally touch the terminal while you work. This simple action eliminates the potential for electrical current to flow through the fuel pump circuit, reducing the risk of fire or injury.
From a practical standpoint, this step is not just a precaution—it’s a necessity. Fuel systems operate under pressure and contain flammable vapors, making them inherently dangerous. Even a small spark from a faulty connection or accidental short can have catastrophic consequences. By disconnecting the battery, you create a fail-safe environment, allowing you to proceed with confidence. This is especially important when accessing the fuel pump, as the process often involves working near fuel lines and the tank itself.
Comparatively, skipping this step is akin to ignoring safety gear when handling hazardous materials. Just as gloves and goggles protect you from chemicals, disconnecting the battery safeguards against electrical hazards. It’s a small effort with a significant impact, ensuring that your focus remains on the task at hand rather than potential dangers. Additionally, this practice aligns with industry standards and manufacturer recommendations, reinforcing its importance in automotive repair and maintenance.
In conclusion, disconnecting the negative battery terminal is a non-negotiable step when accessing the fuel pump on a 2006 Chrysler 300C. It’s a simple, effective measure that prioritizes safety without adding complexity to the process. By incorporating this practice into your workflow, you not only protect yourself but also ensure a smoother, more secure repair experience. Remember, in automotive work, safety isn’t just a guideline—it’s a cornerstone.
1997 Chevy CK1500 Fuel Pump Count: What You Need to Know
You may want to see also
Explore related products
Access Fuel Pump Module: Remove the fuel pump module cover and inspect for damage or leaks
The fuel pump module on a 2006 Chrysler 300C is a critical component nestled within the fuel tank, responsible for delivering fuel to the engine under the correct pressure. Accessing it begins with removing the fuel pump module cover, a task that requires precision and care to avoid damaging the unit or compromising the fuel system’s integrity. This step is not just about gaining access; it’s an opportunity to inspect the module for damage, leaks, or wear that could lead to performance issues or safety hazards.
Steps to Remove the Fuel Pump Module Cover:
- Depressurize the Fuel System: Before starting, relieve the fuel system pressure using the Schrader valve located on the fuel rail. This prevents fuel from spraying when the tank is opened.
- Disconnect the Battery: Safety first—disconnect the negative battery terminal to eliminate the risk of sparks near fuel vapors.
- Locate the Access Panel: The fuel pump module is accessed through a panel in the trunk, typically under the spare tire or trunk lining. Remove the necessary panels or carpeting to expose the access point.
- Remove the Retaining Bolts: Use a socket wrench to remove the bolts securing the fuel pump module cover. Keep track of the bolts and their positions for reassembly.
- Lift the Cover Carefully: Gently pry or lift the cover off, being mindful of any attached wiring harnesses or fuel lines. Avoid forcing it to prevent damage.
Inspection Tips:
Once the cover is removed, inspect the module for cracks, corrosion, or fuel residue that could indicate a leak. Check the fuel pump and sender unit for signs of wear or malfunction. Look for debris or contaminants in the tank that might clog the filter or pump. If the module appears damaged or compromised, replacement is often the safest course of action.
Cautions and Practical Tips:
Work in a well-ventilated area and avoid open flames or sparks. Use a flashlight to clearly see inside the tank, and consider wearing safety goggles to protect against fuel splashes. If you’re unsure about any step, consult a repair manual or seek professional assistance. Reassembly should be done carefully, ensuring all components are securely fastened and connections are tight.
By following these steps and conducting a thorough inspection, you can ensure the fuel pump module operates reliably, maintaining the performance and safety of your 2006 Chrysler 300C.
Fuel Pump Lifespan: How Often Do They Typically Fail?
You may want to see also
Frequently asked questions
The fuel pump on a 2006 Chrysler 300C is located inside the fuel tank, which is situated at the rear of the vehicle, underneath the rear seat area.
To access the fuel pump, you'll need to remove the rear seat cushion and the access panel to the fuel pump module. First, disconnect the negative battery cable, then remove the rear seat bottom by pulling up on the front edge and disconnecting any wiring harnesses. Next, remove the access panel screws and set the panel aside to expose the fuel pump module.
You'll need basic hand tools such as screwdrivers, sockets, and wrenches. Always disconnect the battery before working on the fuel system to prevent accidental ignition. Relieve the fuel system pressure and work in a well-ventilated area, avoiding open flames or sparks. It's also recommended to use safety goggles and gloves to protect against fuel spills.
