Accessing the fuel pump on a 2001 Mazda 626 LX requires careful steps due to its location within the fuel tank. Begin by ensuring the vehicle is on a flat surface, the engine is off, and the fuel tank is as empty as possible to minimize hazards. Disconnect the negative battery terminal to prevent electrical accidents. Locate the fuel tank access panel, typically found beneath the rear seat, by removing the seat cushions or folding down the rear seat. Once exposed, disconnect the electrical connectors and fuel lines attached to the pump assembly. Use appropriate tools to lower the fuel pump module from the tank, taking care not to damage any components. Always refer to the vehicle’s service manual for specific instructions and safety precautions.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2001 Mazda 626 LX |
| Fuel Pump Location | Inside the fuel tank |
| Access Method | Remove the rear seat and fuel pump access panel |
| Tools Required | Screwdriver, socket set, wrench, pry tool |
| Safety Precautions | Relieve fuel system pressure, disconnect battery |
| Steps to Access | 1. Relieve fuel pressure 2. Disconnect battery 3. Remove rear seat 4. Remove access panel 5. Disconnect electrical connectors and fuel lines 6. Remove fuel pump assembly |
| Difficulty Level | Moderate to Difficult |
| Estimated Time | 1-2 hours |
| Common Issues | Fuel pump failure, clogged fuel filter |
| Replacement Parts | Fuel pump assembly, fuel filter |
| Additional Notes | Ensure proper sealing of fuel lines and connectors after reassembly |
Explore related products
What You'll Learn
- Locate Fuel Pump: Find the fuel pump under the rear seat in the vehicle's cabin
- Remove Rear Seat: Lift seat latches and detach the rear seat cushion
- Access Fuel Pump Cover: Remove the access panel to expose the fuel pump assembly
- Disconnect Electrical Connectors: Unplug the wiring harness connected to the fuel pump unit
- Release Fuel Lines: Use tools to safely disconnect the fuel lines from the pump
Locate Fuel Pump: Find the fuel pump under the rear seat in the vehicle's cabin
The fuel pump in a 2001 Mazda 626 LX is not located in the fuel tank, as is common in many vehicles, but rather under the rear seat within the vehicle's cabin. This unique placement simplifies access for maintenance or replacement, eliminating the need to drop the fuel tank. To locate the fuel pump, start by removing the rear seat. This involves lifting the seat cushion and unsnapping or unbolting the seat back. Once removed, you’ll find a metal access panel covering the fuel pump assembly. This design choice by Mazda prioritizes convenience, though it does raise questions about potential safety concerns in the event of a cabin fire.
Removing the access panel requires a basic socket set and a flathead screwdriver. The panel is typically secured with four to six bolts, which should be removed carefully to avoid stripping the threads. Beneath the panel, you’ll see the fuel pump module, which includes the pump, sending unit, and electrical connections. Before proceeding with any work, disconnect the negative battery terminal to prevent accidental activation of the fuel pump. Additionally, relieve fuel system pressure by locating the Schrader valve on the fuel rail and pressing the valve stem with a rag to release any residual pressure.
Comparing this setup to other vehicles, the in-cabin fuel pump location in the 2001 Mazda 626 LX is both a blessing and a curse. On one hand, it allows for quicker diagnostics and repairs, especially in DIY scenarios. On the other hand, it places a critical component in a less protected area, potentially exposing it to cabin contaminants or damage from accidents. For example, a spilled drink or debris under the seat could interfere with the pump’s operation over time. Regular inspection of the area around the fuel pump is therefore recommended to ensure no foreign objects are present.
When replacing the fuel pump, ensure you purchase a compatible unit specific to the 2001 Mazda 626 LX. Aftermarket kits often include a new pump, strainer, and gasket, but verify the part number to avoid compatibility issues. Installation is straightforward: disconnect the electrical connector and fuel lines, remove the retaining bolts, and lift out the old pump. Insert the new pump, reattach the connections, and secure it with the bolts. Reassemble the access panel and rear seat, ensuring all components are tightly fastened. Test the system by turning the ignition to the "on" position (without starting the engine) to listen for the fuel pump priming cycle, confirming proper operation.
In conclusion, accessing the fuel pump in a 2001 Mazda 626 LX is a surprisingly simple task thanks to its in-cabin location. While this design offers convenience, it also demands vigilance to protect the pump from cabin-related hazards. By following these steps and precautions, you can efficiently locate, inspect, or replace the fuel pump, ensuring your vehicle’s fuel system remains reliable. Always prioritize safety by working in a well-ventilated area and avoiding open flames or sparks during the process.
Electric Auto Fuel Pump: Determining the Right Amp Requirements
You may want to see also
Explore related products
$29.99 $39.99
Remove Rear Seat: Lift seat latches and detach the rear seat cushion
Accessing the fuel pump in a 2001 Mazda 626 LX often requires removing the rear seat to reach the fuel pump access panel. This process is straightforward but demands attention to detail to avoid damaging components. Begin by locating the seat latches, typically found at the front edge of the seat cushion. These latches are designed to release with a firm upward lift, allowing the cushion to detach from the vehicle’s frame. Ensure you apply even pressure to both latches simultaneously to prevent misalignment or strain on the mechanism.
Once the latches are disengaged, carefully pull the rear seat cushion toward you and lift it out of the vehicle. Note that the cushion may be heavier than expected due to its internal structure, so use both hands for stability. Inspect the underside of the cushion for any wiring or connectors that might be attached, though in most cases, the 2001 Mazda 626 LX rear seat is free of electrical components. If you encounter any obstructions, address them methodically to avoid forcing the cushion, which could cause damage.
With the cushion removed, you’ll expose the fuel pump access panel, typically located beneath the seat well. This panel is secured by screws or clips, depending on the model. Before proceeding further, ensure the vehicle is on a level surface and the ignition is off to prevent accidents. Removing the rear seat not only provides access to the fuel pump but also offers an opportunity to inspect the area for signs of fuel leaks, corrosion, or debris that could affect performance.
For those unfamiliar with automotive interiors, it’s helpful to note that Mazda designed the 626 LX for accessibility, making this step manageable even for novice DIYers. However, if you encounter resistance or unusual difficulty, double-check the latch mechanism for debris or misalignment. A flashlight can aid in visualizing the latches and ensuring they are fully disengaged. Completing this step correctly sets the stage for the next phase of fuel pump access, ensuring a smooth and efficient repair process.
Fuel Pump Replacement Cost: What to Expect for Your Vehicle
You may want to see also
Explore related products

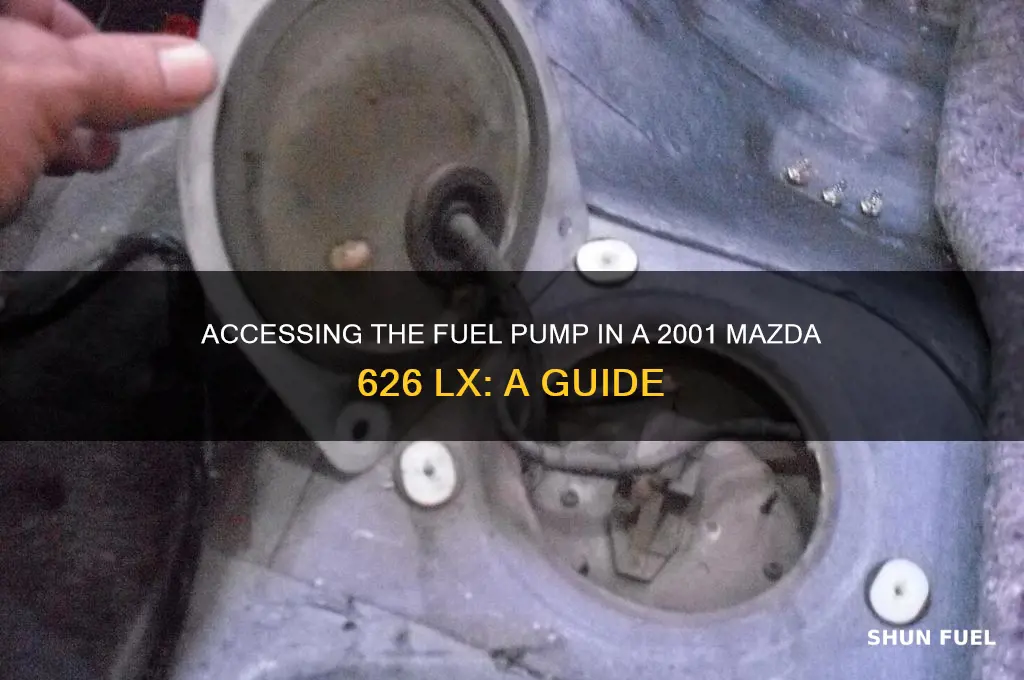

Access Fuel Pump Cover: Remove the access panel to expose the fuel pump assembly
The fuel pump in a 2001 Mazda 626 LX is nestled beneath the rear seat, a design choice that balances accessibility with protection. To begin the process of accessing the fuel pump cover, start by locating the rear seat assembly. The rear seat bottom is secured by two retaining bolts, typically found at the front edge of the seat cushion. Using a socket wrench with the appropriate size socket, remove these bolts and set them aside, ensuring you keep track of their placement for reassembly. Once the bolts are removed, gently lift the rear seat bottom to expose the access panel underneath.
Removing the access panel is a straightforward yet delicate task. The panel is often held in place by a combination of clips and screws. Begin by identifying any visible screws around the perimeter of the panel and remove them using a Phillips-head screwdriver. Next, carefully pry the panel loose from its clips using a flathead screwdriver or a trim removal tool. Work your way around the edges of the panel, applying gentle pressure to avoid damaging the clips or the surrounding interior. Once all screws are removed and the clips are disengaged, lift the access panel away to reveal the fuel pump assembly.
Exposing the fuel pump assembly is a critical step that requires precision and care. With the access panel removed, you’ll notice the fuel pump is housed within a protective cover, often secured by additional screws or clips. Inspect the cover to determine the fastening method. If screws are present, remove them using the appropriate screwdriver or socket wrench. If clips are used, carefully disengage them with a trim tool, ensuring you don’t force or bend the cover. Once the cover is unsecured, lift it away to fully expose the fuel pump assembly, allowing you to proceed with inspection, maintenance, or replacement as needed.
A practical tip to streamline this process is to prepare a workspace with good lighting and organize your tools beforehand. Keep a tray or container handy for storing screws and clips to prevent loss. Additionally, consider taking photos at each stage of disassembly to aid in reassembly. This methodical approach not only ensures efficiency but also minimizes the risk of damage to your vehicle’s interior components. By following these steps, you’ll gain direct access to the fuel pump assembly, enabling you to address any issues with confidence and precision.
Fuel Pump Replacement Time: What to Expect During the Process
You may want to see also
Explore related products
Disconnect Electrical Connectors: Unplug the wiring harness connected to the fuel pump unit
The electrical connectors linking your 2001 Mazda 626 LX's fuel pump are more than just wires—they're the lifeline transmitting power and signals essential for fuel delivery. Before unplugging the wiring harness, pause to inspect the connectors for corrosion, fraying, or damage. These signs can indicate underlying issues that may require repair or replacement, ensuring your fuel system operates reliably post-installation.
To safely disconnect the wiring harness, start by locating the fuel pump access panel beneath the rear seat. Remove the panel by pressing the retaining clips or unscrewing the bolts, depending on your model. Once exposed, identify the wiring harness connected to the fuel pump unit—typically a multi-pin connector secured with a locking tab or clip. Gently depress the tab and pull the connector straight out, avoiding sideways force that could damage the pins. If the connector feels stuck, verify the tab is fully disengaged before applying additional pressure.
A common oversight during this step is neglecting to label or photograph the wiring harness orientation. While the connector is often keyed to prevent incorrect reinstallation, documenting its position can save time and prevent confusion during reassembly. Additionally, use dielectric grease on the terminals post-cleaning to inhibit future corrosion, especially in humid climates.
Compare this process to other vehicle models, and you’ll notice the 2001 Mazda 626 LX’s design prioritizes accessibility. Unlike some vehicles that bury the fuel pump under layers of interior components, Mazda’s layout allows for quicker disconnection of the wiring harness. However, this convenience doesn’t eliminate the need for precision—rushing this step risks damaging the connector, leading to costly repairs or diagnostic headaches.
In conclusion, disconnecting the electrical connectors on your 2001 Mazda 626 LX’s fuel pump is a straightforward yet critical task. By inspecting for damage, using proper technique, and documenting your steps, you ensure a smooth process that safeguards both your vehicle’s performance and your peace of mind. Treat this step as the foundation for a successful fuel pump replacement or maintenance project.
Fuel Pump Count in a 2001 Chevy Tahoe Explained
You may want to see also
Explore related products
Release Fuel Lines: Use tools to safely disconnect the fuel lines from the pump
Disconnecting the fuel lines from the pump on a 2001 Mazda 626 LX requires precision and caution to avoid spills, leaks, or damage. Begin by relieving the fuel system pressure using the Schrader valve located near the fuel rail. Attach a pressure gauge and open the valve to release residual pressure, ensuring a safer working environment. This step is critical because pressurized fuel can spray unexpectedly, posing fire or injury risks.
Next, identify the fuel lines connected to the pump—typically an inlet and outlet line secured with quick-disconnect fittings. These fittings often require specialized tools, such as fuel line disconnect tools or pliers, to release the locking mechanism. Position the tool firmly around the fitting and depress the collar while pulling the line away from the pump. Avoid twisting or forcing the lines, as this can damage the fittings or lines. If the lines are stubborn, inspect for debris or corrosion and clean as needed.
A comparative analysis of tools reveals that fuel line disconnect tools are more effective than pliers, as they are designed to fit the specific diameter of the fittings without causing damage. Pliers, while versatile, may leave marks or weaken the lines over time. Additionally, using a catch pan or cloth to contain any residual fuel during disconnection minimizes environmental hazards and simplifies cleanup.
Instructively, always work in a well-ventilated area and avoid open flames or sparks. Wear safety goggles and nitrile gloves to protect against fuel exposure, which can irritate skin and eyes. After disconnecting the lines, cap or plug them immediately to prevent fuel evaporation and contamination. This meticulous approach ensures the fuel system remains intact and functional during reassembly.
Finally, inspect the disconnected lines for signs of wear, cracks, or leaks. If damage is detected, replace the lines before proceeding. This proactive step not only ensures the repair’s longevity but also enhances the vehicle’s safety and performance. By following these detailed steps, you can confidently release the fuel lines from the pump, setting the stage for successful fuel pump replacement or maintenance.
Understanding the Fuel Pump System in a 1990 Ford F150
You may want to see also
Frequently asked questions
The fuel pump in a 2001 Mazda 626 LX is located inside the fuel tank, which is situated beneath the rear seat area of the vehicle.
To access the fuel pump, start by relieving the fuel system pressure, then remove the rear seat cushion and the fuel pump access panel. Disconnect the electrical connectors and fuel lines before lowering the pump assembly from the tank.
You’ll need basic hand tools such as wrenches, screwdrivers, a fuel line disconnect tool, and possibly a specialty tool to lock the fuel pump retaining ring during removal and installation.
Yes, always work in a well-ventilated area, relieve fuel system pressure before starting, disconnect the battery to prevent accidental sparks, and avoid smoking or open flames near the fuel tank.
