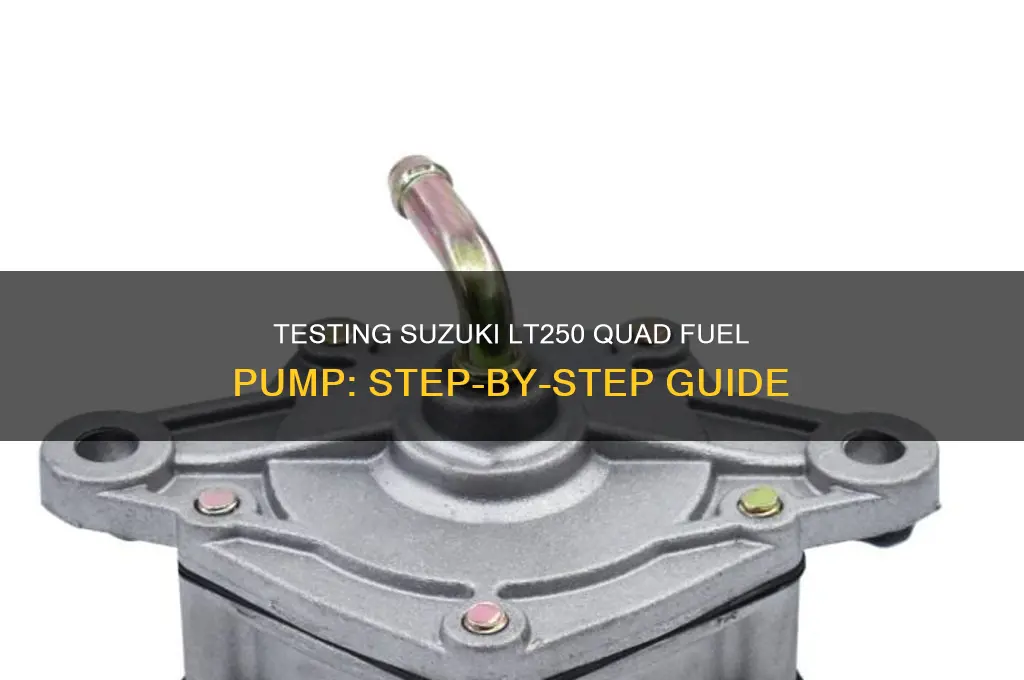

Testing the fuel pump on a Suzuki LT250 quad requires a systematic approach to ensure accurate diagnosis and functionality. Begin by verifying the fuel pump’s electrical connections and fuses for any signs of damage or corrosion. Next, use a multimeter to check for power at the pump’s connector when the ignition is turned on. If power is present, disconnect the fuel line and place a container beneath the pump outlet to collect fuel while activating the pump. Observe the fuel flow; a healthy pump should deliver a steady stream. If no fuel is pumped or the flow is weak, the pump may be faulty and require replacement. Always consult the Suzuki LT250 service manual for specific testing procedures and safety guidelines.
| Characteristics | Values |
|---|---|
| Vehicle Model | Suzuki LT250 Quad (ATV) |
| Fuel Pump Type | Typically electric fuel pump |
| Testing Tools Required | Multimeter, fuel pressure gauge, jumper wires, battery or power source |
| Fuel Pump Location | Near the fuel tank or along the fuel line |
| Testing Steps | 1. Disconnect fuel pump connector 2. Check for power and ground 3. Measure resistance 4. Test for fuel pressure 5. Listen for pump operation |
| Expected Resistance Range | Typically 2-4 ohms (check service manual for exact specs) |
| Expected Fuel Pressure | 2-3 PSI (check service manual for exact specs) |
| Power Supply for Testing | 12V battery or vehicle’s power source |
| Common Symptoms of Failure | Engine not starting, stalling, lack of fuel delivery |
| Safety Precautions | Work in a well-ventilated area, disconnect battery, avoid sparks |
| Replacement Part | OEM or compatible fuel pump for Suzuki LT250 |
| Service Manual Reference | Refer to Suzuki LT250 service manual for detailed specifications |
Explore related products
What You'll Learn
Testing Fuel Pump Voltage
A faulty fuel pump can leave your Suzuki LT250 quad stranded, but testing the pump's voltage is a straightforward way to diagnose the issue. This process involves checking the electrical signal that powers the pump, ensuring it's receiving the correct amount of voltage to operate.
Before diving in, gather a multimeter, safety gloves, and a basic understanding of electrical systems.
Understanding Voltage Requirements
The Suzuki LT250's fuel pump typically requires 12 volts to function properly. This voltage is supplied by the bike's battery and regulated by the fuel pump relay. If the pump isn't receiving this voltage, it won't be able to draw fuel from the tank, leading to engine stalling or failure to start.
It's crucial to consult your LT250's service manual for the exact voltage specifications, as slight variations may exist depending on the model year.
Testing Procedure: A Step-by-Step Guide
- Safety First: Ensure the quad is turned off and the key is removed. Disconnect the negative battery terminal to prevent accidental electrical shocks.
- Locate the Fuel Pump Connector: Trace the fuel lines from the tank to find the fuel pump. The connector will typically have two wires: one for power and one for ground.
- Set Multimeter: Set your multimeter to the DC voltage setting and adjust the range to a value higher than 12 volts.
- Connect Multimeter: Connect the multimeter's positive lead to the power wire of the fuel pump connector and the negative lead to a good ground point, such as the battery negative terminal.
- Activate the Pump: Turn the ignition key to the "on" position, but don't start the engine. This should activate the fuel pump relay, sending power to the pump.
- Read Voltage: Observe the multimeter reading. If it displays 12 volts (or the specified value from your manual), the pump is receiving the correct voltage. If the reading is significantly lower or zero, there's an issue with the power supply to the pump.
Interpreting Results and Next Steps
If the voltage reading is correct, the fuel pump itself may be faulty and require replacement. However, if the voltage is low or absent, further investigation is needed. Check the fuel pump relay, fuses, and wiring for damage or corrosion. A blown fuse or faulty relay can prevent power from reaching the pump.
If you're unsure about any part of the process, consult a qualified mechanic for assistance. Remember, working with electrical systems can be dangerous, so prioritize safety throughout the testing procedure.
