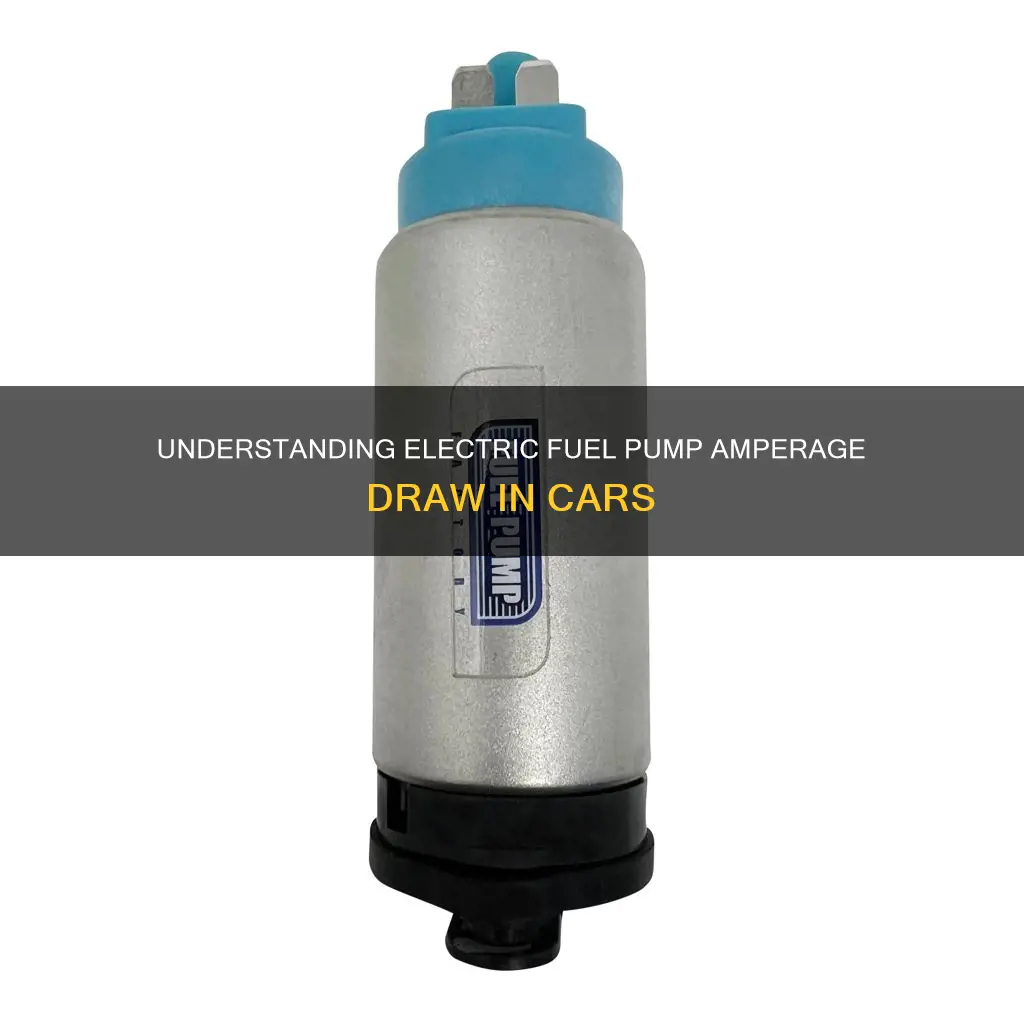

The amperage draw of a car's electric fuel pump is a crucial factor in ensuring the vehicle's optimal performance. A typical fuel pump draws between 5 and 7 amps, with higher-pressure pumps requiring more current than low-pressure alternatives. Various factors, such as voltage drop, resistance, and fuel pressure, can impact the amperage draw and overall functionality of the fuel pump. Understanding the normal amperage range and performing diagnostic tests are essential for identifying potential issues and ensuring the fuel pump's efficient operation.
| Characteristics | Values |
|---|---|
| Amperage level | 7 amps is common, but can vary from 5-9.4 amps |
| Voltage | 13.25 volts |
| Voltage drop | 4.0 volts |
| Current draw | 11 amps |
| Power draw | Less than 100 watts |
| Testing methods | Ammeter, inductive low-amp probe, DSO, voltage drop test |
Explore related products
What You'll Learn
Fuel pump amperage testing
Testing the amperage of a fuel pump is important to gain valuable insights into your fuel system's health and make informed decisions about repairs. Before replacing parts, it is important to follow a guide to accurately diagnose your fuel system.
Firstly, it is important to note that the engine and other electrical components must not be running while the fuel pump is being tested, as they may affect the available voltage to the pump, which will also affect its amperage readings.
There are several methods to test the amperage of a fuel pump. One method is to use a basic digital multimeter to test the voltage and amperage. This can be done by locating the pump's connector, which may be near the tank, access panel, or under the hood, and inserting an ammeter in series with the fuel pump load circuit at the fuse block and measuring the current while the fuel pump is running.
Another method is to use an inductive low-amp probe and a digital storage oscilloscope (DSO) to look inside an electric fuel pump and assess its health. The inductive low-amp probe can measure the relatively low current flow (usually below 10 amps) in a fuel pump circuit. The probe converts the signal into one that can be understood by the voltage-reading DSO.
A third method is to use a voltage drop test, which is effective in finding excessive resistance in high-amperage fuel pump circuits. With the right leads and back-probes, the test can be performed without any disassembly. The results will immediately indicate whether the connection is good or bad.
It is important to note that the fuel pump current draw may be within specifications during the test, but a voltage drop in the bypassed circuit could cause low current at the pump during normal vehicle operation. Ideally, the fuel pump should be powered on using the same wiring used during normal operation.
