The Fuel Tank's Digital Pulse: Monitoring Your Car's Fuel Levels

Monitoring the fuel tank in a car is a crucial aspect of vehicle maintenance and safety. Modern cars are equipped with sophisticated systems that track fuel levels, ensuring drivers are aware of their remaining fuel and preventing unexpected breakdowns. These systems use sensors to measure the volume of fuel in the tank and provide real-time data to the driver's dashboard. This information is vital for navigation, trip planning, and ensuring the vehicle's performance and longevity. Additionally, fuel monitoring systems can alert drivers to potential issues, such as low fuel pressure or contamination, allowing for timely maintenance and preventing costly repairs.

Fuel Level Sensors: Devices that measure the amount of fuel in the tank

Fuel level sensors are an essential component of modern vehicles, providing drivers with accurate information about the amount of fuel remaining in the tank. These sensors play a critical role in ensuring safe and efficient driving, as they help prevent fuel-related issues and enable drivers to plan their journeys effectively. The primary function of a fuel level sensor is to measure the volume of fuel in the tank and convert it into a readable signal that can be displayed on the vehicle's dashboard. This real-time data allows drivers to monitor their fuel levels, make informed decisions about refueling, and avoid running out of fuel unexpectedly.

There are several types of fuel level sensors commonly used in automobiles, each employing different technologies to measure fuel volume. One of the most prevalent types is the float-based sensor. This sensor consists of a float that moves up and down as the fuel level rises and falls. The float is connected to a mechanical linkage that activates an electrical switch, which sends a signal to the vehicle's engine control unit (ECU). The ECU then processes this information and displays the fuel level on the dashboard. Float-based sensors are known for their simplicity and reliability, making them a popular choice for many vehicle manufacturers.

Another type of fuel level sensor is the resistive sensor, which operates based on the principle of resistance change. This sensor typically consists of a wire or a thin film that is partially submerged in the fuel. As the fuel level rises, the sensor's resistance decreases, and vice versa. This change in resistance is measured and converted into a fuel level reading by the ECU. Resistive sensors are often used in combination with other technologies, such as capacitive sensors, to enhance accuracy and reliability.

Capacitive sensors are an advanced type of fuel level sensor that uses electromagnetic fields to measure fuel volume. These sensors create an electric field around the fuel tank and detect changes in this field as the fuel level varies. By measuring the capacitance of the fuel-air mixture, the sensor provides precise fuel level data. Capacitive sensors are highly accurate and can detect even small changes in fuel levels, making them ideal for modern vehicles with advanced fuel management systems.

In addition to these sensor types, some vehicles also utilize optical sensors, which use light to measure fuel levels. These sensors emit a beam of light into the fuel tank and measure the amount of light reflected back. The reflected light intensity is directly related to the fuel level, allowing the sensor to provide accurate readings. Optical sensors are known for their non-contact measurement, which reduces wear and tear and ensures long-lasting performance.

The integration of fuel level sensors into a vehicle's monitoring system is crucial for driver convenience and safety. When a fuel level sensor detects a low fuel level, it triggers a warning on the dashboard, alerting the driver to the need for refueling. This prevents the vehicle from running out of fuel, which could lead to strandedness on the road. Moreover, fuel level sensors contribute to efficient fuel management by helping drivers optimize their fuel usage and reduce unnecessary consumption.

Pressure Sensors: Monitor fuel pressure to ensure optimal performance

The monitoring of fuel tanks in vehicles is a critical aspect of ensuring optimal engine performance and safety. One of the key components in this monitoring system is the pressure sensor, which plays a vital role in maintaining the proper fuel pressure within the engine. These sensors are strategically placed within the fuel system to provide real-time data on the fuel pressure, allowing for precise control and management.

Pressure sensors are designed to detect and measure the fuel pressure inside the tank and the lines leading to the engine. When the engine is running, the fuel system operates under specific pressure requirements to ensure efficient combustion. The sensors continuously monitor this pressure, providing feedback to the engine control unit (ECU). This real-time data is crucial for the ECU to make informed decisions about fuel injection, ensuring the engine receives the correct amount of fuel at the right pressure.

In the event of a pressure drop or fluctuation, the pressure sensor immediately detects this change. This is particularly important as it can indicate potential issues such as a clogged fuel filter, a faulty fuel pump, or even a problem with the sensor itself. By quickly identifying these issues, the sensor enables prompt action to be taken, preventing potential engine damage or performance degradation. For instance, if the sensor detects a pressure drop, it can trigger a warning light on the dashboard, alerting the driver to a potential problem and prompting them to take the necessary steps, such as checking the fuel filter or seeking professional assistance.

The precision of pressure sensors is essential for maintaining engine performance and longevity. They ensure that the fuel is delivered at the optimal pressure, which is critical for efficient combustion. If the pressure is too low, the engine may not receive enough fuel, leading to poor performance and potential stalling. Conversely, excessive pressure can cause fuel to vaporize, leading to inefficient combustion and potential engine damage. Therefore, these sensors contribute to the overall reliability and efficiency of the vehicle's fuel system.

Modern vehicles often incorporate multiple pressure sensors to ensure comprehensive monitoring. These sensors are strategically placed at various points in the fuel system, including the fuel tank, lines, and injectors. By having multiple sensors, the system can cross-reference data, ensuring accuracy and providing a more comprehensive view of the fuel pressure dynamics. This redundancy also enhances the system's ability to detect and diagnose issues, further contributing to the overall safety and performance of the vehicle.

Temperature Compensation: Adjustments for temperature effects on fuel volume

Temperature compensation is a critical aspect of monitoring and managing fuel levels in a vehicle's fuel tank, especially in modern cars equipped with electronic fuel injection systems. The primary goal is to ensure accurate fuel volume measurements, regardless of the ambient temperature. This is essential for precise fuel management, efficient engine performance, and overall vehicle safety.

As temperature changes, the volume of fuel in the tank can vary due to the thermal expansion and contraction of the fuel itself. This phenomenon is particularly noticeable in vehicles with fuel tanks located outside the engine compartment, as these tanks are more exposed to external temperature fluctuations. For instance, in colder climates, fuel can expand, taking up more space, while in warmer conditions, it may contract, potentially leading to inaccurate fuel level readings.

To address this issue, temperature compensation mechanisms are employed. These systems use temperature sensors to monitor the ambient temperature and adjust the fuel volume measurements accordingly. When the temperature drops, the fuel volume is calculated to be higher, and vice versa. This adjustment ensures that the fuel level indicator in the car's dashboard provides an accurate representation of the fuel remaining in the tank.

The process involves sophisticated algorithms that account for the specific characteristics of the fuel and the vehicle's fuel system. These algorithms are designed to minimize the impact of temperature variations on fuel volume measurements. By continuously monitoring temperature changes and making real-time adjustments, the system ensures that the fuel gauge reads the correct fuel level, allowing drivers to make informed decisions about refueling.

Modern vehicles often utilize advanced temperature compensation techniques, such as using multiple temperature sensors at different locations or employing thermal models that simulate fuel behavior under various temperature conditions. These methods enhance the accuracy of fuel level monitoring, providing drivers with reliable information about their vehicle's fuel status, even in extreme weather conditions.

Fuel Sending Unit: Transmits data on fuel level to the car's computer

The fuel sending unit, also known as the fuel level sensor or float, is a crucial component in monitoring the fuel tank's contents in a vehicle. Its primary function is to provide accurate data on the fuel level to the car's computer system, ensuring efficient fuel management and optimal performance. This unit is typically located within the fuel tank and operates in conjunction with the fuel gauge and the engine control unit (ECU).

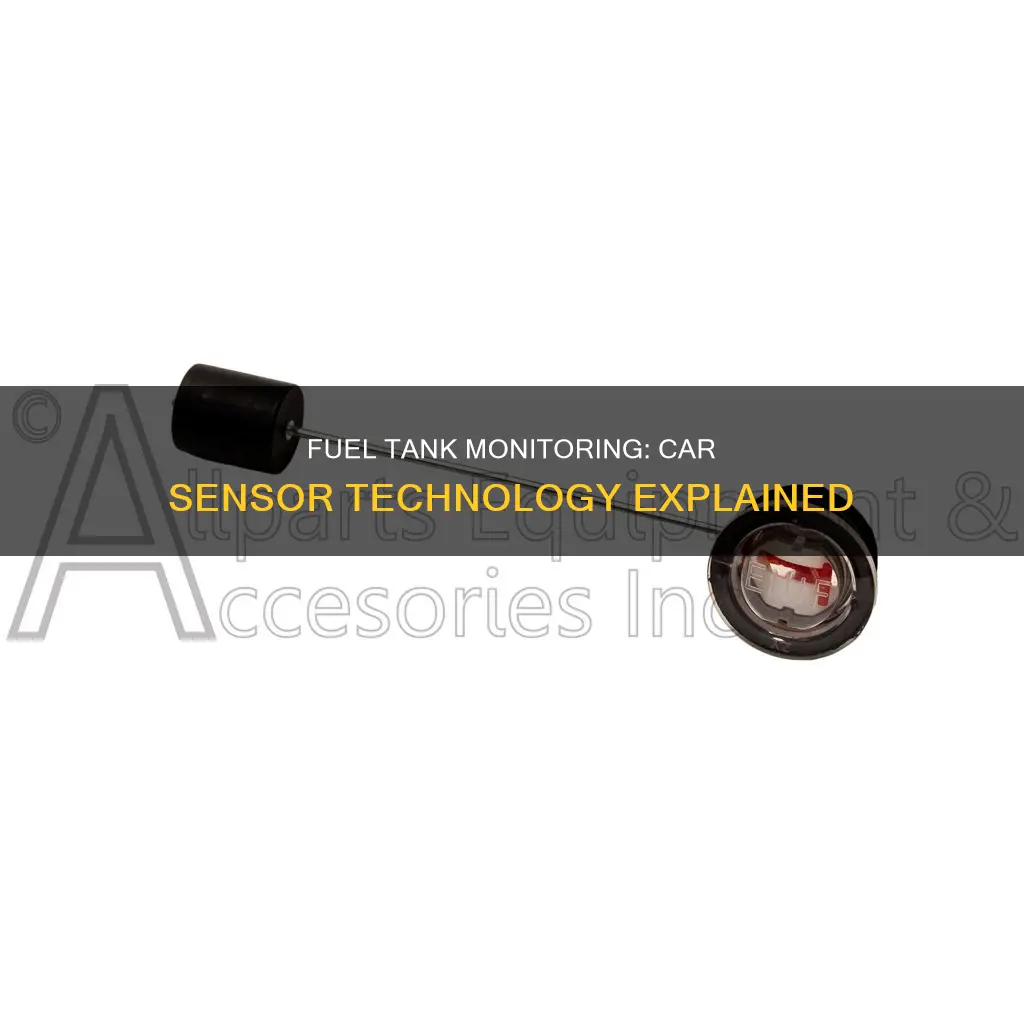

When the engine is running, the fuel sending unit is immersed in the fuel, and its position changes based on the fuel level. It consists of a float, which is a lightweight, buoyant object that rises and falls with the fuel level. This float is connected to a slender arm or rod, which in turn is linked to a variable resistor or potentiometer. As the fuel level drops or rises, the float moves accordingly, causing the resistor to change its resistance. This resistance variation is directly proportional to the fuel level, providing a precise measurement.

The data from the fuel sending unit is then transmitted to the car's computer system, usually through a wiring harness. The ECU uses this information to calculate the fuel level accurately and display it on the dashboard fuel gauge. This real-time data allows drivers to monitor their fuel consumption, estimate remaining fuel, and make informed decisions about refueling. Modern vehicles often employ advanced sensors and microprocessors to ensure accurate fuel level readings, even under varying driving conditions.

In addition to fuel level monitoring, the fuel sending unit also plays a role in preventing fuel starvation during engine operation. When the fuel level is low, the float's movement triggers a signal to the ECU, indicating that the fuel tank is nearly empty. This prompts the ECU to initiate actions such as limiting engine speed or providing visual and auditory warnings to the driver, ensuring safe and efficient fuel management.

Overall, the fuel sending unit is a critical component in the intricate process of monitoring and managing fuel levels in vehicles. Its ability to provide real-time data to the car's computer system ensures accurate fuel gauge readings and enables drivers to make informed decisions about fuel usage and maintenance. Regular maintenance and inspection of this unit are essential to guarantee reliable fuel monitoring and overall vehicle performance.

Warning Lights: Indicator lights for low fuel and fuel system issues

Modern vehicles are equipped with sophisticated systems to monitor and manage fuel levels, ensuring that drivers are aware of their vehicle's fuel status at all times. One crucial aspect of this monitoring process is the use of warning lights, which provide visual indicators to alert drivers about potential fuel-related issues. These warning lights are designed to be highly visible and attention-grabbing, ensuring that drivers take immediate action when necessary.

The primary warning light related to fuel monitoring is the 'Low Fuel' indicator. This light typically illuminates when the fuel level in the tank drops below a certain threshold, usually when there are only a few gallons or liters remaining. When this light comes on, it serves as a clear signal to the driver that it's time to refuel. Ignoring this warning can lead to running out of fuel, potentially leaving the vehicle stranded on the road.

In addition to the low fuel indicator, some vehicles also feature a 'Fuel System Malfunction' warning light. This light is designed to notify the driver of any issues with the fuel system, which can include problems with the fuel pump, fuel filter, or even the fuel injectors. A malfunction in the fuel system can lead to reduced engine performance, strange noises, or even complete engine failure. Therefore, this warning light is crucial in preventing potential breakdowns and ensuring the vehicle's reliability.

These warning lights are an essential part of a driver's awareness and safety toolkit. They provide real-time feedback on the vehicle's fuel status, allowing drivers to make informed decisions about refueling and maintenance. Modern cars often have multiple sensors and monitoring systems working together to ensure accuracy and reliability in fuel level readings. This comprehensive approach to fuel monitoring helps drivers maintain their vehicles and avoid unexpected fuel-related emergencies.

It is important for drivers to understand the significance of these warning lights and take appropriate action when they are illuminated. Regularly checking the fuel gauge and being mindful of these indicators can help prevent fuel-related issues and ensure a safe and efficient driving experience.
