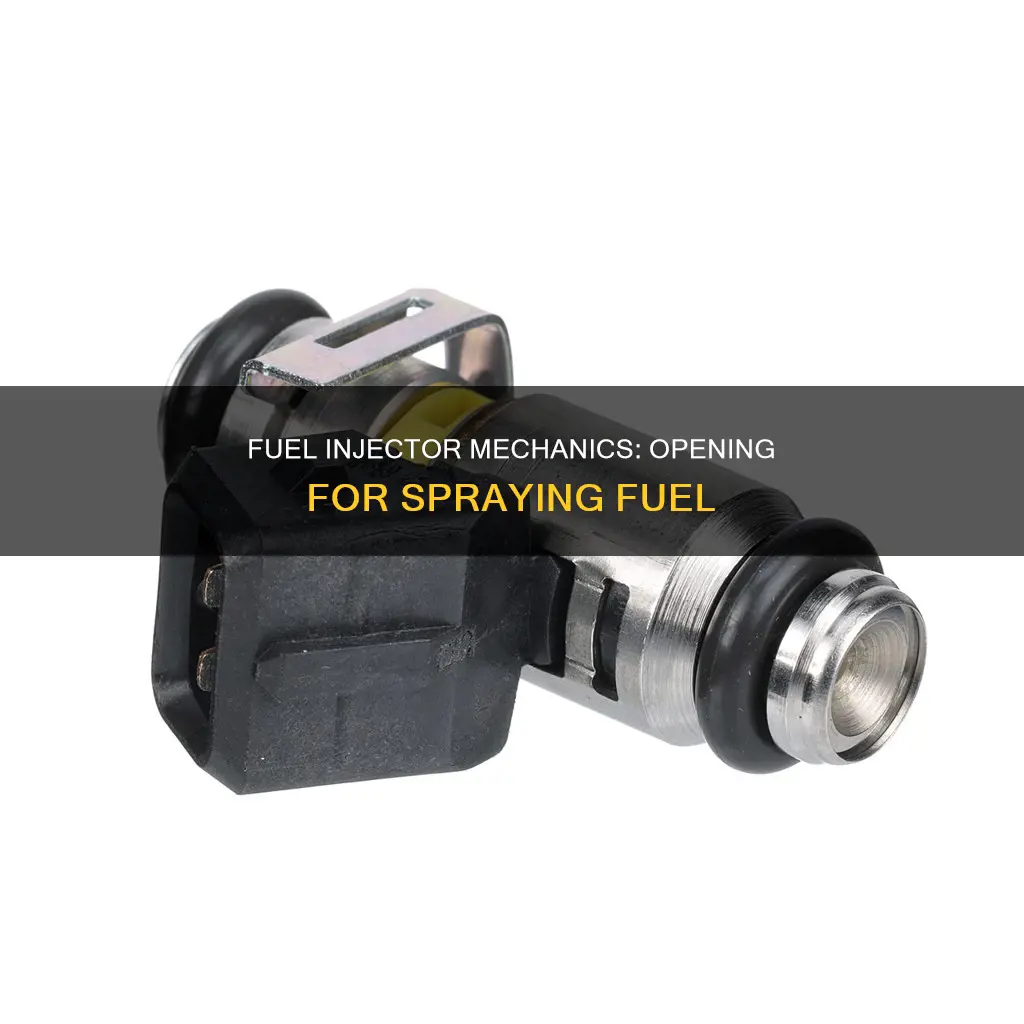

Fuel injection is the process of introducing fuel into an internal combustion engine, usually an automotive engine, using a fuel injector. The injector acts as a spray nozzle, breaking up the fuel into a fine spray or mist. The amount of fuel supplied to the engine is determined by the amount of time the fuel injector stays open, which is called the pulse width and is controlled by the Engine Control Module or the ECU. The injector is located in the combustion chamber, inlet manifold, or throttle body. Gasoline contains waxy compounds that can leave varnish deposits at the injector pintle when the fuel evaporates, which can restrict fuel flow or disrupt the injector's spray pattern.
| Characteristics | Values |
|---|---|
| How fuel injectors work | Fuel injection is the introduction of fuel into an internal combustion engine by means of a fuel injector |
| Type of fuel injector | Mechanical or electronic |
| How a mechanical fuel injector works | The injector is spring-loaded into the closed position and is opened by fuel pressure |
| How an electronic fuel injector works | The injector is held closed by a spring but is opened by an electromagnet built into the injector body |
| How fuel is sprayed | Fuel is sprayed with the help of a nozzle that is opened and closed with a solenoid-operated needle valve |
| How fuel injector systems work | Fuel injection systems work by spraying pressurised fuel into the engine |
| How the amount of fuel supplied to the engine is determined | The amount of fuel supplied is determined by the amount of time the fuel injector stays open, called the pulse width |
| How the fuel injector is kept clean | Fuel injector cleaners can be used to keep deposits from forming, but these will not remove them once they accumulate |
| How the spray pattern is achieved | The shape and direction of the spray pattern are critical for clean combustion and good performance |
Explore related products
What You'll Learn
Fuel injectors are controlled by the Engine Control Module or ECU
The amount of fuel supplied to the engine is determined by the duration for which the fuel injector stays open, also known as the pulse width. This is controlled by the Engine Control Module or the ECU (Engine Control Unit). The ECU is often referred to as the 'brain' of the engine. It is a computer, a switching system, and a power management system all in one small package.
The ECU controls the injection of fuel and the timing of the spark to ignite it. It determines the position of the engine's internals using a Crankshaft Position Sensor, which ensures that the injectors and ignition system are activated at the right time. The ECU uses digitally stored equations and numeric tables to control the engine, rather than analogue means. It also has to deal with many variables when deciding on the correct fuel-air mixture ratio.
The ECU collects data from various sensors, such as the mass airflow sensor, which tells the ECU the mass of air entering the engine, and the oxygen sensor, which monitors the amount of oxygen in the exhaust so the ECU can determine the richness or leanness of the fuel mixture. It then uses this data to make decisions and perform actions on the engine, such as controlling the fuel injector pulse width, the exact timing of the ignition system, and the opening of an electronic throttle body.
The ECU also has many internal power requirements, as well as supplying the correct voltage to hundreds of internal components and sensors around the car. This creates a lot of heat, so thermal management is a key part of ECU design.
Understanding PCM Control Over Fuel Injectors
You may want to see also
Explore related products
Injectors spray fuel directly at the intake valves
The fuel injector is a spray nozzle that performs the final stage in the delivery of fuel into the engine. The injector is located in the combustion chamber, inlet manifold, or throttle body. Injectors spray fuel directly at the intake valves. This is called port fuel injection, and it means there is a separate fuel injector for every cylinder. The injectors are inserted into the intake manifold, and they are mounted on a "fuel rail" that supplies precise fuel pressure to each injector.
The amount of fuel supplied to the engine is determined by the amount of time the fuel injector stays open, which is called the pulse width. This is controlled by the Engine Control Module or ECU (Engine Control Unit). The ECU is equipped with a range of sensors to help provide the right amount of fuel for every operating condition. For example, the mass airflow sensor tells the ECU the mass of air entering the engine, and the oxygen sensor monitors the amount of oxygen in the exhaust so the ECU can determine how rich or lean the fuel mixture is and make adjustments accordingly.
When the injector is energized, an electromagnet moves a plunger that opens the valve, allowing the pressurized fuel to squirt out through a very tiny nozzle. The nozzle is designed to atomize the fuel, making it into as fine a mist as possible so that it can burn easily.
Over time, fuel injectors can become dirty, not from dirt or debris in the fuel, but from the fuel itself. Gasoline contains waxy compounds that can leave varnish deposits at the injector pintle when the fuel evaporates. These deposits tend to form after the engine is shut off, as the heat from the engine causes residual fuel in the injector tips to evaporate, leaving a varnish deposit. These deposits can build up and restrict fuel flow or disrupt the injector's spray pattern, which can cause issues with combustion and engine performance.
Testing Fuel Injectors: A Screwdriver's Diagnostic Guide
You may want to see also
Explore related products
Injectors are inserted into the intake manifold
The amount of fuel supplied to the engine is determined by the length of time the injector stays open, known as the pulse width. This is controlled by the Engine Control Module or the ECU (Engine Control Unit). The ECU uses a range of sensors to monitor the engine's performance and adjust the fuel rate accordingly. For example, the mass airflow sensor tells the ECU how much air is entering the engine, and the oxygen sensor monitors the amount of oxygen in the exhaust so the ECU can adjust the fuel mixture.
The purpose of the intake manifold is to mix air and fuel before it enters the cylinder. In a manifold-injected engine, fuel is injected into the intake manifold, where it forms a combustible air-fuel mixture with the air. When the intake valve opens, the piston sucks in this mixture. This mixture is usually relatively homogeneous, with an even distribution of fuel and air across the combustion chamber.
The injectors are inserted into the intake manifold in a specific sequence, and there are bolts at the back of the manifold that need to be removed for the manifold to be taken out. The fuel supply line to the injector is connected to the fuel rail, and it is important to ensure that the o-rings at the top of the injector, where the fuel rail supplies fuel, are not damaged during any replacement or maintenance work.
Replacing Fuel Injectors in a Prius: A Step-by-Step Guide
You may want to see also
Explore related products
Injectors are mounted on a fuel rail
The injectors are mounted on a fuel rail, which is a critical component of the fuel delivery system in modern internal combustion engines. The fuel rail is a metal pipe that delivers pressurised fuel to the fuel injectors, which are mounted directly on the rail. The fuel rail receives fuel from the fuel pump and maintains the required pressure to ensure proper fuel delivery to the injectors. This is important for achieving precise fuel delivery and consistent engine performance. The fuel conveyed by the electric fuel pump and condensed at the injection pressure is stored in the fuel rail. The pressure in the fuel rail is regulated either by a pressure-regulating valve or through the use of a demand-controlled pump.
The fuel rail also serves as a mounting point for the fuel injectors, providing a secure connection for them. The injectors are connected to the fuel rail via injector ports or fittings, which allow fuel to flow from the rail into the injectors. The fuel rail ensures that each cylinder receives the proper amount of fuel for combustion. In certain fuel injection systems, such as return-style fuel systems, the fuel rail also includes a connection point for a fuel return line. This line allows excess fuel not used by the engine to be returned to the fuel tank, helping to maintain consistent fuel pressure and prevent fuel overheating.
The fuel injectors spray the fuel into the combustion chambers of the engine, where it mixes with air to form a homogeneous mixture. This mixture is then ignited, providing the power to drive the vehicle. The amount of fuel supplied to the engine is determined by the amount of time the fuel injector stays open, known as the pulse width. This is controlled by the Engine Control Module or the ECU, which uses input from various sensors to ensure the correct amount of fuel is delivered for every operating condition.
Overall, the fuel rail plays a crucial role in the fuel delivery system, ensuring that fuel is delivered reliably and at the correct pressure to the fuel injectors for efficient combustion.
Cleaning DeLorean Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Gasoline can leave varnish deposits at the injector pintle
Gasoline contains waxy compounds that can leave varnish deposits at the injector pintle when the fuel evaporates. This happens when the engine is shut off, and the residual fuel in the injector tips evaporates due to the heat from the engine. These deposits build up and restrict fuel flow or disrupt the injector's spray pattern, leading to a distorted or deflected pattern that can cause a lean spot in the combustion chamber. This, in turn, can result in a misfire or even pre-ignition/detonation.
The formation of varnish deposits is influenced by factors such as the properties and chemical composition of the fuel, local fuel temperature, and injector geometry. For example, the presence of biodiesel in the fuel can impact injector deposit formation due to the trace metals and oxidation products it contains. Additionally, the fuel's temperature can significantly affect nozzle coking, with higher temperatures accelerating deposit formation in the nozzle.
To prevent varnish deposits, gasoline is designed to contain detergents that inhibit the accumulation of deposits in the injectors. However, not all gasoline brands contain the same level of detergents, and some may have lower concentrations, leading to potential deposit issues.
Once varnish deposits accumulate at the injector pintle, they can be challenging to remove. While adding a fuel injector cleaner to the fuel tank can help prevent deposit formation, it is often insufficient to eliminate existing deposits. Specialized equipment and powerful cleaners are typically required to isolate the injectors from the fuel system and effectively remove the built-up deposits.
Cleaning Fuel Injectors: Chevy Cruze Maintenance Guide
You may want to see also
Frequently asked questions
Fuel injectors spray pressurised fuel into the engine. The amount of fuel supplied to the engine is determined by the amount of time the fuel injector stays open, which is called the pulse width.
There are two main types of injectors: mechanical and electronic. A mechanical system is spring-loaded into the closed position and is opened by fuel pressure. An electronic system is also held closed by a spring but is opened by an electromagnet built into the injector body.
A mechanical system is more complex and has a poor response to backing off the throttle. An electronic system uses an electronic engine control unit to meter the fuel and control the ignition timing and other engine functions.
The gas pedal in a car is connected to the throttle valve, which regulates how much air enters the engine. When the gas pedal is pressed, the throttle valve opens up and lets in more air. The engine control unit (ECU) then increases the fuel rate in anticipation of more air entering the engine.
