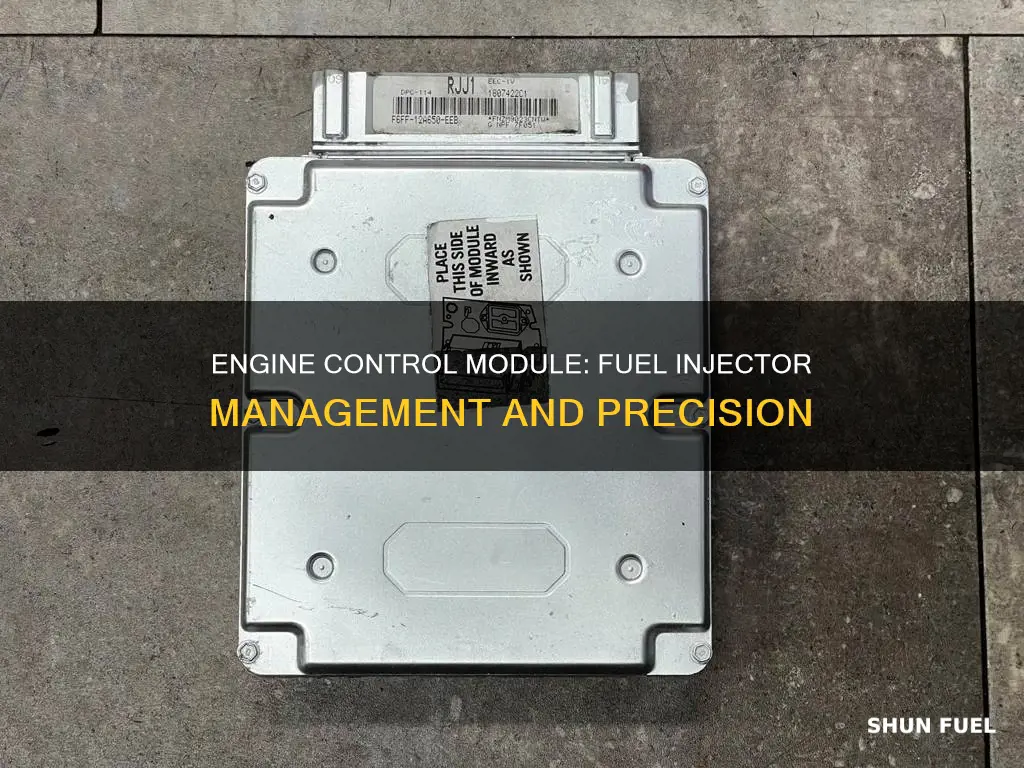

The Engine Control Module (ECM) is a crucial component in modern vehicles, responsible for monitoring and managing a range of functions to ensure optimal performance. One of its key roles is controlling the fuel injectors, which supply fuel to the engine. The ECM's ability to manage fuel injection is essential for maintaining the engine's performance and meeting emissions standards. This process involves a complex interplay between various sensors, valves, and computer systems, which work together to ensure the precise delivery of fuel to the engine, making it a fascinating aspect of automotive engineering.
| Characteristics | Values |
|---|---|
| Role of ECM | Controls the intersection of the engine's necessary ingredients to make energy — fuel, air and spark |
| How it works | Continuously monitors a vast network of sensors to ensure operating conditions are within the normal range |
| Fuel Injector System | A fuel injector is an electronically-controlled valve that is supplied with pressurized fuel by the fuel pump |
| The injector is energized, and an electromagnet moves a plunger that opens the valve, allowing pressurized fuel to squirt out through a tiny nozzle | |
| The nozzle atomizes the fuel to make it burn easily | |
| The amount of fuel supplied to the engine is determined by how long the fuel injector stays open, called the pulse width | |
| The pulse width is controlled by the ECU | |
| The fuel injectors are mounted in the intake manifold so they spray fuel directly at the intake valves | |
| A pipe called the fuel rail supplies pressurized fuel to all injectors | |
| Fuel injectors can open all at the same time, or each one can open just before the intake valve for its cylinder opens (sequential multi-port fuel injection) | |
| Sequential fuel injection allows the system to respond more quickly to sudden changes | |
| The PCM does not send power to the injectors; power is provided by a fuse-controlled circuit from the ignition switch |
Explore related products
What You'll Learn
The role of the PCM
The Powertrain Control Module (PCM) plays a crucial role in controlling the fuel injectors of a vehicle. It is responsible for ensuring that the optimal amount of fuel is injected into the engine, thereby enabling the vehicle to operate efficiently, regardless of whether it is idling or driving at high speeds.
The PCM receives input signals from various sensors, such as the crankshaft position sensor, engine coolant temperature sensor, intake manifold air temperature sensor, manifold absolute pressure (MAP) sensor, throttle position sensors (TPS), and oxygen (O2S) sensors. By processing these inputs, the PCM can make real-time adjustments to the fuel injection system.
One of the key functions of the PCM is to control the injection sequence and injector pulse width. In vehicles with multiple cylinders, the PCM ensures that fuel is injected into the correct cylinder at the right time. It achieves this by actuating the ground circuit to each individual injector, turning it on and off as needed. This allows for precise control over the amount of fuel injected into each cylinder.
Additionally, the PCM plays a role in adjusting the engine idle speed through electronic throttle control (ETC) and optimising the air-fuel ratio for improved fuel economy and reduced emissions. During the engine warm-up phase, the PCM operates in an open-loop mode, relying solely on preset programming. However, once the engine reaches operating temperature, it transitions to a closed-loop mode, where it actively monitors the O2S sensor to fine-tune the injector pulse width and achieve the ideal air-fuel ratio.
Overall, the PCM is a vital component in modern vehicles, enabling precise control over fuel injection, ignition timing, and engine performance, ultimately enhancing the vehicle's efficiency, drivability, and emissions compliance.
Replacing Fuel Injectors in Your Dodge Ram: Step-by-Step Guide
You may want to see also
Explore related products
How the PCM grounds the control
The PCM (Powertrain Control Module) controls the fuel injectors by grounding the control. This is a strange way of controlling the injectors, but it is how Ford designed it. The PCM does not send power to the injectors. Instead, power is provided by a fuse-controlled circuit from the ignition switch. The ground side of the injector then goes to the PCM.
The PCM grounds the injector to allow the injector to inject fuel into the cylinder. It makes and breaks the ground many times per second to allow the proper amount of fuel into the cylinder. This is based on the cranks sensor signal. The PCM will operate in two different modes: Open Loop and Closed Loop. During Open Loop modes, the PCM receives input signals and responds only according to preset PCM programming. During engine warm-up, the PCM receives inputs from various sources, including the crankshaft position sensor, engine coolant temperature sensor, and battery voltage.
The PCM will then control the injection sequence and injector pulse width by turning the ground circuit to each individual injector on and off. It monitors the O2S sensor input and adjusts the air-fuel ratio by varying the injector pulse width. It also adjusts the engine idle speed through the electronic throttle control (ETC) motor. The PCM adjusts ignition timing by increasing and decreasing spark advance.
The PCM operates the A/C compressor clutch through the A/C clutch relay when the A/C has been selected by the vehicle operator and requested by the A/C thermostat. When the engine is at operating temperature, this is a Closed Loop mode. At cruising speed, the PCM receives inputs from the air conditioning select signal, air conditioning request signal, battery voltage, and engine coolant temperature sensor.
Cleaning Fuel Injectors in Nissan Altima: DIY Guide
You may want to see also
Explore related products
The importance of timing
One of its key functions is controlling the timing and amount of fuel injected into the engine's cylinders. The ECM achieves this by working in conjunction with the Powertrain Control Module (PCM) or the Engine Control Unit (ECU). The PCM or ECU grounds the injector, allowing it to inject fuel into the cylinder. The ground is made and broken multiple times per second to regulate the fuel amount.
The timing of these injections is crucial. While fuel can be injected at any time during the power stroke, it is essential that each cylinder receives fuel at the correct moment. This is achieved through sequential multi-port fuel injection, where each injector operates in a matching sequence with the distributor, firing the cylinders in order. This ensures that fuel is injected just before the intake valve for its cylinder opens, allowing for a quicker response to sudden changes by the driver.
The ECM's role in timing is also evident in its interaction with the throttle valve. When the gas pedal is depressed, the throttle valve opens, letting in more air. The ECM detects this and immediately increases the fuel rate to match the additional air entering the engine. This timely response ensures that there is no hesitation or lack of fuel when the gas pedal is pressed.
In conclusion, the importance of timing in how an ECM controls fuel injectors is paramount. By coordinating the injection of fuel with the engine's other processes, the ECM ensures efficient and effective energy creation, enabling the vehicle to respond promptly to driver demands while adhering to emissions and fuel economy requirements.
Cleaning Fuel Injectors: 3800 Series 2 Engine Maintenance Guide
You may want to see also
Explore related products
The role of the ECU
The ECU plays a key role in fuel injection systems. When the gas pedal is pressed, the throttle valve opens, letting in more air. The ECU detects this and increases the fuel rate to match the anticipated increase in air entering the engine. This is important to avoid hesitation or a lack of response when the gas pedal is pressed. The ECU also ensures that the correct amount of fuel is supplied to the engine by controlling the length of time the fuel injector stays open, known as the pulse width.
The ECU uses data from oxygen sensors to monitor the amount of oxygen in the exhaust and adjust the air-to-fuel ratio in real-time. This is called closed-loop control and is necessary for effective catalytic converter operation and meeting stricter emissions requirements. The ECU uses algorithms, formulas and lookup tables to determine the pulse width for given operating conditions.
The ECU can control the fuel injectors to open all at the same time or sequentially for each cylinder. In some systems, the PCM or ECM sends a signal to four fuel injectors simultaneously, and the distributor fires the cylinders in sequence. This ensures that fuel is injected at the correct moment for each cylinder, providing more accurate fuel metering and a quicker response.
Fuel Injector Uncapping: Does It Boost Economy?
You may want to see also
Explore related products
ECM issues and solutions
The Engine Control Module (ECM) is a crucial component of a vehicle, as it controls the fuel injectors and other essential functions. When issues arise with the ECM, it can lead to significant problems with the vehicle's performance and fuel efficiency. Here are some common ECM issues and potential solutions:
ECM Not Firing Injectors or Priming Fuel Pump:
This issue is characterised by the ECM's inability to fire the injectors or prime the fuel pump relay. A possible cause could be a faulty Ignition Control Module or issues with the ignition switch, fuel pump, or fuel pump relay. To troubleshoot, manually test the injectors with a battery and check the voltage of the fuses. If the problem persists, consider manually running the fuel pump to build pressure and manually opening the injector.
No Data from ECM:
In some cases, a scanner may be unable to retrieve any data from the ECM, indicating a potential malfunction. This could be due to various factors such as issues with the injectors, ignition coil, fuel pump, or ECM grounds. It is recommended to check the fuel pump relay and TPS sensor, as they may be backfeeding voltage to the ECM, causing it to fail.
Misfiring Fuel Injectors:
A failing ECM can cause random misfiring of fuel injectors, even with a new engine and ignition system. Before concluding that the ECM is at fault, it is essential to rule out other potential causes, such as sensors, timing, or wiring issues. Consulting a qualified technician is advisable to accurately diagnose the problem and determine if ECM replacement is necessary.
Stalling and Fuel Delivery Issues:
In some instances, the vehicle may stall unexpectedly, and the engine may not receive fuel. This could be due to a faulty ECM or other factors such as fuel pump issues or clogged fuel injectors. To diagnose the problem, conduct comprehensive tests on the ECM and other related components, such as the fuel pump and injectors.
Wiring Harness Shorts:
The ECM's performance can be affected by shorts in the wiring harness. It is recommended to check each wire from the ECM to sensors, relays, and other components. This process can be time-consuming but is necessary to identify and resolve any shorts or faulty connections.
It is important to note that ECM issues can be complex and may require specialised knowledge and equipment for accurate diagnosis and repair. Consulting a professional technician or mechanic is often the best course of action to ensure the issue is properly addressed.
Cleaning Fuel Injectors in a 2007 Ford Mustang
You may want to see also
Frequently asked questions
ECM stands for Engine Control Module, also known as the ECU (Engine Control Unit) or PCM (Powertrain Control Module). It controls the intersection of the engine's necessary ingredients to make energy — fuel, air and spark.
The ECM controls the fuel injectors by monitoring a vast network of sensors to ensure operating conditions are within the normal range. The amount of fuel supplied to the engine is determined by the amount of time the fuel injector stays open, also known as the pulse width.
The PCM does not send power to the injectors. Power to them is provided by a fuse-controlled circuit from the ignition switch. The PCM grounds the injector to allow the injector to inject fuel into the cylinder.
The ECU uses oxygen sensors to monitor the amount of oxygen in the exhaust and adjusts the air-to-fuel ratio in real-time. This is called closed-loop control. The ECU also increases the fuel rate when the throttle valve opens.
