The powertrain control module (PCM) is an essential component of modern vehicles, controlling the fuel injectors and other functions based on signals from various sensors. During Open Loop modes, the PCM only responds to preset programming, while in Closed Loop modes, it actively monitors oxygen (O2) sensors to fine-tune the injector pulse width and achieve the ideal air-fuel ratio. The PCM controls the injection sequence and injector pulse width by turning the ground circuit to each injector on and off, ensuring the precise delivery of fuel into the cylinders. This process is influenced by factors such as throttle opening and engine temperature. Additionally, the PCM's role extends beyond fuel injection, as it also manages the ignition system, fuel pump power circuit, and various vehicle functions like power windows and lights.
Explore related products
What You'll Learn
- The PCM controls the fuel injectors' opening and closing
- It does not send power to the injectors, but controls the ground circuit
- PCM adjusts the injector pulse width to maintain the ideal air-fuel ratio
- PCM receives input signals and responds according to preset programming
- PCM monitors O2S sensor input and adjusts the air-fuel ratio

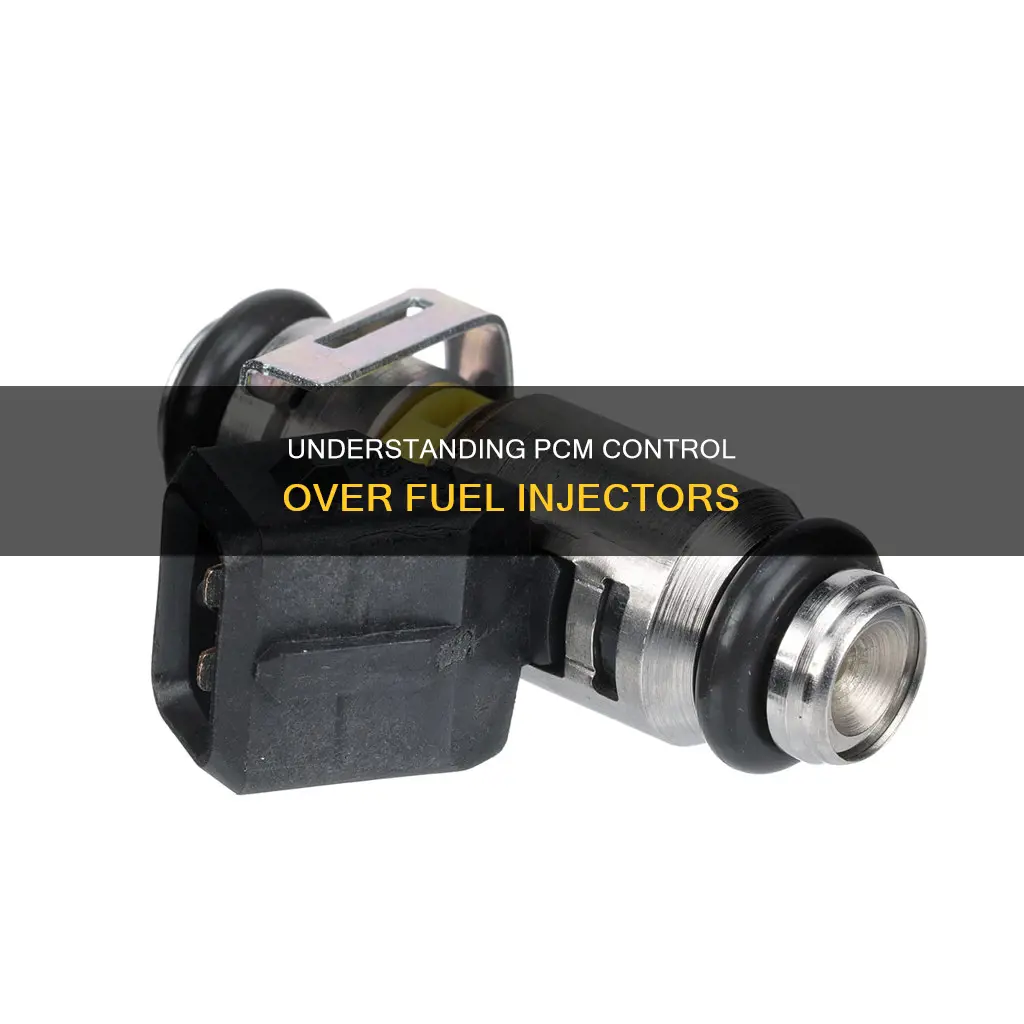

The PCM controls the fuel injectors' opening and closing
The PCM, or the powertrain control module, is an essential component in modern vehicles, controlling various functions, including the fuel injectors' opening and closing. It is a central control module that ensures all sensors and electronic components communicate effectively with each other, optimising the vehicle's performance.
The PCM plays a critical role in the fuel injection system by managing the fuel injectors' operation based on inputs from various sensors. It receives data from sensors like the O2 sensor, camshaft sensor, and crankshaft sensor, which provide information about the air/fuel ratio, valve positions, and crankshaft position.
Based on these inputs, the PCM controls the injection sequence and injector pulse width by turning the ground circuit to each injector on and off. This process allows the PCM to regulate the amount of fuel injected into the cylinders. The PCM makes and breaks the ground many times per second to ensure the proper amount of fuel enters the cylinder.
Additionally, the PCM can adjust the injector pulse width to fine-tune the air-fuel ratio. During Closed Loop modes, the PCM monitors the O2 sensor input to determine if the calculated injector pulse width results in the ideal air-fuel ratio. If the air/fuel mixture is too rich, the PCM reduces the injector's opening time. Conversely, if it's too lean, the PCM increases the opening time to maintain the desired ratio.
In some cases, the PCM may have dedicated pins or wires for sending signals to the fuel injectors. For example, in a van, the PCM might have two pins, each supplying a signal to four fuel injectors simultaneously. This configuration ensures that the injectors receive the necessary signals to inject fuel into the cylinders.
Testing Multi-Port Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
It does not send power to the injectors, but controls the ground circuit
The powertrain control module (PCM) is a crucial component in modern vehicles, responsible for managing the various sensors and electronic components that ensure efficient performance and low emissions. While the PCM does not directly provide power to the fuel injectors, it plays a critical role in controlling the ground circuit, which, in turn, regulates the injectors' operation.
The PCM's role in the fuel injection process is complex and multifaceted. Firstly, it receives input signals from various sensors, including the O2 sensor, camshaft sensor, and crankshaft position sensor, among others. These sensors provide essential data about the engine's performance, such as the air-fuel ratio, valve positions, and piston location. Based on this data, the PCM makes precise adjustments to the fuel injection system, ensuring optimal performance and fuel efficiency.
One of the key ways the PCM controls the fuel injectors is by regulating the ground circuit. By turning the ground circuit to each injector on and off, the PCM can control the injection sequence and injector pulse width. This process involves the PCM periodically grounding one of the wires connected to the injector, allowing it to open and release pressurised fuel into the cylinder. The PCM can make and break the ground connection multiple times per second, ensuring that the correct amount of fuel is injected.
The PCM's ability to control the ground circuit is not limited to fuel injection. It also plays a role in managing other vehicle functions, such as air conditioning, ignition timing, and engine idle speed. By processing input signals and adjusting the ground circuit accordingly, the PCM can fine-tune various aspects of the vehicle's performance to meet specific requirements.
While the PCM's control over the ground circuit is a critical aspect of its functionality, it is important to recognise that the PCM itself relies on input from various sensors to make informed decisions. In the event of a faulty sensor or a disruption in the input circuit, the PCM may not receive the necessary data to make accurate adjustments. As a result, issues such as incorrect fuel injection amounts or problems with power windows may occur. Therefore, the PCM's role in controlling the ground circuit is inherently linked to its ability to process and interpret sensor data effectively.
Cleaning Fuel Injectors on a Ford Fusion: Step-by-Step Guide
You may want to see also
Explore related products
PCM adjusts the injector pulse width to maintain the ideal air-fuel ratio
The Power-train Control Module (PCM) is responsible for controlling the fuel injectors. It does not send power to the injectors; instead, it receives it from a fuse-controlled circuit from the ignition switch. The PCM then controls the injection sequence and injector pulse width by turning the ground circuit to each individual injector on and off.
The PCM uses various sensors to determine how much fuel is needed. It measures the pulse width or how long it opens the injector for based on a specification that the injector can spray a certain amount of fuel in a certain amount of time. It looks at the MAF/MAP to determine how much air is coming in, RPM, throttle input, Baro, and ambient temperature. It uses this information to determine how much fuel to add to maintain the ideal air-fuel ratio of 14.7:1.
The PCM adjusts the injector pulse width to maintain the ideal air-fuel ratio. A longer injector pulse width results in a larger amount of fuel being injected into the engine, while a shorter pulse width results in less fuel. The PCM monitors the O2S sensor input and adjusts the air-fuel ratio by varying the injector pulse width. This is done to achieve optimum fuel economy combined with low-emission engine performance.
The PCM increases the injector pulse width in response to increased throttle opening. It also adjusts the pulse width based on engine load and speed. When the engine is under heavy load, the PCM increases the pulse width to deliver more fuel to the engine. This additional fuel is necessary to maintain optimal engine performance and prevent engine damage. At higher engine speeds, the PCM reduces the pulse width to compensate for the increased airflow, which helps maintain the correct air-fuel ratio and prevent engine knock.
Effective Fuel Injector Cleaning for Your 420 Rancher
You may want to see also
Explore related products
PCM receives input signals and responds according to preset programming
The Powertrain Control Module (PCM) is a vital component in modern vehicles, controlling various functions, including fuel injection. During Open Loop modes, the PCM operates according to preset programming, without monitoring input from oxygen (O2S) sensors. In this mode, the PCM relies on its internal logic to control the fuel injection process.
The PCM receives various input signals from sensors and components in the vehicle, which it uses to make real-time adjustments to the fuel injection system. These inputs include battery voltage, crankshaft position, engine coolant temperature, intake manifold air temperature, manifold absolute pressure, throttle position, and more. By monitoring these inputs, the PCM can fine-tune the fuel injection process to ensure optimal performance and fuel efficiency.
For example, the PCM controls the injection sequence and injector pulse width by turning the ground circuit to each injector on and off. This allows the PCM to adjust the amount of fuel injected into the cylinders, ensuring the proper air-fuel mixture. The PCM also adjusts engine idle speed through the electronic throttle control (ETC) motor and modifies ignition timing accordingly.
Additionally, the PCM can monitor the O2S sensor during Closed Loop modes. This input helps the PCM fine-tune the injector pulse width to achieve the ideal air-fuel ratio, which is typically around 14.7 parts air to 1 part fuel. By monitoring exhaust oxygen content, the PCM can optimise fuel economy while also reducing emissions.
The PCM's ability to receive and process input signals in real-time allows it to make dynamic adjustments to the fuel injection system, ensuring the engine operates efficiently across various driving conditions. This closed-loop control system provides precise control over fuel injection, improving engine performance and fuel efficiency.
Checking Fuel Injectors: LT1 Maintenance Guide
You may want to see also
Explore related products
PCM monitors O2S sensor input and adjusts the air-fuel ratio
A Powertrain Control Module (PCM) is a component of a vehicle's engine that controls the fuel injectors. The PCM does not send power to the injectors; instead, it receives power from a fuse-controlled circuit from the ignition switch. The PCM then grounds the injector, allowing it to inject fuel into the cylinder. It makes and breaks the ground several times per second to allow the correct amount of fuel into the cylinder.
The PCM monitors the O2S sensor input and adjusts the air-fuel ratio to achieve optimum fuel economy and low emission engine performance. During Closed Loop modes, the PCM will monitor the oxygen (O2S) sensors' input. This input indicates to the PCM whether the calculated injector pulse width results in the ideal air-fuel ratio. The PCM can fine-tune the injector pulse width by monitoring the exhaust oxygen content through the O2S sensor. The ideal air-fuel ratio is 14.7 parts air to 1 part fuel.
The PCM also controls the injection sequence and injector pulse width by turning the ground circuit to each individual injector on and off. The PCM adjusts the engine idle speed through the idle air control (IAC) motor and adjusts ignition timing by turning the ground path to the coil on and off. During Open Loop modes, the PCM receives input signals and responds only according to preset PCM programming. Input from the O2S sensors is not monitored during Open Loop modes.
The PCM monitors the crankshaft position sensor. If the PCM does not receive a crankshaft position sensor signal within 3 seconds of cranking the engine, it will shut down the fuel injection system. The PCM also operates the A/C compressor clutch through the clutch relay if the vehicle operator has selected A/C and it is requested by the A/C thermostat.
The PCM plays a crucial role in ensuring the efficient operation of the engine by monitoring the O2S sensor input and making adjustments to the air-fuel ratio as needed.
Inspecting Fuel Injectors in Your VW Passat
You may want to see also
Frequently asked questions
The PCM, or powertrain control module, controls the fuel injectors' opening and closing by processing data from various sensors and making adjustments to maintain a stoichiometric ratio. It does this by controlling the injection sequence and injector pulse width, turning the ground circuit to each injector on and off.
The PCM controls the operation of the fuel injectors and other functions based on the information it receives from various sensors. It processes data from sensors such as the O2 sensor, camshaft sensor, and crankshaft sensor, and uses this information to adjust the injector pulse width, injection sequence, and opening time.
If the PCM cannot interpret the signals from the O2 sensors, it may inject too much or too little fuel into the engine, causing an imbalance in the air-fuel ratio. This can lead to issues with the fuel pump circuit and the fuel injectors not receiving fuel.
