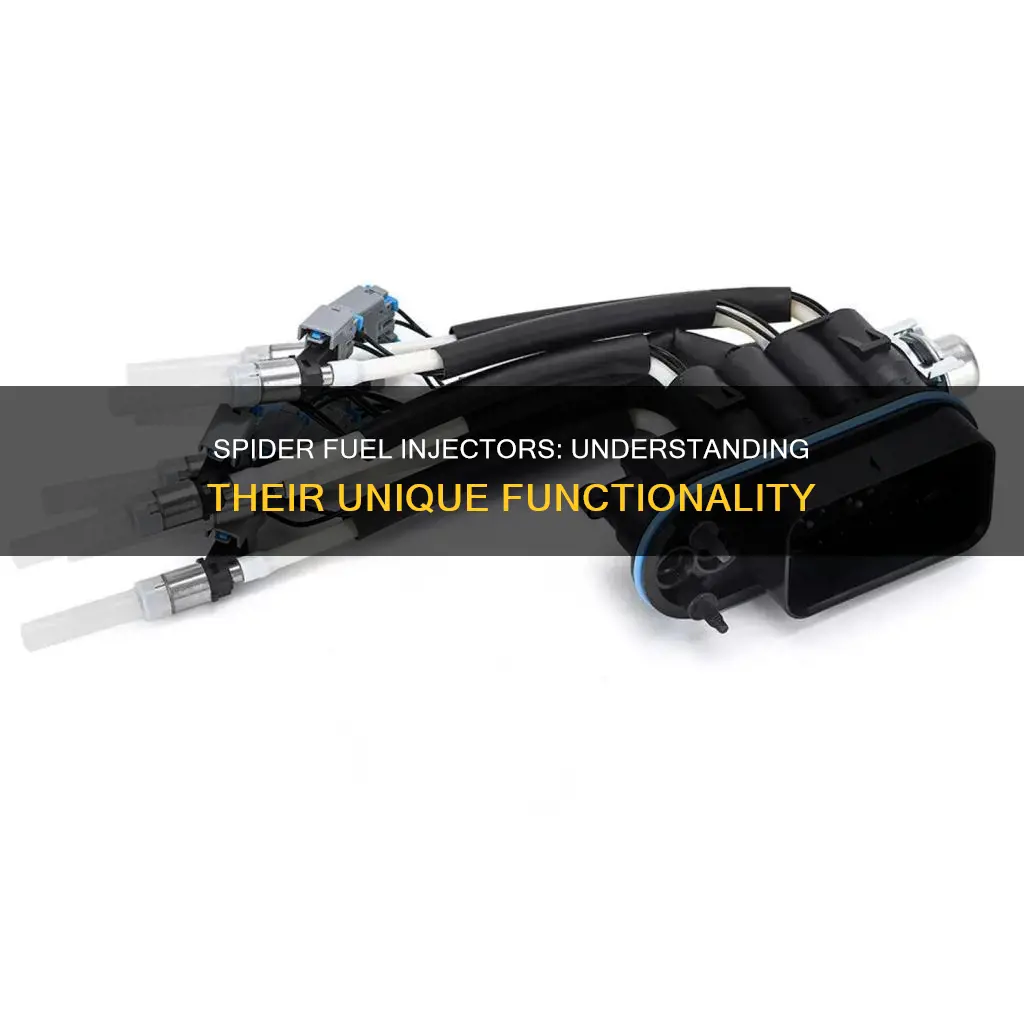

The spider fuel injector is a component of a vehicle's fuel injection system. It is designed to improve fuel efficiency and performance while reducing emissions. The spider injector's multiple injectors deliver fuel directly to the engine's cylinders, ensuring a precise and efficient combustion process. The injectors are typically controlled by a servo, which regulates the amount of fuel supplied to the engine. This system is known as a Sequential Multiport Fuel Injection (SMFI) system, and it is commonly found in vehicles such as the Chevy Blazer, GMC Jimmy, and others. While the spider injector offers many benefits, it can also be prone to issues such as leaks, clogs, and varnish build-up, requiring regular maintenance and potential replacement of parts.
Explore related products
What You'll Learn
- The nozzle has a fixed orifice size that is sized according to the fuel pressure available
- The spider injector can be replaced or cleaned
- The servo controls the amount of fuel to the spider
- The flow divider valve opens as nozzle pack pressure increases
- The spider injector can be upgraded to a Sequential Multiport Fuel Injection (SMFI) system
The nozzle has a fixed orifice size that is sized according to the fuel pressure available
The nozzle orifice size is fixed, meaning it cannot be adjusted or altered. This is because the size of the nozzle orifice is designed to be proportional to the fuel pressure available to the fuel injection system. Typically, the fuel pressure available is limited to around 20-30 PSI, so the nozzle orifice is designed to be fairly large, usually with a diameter of 0.028" on 360 and 540 engines. This ensures that the fuel can flow through the nozzle at the required rate to meet the engine's fuel demands.
The fixed orifice size of the nozzle is a critical design feature of the spider fuel injector. It ensures that the fuel is atomized into fine droplets as it exits the nozzle, which promotes more complete combustion. This, in turn, can improve fuel efficiency and reduce emissions.
Additionally, the fixed orifice size helps to control the spray pattern of the fuel. The spray pattern is designed to match the engine's fuel requirements and ensure an even distribution of fuel across the cylinders. This is particularly important for engines with multiple cylinders, as it ensures that each cylinder receives an appropriate amount of fuel, resulting in smoother engine operation.
While the orifice size is fixed, it's important to note that the flow rate of fuel through the nozzle can still be adjusted by regulating the fuel pressure. This is typically achieved through a fuel pressure regulator, which can increase or decrease the pressure within safe operating limits. By adjusting the fuel pressure, the engine can respond to varying performance demands, such as idling or high-performance conditions.
In summary, the fixed orifice size of the nozzle in a spider fuel injector is a carefully designed feature that ensures optimal fuel atomization, spray pattern, and distribution to the engine's cylinders. The size of the orifice is directly related to the available fuel pressure, and adjustments to the fuel pressure can be made to control the flow rate, allowing the engine to operate efficiently across different operating conditions.
Cleaning Fuel Injectors: 2008 Lincoln MKZ Guide
You may want to see also
Explore related products
The spider injector can be replaced or cleaned
To determine whether the issue lies with the injector or the spider, carefully inspect the injector for any signs of blockage. This can be done by holding it up to a light source, such as the sun or a bright lamp. If a blockage is suspected, the injector can be cleaned using appropriate tools and techniques. However, if cleaning the injector does not resolve the issue, the next step is to clean the spider. The spider can be disassembled, inspected, and cleaned if necessary.
If cleaning the spider does not address the problem, or if you prefer to replace it, there are a few options available. You can choose to purchase a new spider set, which can be expensive, or opt for a more affordable "MPFI" retrofit system. Alternatively, you may decide to replace individual injectors or "poppets". It is important to note that replacing the spider injector involves a series of careful steps, and it is recommended to refer to detailed guides or seek professional assistance if you are uncomfortable with the process.
Additionally, when replacing the spider injector, it is advised to pay attention to the specific parts required for your vehicle. These may include the injector assembly, the bracket, the seal kit, and the upper plenum gasket. Taking your time, marking each step, and referring to online resources or videos can make the process more manageable. It is also crucial to prioritize your safety and the safety of your vehicle when working with fuel systems, as gasoline leaks can lead to dangerous fires or explosions.
Bosch Fuel Injectors: Engineering Power and Efficiency
You may want to see also
Explore related products
The servo controls the amount of fuel to the spider
The servo plays a critical role in a spider fuel injection system, as it controls the amount of fuel that reaches the spider. This system is a type of fuel injection system that utilises an air-bled injector nozzle. The nozzle's orifice size is fixed, and it is designed according to the maximum fuel flow and the fuel pressure available in the system.
The servo's function is to regulate the fuel supply to the spider, ensuring that the correct amount of fuel is delivered to the spider's injector nozzles. This is essential for maintaining the proper air-fuel mixture and engine performance. Without precise fuel metering, the engine may experience issues such as poor fuel economy, increased emissions, or even damage.
The servo's role in controlling fuel flow to the spider is particularly important due to the spider injector's unique design. The spider injector, also known as a flow divider, has a complex operation that involves dividing the fuel flow to each cylinder. As the total flow increases, the valve in the flow divider opens up, allowing the fuel to be distributed to each nozzle.
By controlling the amount of fuel that reaches the spider, the servo plays a vital role in ensuring the spider injector functions optimally. The servo's precise metering of fuel helps to prevent issues such as fuel restriction or blockage within the spider injector. This, in turn, helps to maintain the engine's performance, fuel efficiency, and overall health.
Clean Fuel Injectors: Gas Treatment Solution for Your Car
You may want to see also
Explore related products
The flow divider valve opens as nozzle pack pressure increases
A spider fuel injector is a component of a fuel injection system. The system uses injector nozzles with a fixed orifice size that is determined by the fuel pressure available and the maximum fuel flow through the nozzle.
The flow divider valve is a critical component of the spider fuel injector. It plays a role in controlling the flow of fuel to the engine's cylinders. As the nozzle pack pressure increases, the flow divider valve opens up, allowing for the division of fuel to each cylinder. This process is essential for maintaining the engine's performance and ensuring efficient fuel distribution.
The flow divider valve is designed to respond to changes in nozzle pack pressure. As the pressure increases, the valve opens wider, accommodating the higher fuel flow. This, in turn, ensures that the injector nozzles can effectively divide the fuel among the cylinders.
The operation of the flow divider valve is influenced by the diaphragm and spring within the valve. The spring sets a pressure differential across each metering slot, ensuring that the fuel is divided evenly among the nozzles, regardless of their height differences. This mechanism is crucial for maintaining proper fuel distribution and engine performance.
The flow divider valve also plays a role in shutting off the nozzle lines during idle cutoff. When the control is placed in idle cutoff, the valve closes the nozzle ports, preventing fuel flow and promoting a cleaner shutdown. This function is essential for maintaining the engine's efficiency and preventing fuel wastage.
Fuel Injector Mounting: Understanding the Process and Techniques
You may want to see also
Explore related products
The spider injector can be upgraded to a Sequential Multiport Fuel Injection (SMFI) system
The spider fuel injection system, also known as the Central Sequential Fuel Injection (CSFI) system, is a type of fuel delivery system commonly found in vehicles such as the Chevy Blazer and GMC Vortec. It gets its name from the distinctive shape formed by the central body and long tubes that resemble a spider. This system uses a single injector for each cylinder, delivering fuel sequentially and improving performance.
Upgrading the spider injector to a Sequential Multiport Fuel Injection (SMFI) system offers several benefits. Firstly, it eliminates the poppet valves, which are prone to clogging, and relocates the injectors to the intake ports. This modification improves fuel delivery by squirting fuel directly into the intake ports, enhancing engine performance and idle quality. Secondly, the upgrade simplifies the system by removing the complex flow divider, which divides fuel to each cylinder based on pressure and flow rate. This not only makes the SMFI system more reliable but also easier to manufacture.
The process of upgrading to an SMFI system is straightforward and can be completed within a few hours. Aftermarket kits are readily available, offering a direct replacement for the CSFI system. These kits typically include the injector assembly, bracket, and seal kit. It is important to note that the original injector bracket cannot be used with the upgraded unit, and certain vehicles may require additional parts, such as an upgraded upper plenum gasket.
The SMFI system provides precise control over fuel injection, maximizing engine performance. It achieves this by electronically opening the injectors, as opposed to the mechanical operation of the CSFI system. This electronic control allows for precise timing of fuel injection and the duration of the fuel spray, resulting in a crisp response during acceleration. Additionally, the larger injector openings in the SMFI system reduce the likelihood of clogging.
Upgrading to an SMFI system not only improves performance but also addresses some of the issues associated with the CSFI system, such as clogged poppet valves and varnish buildup in the nozzles. This upgrade is a cost-effective solution that enhances fuel efficiency, acceleration, and overall engine performance.
Applying Red Line Fuel Injector Cleaner: Step-by-Step Guide
You may want to see also
Frequently asked questions
A spider fuel injector is a fuel injection system that uses a flow divider to control the flow of fuel to the engine's cylinders.
The spider fuel injector uses a nozzle with a fixed orifice size that is determined by the fuel pressure available to the system and the maximum fuel flow through the nozzle. The flow divider valve opens further as the total flow increases, ensuring that the fuel is divided evenly among the cylinders.
A spider fuel injector can provide cleaner emissions, improved fuel economy, and increased performance compared to other fuel injection systems.
Yes, some people have reported issues with fuel injectors becoming blocked or restricted, which can lead to misfires in the engine. It is also important to ensure that all injectors are seated correctly and not crossed into the incorrect ports.
There are a few options for fixing a spider fuel injector. You can buy a new spider set, purchase a \"MPFI\" retrofit system, replace individual injectors, or attempt to clean and repair the existing injectors. It is important to exercise caution when working with a fuel system to avoid the risk of fire or explosion.
