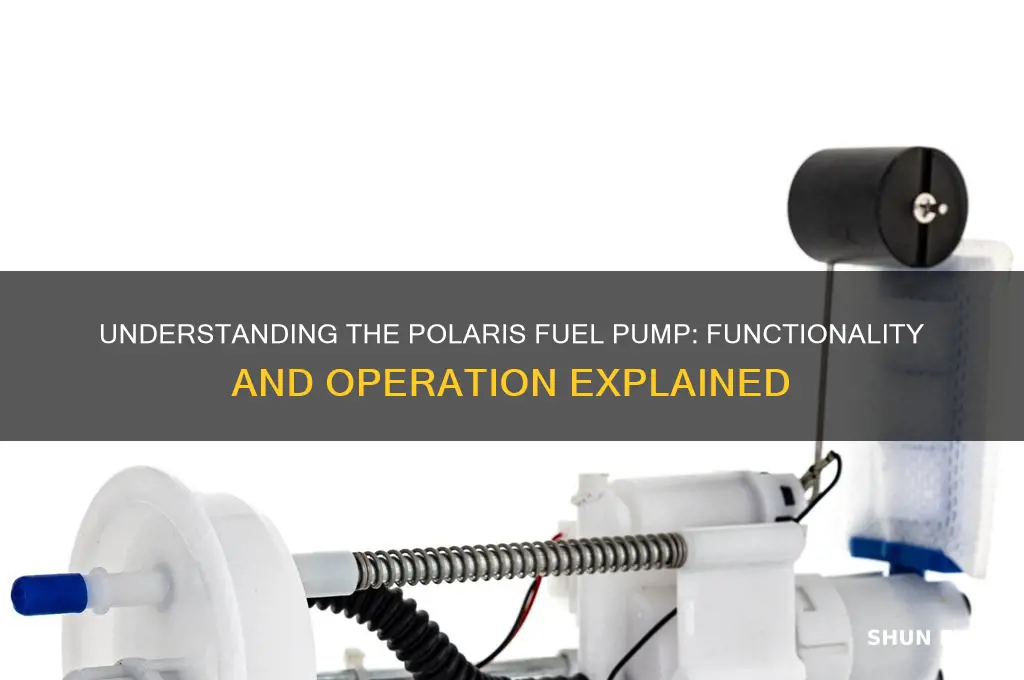

The Polaris fuel pump is a critical component in the fuel delivery system of Polaris vehicles, such as ATVs, snowmobiles, and side-by-sides, ensuring a consistent and reliable supply of fuel to the engine. It operates as an electric pump, typically located within the fuel tank, and is designed to draw fuel from the tank and deliver it under pressure to the engine’s fuel injectors or carburetor. The pump consists of a motor-driven impeller or diaphragm that creates a vacuum to pull fuel through the system, while a check valve prevents backflow, maintaining pressure in the fuel lines. Controlled by the vehicle’s ECU (Engine Control Unit), the pump activates when the ignition is turned on and adjusts its output based on engine demand. Proper maintenance, including regular filter changes and ensuring the fuel tank is free of debris, is essential to prevent clogs and ensure the pump operates efficiently, as failure can lead to poor engine performance or stalling. Understanding how the Polaris fuel pump works is key to diagnosing and addressing fuel delivery issues in these high-performance vehicles.
| Characteristics | Values |
|---|---|
| Type of Pump | Mechanical, diaphragm-style fuel pump integrated into the fuel tank. |
| Operation Principle | Uses a diaphragm to create suction and pressure, drawing fuel from the tank. |
| Power Source | Driven by the engine's camshaft or a dedicated mechanical linkage. |
| Fuel Delivery | Delivers fuel to the carburetor or fuel injection system under pressure. |
| Check Valve | Includes a one-way check valve to maintain fuel pressure and prevent backflow. |
| Fuel Filter | Often integrated with a fuel filter to ensure clean fuel delivery. |
| Compatibility | Designed specifically for Polaris ATVs, snowmobiles, and side-by-sides. |
| Maintenance | Requires periodic inspection for leaks, clogs, or diaphragm wear. |
| Common Issues | Diaphragm failure, check valve malfunction, or fuel line clogs. |
| Replacement | Replacement involves removing the fuel tank and swapping the pump assembly. |
| Pressure Regulation | Maintains consistent fuel pressure for optimal engine performance. |
| Material | Typically constructed from durable materials like rubber, plastic, and metal. |
| Location | Mounted inside the fuel tank for direct access to the fuel supply. |
| Noise Level | Operates quietly due to its mechanical design. |
| Efficiency | High efficiency in delivering fuel, ensuring reliable engine operation. |
Explore related products
What You'll Learn
Pump Components Overview
The Polaris fuel pump is a critical component in the vehicle's fuel system, ensuring a consistent and precise delivery of fuel to the engine. At its core, the pump consists of several key components, each playing a vital role in maintaining optimal performance. Understanding these parts is essential for troubleshooting, maintenance, and appreciating the pump's overall functionality.
The Heart of the Pump: Electric Motor and Impeller
The electric motor is the driving force behind the Polaris fuel pump, converting electrical energy into mechanical motion. This motor is designed to operate within a specific voltage range, typically 12 volts, to ensure compatibility with the vehicle’s electrical system. Connected to the motor is the impeller, a rotating component with blades that generate the necessary pressure to move fuel. The impeller’s design is crucial; its precision-engineered blades create a vacuum effect, drawing fuel from the tank and pushing it through the system. Regular inspection of the motor and impeller for wear or damage is critical, as even minor issues can lead to reduced fuel efficiency or engine performance.
Fuel Filter and Check Valve: Guardians of Purity and Flow
Integrated into the pump assembly is a fuel filter, a small yet indispensable component that traps contaminants such as dirt, rust, and debris. This filter ensures that only clean fuel reaches the engine, preventing clogs and extending the life of the fuel injectors. The check valve, another vital part, allows fuel to flow in one direction only, preventing backflow and maintaining consistent pressure within the system. Over time, the filter can become clogged, and the check valve may wear out, necessitating periodic replacement. For optimal performance, replace the fuel filter every 10,000 to 15,000 miles or as recommended by the manufacturer.
Pressure Regulator and Fuel Lines: Precision and Delivery
The pressure regulator is a key component that ensures fuel is delivered at the correct pressure, typically between 40 and 60 psi, depending on the engine’s requirements. This regulator adjusts the fuel pressure dynamically, compensating for changes in engine load and speed. Connected to the pump are the fuel lines, which must be durable and resistant to fuel additives and ethanol. Inspect these lines regularly for cracks, leaks, or signs of degradation, as even a small breach can lead to fuel loss or engine misfires. Using high-quality fuel line replacements and ensuring proper installation are practical steps to avoid common issues.
Electrical Connections and Wiring Harness: The Unseen Lifeline
The electrical connections and wiring harness are often overlooked but are critical to the pump’s operation. These components supply power to the electric motor and transmit signals to the vehicle’s ECU (Engine Control Unit). Corrosion, loose connections, or damaged wires can disrupt the pump’s functionality, leading to intermittent operation or complete failure. During maintenance, clean the electrical terminals with a wire brush and apply dielectric grease to prevent corrosion. Always disconnect the battery before working on the wiring harness to avoid electrical hazards.
By understanding these components and their functions, you can diagnose issues more effectively and perform maintenance with confidence. Regular inspections, timely replacements, and proper care will ensure the Polaris fuel pump operates reliably, keeping your vehicle running smoothly for years to come.
