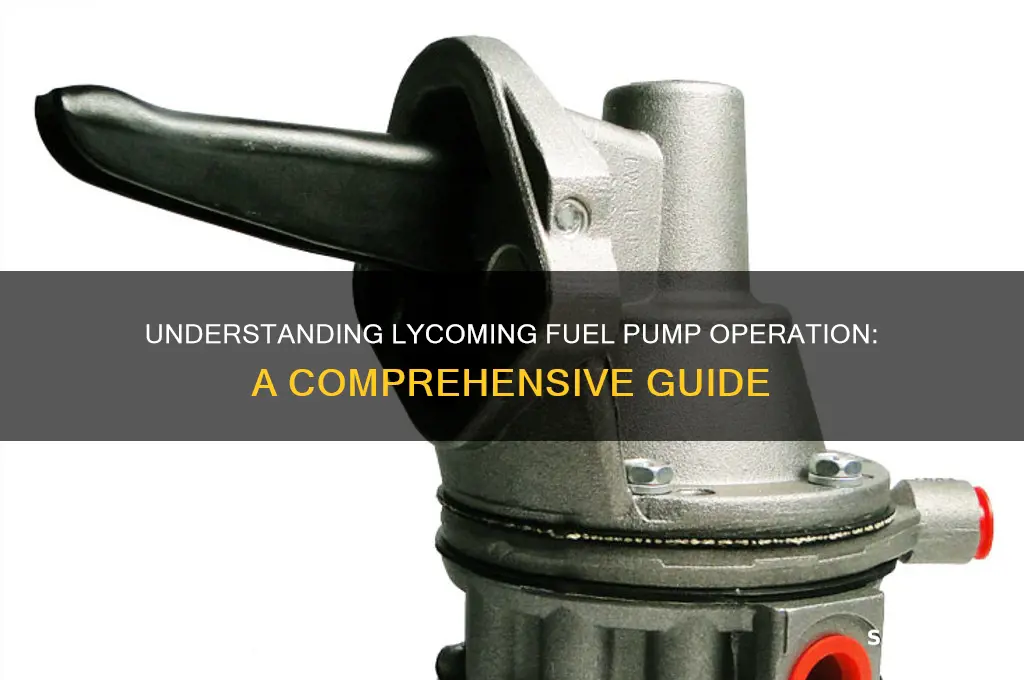

The Lycoming fuel pump is a critical component in aviation engines, ensuring a consistent and reliable fuel supply to the carburetor or fuel injection system. It operates as a diaphragm-type pump, driven by the engine's camshaft or crankshaft, which creates a vacuum and pressure cycle. As the diaphragm moves, it draws fuel from the tank into the pump chamber during the intake stroke and then compresses it, forcing it through the outlet to the carburetor. This mechanism maintains the necessary fuel pressure and flow, even during high-altitude flights or under varying engine loads, making it essential for the engine's performance and safety. Understanding its operation is key to appreciating its role in aviation systems.
| Characteristics | Values |
|---|---|
| Type | Vane-type, mechanical fuel pump |
| Operation | Driven by a camshaft lobe, uses rotating vanes to create pressure |
| Location | Typically mounted on the engine accessory case |
| Function | Delivers fuel from the fuel tank to the carburetor or fuel injection system |
| Pressure Regulation | Maintains consistent fuel pressure via a pressure relief valve |
| Fuel Flow Direction | One-way flow ensured by check valves |
| Material | Constructed from aluminum and steel for durability |
| Maintenance | Requires periodic inspection for leaks, wear, and proper operation |
| Failure Symptoms | Engine hesitation, hard starting, or loss of power due to inadequate fuel delivery |
| Compatibility | Designed specifically for Lycoming piston aircraft engines |
| Power Source | Engine-driven, no external power required |
| Noise Level | Operates quietly as part of the engine accessory system |
| Efficiency | High efficiency due to direct mechanical drive and precise engineering |
Explore related products
What You'll Learn
- Pump Type and Design: Lycoming uses a mechanical, diaphragm-type fuel pump driven by the engine's camshaft
- Operation Mechanism: Diaphragm flexes to create vacuum, drawing fuel from the tank into the pump
- Fuel Flow Path: Fuel enters the pump, passes through a check valve, and exits to the carburetor
- Pressure Regulation: Internal spring and diaphragm balance pressure, ensuring consistent fuel delivery to the engine
- Maintenance and Troubleshooting: Regular inspection for leaks, diaphragm wear, and proper priming to ensure reliability
Pump Type and Design: Lycoming uses a mechanical, diaphragm-type fuel pump driven by the engine's camshaft
Lycoming's choice of a mechanical, diaphragm-type fuel pump driven by the engine's camshaft is a testament to the reliability and simplicity required in aviation fuel systems. Unlike electric pumps, which rely on external power sources, this mechanical design ensures that fuel delivery is directly tied to engine operation, eliminating the risk of electrical failure. The diaphragm-type mechanism is particularly suited for aviation because it provides consistent pressure and flow, critical for maintaining engine performance across varying altitudes and conditions. This design also minimizes the number of moving parts, reducing wear and potential points of failure—a crucial factor in the demanding environment of flight.
The operation of the diaphragm pump begins with the camshaft, which drives a rocker arm connected to the pump. As the camshaft rotates, the rocker arm oscillates, creating a reciprocating motion that flexes the diaphragm. This flexing action alternately creates a vacuum and pressure within the pump chamber, drawing fuel in during the vacuum phase and forcing it out during the pressure phase. The process is inherently self-priming, ensuring that the pump can maintain fuel flow even after the engine has been shut down and restarted. For pilots, this means fewer worries about airlocks or fuel starvation during critical phases of flight.
One of the key advantages of this design is its ability to maintain fuel pressure without the need for complex regulators. The diaphragm’s movement is precisely calibrated to the engine’s RPM, ensuring that fuel delivery scales with engine demand. For example, during takeoff, when the engine is operating at higher RPMs, the pump naturally increases fuel flow to meet the increased power requirements. Conversely, during cruise, the pump adjusts to provide a steady, efficient flow. This dynamic responsiveness is essential for optimizing fuel consumption and engine performance.
Maintenance of the Lycoming diaphragm pump is straightforward but requires attention to detail. Regular inspection of the diaphragm for cracks or wear is critical, as failure can lead to fuel delivery issues. Additionally, the pump’s inlet and outlet ports should be checked for debris, as contamination can impair flow. Pilots and mechanics should also monitor the pump’s mounting and drive mechanisms for looseness, as misalignment can reduce efficiency. Following the manufacturer’s recommended service intervals and using genuine replacement parts ensures longevity and reliability.
In comparison to other fuel pump designs, Lycoming’s mechanical diaphragm pump stands out for its robustness and simplicity. Electric pumps, while common in modern vehicles, introduce complexity and potential failure points due to their reliance on electrical systems. Gear-type pumps, though durable, often require additional pressure regulators and are less adaptable to varying engine demands. The diaphragm pump’s direct linkage to the camshaft not only ensures reliability but also aligns fuel delivery precisely with engine needs, making it an ideal choice for aviation applications where precision and dependability are non-negotiable.
Understanding Gas Pumps: How Fuel Grade Selection Works at Stations
You may want to see also
Explore related products
$18.99 $19.99
Operation Mechanism: Diaphragm flexes to create vacuum, drawing fuel from the tank into the pump
The Lycoming fuel pump's operation hinges on a simple yet ingenious mechanism: a flexible diaphragm that acts as the heart of the system. When the engine is running, the diaphragm is actuated, typically by a cam or eccentric lobe, causing it to flex inward. This flexing motion creates a vacuum within the pump chamber, effectively lowering the pressure below that of the fuel tank. According to the principle of fluid dynamics, fuel will naturally flow from an area of higher pressure to one of lower pressure. Thus, the vacuum draws fuel from the tank, through the inlet port, and into the pump chamber. This process is critical for maintaining a consistent fuel supply to the engine, ensuring optimal performance even during high-altitude flights or complex maneuvers.
To visualize this, imagine squeezing a balloon filled with water. As you compress the balloon, the water is forced out due to the increased pressure. Conversely, when the diaphragm in the Lycoming pump flexes inward, it creates a "suction" effect, pulling fuel into the pump. This mechanism is both efficient and reliable, making it a staple in aviation fuel systems. However, it’s essential to note that the diaphragm’s material and thickness are carefully engineered to withstand repeated flexing without fatigue. For instance, diaphragms are often made of nitrile rubber or similar compounds, which offer durability and resistance to fuel additives. Regular inspection of the diaphragm for cracks or wear is crucial, as failure can lead to fuel starvation and potential engine failure.
One practical tip for maintaining this system is to monitor fuel pressure regularly, especially during pre-flight checks. A sudden drop in pressure could indicate a failing diaphragm or a leak in the system. Additionally, ensuring the fuel tank is properly vented is vital, as inadequate venting can prevent the vacuum from forming effectively. For aircraft operating in extreme conditions, such as high altitudes or cold temperatures, it’s advisable to use fuel with appropriate additives to prevent gelling, which can impede the pump’s ability to draw fuel. Understanding this mechanism not only aids in troubleshooting but also emphasizes the importance of routine maintenance to ensure the pump operates flawlessly.
Comparing the Lycoming diaphragm pump to other fuel pump designs, such as electric or gear-driven pumps, highlights its advantages in simplicity and reliability. Electric pumps, while efficient, rely on external power sources and can fail if the electrical system malfunctions. Gear-driven pumps, though robust, are more complex and prone to wear in high-stress environments. The diaphragm pump’s mechanical design, driven directly by the engine, eliminates these dependencies, making it a preferred choice for many general aviation aircraft. However, this simplicity comes with the caveat of regular maintenance, as the diaphragm and associated components are subject to mechanical stress and fuel contamination.
In conclusion, the diaphragm’s role in creating a vacuum to draw fuel is a testament to the elegance of mechanical engineering in aviation. By understanding this mechanism, pilots and mechanics can better appreciate the pump’s function and take proactive steps to ensure its longevity. Whether you’re troubleshooting a fuel delivery issue or performing routine maintenance, recognizing how the diaphragm flexes to create a vacuum is key to keeping the Lycoming fuel pump—and your aircraft—running smoothly.
Can a New Fuel Pump Improve Your Vehicle's Efficiency?
You may want to see also
Explore related products
Fuel Flow Path: Fuel enters the pump, passes through a check valve, and exits to the carburetor
Fuel enters the Lycoming pump through the inlet port, typically located on the lower side of the unit, where it is drawn in by the diaphragm’s downward stroke. This initial stage is critical for maintaining consistent pressure and ensuring the system remains free of air bubbles, which can disrupt engine performance. The fuel, often sourced from the aircraft’s wing tanks, must be clean and free of contaminants to prevent clogging or damage to the pump’s internal components. Proper filtration upstream of the pump is essential, as even small particles can impair its efficiency.
Once inside the pump, the fuel encounters a check valve, a one-way mechanism that allows it to move forward but prevents backflow. This valve is crucial for maintaining pressure in the system, especially during engine shutdown or when the pump is not actively operating. Lycoming’s check valves are typically spring-loaded and designed to open at a specific pressure threshold, ensuring fuel flows only in the intended direction. Regular inspection of this valve is recommended, as wear or debris can cause it to malfunction, leading to fuel starvation or pressure loss.
From the check valve, the fuel exits the pump via the outlet port, directed toward the carburetor. This path is engineered to minimize resistance and ensure a steady, uninterrupted flow. The pump’s diaphragm plays a key role here, as its rhythmic motion creates a vacuum that pulls fuel through the system. The outlet port’s position and diameter are optimized to match the carburetor’s requirements, typically delivering fuel at a pressure of 2 to 5 psi, depending on the engine model. Proper alignment and secure connections at this stage are vital to prevent leaks or pressure drops.
Understanding this flow path highlights the importance of maintenance and troubleshooting. For instance, if fuel pressure is insufficient, inspect the check valve for debris or the diaphragm for wear. Pilots should also be aware of the pump’s priming requirements, especially after extended periods of inactivity, to ensure air is purged from the system. By focusing on this specific sequence—entry, check valve passage, and exit—operators can diagnose issues more effectively and maintain optimal fuel delivery to the carburetor.
Bypassing Honda Civic Fuel Pump Relay: A Step-by-Step DIY Guide
You may want to see also
Explore related products
Pressure Regulation: Internal spring and diaphragm balance pressure, ensuring consistent fuel delivery to the engine
The Lycoming fuel pump's pressure regulation system is a marvel of mechanical simplicity, ensuring that the engine receives a consistent fuel supply regardless of external conditions. At its core, this system relies on the delicate interplay between an internal spring and a diaphragm. When the engine demands fuel, the diaphragm flexes in response to the pressure differential between the fuel inlet and outlet. This movement is counterbalanced by the internal spring, which exerts a precise force to maintain the desired pressure. The result? A steady flow of fuel that adapts seamlessly to the engine’s needs, whether idling or operating at full throttle.
Consider the practical implications of this design. For instance, during takeoff, when fuel demand spikes, the diaphragm compresses further, allowing more fuel to pass through. Conversely, at cruise altitude, where fuel requirements are lower, the spring’s resistance increases, reducing flow to match the engine’s reduced demand. This dynamic balance is critical for preventing fuel starvation or over-pressurization, both of which could lead to engine failure. Pilots and mechanics alike appreciate this reliability, as it minimizes the risk of in-flight emergencies caused by inconsistent fuel delivery.
To understand the system’s precision, imagine calibrating a scale to measure exact weights. The spring in the Lycoming fuel pump acts similarly, providing a predictable force that corresponds to specific pressure levels. This calibration is factory-set, typically to maintain a fuel pressure of 3–5 psi (pounds per square inch), ensuring optimal atomization and combustion in the engine’s cylinders. Deviations from this range can cause poor performance, so the spring’s role is non-negotiable. Regular inspection of the diaphragm for wear or leaks is essential, as even minor damage can disrupt the balance and compromise fuel delivery.
A comparative analysis highlights the superiority of this mechanical system over electric fuel pumps, which often rely on external regulators. In Lycoming’s design, the regulation is integrated, reducing the number of failure points. This simplicity translates to lower maintenance costs and greater longevity, particularly in harsh aviation environments. For aircraft owners, this means fewer unscheduled repairs and a more predictable operational budget. It’s a testament to the principle that sometimes, the most effective solutions are the simplest ones.
Finally, a descriptive walkthrough of the process underscores its elegance. As fuel enters the pump, it presses against the diaphragm, which bows inward. The spring resists this motion, creating a tension that stabilizes the pressure. This equilibrium is maintained through every phase of flight, from ground operations to high-altitude cruising. For mechanics troubleshooting fuel delivery issues, understanding this interaction is key. By testing the spring’s tension and inspecting the diaphragm’s integrity, they can diagnose problems swiftly and restore the pump to optimal function. In aviation, where precision is paramount, this internal balancing act is nothing short of essential.
Mastering Fuel Pump Timing: Step-by-Step Adjustment Guide for Optimal Performance
You may want to see also
Explore related products
Maintenance and Troubleshooting: Regular inspection for leaks, diaphragm wear, and proper priming to ensure reliability
Regular inspection of a Lycoming fuel pump is critical to prevent failures that can ground an aircraft. Start by checking for fuel leaks around the pump body, fittings, and diaphragm cover plate. Even a small leak can lead to fuel starvation or contamination, compromising engine performance. Use a dye penetrant or soapy water to detect leaks under pressure, and replace seals or gaskets immediately if any are found. Inspect the diaphragm for cracks, tears, or excessive wear, as a compromised diaphragm can lead to inefficient fuel delivery. Lycoming recommends replacing the diaphragm every 1,200 to 1,500 hours of operation, depending on usage conditions.
Proper priming is another essential aspect of fuel pump maintenance. Inadequate priming can lead to air pockets in the fuel system, causing the engine to run lean or stall. To prime the pump, operate the primer until a steady flow of fuel is observed at the drain valve. Ensure the primer is in good condition, as a faulty primer can mimic pump failure symptoms. Always follow the manufacturer’s priming procedure, as improper technique can damage the pump or introduce air into the system.
Comparing the Lycoming fuel pump to other designs highlights the importance of its maintenance. Unlike electric pumps, the Lycoming mechanical pump relies on engine-driven components, making regular inspection of its moving parts crucial. For instance, the rocker arm and cam follower should be checked for wear or misalignment, as these can affect pump performance. Unlike diaphragm pumps in automotive applications, aviation fuel pumps operate in harsher conditions, requiring more stringent maintenance schedules.
Troubleshooting a Lycoming fuel pump involves systematic checks to isolate issues. If the engine fails to start or runs rough, verify fuel pressure using a gauge. Low pressure may indicate a worn diaphragm, clogged inlet screen, or faulty check valve. High pressure could signal a stuck valve or blocked outlet. Always cross-reference symptoms with Lycoming’s troubleshooting guide, as misdiagnosis can lead to unnecessary part replacements. For example, a weak primer bulb might mimic pump failure, so test the primer independently before disassembling the pump.
Finally, preventive maintenance is key to ensuring reliability. Establish a routine inspection schedule based on flight hours or calendar time, whichever comes first. Clean the fuel screen during every oil change to prevent debris buildup, and inspect the pump drive mechanism for proper engagement. Keep detailed records of inspections and replacements, as these can help identify trends or recurring issues. By adhering to these practices, pilots and mechanics can minimize downtime and maintain the fuel pump’s critical role in safe aircraft operation.
Crown Vic Fuel Pump Reliability: How Often Does It Fail?
You may want to see also
Frequently asked questions
A Lycoming fuel pump is a mechanical diaphragm pump driven by the engine's camshaft. It draws fuel from the tank, pressurizes it, and delivers it to the carburetor or fuel injection system, ensuring a consistent fuel supply for combustion.
Lycoming uses a mechanical diaphragm-type fuel pump, which is powered by the engine's camshaft via a lobe that actuates the pump's diaphragm, creating suction and pressure to move fuel.
Yes, a Lycoming fuel pump can fail due to diaphragm wear, clogged filters, or mechanical damage. Symptoms include engine sputtering, loss of power, difficulty starting, or complete fuel starvation during operation.
Lycoming fuel pumps should be inspected during regular engine maintenance intervals, typically every 100-200 flight hours. Replacement is recommended if signs of wear, leakage, or reduced performance are detected, or as per the manufacturer's service bulletin.
