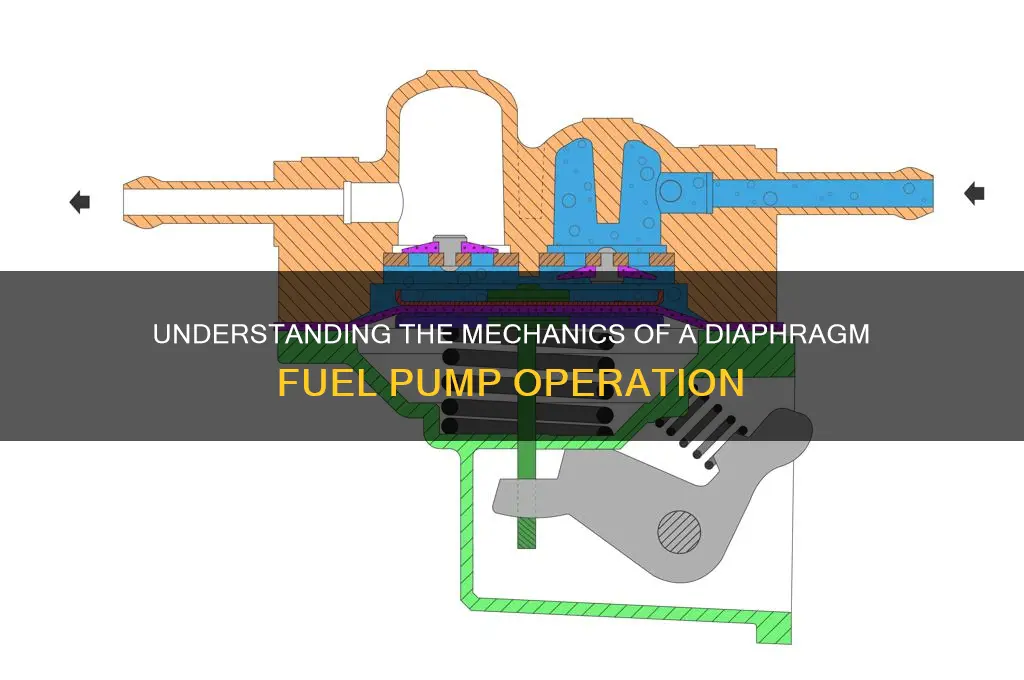

A diaphragm fuel pump operates by utilizing a flexible diaphragm to create a vacuum and pressure differential, enabling the transfer of fuel from the tank to the engine. Inside the pump, a reciprocating motion of the diaphragm, driven by a mechanical or electrical actuator, alternately expands and contracts the pump chamber. During the expansion phase, a vacuum is created, drawing fuel into the chamber through an inlet valve. When the diaphragm contracts, the fuel is pressurized and forced out through an outlet valve, delivering it to the engine. This design ensures a consistent and reliable fuel supply while minimizing the risk of leaks, making diaphragm pumps particularly suitable for applications requiring precise fuel metering and compatibility with various fuel types.
| Characteristics | Values |
|---|---|
| Pump Type | Positive Displacement |
| Operation Principle | Diaphragm Flexing |
| Fuel Flow Direction | Unidirectional (from inlet to outlet) |
| Power Source | Mechanical (camshaft-driven or electric motor) |
| Diaphragm Material | Typically rubber or synthetic elastomer |
| Valve Mechanism | Check valves (inlet and outlet) |
| Pressure Regulation | Internal spring or external regulator |
| Fuel Compatibility | Gasoline, diesel, ethanol blends |
| Maintenance | Low maintenance, periodic inspection |
| Advantages | Self-priming, quiet operation, resistant to vapor lock |
| Applications | Automotive, marine, small engines, agricultural equipment |
| Efficiency | High efficiency at low to moderate flow rates |
| Noise Level | Low compared to other fuel pump types |
| Size | Compact and lightweight |
| Cost | Relatively low compared to electric fuel pumps |
| Durability | Long lifespan with proper use and maintenance |
| Environmental Impact | Minimal emissions due to efficient fuel delivery |
Explore related products
What You'll Learn
- Diaphragm Movement: Pressure changes cause the diaphragm to flex, creating a pumping action
- Inlet Valve Operation: Allows fuel to enter the pump chamber during the intake stroke
- Outlet Valve Function: Ensures fuel exits the pump under pressure during the discharge stroke
- Check Valve Mechanism: Prevents fuel backflow, maintaining consistent flow direction
- Electric Actuation: Motor-driven mechanism powers diaphragm movement for fuel delivery
Diaphragm Movement: Pressure changes cause the diaphragm to flex, creating a pumping action
The diaphragm in a fuel pump is a flexible membrane, typically made of durable materials like nitrile or neoprene, designed to withstand the rigors of fuel systems. Its primary function is to respond to pressure changes, which are initiated by the pump’s actuation mechanism. When pressure decreases on one side of the diaphragm, it flexes inward, drawing fuel into the pump chamber. Conversely, when pressure increases, the diaphragm pushes outward, forcing fuel through the outlet. This alternating flexing motion is the core of the pumping action, ensuring a consistent flow of fuel from the tank to the engine. Understanding this mechanism is crucial for diagnosing issues like fuel delivery inconsistencies or pump failure.
To visualize this process, imagine a simple hand-operated diaphragm pump used in small engines or marine applications. As the lever is pulled, a vacuum is created on one side of the diaphragm, causing it to stretch and pull fuel into the chamber. Releasing the lever reverses the pressure, pushing the diaphragm back and expelling the fuel. In automotive diaphragm fuel pumps, this action is automated, often driven by a mechanical linkage connected to the engine’s camshaft or an electric motor. The precision of this movement is vital; even minor deviations in diaphragm flexibility or sealing can lead to inefficient fuel delivery, affecting engine performance.
One practical tip for maintaining diaphragm fuel pumps is to regularly inspect the diaphragm for signs of wear, such as cracks or thinning material. In agricultural or off-road vehicles, where pumps are exposed to harsh conditions, diaphragms may need replacement every 50,000 to 70,000 miles, depending on usage. Additionally, ensuring the pump’s inlet and outlet valves are free of debris is essential, as clogs can cause uneven pressure changes and strain the diaphragm. For DIY enthusiasts, replacing a diaphragm typically involves disassembling the pump housing, removing the old diaphragm, and installing a new one with a torque wrench to secure the housing bolts to manufacturer specifications.
Comparing diaphragm pumps to other fuel pump types, such as rotary or turbine pumps, highlights their unique advantages. Diaphragm pumps are self-priming, making them ideal for applications where the pump may be located above the fuel tank. They also handle low-pressure systems efficiently, which is why they’re commonly found in carbureted engines and small machinery. However, their reliance on mechanical movement means they may wear out faster in high-demand systems compared to electric fuel pumps. For those transitioning from a diaphragm pump to an electric one, it’s important to note that the latter requires a compatible fuel pressure regulator and wiring harness, adding complexity to the upgrade.
Finally, troubleshooting diaphragm movement issues often starts with checking for air leaks in the fuel lines or pump housing, as these can disrupt pressure changes and hinder diaphragm flexing. A common diagnostic test is to listen for a steady clicking or humming sound from the pump during operation, which indicates proper diaphragm movement. If the pump is silent or erratic, the diaphragm may be stuck or damaged. In such cases, using a fuel pressure gauge to measure output can confirm whether the issue lies with the diaphragm or another component. By focusing on the diaphragm’s role in pressure-driven flexing, mechanics and enthusiasts can pinpoint problems more accurately and ensure reliable fuel delivery.
Chrysler Pacifica 2005 Fuel Pump Count: A Comprehensive Guide
You may want to see also
Explore related products
Inlet Valve Operation: Allows fuel to enter the pump chamber during the intake stroke
The inlet valve is a critical component in the operation of a diaphragm fuel pump, serving as the gateway for fuel to enter the pump chamber during the intake stroke. This process is fundamental to the pump's ability to maintain a consistent fuel supply to the engine. As the diaphragm moves downward, it creates a vacuum within the pump chamber, causing the inlet valve to open. This opening allows fuel from the tank to be drawn into the chamber, ensuring that the pump is primed and ready for the subsequent compression stroke. Understanding this mechanism is essential for diagnosing and resolving common issues such as fuel starvation or airlock in the system.
Consider the analogy of a lung inhaling air to grasp the inlet valve's function. Just as the diaphragm in the human body expands to draw in air, the diaphragm in the fuel pump moves to create a low-pressure zone, prompting the inlet valve to open. This action is governed by the pressure differential between the fuel tank and the pump chamber. For optimal performance, the inlet valve must operate seamlessly, free from debris or wear that could impede its movement. Regular maintenance, including cleaning and inspection, can prevent valve failure, which often manifests as reduced fuel flow or engine hesitation.
From a practical standpoint, the inlet valve's operation is influenced by the fuel system's design and the engine's demands. In high-performance applications, such as racing or heavy-duty vehicles, the inlet valve must handle higher flow rates and pressures. For instance, a fuel pump in a turbocharged engine may require an inlet valve capable of processing up to 100 liters of fuel per hour to meet the increased fuel demand. Conversely, in smaller engines like those in motorcycles or lawnmowers, the inlet valve's capacity is scaled down but remains equally critical for smooth operation.
One common issue with inlet valves is contamination from dirt or rust particles in the fuel. These particles can cause the valve to stick or wear prematurely, leading to incomplete fuel intake and poor engine performance. To mitigate this, installing an inline fuel filter before the pump is recommended. Additionally, using fuel additives that clean the system can help maintain valve integrity. For DIY enthusiasts, replacing a faulty inlet valve typically involves disassembling the pump, a task that requires basic mechanical skills and a few common tools. Always refer to the manufacturer’s guidelines for specific instructions and safety precautions.
In conclusion, the inlet valve’s role in allowing fuel to enter the pump chamber during the intake stroke is a cornerstone of diaphragm fuel pump functionality. Its operation is influenced by pressure differentials, system design, and maintenance practices. By understanding this mechanism and addressing potential issues proactively, users can ensure reliable fuel delivery and extend the lifespan of their fuel pump. Whether in a high-performance vehicle or a small engine, the inlet valve’s proper function is indispensable for optimal performance.
Bypassing the Fuel Pump Switch in a 2004 Crown Victoria
You may want to see also
Explore related products
Outlet Valve Function: Ensures fuel exits the pump under pressure during the discharge stroke
The outlet valve in a diaphragm fuel pump is a critical component that ensures fuel is delivered efficiently and under the necessary pressure to the engine. During the discharge stroke, the diaphragm moves upward, compressing the fuel within the pump chamber. At this moment, the outlet valve’s role becomes paramount: it must open precisely to allow fuel to exit the pump while maintaining the pressure required for consistent engine performance. This function is not just about releasing fuel; it’s about controlling the flow to prevent backflow and ensure a steady supply under varying engine demands.
Consider the mechanics: as the diaphragm rises, it creates a pressure differential between the pump chamber and the fuel line. The outlet valve, typically a spring-loaded check valve, responds to this pressure by opening. The spring’s tension is calibrated to ensure the valve opens only when the pressure exceeds a specific threshold, usually around 3-5 psi for small engines. This calibration is crucial because it prevents fuel from leaking back into the pump during the intake stroke while allowing it to exit forcefully during discharge. Without this precise control, the engine could experience fuel starvation or inconsistent delivery, leading to poor performance or stalling.
From a practical standpoint, maintaining the outlet valve is essential for the pump’s longevity and efficiency. Over time, debris or varnish from fuel can cause the valve to stick or fail to seal properly. Regular inspection and cleaning, especially in older pumps or those used in dusty environments, can prevent such issues. For example, disassembling the pump and soaking the valve in a solvent like carburetor cleaner can dissolve buildup, ensuring it operates smoothly. Additionally, replacing the valve’s spring every 2-3 years or after 500 hours of operation can maintain optimal pressure control, particularly in high-demand applications like marine or agricultural engines.
Comparing the outlet valve to other pump components highlights its unique importance. While the inlet valve ensures fuel enters the pump, and the diaphragm generates pressure, the outlet valve is the gatekeeper of fuel delivery. Its failure can render the entire system ineffective, whereas issues with other parts might only reduce efficiency. For instance, a malfunctioning inlet valve might allow air into the system, causing hard starting, but a faulty outlet valve could completely halt fuel flow. This distinction underscores why understanding and maintaining the outlet valve is a priority for anyone working with diaphragm fuel pumps.
In conclusion, the outlet valve’s function in a diaphragm fuel pump is a blend of precision engineering and practical necessity. It ensures fuel exits under pressure during the discharge stroke, maintaining engine performance while preventing backflow. By understanding its mechanics, calibrations, and maintenance needs, users can optimize pump efficiency and avoid common issues. Whether for small engines, marine applications, or industrial use, the outlet valve’s role is indispensable, making it a focal point in the operation and care of diaphragm fuel pumps.
Mercury 115 Fuel Pump: Does the 1995 Model Have One?
You may want to see also
Explore related products
Check Valve Mechanism: Prevents fuel backflow, maintaining consistent flow direction
A critical component within a diaphragm fuel pump is the check valve mechanism, a simple yet ingenious device that ensures fuel flows in one direction only. This unidirectional flow is essential for maintaining consistent fuel delivery to the engine, preventing backflow that could lead to inefficiencies or even system failure. The check valve operates on a principle of pressure differentials, opening to allow fuel to pass when pressure is applied in the correct direction and closing tightly when pressure reverses, effectively sealing the pathway.
Consider the check valve as a one-way gate in a fuel system. When the diaphragm pump’s chamber expands, it creates a vacuum, drawing fuel through the inlet and past the check valve. As the diaphragm contracts, it pushes fuel toward the outlet, and the check valve ensures this fuel cannot return to the inlet side. This mechanism is particularly vital in systems where fuel must be delivered under varying pressures or where the pump cycles on and off, as in small engines or marine applications. Without it, fuel could siphon back, causing air pockets, inconsistent pressure, or even damage to the pump itself.
To visualize its operation, imagine a ball-and-seat design, a common type of check valve. The ball rests on a seat when pressure is equal or higher on the outlet side, sealing the passage. When pressure from the inlet exceeds that of the outlet, the ball lifts, allowing fuel to flow through. This design is both robust and reliable, requiring minimal maintenance while ensuring long-term functionality. For optimal performance, ensure the valve’s components are free from debris and corrosion, as even small obstructions can impair its sealing ability.
In practical terms, the check valve’s role extends beyond mere direction control. It also helps maintain prime in the fuel line, ensuring the pump doesn’t need to re-establish fuel flow each time it cycles. This is especially important in systems where fuel lines are long or prone to air infiltration, such as in agricultural machinery or generators. Regular inspection of the check valve should be part of routine maintenance, particularly in environments where fuel contamination is a risk. A failing check valve may exhibit symptoms like reduced fuel pressure, engine sputtering, or difficulty starting, signaling the need for replacement.
Finally, while the check valve is a small component, its impact on the overall efficiency and reliability of a diaphragm fuel pump cannot be overstated. By preventing backflow, it ensures that fuel reaches the engine consistently, optimizing combustion and power output. Whether in a lawnmower, boat, or industrial equipment, understanding and maintaining this mechanism is key to prolonging the life of the fuel system. Always refer to the manufacturer’s guidelines for specific maintenance intervals and replacement procedures, as these can vary depending on the application and operating conditions.
Understanding Marine Fuel Pumps: Operation, Components, and Maintenance Tips
You may want to see also
Explore related products
Electric Actuation: Motor-driven mechanism powers diaphragm movement for fuel delivery
Electric actuation in diaphragm fuel pumps represents a leap forward in precision and efficiency, driven by a motor-driven mechanism that powers the diaphragm’s movement for fuel delivery. Unlike traditional mechanical systems, this method relies on an electric motor to generate the force needed to flex the diaphragm, creating a vacuum that draws fuel into the pump and then pressurizes it for delivery. This approach eliminates the need for complex linkages or external power sources, making it ideal for applications where reliability and compactness are critical, such as in automotive or marine systems.
The motor-driven mechanism operates through a series of steps: first, the motor activates, turning a cam or eccentric wheel that pushes against the diaphragm. This action compresses the diaphragm, reducing the chamber volume and forcing fuel out of the pump. When the motor reverses or pauses, a spring or flexible material returns the diaphragm to its original position, creating a vacuum that draws fuel into the chamber. This cyclical process ensures a consistent and controlled flow of fuel, with delivery rates typically ranging from 2 to 10 liters per minute, depending on the pump’s design and motor speed.
One of the key advantages of electric actuation is its adaptability to modern vehicle systems. For instance, in electronic fuel injection setups, the motor’s speed and timing can be precisely controlled by an engine control unit (ECU), ensuring optimal fuel delivery under varying load conditions. This level of control is particularly beneficial in high-performance engines, where fuel demand fluctuates rapidly. Additionally, electric pumps are less prone to wear and tear compared to mechanical alternatives, as they have fewer moving parts and operate with reduced friction.
However, implementing electric actuation requires careful consideration of power consumption and thermal management. The motor must be efficient enough to minimize energy draw, especially in battery-powered vehicles, where every watt counts. Overheating is another concern, as continuous operation can generate excess heat, potentially damaging the pump or surrounding components. To mitigate this, manufacturers often incorporate heat sinks or cooling fins into the pump design, and some models include thermal sensors to shut down the motor if temperatures exceed safe thresholds (typically around 120°C).
In practical terms, installing an electric diaphragm fuel pump involves ensuring compatibility with the vehicle’s electrical system and fuel requirements. For DIY enthusiasts, it’s crucial to verify the pump’s voltage and amperage ratings match the vehicle’s power supply. Additionally, mounting the pump securely and using fuel lines rated for the specific fuel type (e.g., ethanol-blended gasoline) is essential to prevent leaks or failures. Regular maintenance, such as checking for diaphragm wear or motor noise, can extend the pump’s lifespan, ensuring reliable fuel delivery for years to come.
John Deere STX 38 Fuel Pump: Does It Exist?
You may want to see also
Frequently asked questions
A diaphragm fuel pump is a type of positive displacement pump that uses a flexible diaphragm to move fuel. Unlike electric or mechanical fuel pumps, it operates by creating a vacuum to draw fuel into the pump and then pressurizing it for delivery to the engine.
The pump creates suction by flexing the diaphragm inward, which increases the volume of the pump chamber. This action reduces pressure inside the chamber, causing fuel to be drawn in through the inlet valve due to the pressure difference.
The inlet valve allows fuel to enter the pump chamber during the suction phase, while the outlet valve prevents backflow and ensures fuel is pushed out under pressure during the compression phase. These valves are typically one-way, ensuring unidirectional fuel flow.
The diaphragm is actuated by a mechanical linkage, such as a lever or cam, which is often driven by the engine's motion. This movement causes the diaphragm to flex back and forth, alternately creating suction and pressure to move the fuel.
Diaphragm fuel pumps are reliable, simple in design, and resistant to contamination since the fuel does not come into contact with the pump's mechanical parts. They are also self-priming, making them suitable for applications where the fuel tank is located above the pump.
